Introduction
This manual provides detailed instructions for the safe and efficient operation, setup, and maintenance of your HoneyGuaridan SL900 Self-Cleaning Cat Litter Box. Please read this manual thoroughly before use and retain it for future reference.
Safety Information
General Safety Precautions
- Ensure the litter box is placed on a stable, level surface.
- Keep children and pets away from the device during cleaning cycles.
- Do not attempt to disassemble or repair the unit yourself. Contact customer support for assistance.
- Use only clumping cat litter as specified in this manual. Non-clumping litter can damage the mechanism.
- Do not submerge the base unit in water. The main body is IPX5 waterproof for rinsing, but the base with electronic components should only be wiped clean.
Integrated Safety Features
The HoneyGuaridan SL900 is equipped with multiple safety mechanisms to protect your pet:
- Motion Sensor: The cleaning cycle will immediately stop if your cat approaches or enters the litter box.
- Smart Weight Detection: Four built-in gravity sensors accurately monitor your cat's weight, ensuring safe operation and preventing accidental activation while a cat is inside.
- Open Design: The litter box maintains an open design during operation, enhancing cat comfort and reducing feelings of confinement.
- Hall Sensor: Ensures the globe is correctly positioned for enhanced safety during operation.
Image: Diagram showing the radar, hall, and weight sensors for safety operation.
The device also features dual power technology, combining a power supply with a 5000mAh rechargeable battery (sold separately) for up to 48 hours of uninterrupted operation during power outages.
Package Contents
Please verify that all components are present in the package:
- HoneyGuaridan SL900 Self-Cleaning Cat Litter Box Main Unit
- Power Adapter
- Waste Liner Bags (starter roll)
- Litter Mat
- Instruction Manual (this document)
Product Overview
The HoneyGuaridan SL900 is an advanced self-cleaning litter box designed for convenience and hygiene. Key features include a spacious interior, app control, and robust safety mechanisms.

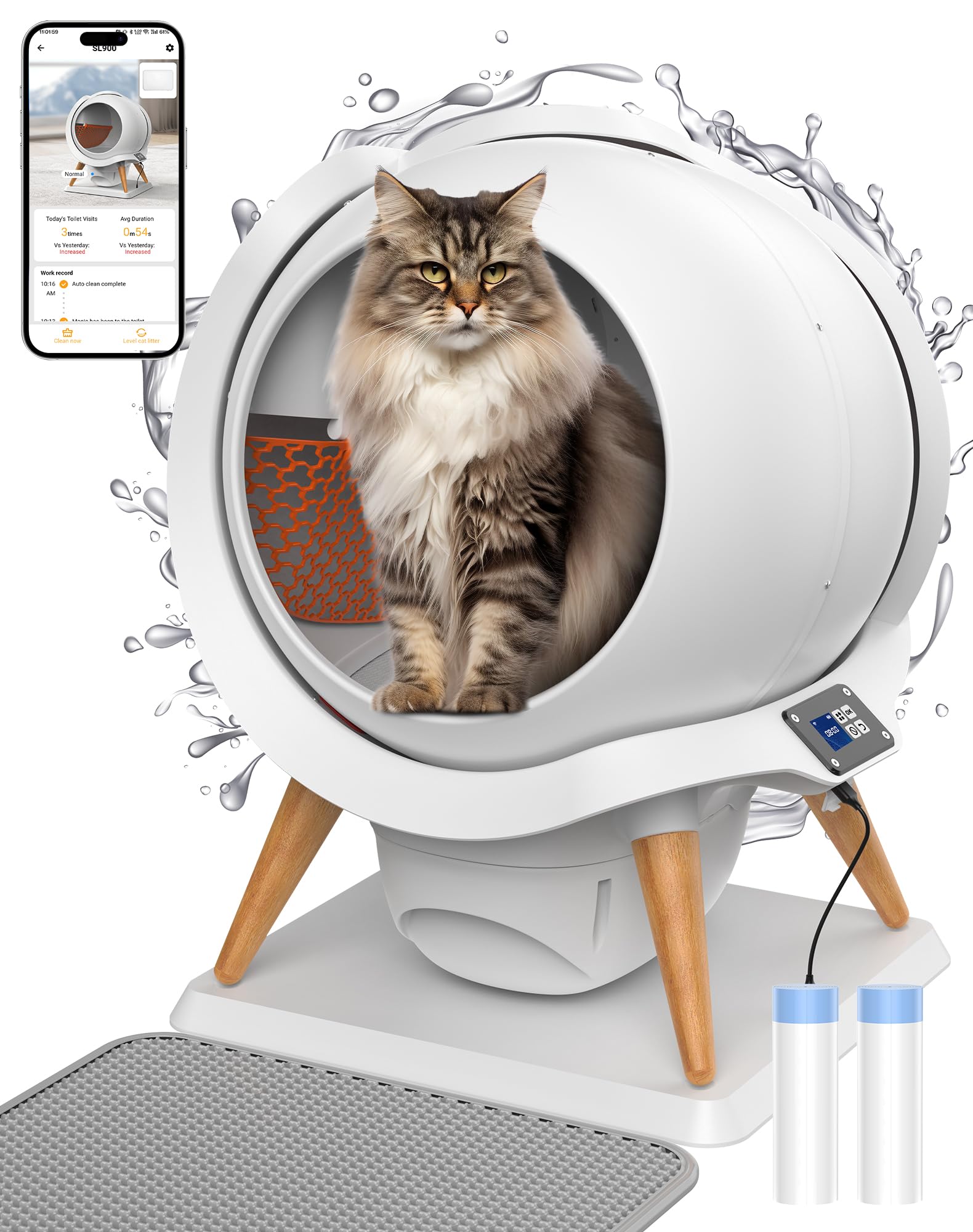

Image: The HoneyGuaridan SL900 Self-Cleaning Cat Litter Box, illustrating its design and app connectivity.
Key Components
- Main Globe: The rotating drum where the cat litter is held.
- Base Unit: Contains the motor, sensors, and waste drawer.
- Waste Drawer: Collects clumped waste.
- Control Panel: Digital display and buttons for manual operation.
- Power Port: For connecting the power adapter.
- Litter Mat: Helps reduce litter tracking.
Image: Dimensions of the litter box, highlighting the 13.6-inch entrance and capacity for up to 14 days of waste.
The spacious entrance (13.6 inches) accommodates cats weighing between 3 and 33 lbs, making it suitable for single or multiple cats.
Setup Instructions
- Unpacking: Carefully remove all components from the packaging.
- Placement: Place the base unit on a firm, level surface in a suitable location, away from direct sunlight or heat sources. Ensure there is enough space around the unit for proper ventilation and access.
- Install Legs (if separate): If the wooden legs are separate, screw them firmly into the designated slots on the base unit.
- Insert Waste Liner: Open the waste drawer and line it with a provided waste bag. Ensure the bag is securely fitted. Close the waste drawer.
- Add Cat Litter: Pour clumping cat litter into the main globe. Do not exceed the MAX fill line indicated inside the globe.
- Connect Power: Plug the power adapter into the power port on the back of the unit, then plug the adapter into a wall outlet. The unit will power on and perform an initial calibration cycle.
- App Connection (Optional but Recommended):
- Download the "HGsmart" app from your smartphone's app store.
- Create an account and follow the in-app instructions to connect your litter box to your 2.4GHz Wi-Fi network.
- The app allows for remote control, monitoring, and health tracking.
Operating Instructions
The HoneyGuaridan SL900 offers multiple operating modes for convenience.
Cleaning Modes
- Automatic Cleaning: The unit will automatically detect when your cat has used the litter box and initiate a cleaning cycle after a set delay (typically 1-15 minutes, adjustable via app).
- Manual Cleaning: Press the "Clean" button on the control panel or use the app to initiate a cleaning cycle at any time.
- Timed Cleaning: Schedule specific cleaning times via the "HGsmart" app.
- Kitten Mode: For young cats, cleaning is manually controlled by the owner to ensure extra safety and allow kittens to acclimate to the device. This mode can be activated via the app.
Image: Illustrates smart control and health tracking capabilities via the mobile application.
App Control and Monitoring
The "HGsmart" app provides comprehensive control and insights:
- Remote Cleaning: Initiate cleaning cycles from anywhere.
- Waste Bin Full Alerts: Receive notifications when the waste drawer needs emptying.
- Cat Health Tracking: The app identifies and tracks each cat's weight, toilet frequency, and duration, helping to monitor their health.
- Settings Adjustment: Customize cleaning delays, activate Kitten Mode, and manage other preferences.
Image: The HGsmart app interface displaying cat activity data and alerts.
Power Outage Functionality
In the event of a power outage, the litter box can continue to operate for up to 48 hours using a separately purchased 5000mAh rechargeable battery. This ensures continuous service for your cats.
Maintenance
Daily Maintenance
- Empty Waste Drawer: When the app or control panel indicates the waste drawer is full, or approximately every 7-14 days depending on cat usage, remove and dispose of the waste bag. Replace with a new liner.
- Check Litter Level: Ensure the litter level is maintained between the MIN and MAX lines. Add fresh clumping litter as needed.
Regular Cleaning (IPX5 Waterproof Design)
The HoneyGuaridan SL900 features an IPX5 waterproof main body and base, allowing for thorough cleaning.
Image: The litter box being cleaned with a water gun, showcasing its IPX5 waterproof capability.
- Disconnect Power: Always unplug the unit from the power outlet before cleaning.
- Remove Main Globe: The main globe is designed to be tool-free and detachable. Carefully remove it from the base unit.
- Rinse: The main globe can be rinsed directly with water, including using a hose or water gun. Ensure all litter residue is removed.
- Clean Base Unit: The base unit, while water-resistant, should be wiped clean with a damp cloth. Do not submerge the base unit in water.
- Dry Thoroughly: Ensure all components are completely dry before reassembling and reconnecting power.
Litter Compatibility
The HoneyGuaridan SL900 is compatible with most types of clumping cat litter. Litter particles with a length less than 10mm are acceptable.
- Tofu Litter
- Bentonite Litter
- Mineral Litter
- Mixed Litter
Reminder: Not suitable for non-clumping litter.
Image: Illustration of compatible clumping litter types and how they are filtered.
Troubleshooting
If you encounter issues with your HoneyGuaridan SL900, please refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit not powering on. | Power adapter not connected, power outlet issue, or battery (if installed) is depleted. | Ensure power adapter is securely plugged in. Test the outlet with another device. If using battery, check charge level or connect to main power. |
| Cleaning cycle not starting automatically. | Motion sensor obstructed, cat still inside, or unit in Kitten Mode. | Check for obstructions around the sensor. Ensure no cat is inside. Verify operating mode in the app. |
| Waste not being properly scooped. | Litter level too low/high, incorrect litter type, or mechanism obstruction. | Adjust litter level. Ensure you are using clumping litter. Check for large clumps or foreign objects obstructing the scooping mechanism. |
| App not connecting to the device. | Incorrect Wi-Fi password, 5GHz Wi-Fi network, or device too far from router. | Verify Wi-Fi password. Ensure your router is broadcasting a 2.4GHz network (the device only supports 2.4GHz). Move the litter box closer to the Wi-Fi router. |
| Excessive litter tracking. | Cat exiting quickly, or litter mat not positioned correctly. | Ensure the included litter mat is placed directly in front of the entrance. Consider a different litter type if tracking persists. |
For further assistance, please contact HoneyGuaridan customer support.
Specifications
| Feature | Detail |
|---|---|
| Model Name | SL900 |
| Brand | HoneyGuaridan |
| Product Dimensions (LxWxH) | 22 x 23 x 23 inches |
| Item Weight | 22 pounds (approx. 10 Kilograms) |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Color | White |
| Litter Box Type | Automated Self-Cleaning Litter Box |
| Waterproof Rating | IPX5 (Main body and base) |
| Target Audience | House Cats (3-33 lbs) |
| Wi-Fi Compatibility | 2.4GHz only |
| Battery Backup (Optional) | 5000mAh rechargeable battery (48-hour operation, sold separately) |
| Noise Level | ≤35dB DC motor |
Warranty and Support
Your HoneyGuaridan SL900 Self-Cleaning Cat Litter Box comes with a 1-year warranty from the date of purchase.
For warranty claims, technical support, or any questions regarding your product, please contact HoneyGuaridan customer service through their official website or the contact information provided with your purchase.
You can also visit the HoneyGuaridan Store on Amazon for more product information and accessories.
