Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Aoxun 10' x 14' Wall Mounted Gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference. This gazebo is designed to provide a shaded outdoor space, featuring a durable carbon steel frame, a polycarbonate roof for UV protection, and integrated LED lighting.
Safety Information
Always follow the provided instructions for assembly, installation, and use. Ensure the gazebo is securely wall-mounted with expansion bolts to withstand various weather conditions. Do not use the gazebo in windy or stormy conditions. Keep the area around the gazebo clear of debris and obstructions. Always supervise children and pets when using the gazebo.
- Ensure all components are present and undamaged before assembly.
- Wear appropriate safety gear during assembly (gloves, eye protection).
- Do not attempt to assemble alone; a minimum of two to three people is recommended.
- Verify the structural integrity of the wall where the gazebo will be mounted.
- Regularly inspect the gazebo for loose connections or damage.
Setup and Assembly
The Aoxun Wall Mounted Gazebo requires assembly. It is recommended that two to three people work together to complete the assembly, which typically takes two to three hours. Detailed, step-by-step instructions are included in the packaging. Ensure you have all necessary tools before starting.
Key Structural Features for Assembly
The gazebo features a robust design for stability and durability. Pay close attention to these elements during assembly:
- Triangular Structure: The dual triangular structure enhances the stability and durability of the hardtop terrace.
- Metal Leg Support: Equipped with four pre-drilled holes for easy connection to any type of flooring and secure installation.
- Multiple-column Support: Multiple aluminum tubes provide robust support for the top panel.
- Wall-mounted: Four screws are used to connect the unit to the wall, enhancing stability and enabling resistance against harsh weather conditions.

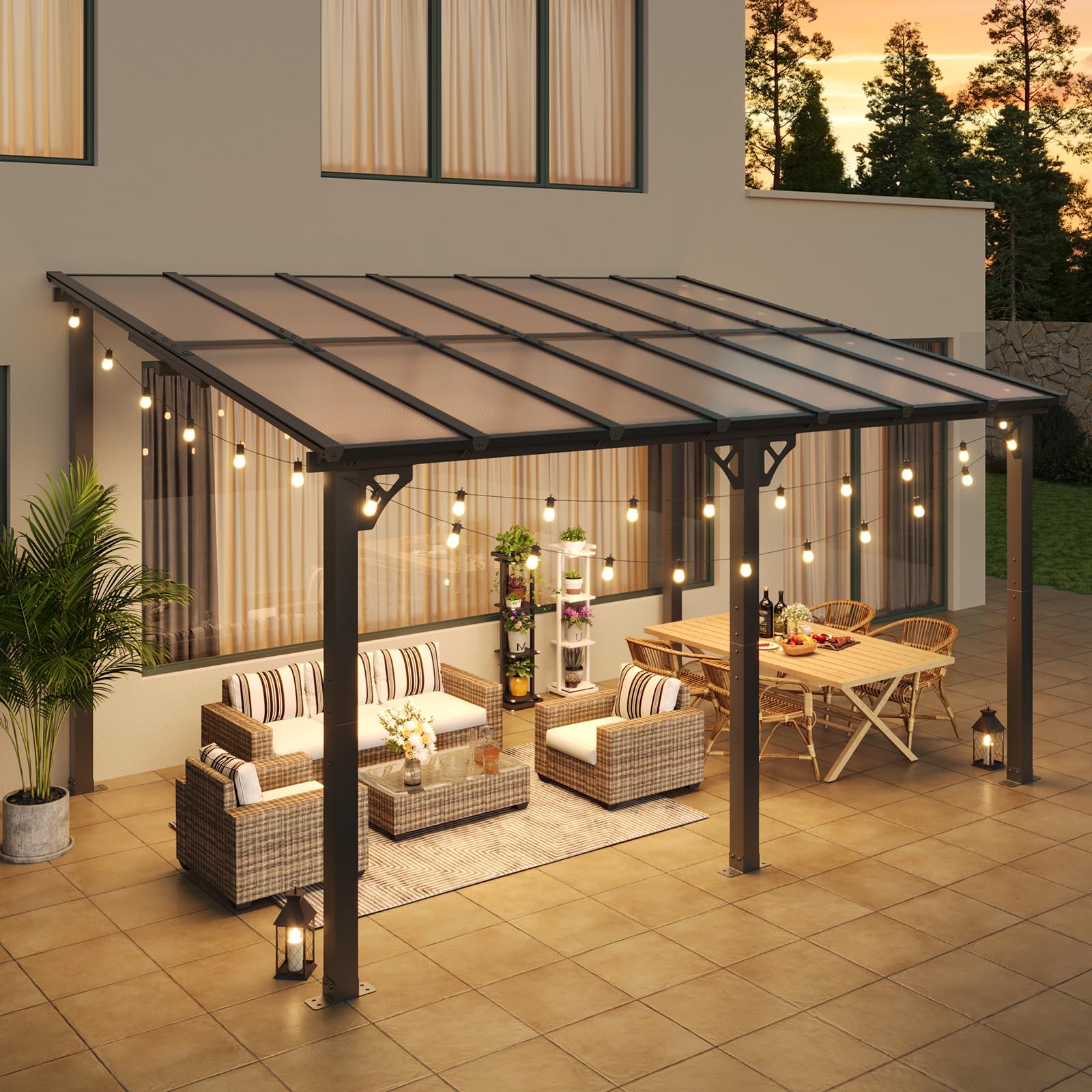

Figure 1: Gazebo designed for various weather conditions, offering UV protection, waterproofing, and rust resistance.
Figure 2: Overview of key structural and material features, including fire resistance and high load-bearing capacity.
Figure 3: Close-up of critical assembly points and structural components.
LED Light Installation
The included LED outdoor waterproof hanging lights. Follow the separate instructions provided with the lights for proper installation and connection. Ensure all connections are secure and waterproof.
Operating Instructions
Once assembled and securely mounted, your Aoxun gazebo provides a functional outdoor space. The polycarbonate top reflects 99% of UV rays, offering significant UV protection. The sloped roof design and integrated drainage holes ensure efficient rainwater runoff, preventing accumulation.
Using the LED Lights
The included LED lights are designed for outdoor use and are waterproof. They are typically solar-powered or battery-operated, providing illumination for extended periods. Refer to the specific light instructions for details on charging, activation, and usage modes.
Figure 4: The Aoxun Gazebo with LED lights, enhancing evening ambiance.
Maintenance
Regular maintenance will extend the lifespan and ensure the continued safety of your gazebo.
- Cleaning: Clean the polycarbonate roof and carbon steel frame periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the materials.
- Inspection: Annually, or after severe weather, inspect all bolts, screws, and connections to ensure they are tight and secure. Check for any signs of rust, wear, or damage to the frame or roof panels.
- Drainage: Ensure drainage holes are clear of debris to allow for proper water runoff.
- Winter Care: While the gazebo is designed to be rust-resistant and withstand snow, it is advisable to clear heavy snow accumulation from the roof to prevent excessive stress on the structure.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Difficulty during assembly | Instructions unclear, missing parts, or incorrect orientation of components. | Review the illustrated instructions carefully. Ensure all parts are correctly identified and oriented. If parts are missing or damaged, contact customer support. |
| Gazebo feels unstable after assembly | Loose connections, improper wall mounting, or insufficient anchoring. | Verify all bolts and screws are tightened. Ensure the gazebo is securely mounted to the wall using appropriate expansion bolts and that all leg supports are anchored to the ground. |
| Water accumulation on roof | Drainage holes blocked or roof panels not correctly aligned. | Clear any debris from the drainage holes. Check that roof panels are installed according to instructions to maintain the proper slope for runoff. |
| LED lights not working | Battery not charged, faulty connection, or damaged light unit. | Ensure lights have sufficient charge (if solar/battery). Check all electrical connections. If issues persist, refer to the LED light manual or contact support. |
Specifications
Figure 5: Product dimensions and LED light specifications.
| Feature | Detail |
|---|---|
| Brand | Aoxun |
| Model Number | G30030+SL401BK02-ZJ |
| Size | 14'x10' (164.16 x 117.6 inches) |
| Item Dimensions (L x W x H) | 164.16 x 117.6 x 98.64 inches |
| Color | Black With Light |
| Material Type | Carbon Steel (Frame), Polycarbonate (Roof) |
| Item Weight | 168 Pounds |
| Roof Load Bearing | 55 lbs/㎡ |
| Required Assembly | Yes (2-3 people, 2-3 hours recommended) |
| LED Lights Included | Yes (26 bulbs + 2 spare, Warm Yellow, 5V, 2700 Kelvin, 72ft total wire length) |
Warranty and Support
Your Aoxun Gazebo is sold by Aoxun Direct. For any missing parts, damaged components, or general inquiries, please contact Aoxun Direct customer support. The product typically includes a 30-day return policy. For specific warranty details, please refer to the documentation included with your purchase or contact the seller directly.
Contact Information: Please refer to your purchase receipt or the seller's information on the platform where the product was purchased for direct contact details.
