1. Important Safety Information
Please read and understand all safety instructions before assembly and use of the carport. Failure to follow these instructions may result in injury or damage to the product.
- This carport is designed to withstand winds up to 100 MPH and has a snow load capacity of 35 PSF. Do not use this carport in areas with frequent high winds exceeding 100 MPH or snow loads exceeding 35 PSF.
- Always secure the carport to the ground using the provided stakes to prevent movement or collapse, especially in windy conditions.
- This carport is not fire-resistant. Keep all heat sources, open flames, and flammable materials away from the carport structure.
- Ensure the assembly area is clear of obstructions and hazards.
- Assembly requires multiple individuals for safety and ease of installation.
- Regularly inspect the carport for any signs of damage, loose connections, or wear. Address any issues promptly.
2. Product Overview
The Real Relax 12'x20' Heavy Duty Metal Carport provides robust protection for vehicles and outdoor equipment. It features a high-strength galvanized metal frame and durable 180g PE removable sidewalls, designed to offer resistance against various weather conditions.
Image 2.1: The Real Relax 12'x20' Heavy Duty Metal Carport with a vehicle inside.
Key features include:
- Stable and Durable Construction: High-strength galvanized frame for rust resistance, designed to withstand strong winds and snow loads.
- 180g PE Sidewalls: Wear-resistant, tear-resistant, waterproof, and dustproof for comprehensive protection. Sidewalls are removable for versatility.
- Reinforced Base: Equipped with 5 robust ground stakes on each side to enhance foundation grip and stability.
- Waterproof Design: Galvanized steel panels, waterproof bonding tape, and sealed screw points with metal washers prevent water entry.

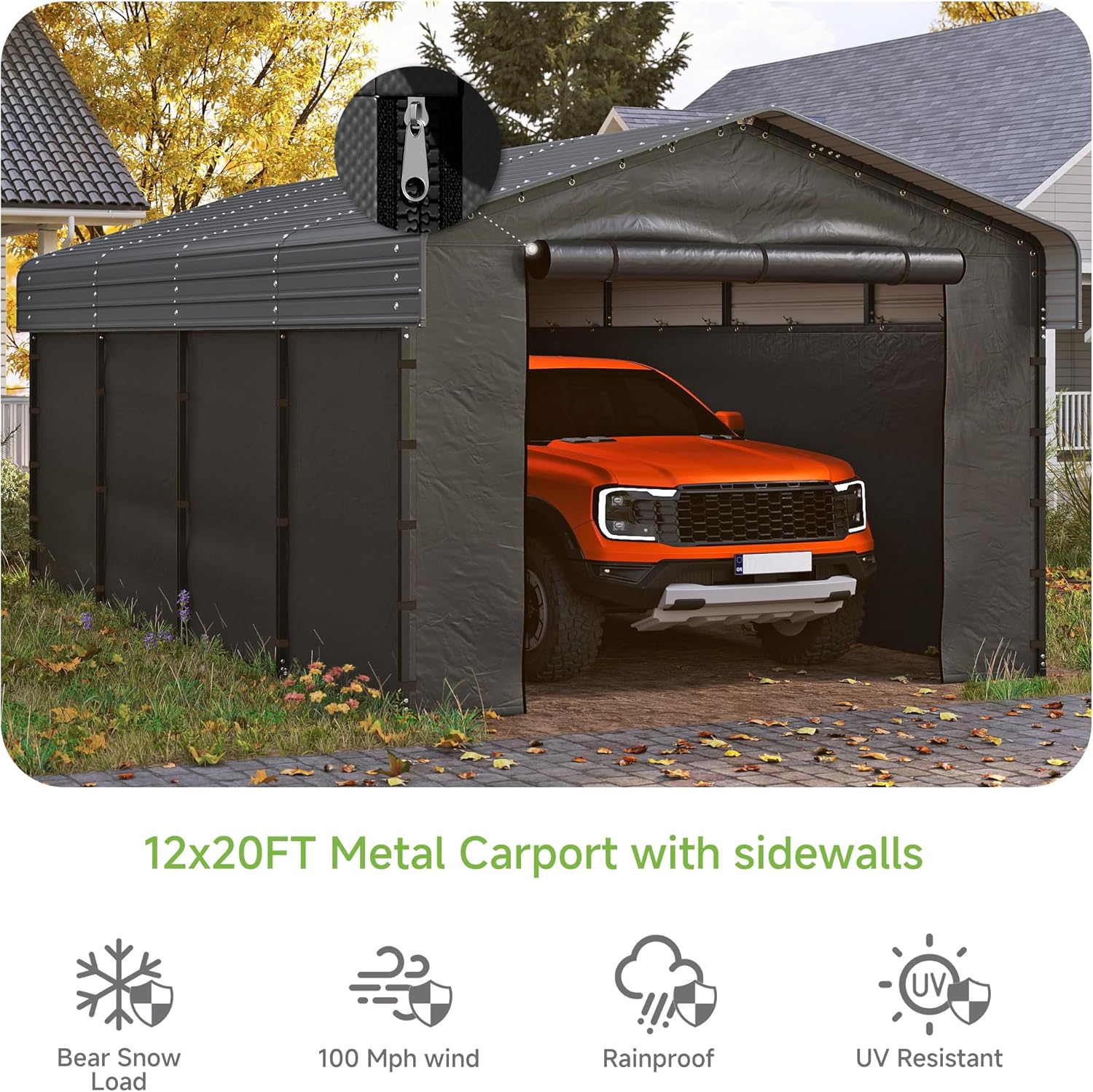

Image 2.2: Visual representation of the carport's weather resistance features.
3. Package Contents
The Real Relax 12'x20' Heavy Duty Metal Carport is shipped in multiple boxes, typically three, which may arrive on different days. Please verify all components are present before beginning assembly.

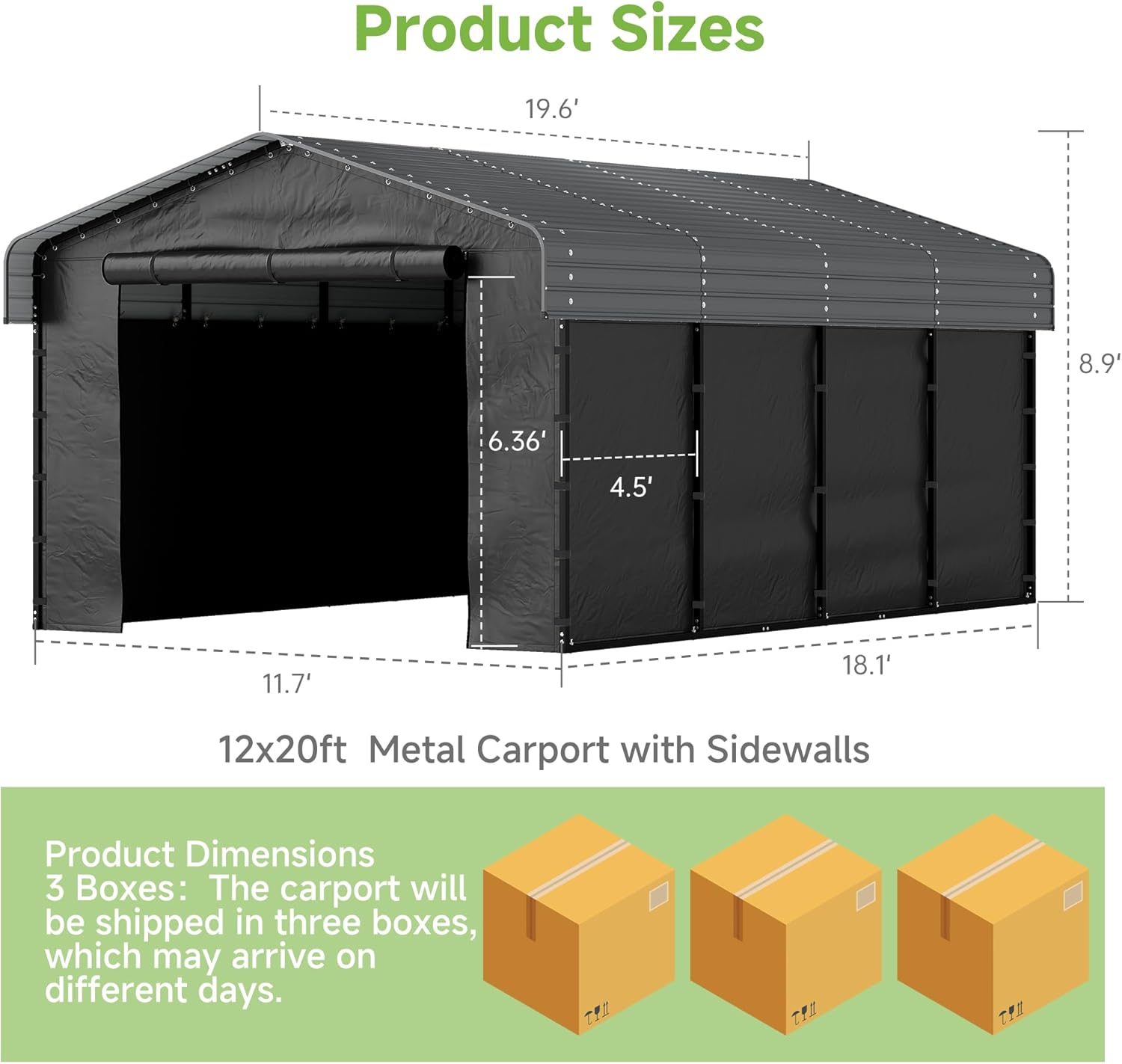

Image 3.1: Product dimensions and indication of multi-box shipment.
Expected components include:
- Galvanized Steel Frame Components (poles, connectors, arches)
- Galvanized Roof Panels
- 180g PE Sidewalls (removable)
- Ground Stakes (5 per side)
- Fasteners (screws, bolts, washers)
- Waterproof Bonding Tape
- Assembly Tools (basic wrench, hex key - specific tools may vary)
- Instruction Manual
4. Setup and Assembly
Assembly of the carport requires careful attention to detail and adherence to the provided instructions. It is recommended to have at least 2-3 people for efficient and safe assembly.
4.1 Site Preparation
- Select a flat, level surface for installation to ensure stability and proper drainage.
- Clear the area of any debris, rocks, or sharp objects that could damage the sidewalls or interfere with the frame.
- Ensure adequate space around the carport for assembly and future access.
4.2 Assembly Steps
- Assemble the Frame: Connect the galvanized steel poles and arches according to the detailed diagrams in the separate assembly guide. Ensure all connections are secure.
- Install Roof Panels: Carefully place the galvanized roof panels onto the assembled frame. Use the provided screws and waterproof bonding tape to seal all seams and screw points, preventing water leakage.
- Attach Sidewalls: Secure the 180g PE sidewalls to the frame. The sidewalls are designed for easy installation and removal using attachment points.
- Secure to Ground: Install the 5 robust ground stakes on each side of the base. Ensure they are firmly anchored into the ground to provide maximum stability against wind.
Image 4.1: Simplified assembly sequence for the carport.
Image 4.2: Details of the carport's structural components and galvanization process.
5. Operation and Usage
The Real Relax Carport is designed for versatile use, providing protection and shelter for various items and activities.
5.1 Intended Uses
- Vehicle Shelter: Ideal for cars, trucks, motorcycles, and boats, protecting them from sun, rain, snow, and dust.
- Outdoor Storage: Suitable for storing garden tools, furniture, firewood, and other outdoor equipment.
- Event Shelter: Can be used as a temporary shelter for outdoor gatherings, parties, weddings, or commercial exhibitions.
Image 5.1: Examples of multiple uses for the carport.
5.2 Sidewall Functionality
The removable PE sidewalls offer flexibility in usage:
- With Sidewalls: Provides maximum protection from elements, including sun exposure, which can help reduce the interior temperature of vehicles.
- Without Sidewalls: Allows for an open canopy design, suitable for events or when less enclosure is desired.

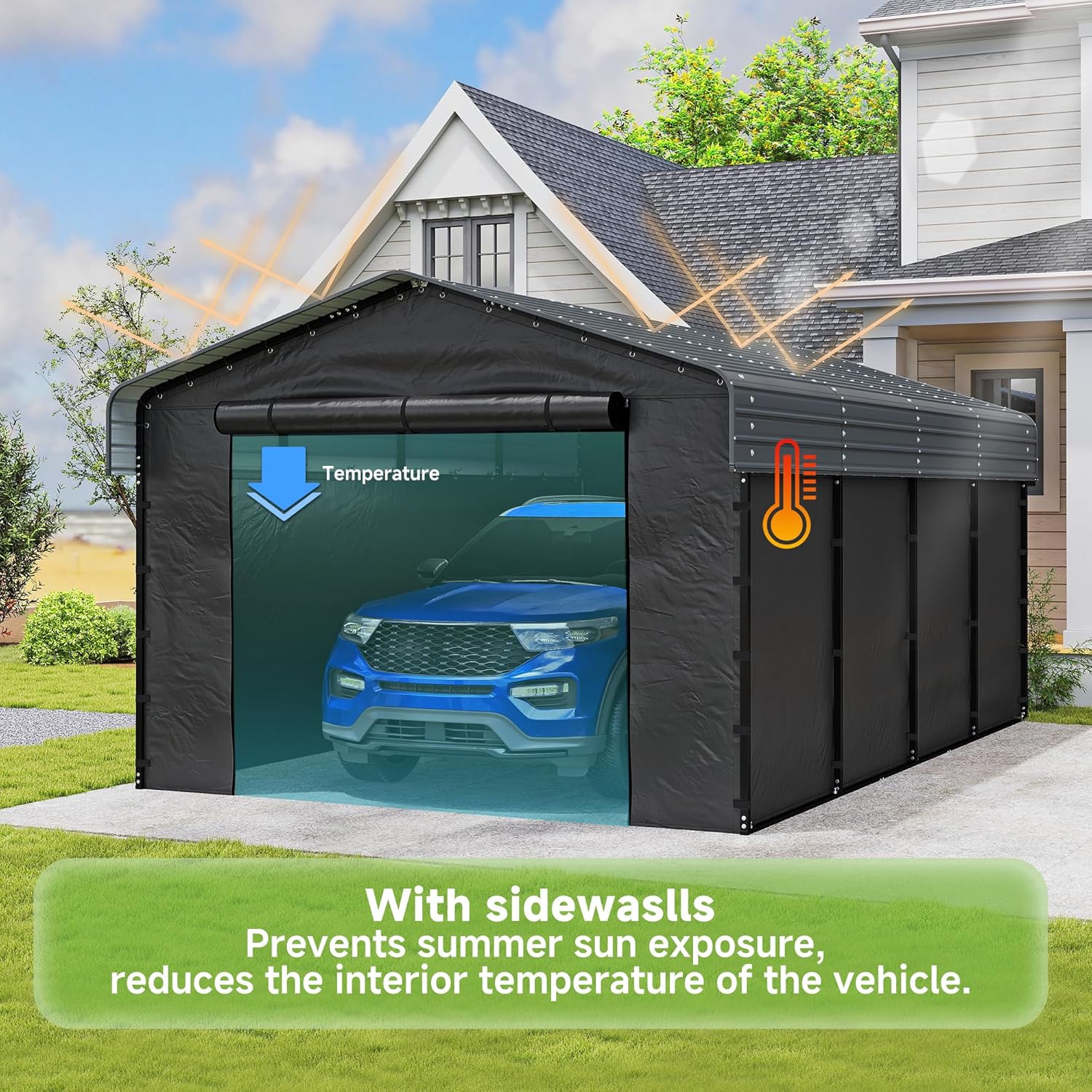

Image 5.2: Carport with sidewalls demonstrating temperature regulation.
6. Maintenance
Proper maintenance will extend the lifespan of your Real Relax Carport and ensure its continued performance.
- Cleaning: Clean the PE sidewalls and galvanized roof panels periodically with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the materials.
- Inspection: Regularly inspect all frame connections, screws, and ground stakes for tightness and signs of corrosion or damage. Tighten any loose fasteners.
- Sidewall Care: If sidewalls are removed for storage, clean them thoroughly and ensure they are completely dry before folding and storing in a cool, dry place to prevent mold or mildew.
- Snow Removal: In areas with heavy snowfall, regularly remove accumulated snow from the roof to prevent excessive load and potential damage.
- Wind Precautions: In anticipation of severe weather or high winds, ensure all ground stakes are securely fastened and consider adding additional anchoring if necessary.
7. Troubleshooting
This section addresses common issues that may arise during the use of your carport.
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leakage from roof | Improper sealing of roof panels or screw points; bent panels. | Ensure all roof panel overlaps are properly sealed with waterproof bonding tape. Verify all screws are tightened and sealed with metal washers. Inspect panels for damage and contact support if severely bent. |
| Carport instability or swaying | Ground stakes not fully secured; loose frame connections. | Confirm all 5 ground stakes on each side are firmly anchored. Check and tighten all bolts and screws connecting the frame components. Ensure installation on a level surface. |
| Missing or damaged parts upon delivery | Shipping error or manufacturing defect. | Review the package contents list against received items. Contact Real Relax customer support immediately with details of missing or damaged components. |
| Difficulty with assembly | Unclear instructions; insufficient personnel. | Refer to the detailed assembly guide. Ensure at least 2-3 people are assisting with assembly. Contact customer support for clarification if needed. |
8. Specifications
Detailed specifications for the Real Relax 12'x20' Heavy Duty Metal Carport.
| Feature | Detail |
|---|---|
| Brand | Real Relax |
| Model Number | DBB-CP1220-H090-1 |
| Product Dimensions | 217"L x 140"W x 100"H (approximately 18.1'L x 11.7'W x 8.3'H) |
| Floor Area | 240 Square Feet |
| Frame Material | Galvanized Steel (Alloy Steel) |
| Roof Material | Galvanized Steel Panels |
| Sidewall Material | 180g PE (Polyethylene) |
| Color | Gray |
| Item Weight | 326 Pounds |
| Water Resistance Level | Waterproof |
| Ultraviolet Light Protection | Yes |
| Wind Resistance | Up to 100 MPH |
| Snow Load Capacity | 35 PSF |
| Assembly Required | Yes |
9. Warranty and Support
For warranty information, specific terms, or to address any product-related inquiries, please contact Real Relax customer support. Keep your purchase receipt and model number (DBB-CP1220-H090-1) readily available when contacting support.
Real Relax offers various protection plans for extended coverage, which can be purchased separately. Details regarding these plans are available through the retailer.
For assistance, please visit the Real Relax Store or contact their customer service department.
