SADENICEL Queen Bed Frame User Manual

1. Safety Information

Please read and understand all instructions before assembly and use. Keep this manual for future reference.

• Do not exceed the maximum weight capacity of 800 pounds.
• Be cautious of sharp edges and metal slats during assembly and use.
• Always follow the assembly instructions carefully to prevent instability or injury.
• Use appropriate tools for assembly.
• Ensure all bolts and screws are securely tightened before use.

2. Package Contents

The SADENICEL Queen Bed Frame is carefully packed in one box. Verify all components are present before beginning assembly.

• Headboard with 2-Tier Storage Shelf
• Metal Frame Components
• 10 Metal Slats
• 9 Metal Legs
• 4 Storage Drawers with Rolling Wheels
• LED Light Strip (pre-installed in headboard)
• Power Strip with 2 AC Outlets, 1 USB Port, 1 Type-C Port (pre-installed in headboard)
• Assembly Hardware (screws, bolts, Allen wrench)
• Remote Control for LED Lights
• Installation Instruction Manual

3. Specifications

Note: Dimensions are approximate and may vary slightly.

Image: Detailed dimensions of the SADENICEL Queen Bed Frame.

4. Assembly Instructions

Follow these steps carefully for proper assembly. All parts and tools are marked with letters or numbers for your convenience.

4.1. Headboard Assembly

1. Attach the side frames to the main headboard panel using the provided screws and Allen wrench. Ensure the power strip and LED light connections are accessible.
2. Secure the top shelf to the headboard frame.

4.2. Bed Frame Assembly

3. Connect the side rails to the assembled headboard and footboard using the designated hardware.
4. Install the central support beam and its legs.
5. Place the metal slats across the frame. The hook and loop closure metal slats make it easier to secure.
6. Ensure all connections are tight and stable.

4.3. Drawer Assembly

7. Attach the rolling wheels to the bottom of each wire drawer basket.
8. Connect the wooden front panel to each drawer basket.
9. Slide the assembled drawers under the bed frame.

Image: Illustration of the easy assembly process for the metal slats.

4.4. Assembly Video Guide

5. Product Features

5.1. Integrated Charging Station

The headboard features a built-in power strip for convenient device charging. It includes:

• 2 AC Outlets
• 1 USB Port
• 1 Type-C Port

This allows you to charge up to 4 devices simultaneously directly from your bed.

Image: Close-up view of the headboard's integrated charging station with AC, USB, and Type-C ports.

5.2. RGB LED Lighting

The headboard is equipped with RGB LED lights to enhance your bedroom ambiance. Features include:

• 12 selectable colors
• 0%-100% brightness adjustment
• 4 scene modes
• Timing function
• Speed adjustment for dynamic modes

The LED lights can also serve as a night light.

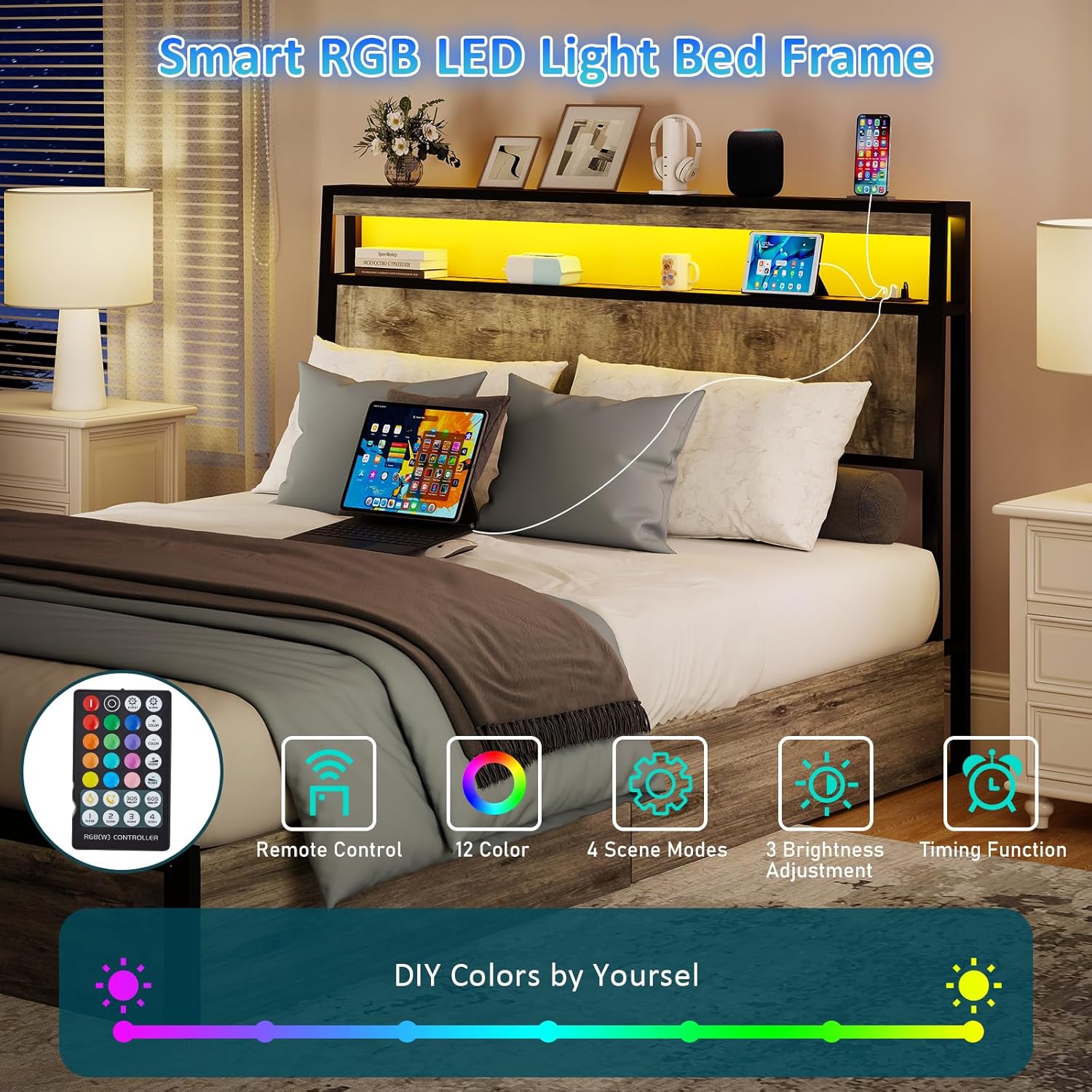

Image: The headboard illuminated with RGB LED lights, showcasing various color options.

5.3. Multi-Functional Storage Space

The bed frame offers extensive storage solutions:

• 4 Spacious Sliding Drawers: Located under the bed, these drawers provide ample space for organizing sheets, quilts, pillows, seasonal clothing, and other items. They feature rolling wheels for easy access.
• 2-Tier Storage Shelf on Headboard: Ideal for storing small items such as iPads, mobile phones, glasses, books, and decorative pieces.

Image: View of the four large capacity drawers with rolling wheels, designed for under-bed storage.

5.4. Sturdy Metal Structure & Noise-Free Design

The bed frame is constructed with an all-metal frame support system for durability and stability.

• 10 metal slats and 9 metal legs provide robust support, capable of holding up to 800 lbs.
• Equipped with special EVA silent sponge on the slats to minimize friction and prevent squeaking, ensuring a quiet sleeping experience.
• Embedded design helps to enclose the mattress and prevent slipping.

Image: Illustration highlighting the sturdy metal structure and 800 lbs weight capacity.

Image: Close-up of the EVA mute stickers on the metal slats designed to prevent noise.

5.5. Product Overview Video

6. Operating Instructions

6.1. Using the LED Lights

The LED lights are controlled by the included remote control.

• Power On/Off: Press the power button on the remote.
• Color Selection: Use the color buttons to choose from 12 different colors.
• Brightness Adjustment: Use the brightness up/down buttons to adjust the light intensity (0%-100%).
• Mode Selection: Select from 4 scene modes for dynamic lighting effects.
• Speed Adjustment: For dynamic modes, adjust the speed of the light changes.
• Timing Function: Set a timer for the lights to automatically turn off.

6.2. Using the Charging Station

Plug the bed frame's power cord into a wall outlet. You can then use the 2 AC outlets, 1 USB port, and 1 Type-C port on the headboard to charge your electronic devices.

7. Maintenance

To maintain your bed frame, follow these simple care instructions:

• Wipe surfaces with a dry cloth to remove dust and debris.
• Avoid using harsh chemicals or abrasive cleaners, as these may damage the finish.
• Periodically check all bolts and screws to ensure they remain tight. Re-tighten if necessary.

8. Troubleshooting

8.1. Squeaking Noises

• Ensure all assembly bolts and screws are securely tightened.
• Verify that the EVA silent sponges are correctly placed on the metal slats.

8.2. LED Lights Not Working

• Check if the bed frame's main power cord is securely plugged into a functional wall outlet.
• Ensure the LED light strip is properly connected within the headboard.
• Replace the remote control battery if necessary.

8.3. Charging Station Not Functioning

• Confirm the bed frame's main power cord is plugged into a live electrical outlet.
• Test the outlet with another device to ensure it is working.
• Ensure devices are properly connected to the USB, Type-C, or AC ports.

9. Warranty and Support

For any questions, missing parts, or support needs, please contact SADENICEL customer service.

To contact us:

1. Log in to your Amazon account.
2. Select "Your Orders".
3. Find the order ID for your SADENICEL bed frame.
4. Click "Contact Seller".
