1. Product Overview
This manual provides instructions for the assembly, operation, and maintenance of the Little Cottage Co. 12x16 Classic Gambrel Barn with 6 ft. Sidewalls and Floor. This do-it-yourself precut kit offers a spacious and durable outdoor storage solution.
Key Features:
- Made in the USA: Designed and manufactured with quality craftsmanship.
- Durable Construction: Features 2x4 wood construction with 16 in. on-center stud spacing, built to withstand high winds and heavy snow loads. Includes 7/16 in. LP SmartSide siding with a 50-year limited warranty.
- Functional Design: Offers a 192 sq. ft. interior with large 60 in. W x 72 in. H pre-assembled double doors for easy access. Gable vents provide optimal ventilation.
- Easy Assembly: All wood components are pre-cut, labeled, and ready-to-assemble, accompanied by illustrated instructions and hardware.
- Complete Floor System: Includes a wood floor with treated 2x4 floor framing and 5/8 in. plywood flooring.
Image 1.1: Front view of the Little Cottage Co. 12x16 Classic Gambrel Barn Shed, showcasing its design and double doors.
2. Safety Information
Adhere to all safety precautions during assembly and use. Always wear appropriate personal protective equipment (PPE) such as safety glasses, gloves, and hearing protection. Ensure a stable and level work area. Keep children and pets away from the construction site. Consult local building codes and regulations before beginning construction.
3. Package Contents
Your Little Cottage Co. shed kit includes:
- Pre-cut and labeled wood components for walls, roof, and floor.
- Pre-assembled double doors with locking handle.
- Treated 2x4 floor framing and 5/8 in. plywood flooring.
- All necessary hardware for assembly.
- Illustrated instruction manual.
Items Not Included (Purchased Separately):
- Paint
- Shingles
- Drip edge
4. Setup and Assembly
The shed kit is designed for do-it-yourself assembly. Follow the detailed, illustrated instructions provided with your kit. No additional cutting of wood components is required.
Key Assembly Steps:
- Foundation Preparation: Ensure a level and stable foundation for the shed.
- Floor Assembly: Construct the floor using the treated 2x4 floor framing and 5/8 in. plywood.
- Wall Erection: Assemble and erect the pre-cut wall panels.
- Roof Framing: Install the gambrel roof trusses and sheathing.
- Door Installation: Attach the pre-assembled double doors.
- Finishing: Apply paint, shingles, and drip edge as desired (materials not included).

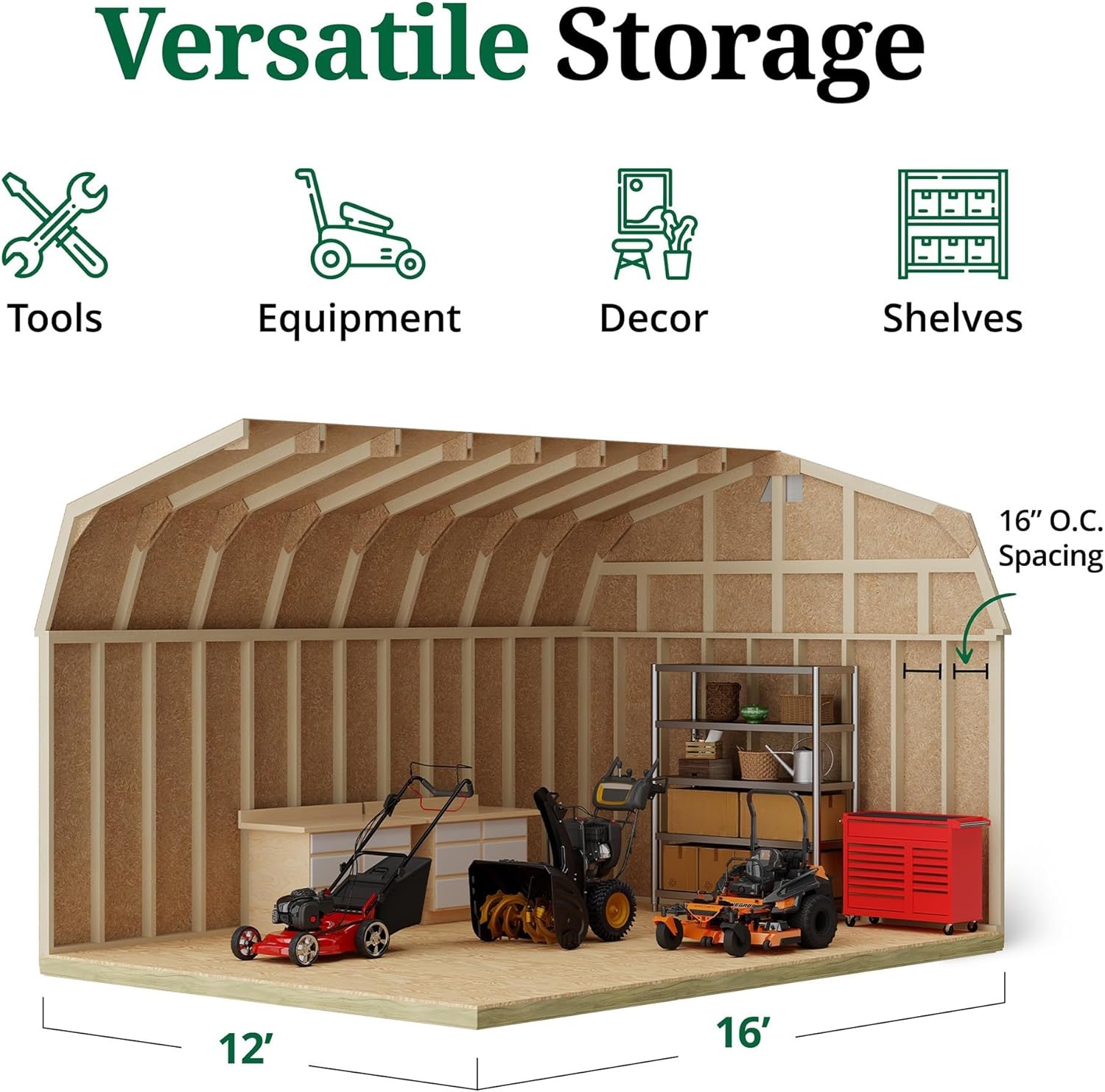

Image 4.1: Interior view of the shed illustrating the 2x4 framing with 16" O.C. spacing and potential storage arrangements.

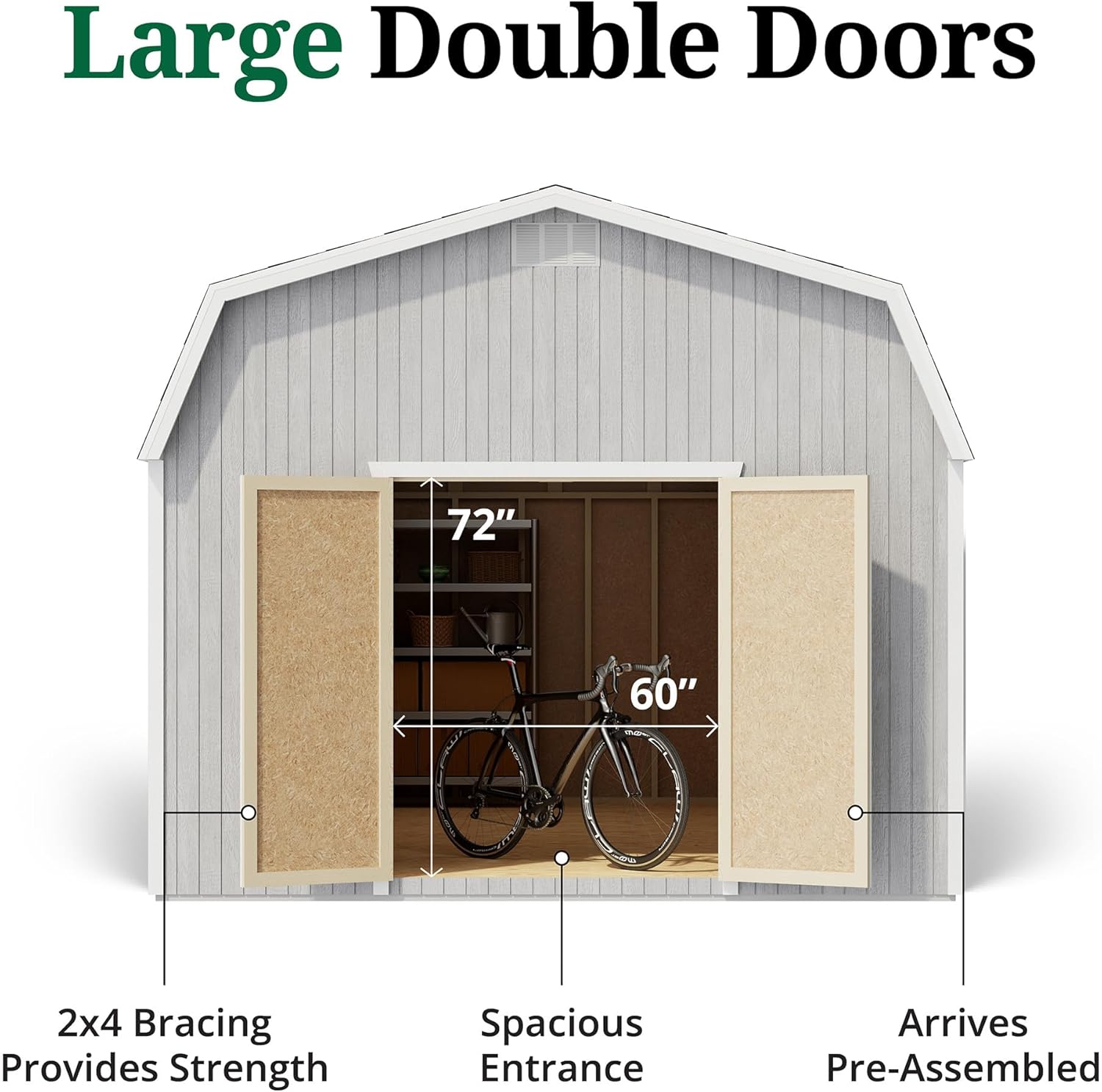

Image 4.2: Detail of the large double doors, measuring 60 inches wide by 72 inches high, reinforced with 2x4 bracing for strength.
5. Operation and Usage
This Classic Gambrel Barn is designed for versatile outdoor storage. Its spacious interior and large double doors allow for easy storage and retrieval of various items, including:
- Lawnmowers and riding lawnmowers
- Garden tools and equipment
- Seasonal decorations
- Shelving units for organized storage
The gambrel roof design provides extra headroom, maximizing usable storage volume.
Product Visualization
Video 5.1: A 360-degree view of a Classic Gambrel Barn with 4 ft. sidewalls, demonstrating the exterior design and overall structure. Note that the product in this manual features 6 ft. sidewalls.
6. Maintenance
Regular maintenance will ensure the longevity and appearance of your shed.
- Exterior Finish: The 7/16 in. LP SmartSide siding is primed and ready for paint. Apply a high-quality exterior paint to protect the wood and enhance its appearance. Reapply paint as needed based on environmental conditions.
- Roofing: Install shingles and drip edge (not included) to protect the roof structure. Inspect the roof periodically for damage or wear and perform repairs promptly.
- Ventilation: The built-in gable vents are designed to provide airflow and prevent moisture buildup. Ensure they remain clear of obstructions to maintain proper ventilation.
- Cleaning: Clean the exterior of the shed periodically with a mild detergent and water. Avoid harsh chemicals or abrasive cleaners.
Image 6.1: Detail of a built-in gable vent, designed to enhance airflow and prevent moisture accumulation inside the shed.
Image 6.2: The shed arrives primed and ready for customization with your choice of paint, shingles, and drip edge.
7. Troubleshooting
Should you encounter any issues during assembly or use, review the instruction manual to ensure all steps were followed correctly. Verify that all hardware is securely fastened. For persistent problems or missing components, contact Little Cottage Co. customer support.
8. Specifications
Detailed specifications for the Little Cottage Co. 12x16 Classic Gambrel Barn with 6 ft. Sidewalls:
| Feature | Detail |
|---|---|
| Brand | Little Cottage Co. |
| Model Number | 12x16 CGB-6-PC-FK |
| Product Dimensions (D x W x H) | 192"D x 144"W x 123.75"H |
| Floor Area | 192 Square Feet |
| Item Weight | 1516 Pounds |
| Material | Wood (LP SmartSide siding) |
| Base Material | Wood |
| Top Material Type | Wood |
| Water Resistance Level | Water Resistant |
| Door Style | Double Doors |
| Door Width | 60 Inches |
| Door Height | 72 Inches |
| Assembly Required | Yes |
| UPC | 810154732340 |

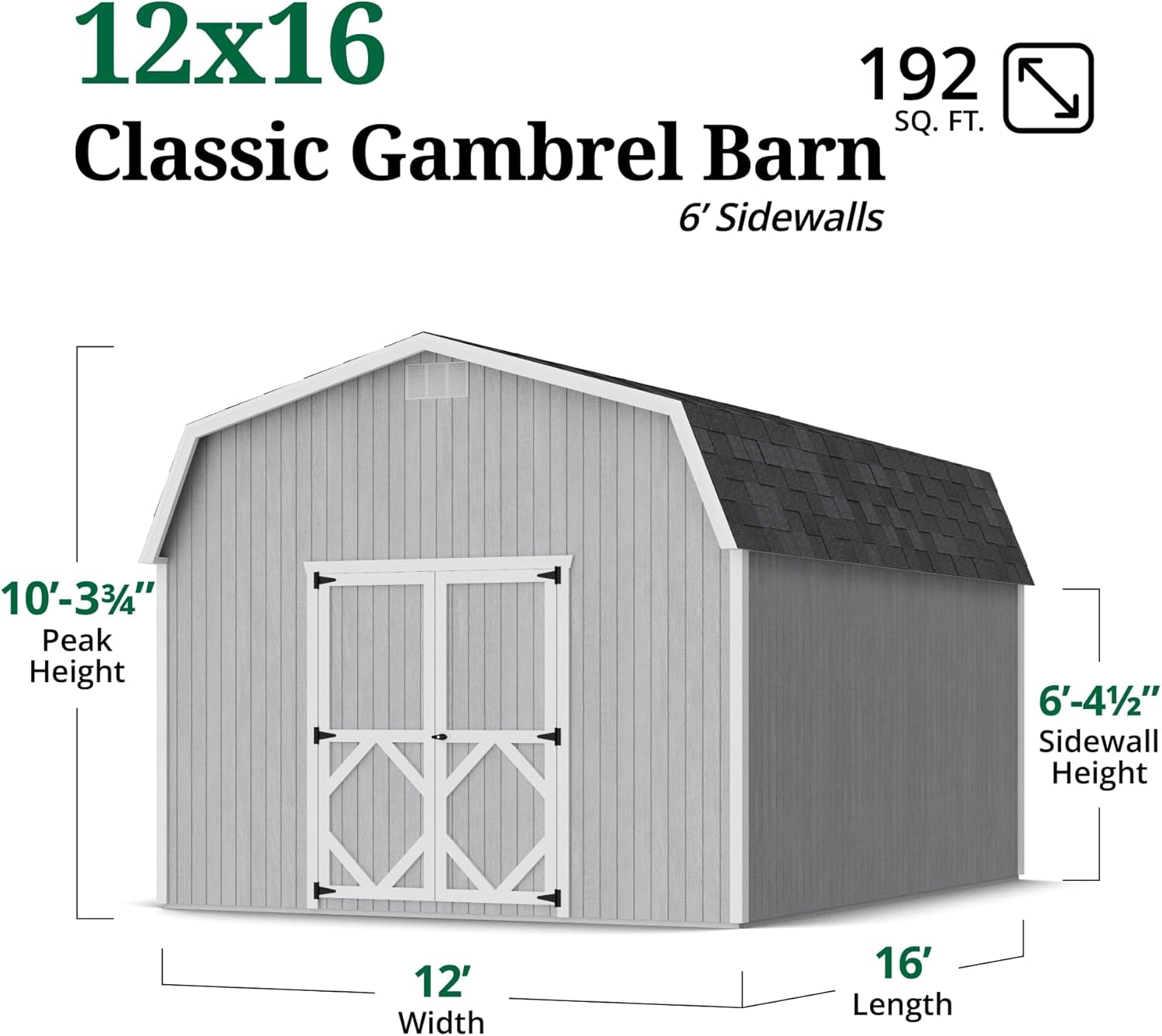

Image 8.1: Dimensional diagram of the 12x16 Classic Gambrel Barn, indicating width, length, sidewall height, and peak height.
Image 8.2: A table detailing dimensions for various Classic Gambrel Barn sizes with 6 ft. sidewalls, including square footage, sidewall height, and peak heights.
9. Warranty
The 7/16 in. LP SmartSide siding used in this kit is backed by a 50-year limited warranty. Refer to the warranty documentation included with your product for full terms and conditions.
10. Support
For technical assistance, questions regarding assembly, or to report missing/damaged parts, please contact Little Cottage Co. customer support. Contact information can be found on the packaging or the official Little Cottage Co. website.
