Introduction
This manual provides essential information for the proper installation, maintenance, and use of the Vutos JY018/JD-18 Foldable Drone Spare Part Propellers. These propellers are designed as direct replacements for the original components of the JY018 and JD-18 foldable drone models, ensuring optimal flight performance and stability. Please read these instructions carefully before attempting any installation or replacement.
Product Overview
The Vutos JY018/JD-18 drone propellers are precision-engineered components made from durable ABS plastic. They are crucial for the drone's lift and maneuverability. Each propeller is marked with either 'A' or 'B' (or A2/B2) to indicate its specific rotation direction and mounting position on the drone's motor arms. Correct installation of these propellers is vital for safe and stable flight.
Image: A full set of Vutos JY018/JD-18 drone propellers, typically supplied in sets of 36 pieces (9 sets of 4).
Setup and Installation
Proper installation of the propellers is critical for the drone's flight stability and safety. Always ensure the drone is powered off and the battery is disconnected before handling propellers.
- Identify Propeller Types: Each propeller is marked with either 'A' (or A2) or 'B' (or B2). The drone's motor arms are also typically marked to correspond with these propeller types.
- Match Propeller to Motor Arm:
- Propellers marked 'A' (or A2) rotate counter-clockwise.
- Propellers marked 'B' (or B2) rotate clockwise.
- Secure Installation: Gently push the propeller onto the motor shaft until it is firmly seated. Ensure there is no wobble or looseness. Some models may require a small screw to secure the propeller; if so, use the appropriate tool to tighten it without overtightening.
- Verify All Propellers: After installation, manually spin each propeller to ensure it rotates freely and does not rub against any part of the drone. Double-check that all 'A' propellers are on 'A' motor arms and 'B' propellers are on 'B' motor arms.

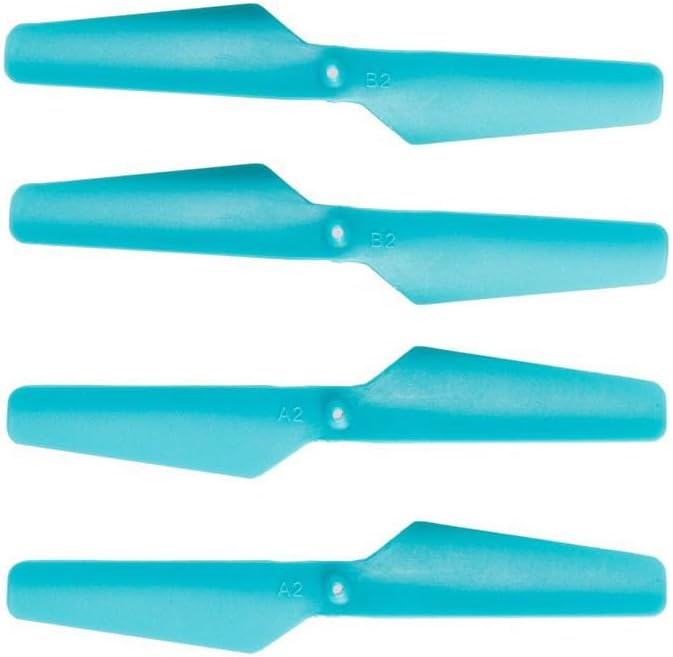

Image: Close-up view of two propellers, highlighting the 'A2' and 'B2' markings essential for correct installation.

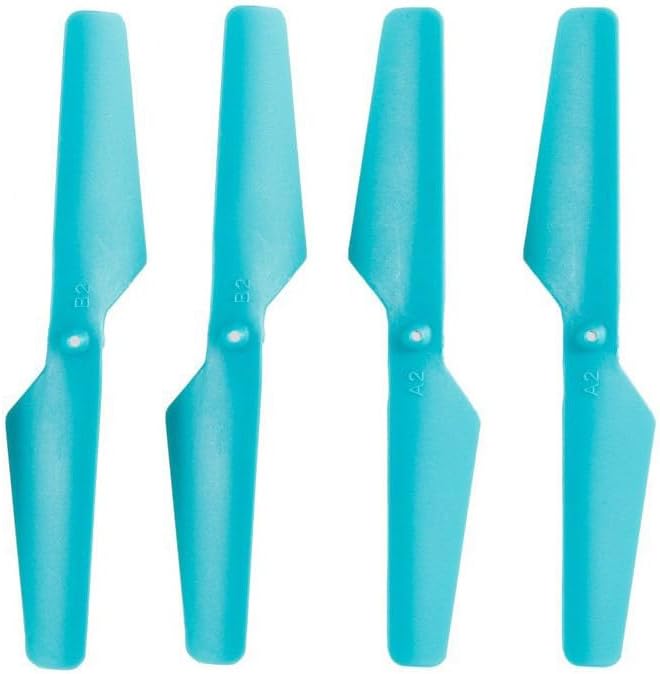

Image: Four propellers arranged to show the distinct 'A2' and 'B2' markings, indicating their specific rotation and placement.
Operating Considerations
Once installed, the propellers operate in conjunction with the drone's motors to generate lift and control. Ensure that no foreign objects are obstructing the propellers before and during flight. Always operate the drone in open areas, away from people and obstacles, to prevent damage to the propellers or injury.
Maintenance
Regular inspection and maintenance of your drone's propellers are crucial for safe and efficient operation.
- Visual Inspection: Before each flight, visually inspect all propellers for any signs of damage, such as cracks, bends, chips, or deformities. Even minor damage can significantly affect flight stability and potentially lead to a crash.
- Cleaning: If dust or debris accumulates on the propellers, gently wipe them clean with a soft, dry cloth. Avoid using harsh chemicals that could degrade the plastic material.
- Replacement: Replace any damaged or worn propellers immediately. Continuing to fly with damaged propellers can cause excessive vibration, motor strain, and loss of control. It is recommended to replace propellers in sets (e.g., all four) if one is significantly damaged, to maintain balance.
- Storage: Store spare propellers in a clean, dry place, away from direct sunlight and extreme temperatures, to preserve their material integrity.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Drone vibrates excessively during flight. | Damaged, bent, or unbalanced propeller. Incorrect propeller type installed. | Inspect all propellers for damage and replace as needed. Ensure correct 'A' and 'B' propellers are on their respective motor arms. |
| Drone does not lift off or drifts significantly. | Incorrect propeller installation (A/B swapped). Propellers not securely attached. | Verify that 'A' propellers are on 'A' motor arms and 'B' propellers are on 'B' motor arms. Re-seat all propellers firmly. |
| Propeller detaches during flight. | Propeller not securely attached to motor shaft. | Ensure propeller is pushed fully onto the motor shaft and any securing screws are tightened (if applicable). |
Specifications
- Product Name: Vutos JY018/JD-18 Foldable Drone Spare Part Propeller
- Model Number: JY018
- Material: ABS Plastic
- Compatibility: JY018 and JD-18 Foldable Drones
- Propeller Types: A (A2) and B (B2) for specific rotation directions
- Recommended Age: 12+ years
- Package Contents: As per choice (e.g., 36PCS/9Set)
Warranty and Support
These propellers are designed for durability and performance. For issues related to manufacturing defects, please contact your retailer or the manufacturer, Generic, for support. While specific warranty details for spare parts may vary, general product support is available. Consider purchasing extended protection plans for comprehensive coverage on your drone and its components.
For further assistance or inquiries, please refer to the contact information provided by your product vendor or the drone manufacturer.
