Introduction
Thank you for choosing the Kid Trax 12V ATV Electric Ride-On Toy. This manual contains important information regarding the assembly, operation, maintenance, and safety of your product. Please read all instructions carefully before allowing a child to operate the vehicle. Keep this manual for future reference.
Image: The Kid Trax 12V ATV Electric Ride-On Toy, Ice Blue variant.
Safety Information
WARNING: Adult supervision is required at all times. This product is not a toy for children under 3 years of age due to potential hazards.
- Age Range: Suitable for children aged 3 to 8 years.
- Maximum Weight Capacity: Do not exceed 77 lbs (35 kg).
- Always wear a helmet and safety gear when operating the vehicle.
- Operate only on level surfaces, away from roads, cars, steep inclines, swimming pools, or other bodies of water.
- Ensure the child remains seated while the vehicle is in motion.
- Do not allow more than one rider at a time.
- Keep hands, hair, and clothing away from moving parts.

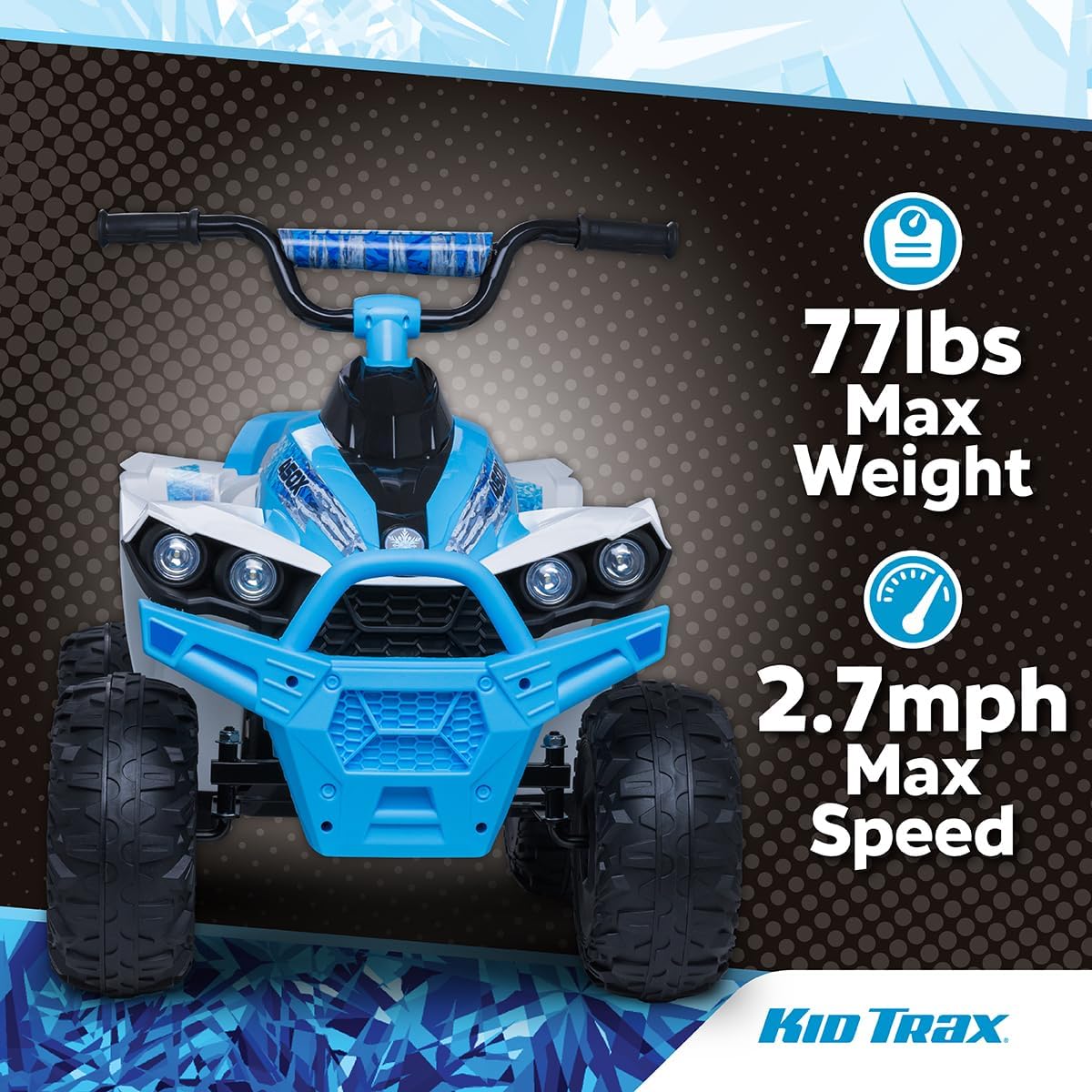

Image: Visual representation of the maximum weight capacity (77 lbs) and maximum speed (2.7 mph) for the ATV.
Setup
1. Unpacking and Assembly
Carefully remove all components from the packaging. Refer to the separate assembly guide included in the box for detailed step-by-step instructions. Ensure all parts are accounted for before beginning assembly.
2. Battery Charging
The vehicle is powered by a 12V rechargeable battery. Before first use, charge the battery for a minimum of 8-12 hours, but no more than 18 hours. Subsequent charges should also be 8-12 hours. Do not overcharge the battery.
- Connect the charger to the charging port on the vehicle.
- Plug the charger into a standard wall outlet.
- The charger indicator light will show charging status (refer to charger manual for specific light patterns).
3. Battery Installation
Once charged, install the battery according to the assembly instructions. Ensure all connections are secure to prevent power interruptions during operation.
Image: The Kid Trax 12V ATV highlighting the included 12V rechargeable battery and charger.
Operating Instructions
1. Controls
- Power Button: Press to turn the vehicle ON/OFF.
- Forward/Reverse Switch: Selects the driving direction.
- Speed Selector: Choose between high (FAST) and low (SLOW) speed settings. Maximum speed is 2.7 mph.
- Foot Pedal: Press to accelerate, release to brake.
2. Driving
Ensure the child is seated properly and wearing appropriate safety gear. Select the desired speed and direction, then press the foot pedal to begin movement. Release the pedal to stop. The ATV features LED headlights for enhanced visibility.
Image: Close-up of the ATV's controls, including the forward/reverse switch, speed selector (Fast/Slow), and illuminated LED headlights.
Image: A child wearing a helmet, operating the Kid Trax 12V ATV in an outdoor setting.
Maintenance
1. Cleaning
Wipe the vehicle with a damp cloth. Do not use abrasive cleaners or solvents. Avoid spraying water directly onto electrical components.
2. Battery Care and Storage
- Always recharge the battery after each use.
- If storing the vehicle for an extended period, charge the battery once a month to prolong its lifespan.
- Store the vehicle and battery in a dry, cool place.
- Do not store the battery in temperatures below freezing or above 100°F (38°C).
3. General Inspection
Regularly check for loose screws, damaged wires, or worn parts. Replace any damaged components immediately. Ensure tires are free from debris.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Vehicle does not move | Battery is low or dead | Recharge the battery for 8-12 hours. |
| Vehicle moves slowly | Low battery charge or overloaded vehicle | Recharge battery; ensure weight limit (77 lbs) is not exceeded. |
| Vehicle stops suddenly | Loose battery connection or thermal fuse tripped | Check battery connections. If thermal fuse, turn off vehicle, wait 20 minutes, then restart. |
| Charger gets warm during charging | Normal operation | This is normal. If it becomes excessively hot, unplug and contact support. |
Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 38" L x 24" W x 28" H |
| Item Weight | 35.7 pounds |
| Battery | 12V rechargeable battery (included) |
| Max Speed | 2.7 mph |
| Max Weight Capacity | 77 lbs |
| Recommended Age | 3-8 years |
| Playtime per Charge | 1-2 hours |
| Charge Time | 8-12 hours (initial charge 8-18 hours) |
| Features | Forward/Reverse functions, High/Low speed settings, LED Headlights |
Image: The Kid Trax 12V ATV with its key dimensions (Length, Width, Height) clearly marked.
Warranty Information
This product comes with a limited warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your product or visit the official Kid Trax website. Keep your proof of purchase for warranty claims.
Support
If you have any questions, require assistance with assembly, or need troubleshooting support, please contact Kid Trax customer service. Contact information can typically be found on the product packaging or the official Kid Trax website.
Online Resources: Visit the Kid Trax official website for FAQs, additional support materials, and contact options.
