Instruction Manual

Introduction

Thank you for choosing CFguang replacement belts. This manual provides essential information for the proper installation, operation, and maintenance of your new vacuum cleaner belts. Please read these instructions carefully before proceeding to ensure correct usage and to maintain the optimal performance of your Shark Classic Anti Hair Wrap Upright Pet Vacuum NZ801UKT.

Product Overview

These replacement belts are specifically designed to be compatible with the Shark Classic Anti Hair Wrap Upright Pet Vacuum NZ801UKT #132-3m-7. They are crucial components for the vacuum's brush roll system, ensuring effective cleaning and anti-hair wrap functionality.

• Compatibility: Specifically designed for Shark Classic Anti Hair Wrap Upright Pet Vacuum NZ801UKT #132-3m-7.
• Material: Made of premium rubber for durability and flexibility.
• Function: Helps maintain the effective anti-entanglement feature of your vacuum cleaner.
• Ease of Use: Designed for easy installation.

Image: Two replacement vacuum belts, illustrating their compact structure, smooth transmission, and construction from premium, safe, and eco-friendly rubber.

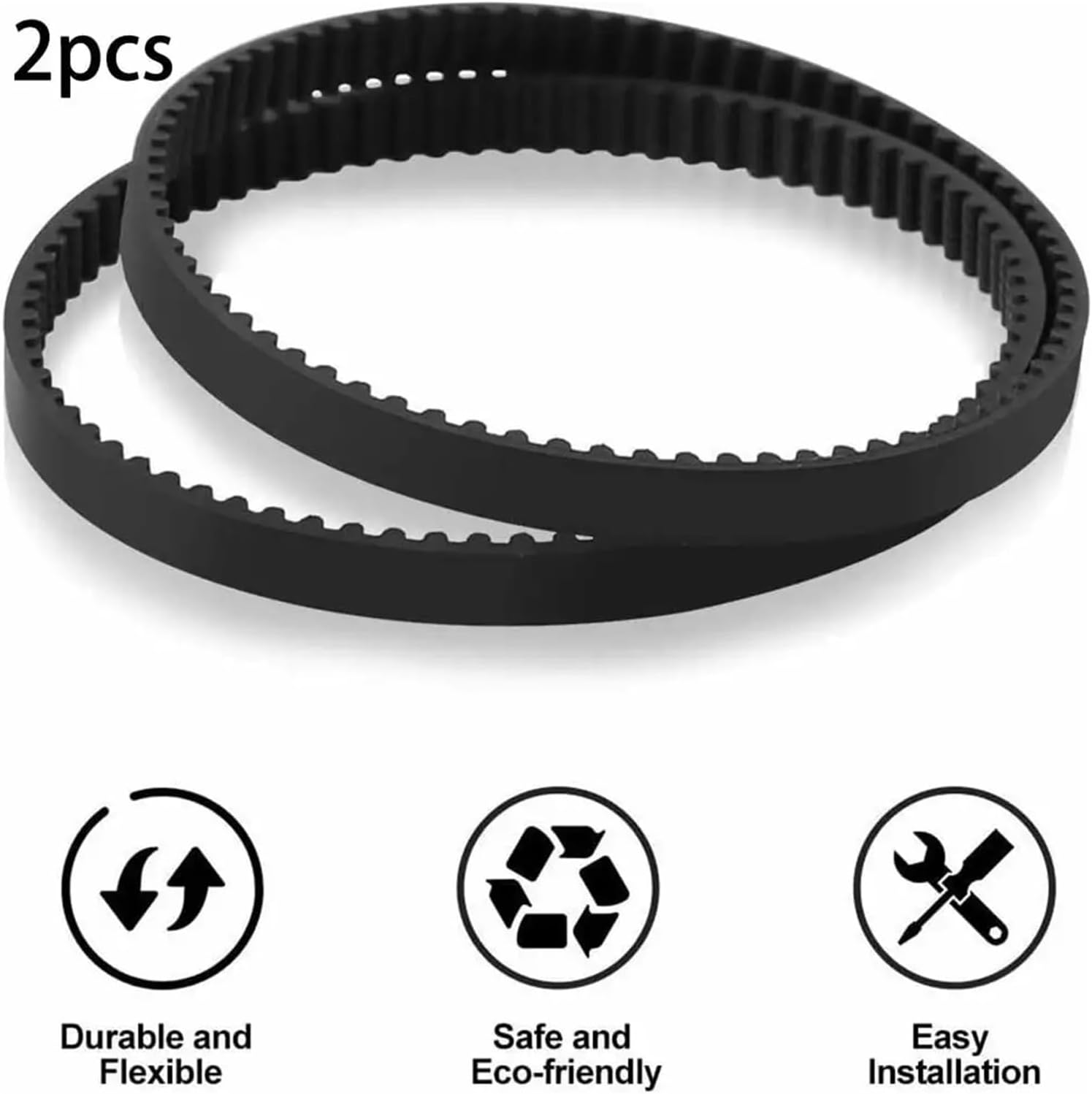

Image: Two replacement vacuum belts, accompanied by icons signifying their durable, flexible, safe, eco-friendly, and easy-to-install characteristics.

Setup and Installation

Proper installation of the replacement belt is essential for your vacuum cleaner's performance. Always ensure the vacuum is unplugged from the power outlet before attempting any maintenance or installation.

1. Safety First: Disconnect your Shark vacuum cleaner from the power supply.
2. Access the Brush Roll: Refer to your original Shark vacuum cleaner manual for specific instructions on how to access the brush roll area where the belt is located. This typically involves removing the base plate or cover.
3. Remove Old Belt: Carefully remove the worn or broken belt from the brush roll and motor shaft. Note its orientation if possible.
4. Install New Belt: Place the new CFguang replacement belt around the motor shaft and then stretch it over the brush roll. Ensure the belt is seated correctly in any grooves on both the motor shaft and brush roll.
5. Test Fit: Manually rotate the brush roll to ensure the belt moves smoothly and is not twisted or misaligned.
6. Reassemble: Reattach the base plate or cover, ensuring all screws are securely fastened.
7. Final Check: Plug in the vacuum and briefly turn it on to confirm the brush roll is spinning correctly.

Image: Two replacement vacuum belts, shown alongside a Shark upright vacuum in use, illustrating the context of their application.

Operating

Once the new belt is installed, your Shark vacuum cleaner should operate as intended, with the brush roll spinning effectively to agitate carpets and pick up debris. Ensure that the vacuum is used according to its original manufacturer's guidelines.

• Brush Roll Function: Confirm the brush roll is rotating freely and consistently when the vacuum is powered on.
• Anti-Hair Wrap: The new belt helps maintain the anti-hair wrap feature, allowing the brush roll to effectively manage hair without tangling.
• Optimal Performance: A properly installed belt contributes to the vacuum's suction power and cleaning efficiency.

Maintenance

Regular maintenance of your vacuum belts can extend their lifespan and ensure consistent cleaning performance.

• Regular Inspection: Periodically inspect the belt for signs of wear, cracking, stretching, or damage.
• Clean Brush Roll: Remove any hair, threads, or debris that may have wrapped around the brush roll, as this can put strain on the belt.
• Avoid Overloading: Do not attempt to vacuum large or heavy objects that could jam the brush roll and stress the belt.
• Storage: Store spare belts in a cool, dry place away from direct sunlight to prevent material degradation.

Troubleshooting

If you encounter issues after installing the new belt, consider the following common problems and solutions:

• Brush Roll Not Spinning:
  • Ensure the vacuum is plugged in and powered on.
  • Check if the belt is properly seated on both the motor shaft and brush roll.
  • Inspect for any obstructions (hair, debris) jamming the brush roll.
  • Verify the belt is not broken or excessively stretched.
• Vacuum Not Picking Up Effectively:
  • A slipping or worn belt can reduce brush roll effectiveness. Inspect the belt for wear.
  • Ensure the brush roll is clean and free of obstructions.
• Unusual Noises (e.g., squealing, grinding):
  • Could indicate a misaligned or damaged belt, or an issue with the brush roll bearings.
  • Turn off and unplug the vacuum immediately and inspect the belt and brush roll area.

If problems persist, consult the original Shark vacuum cleaner manual or contact customer support.

Specifications

Warranty and Support

For warranty information regarding your CFguang replacement belts, please refer to the seller or manufacturer at the point of purchase. Specific warranty terms may vary.

If you require further assistance or have questions not covered in this manual, please contact the seller directly through the platform where the purchase was made.
