1. Introduction
This manual provides instructions for the proper installation, operation, and maintenance of the WWEIFUS Dishwasher Transmission Slider, designed as a replacement part for Hobart C44BB and C44BR commercial dishwashers. Adhering to these guidelines will help ensure optimal performance and longevity of the component.
2. Safety Information
Always prioritize safety when working with appliances. Follow these precautions:
- Always disconnect power to the dishwasher before attempting any installation or maintenance.
- Wear appropriate personal protective equipment (PPE), such as gloves and eye protection, to prevent injury.
- If you are unsure about any step or procedure, consult a qualified appliance technician.
- Keep small parts and tools away from children and pets.
3. Product Overview
The WWEIFUS Dishwasher Transmission Slider is a crucial component engineered to facilitate the smooth and efficient operation of your Hobart dishwasher's wash arm transmission system. It typically consists of a durable metal bracket and a low-friction white slider block, secured by robust fasteners.

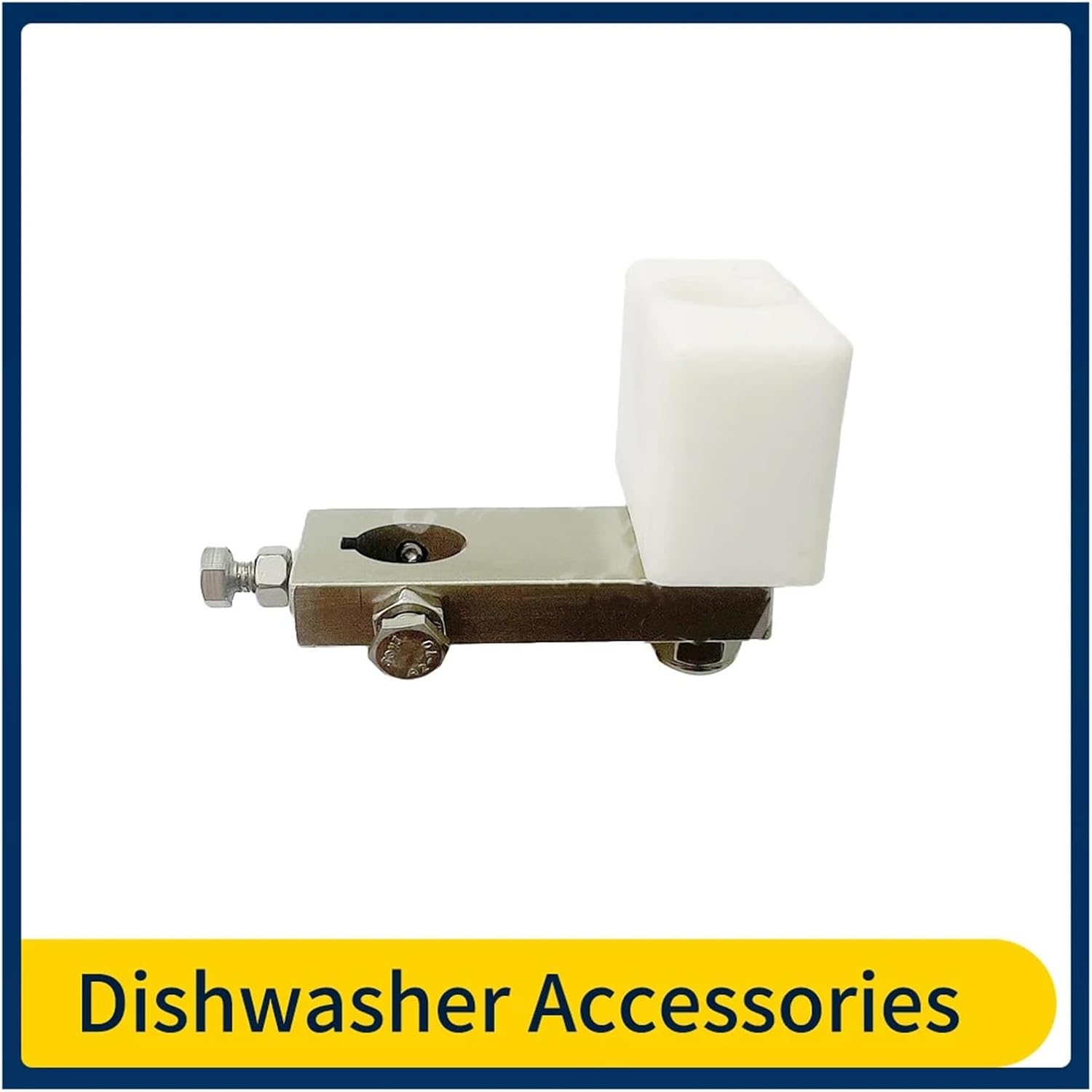

Image 1: Front view of the WWEIFUS Dishwasher Transmission Slider, showing the metal bracket and white slider block.
Image 2: Top-down view of the transmission slider, highlighting the bolt mechanism and the slider's attachment point.
4. Compatibility
This transmission slider is specifically engineered for and compatible with the following Hobart commercial dishwasher models:
- Hobart C44BB
- Hobart C44BR
Using this replacement part with incompatible models may lead to improper function, reduced performance, or potential damage to your appliance.
5. Installation Instructions
The following steps outline the general procedure for replacing the dishwasher transmission slider. Always refer to your specific Hobart dishwasher service manual for detailed, model-specific instructions and diagrams.
- Prepare the Dishwasher: Ensure the dishwasher is completely disconnected from its electrical power source. Locate and turn off the corresponding circuit breaker.
- Access the Transmission Area: Depending on your specific Hobart dishwasher model, you may need to remove various access panels, spray arms, or other components to gain clear access to the transmission assembly.
- Locate the Existing Slider: Identify the old transmission slider within the crank mechanism. This component is responsible for guiding the movement of the wash arms.
- Remove the Old Slider: Carefully unbolt or detach the existing slider from its mounting points. Pay close attention to its orientation and how it was connected, as the new slider will need to be installed in the same manner.
- Install the New Slider: Position the new WWEIFUS transmission slider in the exact same orientation as the old one. Secure it using the existing hardware, ensuring all bolts are tightened firmly. Avoid overtightening, which could strip threads or damage components.
- Reassemble and Test: Reattach any panels or components that were removed during the access phase. Restore electrical power to the dishwasher and perform a test cycle to verify that the new slider functions correctly and the wash arms move smoothly and without obstruction.
Image 3: Angled view of the transmission slider, showing the bolt and nut assembly that secures it.
Image 4: Side view of the transmission slider, illustrating its compact design and attachment points.
Note: If you encounter significant resistance or difficulty during installation, do not force the part. Double-check your steps, consult your dishwasher's service manual, or seek assistance from a professional technician.
6. Ensuring Proper Operation After Installation
After successfully installing the new transmission slider, observe the dishwasher's operation during a full wash cycle to confirm proper function:
- Smooth Movement: Verify that the wash arms rotate or oscillate freely and without any grinding, sticking, or unusual noises.
- Reduced Noise: A properly functioning transmission slider can contribute to quieter overall dishwasher operation.
- Effective Cleaning: Ensure that water is distributed evenly throughout the dishwasher cavity, indicating that the transmission system is working as intended to move the wash arms.
7. Maintenance
The WWEIFUS Dishwasher Transmission Slider is designed for durability and long-term performance. Regular maintenance of your dishwasher can significantly extend the life of all its components, including this slider.
- Regular Inspections: Periodically inspect the slider and surrounding transmission components for any visible signs of wear, cracks, damage, or excessive play.
- Cleanliness: Keep the area around the transmission mechanism and wash arms free from food debris, mineral deposits, and other foreign particles that could impede movement or cause premature wear.
- Lubrication (if applicable): Consult your specific Hobart dishwasher's service manual to determine if any lubrication is recommended or required for the transmission components. Use only approved lubricants.
8. Troubleshooting
If you encounter issues after installing the new transmission slider, consider the following common problems and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Wash arms not spinning or moving slowly | Slider not installed correctly; Obstruction in transmission path; Motor or pump issue | Recheck slider installation and ensure it moves freely; Clear any visible obstructions; If problem persists, consult a technician for motor/pump diagnosis. |
| Unusual grinding or clicking noises from dishwasher | Loose slider or mounting hardware; Worn bearings in transmission; Foreign object lodged in mechanism | Ensure slider is securely fastened; Inspect for other worn parts in the transmission; Carefully remove any foreign objects. |
| Poor cleaning performance (uneven water distribution) | Wash arms not distributing water properly due to restricted slider movement or damage | Verify slider movement is smooth and unrestricted; Check wash arms for clogs or damage. |
9. Specifications
- Model Number (Internal): hsujd
- Compatible Dishwasher Models: Hobart C44BB, C44BR
- Package Dimensions: 1.18 x 0.79 x 0.39 inches
- Item Weight: 1.76 ounces
- Number of Pieces: 1
- Assembly Required: No (for the slider component itself; installation into the dishwasher requires assembly)
10. Warranty and Support
For specific warranty information regarding this WWEIFUS product, please refer to any documentation provided at the time of purchase or contact the seller directly.
If you have further questions, require technical assistance, or need to report an issue, please contact the seller through the platform where the purchase was made. Provide your order details for faster service.
