HUAYEE HY12F
HUAYEE 1.4 Ton Cab Version Mini Excavator - HY12F
User Instruction Manual
1. Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your HUAYEE 1.4 Ton Cab Version Mini Excavator, model HY12F. This compact yet powerful machine is designed for various excavation tasks, featuring a 13.5 HP B&S Gasoline Engine, a precise pilot control system, swing function, excavator thumb, manual quick hitch, and hydraulic cooler.

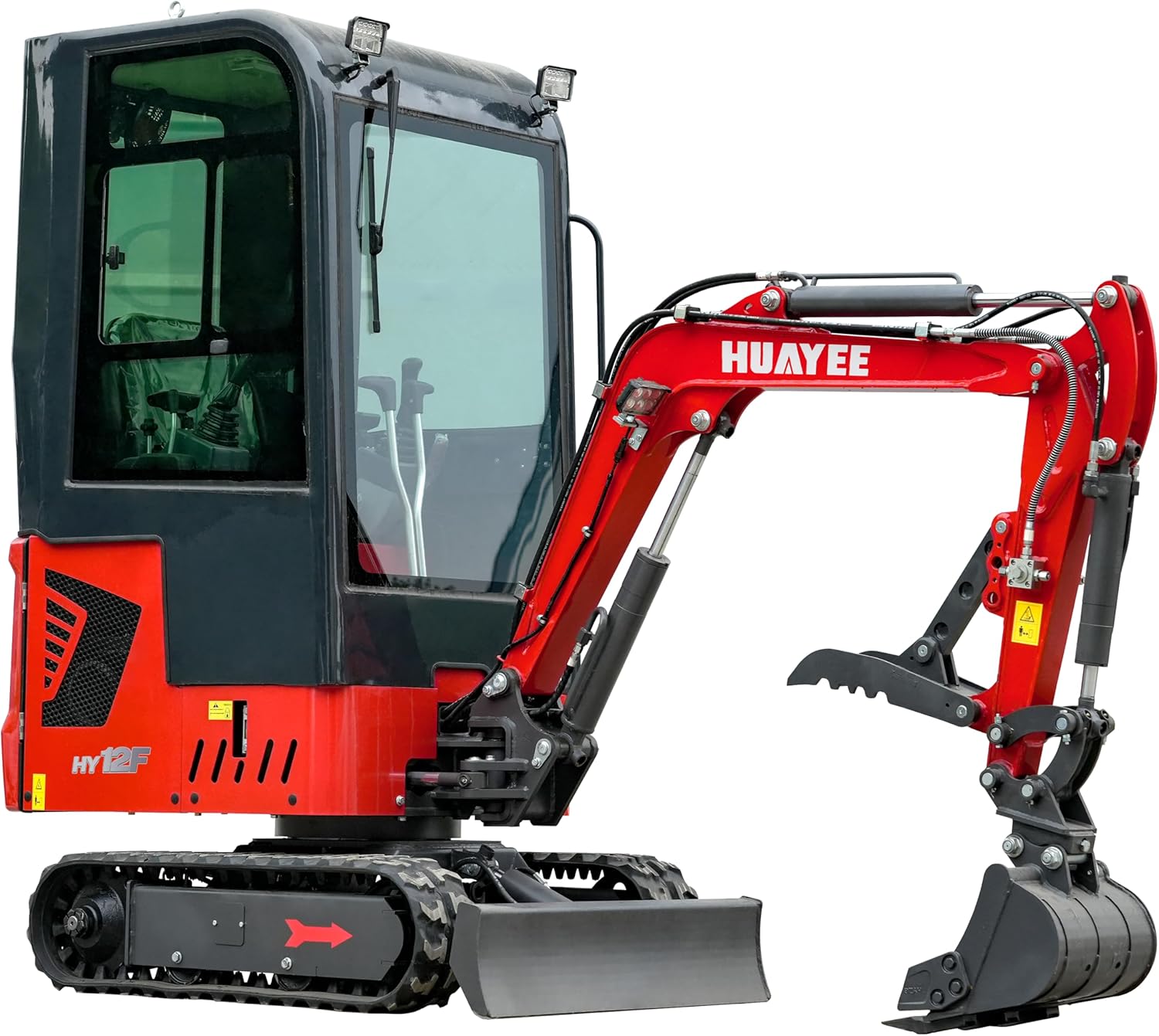

Figure 1: HUAYEE 1.4 Ton Cab Version Mini Excavator (HY12F) with cab and attachments.
2. Safety Information
Always prioritize safety when operating heavy machinery. Read and understand all safety decals on the excavator and in this manual before operation. Failure to follow safety instructions can result in serious injury or death.
2.1 General Safety Precautions
- Ensure all safety guards and covers are in place and functioning correctly.
- Wear appropriate personal protective equipment (PPE), including a hard hat, safety glasses, gloves, and steel-toed boots.
- Never operate the excavator under the influence of alcohol or drugs.
- Inspect the machine before each use for any damage, leaks, or loose components.
- Keep bystanders, especially children, away from the operating area.
- Be aware of your surroundings, including overhead power lines, underground utilities, and unstable ground.
- Do not modify the excavator without manufacturer approval.
3. Components Overview
The HY12F Mini Excavator is equipped with several key components designed for efficient and precise operation.
Figure 2: Overview of main excavator components including swing arm, windshield wiper, hydraulic cylinder, and bucket.
- Cab Version: Provides operator protection and comfort.
- 13.5 HP B&S Gasoline Engine: Powers the hydraulic system and movement.
- Pilot Control System: Utilizes a low-pressure oil circuit for precise control of main valve spools, enabling accurate movement speed and direction with sensitive joysticks.
- Swing Function: Allows the upper structure to rotate laterally by 70-90 degrees, enabling work in confined spaces.
- Excavator Thumb Clamp: A heavy-duty steel attachment for enhanced precision in digging, lifting, and material handling. It features an adjustable-angle design and anti-slip teeth for secure gripping.
- Manual Quick Hitch: Enables rapid, tool-free switching between various attachments like buckets and thumbs, reducing downtime.
- Hydraulic Cooler: Ensures optimal hydraulic oil temperature during operation, reducing wear and extending system lifespan.
- Chassis and Tracks: Provides stability and mobility on various terrains.
- Dozer Blade: Located at the front, used for leveling, backfilling, and stabilizing the machine.
Figure 3: Detailed view of labeled components including Hydraulic Cylinder, Mechanical Thumbs, Mechanical Quick Hitch, Digging Bucket, Hydraulic Pilot, Closed Cab, Swing Arm Function, and Chassis.
4. Setup
4.1 Receiving and Inspection
Upon delivery, carefully inspect the excavator for any shipping damage. Verify that all components listed in the packing slip are present. Report any discrepancies or damage to the carrier and supplier immediately.
Figure 4: Curbside delivery and professional unloading of mini excavators.
4.2 Initial Preparation
- Fueling: Fill the fuel tank with fresh gasoline. The fuel capacity is approximately 6.6 Liters (1.6 gallons).
- Oil Levels: Check engine oil and hydraulic fluid levels. Ensure they are at the recommended marks. Refer to the engine manual for specific oil types and capacities.
- Battery Connection: Ensure the battery is properly connected and charged. If the battery is drained upon arrival, it may require jump-starting.
- Controls Check: Familiarize yourself with the controls in the cab. Ensure all levers and switches move freely and return to their neutral positions.
- Attachment Installation (if applicable): If attachments like the quick hitch or thumb are not pre-installed, follow the specific instructions provided with those accessories for secure mounting. The quick-change system allows for tool-free attachment changes.
5. Operating Instructions
The HY12F Mini Excavator features a user-friendly driving console and pilot control system for efficient operation.
Figure 5: Humanized driving space design with comfortable seating and reasonable layout of control levers and buttons.
5.1 Starting the Engine
- Ensure the safety lever is in the locked position.
- Turn the ignition key to the "ON" position.
- Turn the ignition key to the "START" position. Release once the engine starts.
- Allow the engine to warm up for a few minutes before beginning operation.
5.2 Pilot Control System
The pilot control system provides smooth and precise control. Use the joysticks to manipulate the boom, stick, and bucket. The sensitivity of the joysticks allows for fine adjustments, making it suitable for delicate tasks and narrow spaces.
Video 1: Demonstration of the HUAYEE 1.4 Ton Cab Version Mini Excavator's pilot control system and various functions, including the operation of the excavator thumb and quick hitch.
5.3 Swing Function
To utilize the swing function, operate the designated control. This allows the upper structure to rotate, enabling the boom, stick, and bucket to reach areas perpendicular to the machine's longitudinal axis. This is particularly useful for working efficiently in tight spaces, such as alongside buildings or between closely-spaced obstacles.
Figure 6: The swing arm function allows the excavator arm to move to a precise location without shifting the machine's base.
5.4 Using the Excavator Thumb and Quick Hitch
The excavator thumb works in conjunction with the bucket to grasp and move materials like rocks, logs, and debris. The manual quick hitch facilitates fast and secure changes of attachments without the need for additional tools.
5.5 Operating the Dozer Blade
Use the dozer blade for leveling ground, backfilling trenches, or stabilizing the excavator during digging operations. Ensure the blade is properly positioned before and during use.
6. Maintenance
Regular maintenance is crucial for the longevity and optimal performance of your HY12F Mini Excavator.
6.1 Daily Checks
- Check engine oil, hydraulic fluid, and fuel levels.
- Inspect tracks for damage or excessive wear.
- Check for any hydraulic leaks around hoses and cylinders.
- Ensure all pins and fasteners are secure.
- Clean the machine, especially the cab and engine compartment.
6.2 Scheduled Maintenance
- Engine: Follow the Briggs & Stratton engine manual for specific service intervals, including oil changes, air filter cleaning/replacement, and spark plug inspection.
- Hydraulic System: Regularly check hydraulic fluid quality and replace filters as recommended. The hydraulic cooler helps maintain fluid integrity.
- Lubrication: Grease all pivot points and moving parts regularly to reduce wear.
- Tracks: Inspect track tension and adjust as needed.
7. Troubleshooting
This section addresses common issues you might encounter with your mini excavator.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine does not start | Low fuel, dead battery, clogged fuel filter, safety lever engaged. | Check fuel level, charge/jump-start battery, inspect/replace fuel filter, disengage safety lever. |
| Hydraulic functions are slow or weak | Low hydraulic fluid, clogged hydraulic filter, hydraulic pump issue, high hydraulic oil temperature. | Check fluid level and add if necessary, replace hydraulic filter, inspect pump, ensure hydraulic cooler is functioning. |
| Excessive engine noise or vibration | Loose components, engine malfunction, low oil. | Inspect for loose parts, check engine oil, consult a qualified technician if problem persists. |
| Fumes in the cab | Exhaust leak, inadequate ventilation, engine running rich. | Inspect exhaust system for leaks, ensure proper cab sealing, consider adding ventilation if necessary. |
If you encounter issues not listed here or if solutions do not resolve the problem, contact HUAYEE MECHANICAL customer support.
8. Specifications
Detailed technical specifications for the HUAYEE HY12F Mini Excavator.

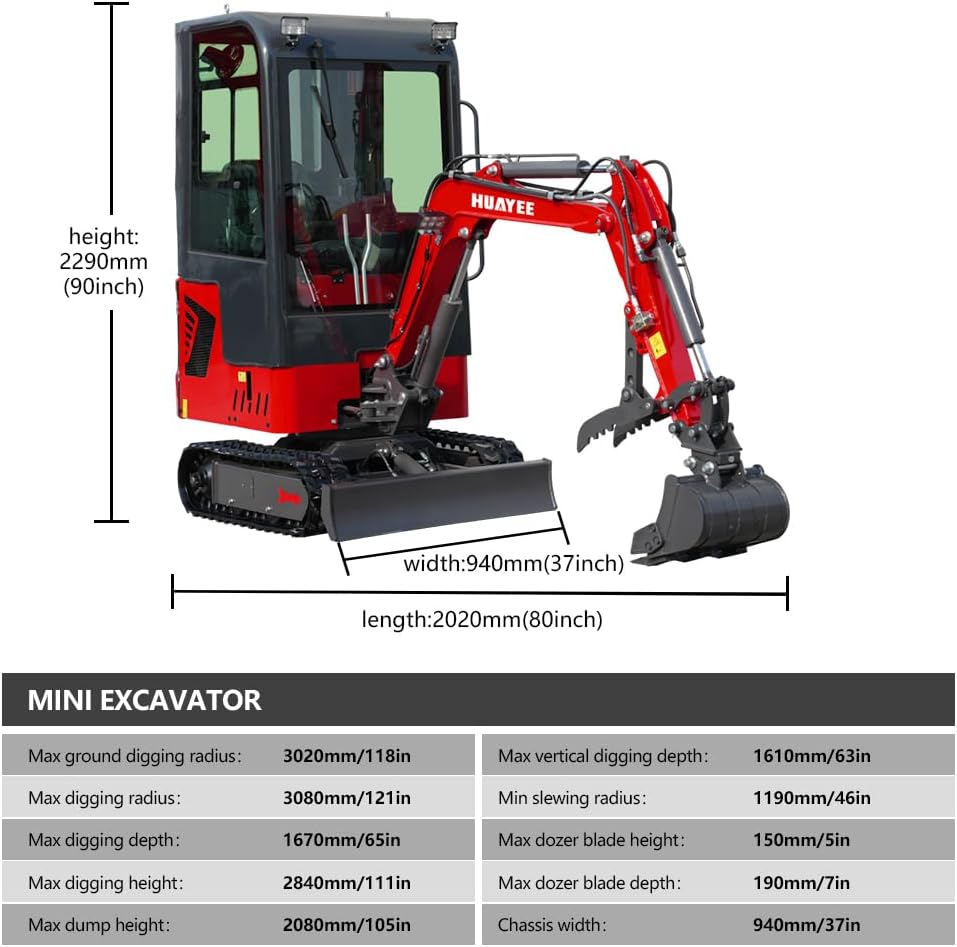

Figure 7: Key dimensions of the HY12F Mini Excavator including height, width, and length.
| Specification | Value |
|---|---|
| Model | HY12F (HUAYEE 1.4 Ton Mini Excavator) |
| Operating Weight | 1400 kg / 3086 lbs (1.2 Tons) |
| Engine Brand | Briggs & Stratton XR2100 |
| Rated Power | 13.5 HP |
| Engine Displacement | 420 ml/cc |
| Fuel Type | Gasoline |
| Fuel Capacity | 6.6 Liters / 1.6 Gallons |
| Hydraulic Oil Tank Capacity | 22 Liters / 5.8 Gallons |
| Max Traveling Speed | 1.2 km/h |
| Slewing Speed | 9 rpm |
| Max Grade Ability | 30° |
| Bucket Capacity | 0.02 m³ |
| Track Material | Rubber |
| Max Ground Digging Radius | 3020 mm / 118 in |
| Max Digging Radius | 3080 mm / 121 in |
| Max Digging Depth | 1670 mm / 65 in |
| Max Dump Height | 2080 mm / 105 in |
| Max Vertical Digging Depth | 1610 mm / 63 in |
| Min Slewing Radius | 1190 mm / 46 in |
| Max Dozer Blade Height | 150 mm / 5 in |
| Max Dozer Blade Depth | 190 mm / 7 in |
| Chassis Width | 940 mm / 37 in |
| Product Dimensions (L x W x H) | 80"D x 37"W x 90"H (approx. 2032mm x 940mm x 2286mm) |
9. Warranty and Support
For warranty information, technical assistance, or any other inquiries regarding your HUAYEE Mini Excavator, please contact HUAYEE MECHANICAL directly.
- Returns: 30-day easy returns are typically available.
- Customer Support: Direct customer support is provided by HUAYEE MECHANICAL.
It is recommended to retain your purchase records for warranty claims.
Figure 8: Confirmation of seller and contact information for support.
