Outsunny Heavy Duty Garden Cart User Manual

Introduction

Thank you for choosing the Outsunny Heavy Duty Garden Cart. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new utility wagon. Please read this manual thoroughly before use and retain it for future reference.

Safety Information

Always observe the following safety precautions to prevent injury or damage to the product.

• Do not exceed the maximum weight capacity of 440 lbs (200 kg). Overloading can cause damage to the cart and potential injury.
• Ensure all bolts and fasteners are securely tightened before each use.
• Distribute loads evenly across the cart bed to maintain stability.
• Avoid using the cart on excessively steep inclines or uneven terrain where stability may be compromised.
• Keep hands and feet clear of moving parts, especially during assembly and operation.
• Store the cart in a dry, protected area when not in use to prevent rust and prolong its lifespan.
• This cart is designed for hauling materials; it is not intended for transporting people.

Product Features

The Outsunny Heavy Duty Garden Cart is designed for versatility and durability in various outdoor tasks.

• All-Terrain Wheels: Equipped with 10-inch pneumatic rubber tires for smooth navigation across diverse surfaces, including gardens, beaches, and rough terrains.
• Quick-Release Sides: Removable side panels allow for easy conversion into a flatbed, accommodating larger or irregularly shaped items such as firewood or gardening supplies.
• Heavy-Duty Steel Frame: Constructed with a robust steel frame and a large mesh bed, providing a substantial carrying capacity of up to 440 lbs (200 kg).
• Adjustable Handle: Features a 180-degree rotating handle with a foam grip for comfortable towing, adaptable to users of various heights.
• Multi-Use Utility: Suitable for a wide range of hauling tasks, including garden tools, dirt, firewood, sports equipment, camping gear, and groceries.

Image: The Outsunny Heavy Duty Garden Cart, showcasing its black mesh bed, yellow steel frame, and large pneumatic wheels.

Setup and Assembly

Assembly is required. Please follow these general steps. Refer to the included assembly diagram for detailed instructions and part identification.

1. Unpack Components: Carefully remove all parts from the packaging. Verify that all components listed in the parts list (usually provided separately) are present and undamaged.
2. Attach Axles and Wheels: Secure the axles to the main frame. Then, attach the 10-inch pneumatic wheels to the axles using the provided washers and nuts. Ensure wheels spin freely.
3. Assemble Cart Bed: Connect the mesh side panels to the main bed frame. Ensure the quick-release mechanisms are correctly aligned and functional.
4. Install Handle: Attach the 180-degree rotating handle assembly to the front steering mechanism of the cart. Ensure it pivots smoothly.
5. Final Check: Once assembled, double-check all bolts, nuts, and fasteners to ensure they are securely tightened.

Image: A diagram illustrating the key dimensions of the garden cart, including length, width, height, wheel diameter, and handle length.

Operating Instructions

Loading the Cart

• Place items evenly in the cart bed to maintain balance and prevent tipping.
• Do not exceed the maximum weight capacity of 440 lbs (200 kg).
• For larger items, utilize the quick-release sides to convert the cart into a flatbed.

Image: The garden cart loaded with various items, demonstrating its capacity for hauling.

Using Quick-Release Sides

1. To remove a side panel, locate the quick-release pins or latches at each corner of the panel.
2. Pull or unlatch the mechanisms to detach the side panel.
3. Repeat for any other sides you wish to remove.
4. To reattach, align the panel with the frame and secure the quick-release mechanisms until they click into place.

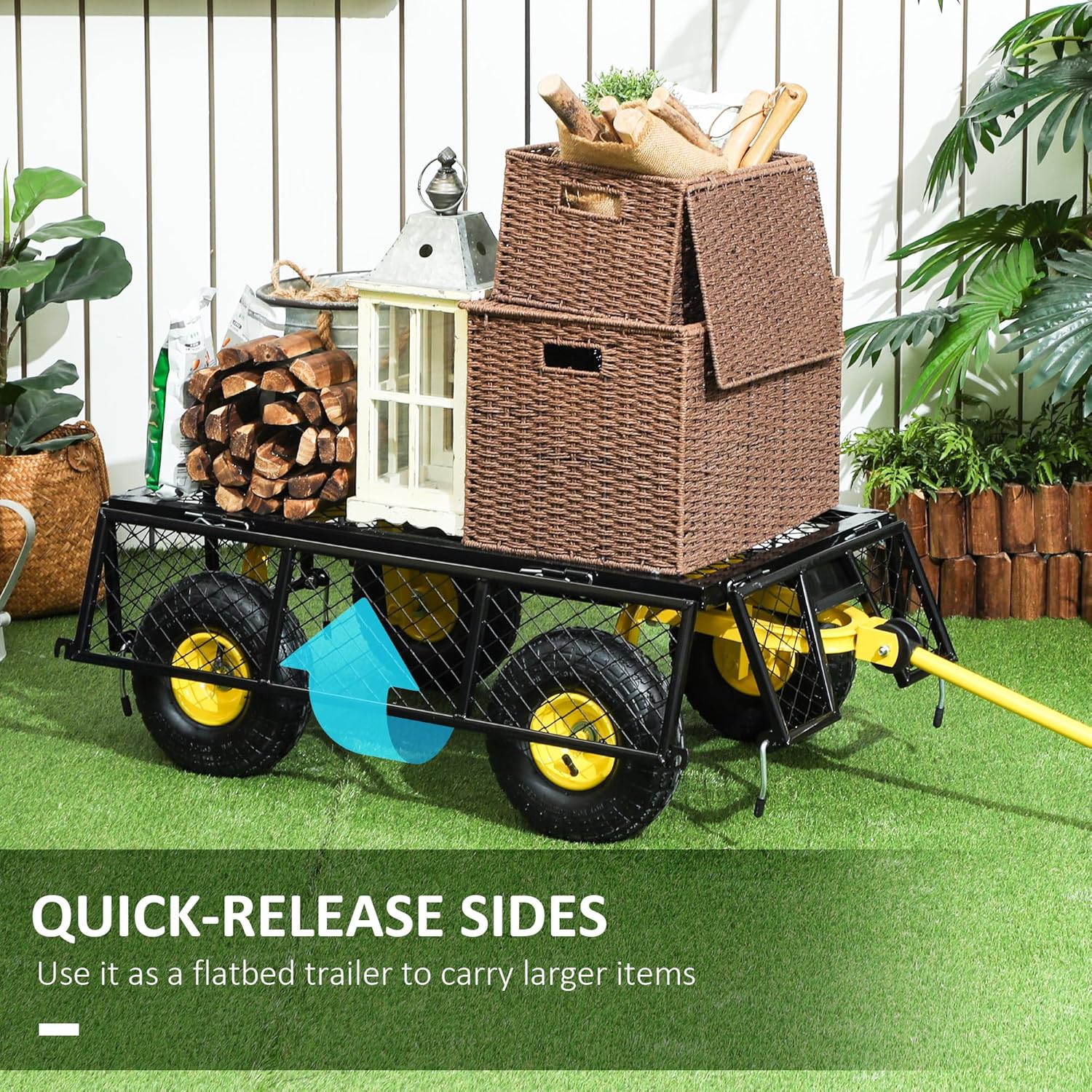

Image: The garden cart with one side panel lowered, illustrating the quick-release feature for flatbed conversion.

Maneuvering the Cart

• Grasp the foam-padded handle firmly.
• The 180-degree rotating handle allows for flexible steering. Pull or push the handle in the desired direction to steer the cart.
• The pneumatic rubber wheels are designed for various terrains, providing smooth movement.

Image: An illustration showing the 180-degree range of motion for the garden cart's handle, indicating flexible steering.

Maintenance

Regular maintenance will ensure the longevity and optimal performance of your garden cart.

• Cleaning: After each use, especially when hauling dirt or wet materials, clean the mesh bed and frame with water and a mild detergent. Rinse thoroughly and dry to prevent rust.
• Fastener Check: Periodically inspect all bolts, nuts, and connections. Tighten any loose fasteners to ensure structural integrity.
• Tire Pressure: Check the tire pressure regularly. Maintain the recommended pressure (if specified on the tire or in the assembly guide) for optimal performance and to prevent premature wear.
• Lubrication: Apply a light lubricant to moving parts, such as the steering mechanism and wheel axles, annually or as needed to ensure smooth operation.
• Storage: Store the cart in a dry, covered area to protect it from harsh weather conditions, which can lead to rust and material degradation.

Troubleshooting

Specifications

Image: A detailed view of the 10-inch pneumatic rubber wheel, highlighting its all-terrain capability and impact resistance.

Warranty and Support

Information regarding specific warranty terms and customer support contact details for this product was not provided in the available data. Please refer to your purchase documentation or contact the retailer/manufacturer directly for warranty claims or technical assistance.

Manufacturer: Aosom Canada

Place of Business: Markham, Ontario, CA Tel.1-416-792-6088
