1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your JYXYXSCP Intelligent Electric Lifting Basket for Wall Cabinets, model W70cm. This product is designed to optimize storage in upper kitchen cabinets, offering convenient access to items through its electric lift mechanism.
The intelligent lifting basket features a track and steel rope combination for smooth operation, a turbine DC motor for quiet and efficient lifting, and a double-layer design for ample storage. Its robust carbon steel construction ensures durability and resistance to corrosion.
Figure 1.1: The JYXYXSCP Intelligent Electric Lifting Basket installed in a kitchen cabinet, demonstrating its functionality for organized storage of spices and other kitchen essentials.
2. Safety Information
- Read all instructions carefully before installation and operation.
- Ensure the cabinet structure is strong enough to support the weight of the basket and its contents (up to 18kg/39.6 lbs).
- Disconnect power before performing any installation, maintenance, or cleaning.
- Keep hands and loose clothing clear of moving parts during operation.
- Do not overload the basket beyond its specified weight capacity.
- This product is intended for indoor use only.
- Keep the remote control away from water and extreme temperatures.
3. Package Contents
Please verify that all components are present before beginning installation. Refer to your product packaging for a complete list of included items. Typically, the package includes:
- 1x Electric Lifting Basket Unit (W70cm)
- 1x Remote Control
- Mounting Hardware (screws, anchors, etc.)
- Power Adapter/Cable
- Instruction Manual (this document)
4. Setup and Installation
Proper installation is crucial for the safe and efficient operation of your lifting basket. It is recommended that installation be performed by two people.
4.1 Cabinet Compatibility
The lifting basket is suitable for various cabinet types, including sliding door and double door cabinets. Ensure your cabinet meets the specified dimensions.
Figure 4.1: Installation diagram illustrating compatible cabinet types and required dimensions for installation.
4.2 Required Cabinet Dimensions (W70cm Model)
For the W70cm model, ensure your cabinet has the following minimum internal dimensions:
| Specification | Cabinet (width*height*depth) | Opening Size (width*height*depth) | Line Length |
|---|---|---|---|
| 700 | 700*700*350 | 664*682*240 | 1.2米 (三叉) |
Note: The "Line Length" refers to the power cable length. Ensure a power outlet is within reach.
4.3 Installation Steps (General Guidelines)
- Prepare the Cabinet: Ensure the cabinet interior is clean and clear. As indicated in the diagram, a small board may need to be made at the bottom of the cabinet opening for proper support or alignment.
- Mount the Top Mechanism: Secure the upper part of the lifting mechanism to the top interior of the cabinet using the provided mounting hardware. Ensure it is level and firmly attached.
- Install the Track and Steel Rope: The system utilizes a track and steel rope combination for smooth movement. Carefully install these components according to the detailed instructions in the included installation guide (if separate).
- Connect the Motor: The turbine DC motor powers the lifting action. Connect the motor to the lifting mechanism and ensure all electrical connections are secure.
- Attach the Basket: Once the lifting mechanism is securely installed, attach the double-layer basket unit.
- Connect Power: Plug the power adapter into a suitable electrical outlet.
- Test Operation: Before loading items, test the lifting and lowering functions using the remote control to ensure smooth and correct operation.
Figure 4.2: Detail of the track and steel rope system, designed for silky smooth and jam-free operation.

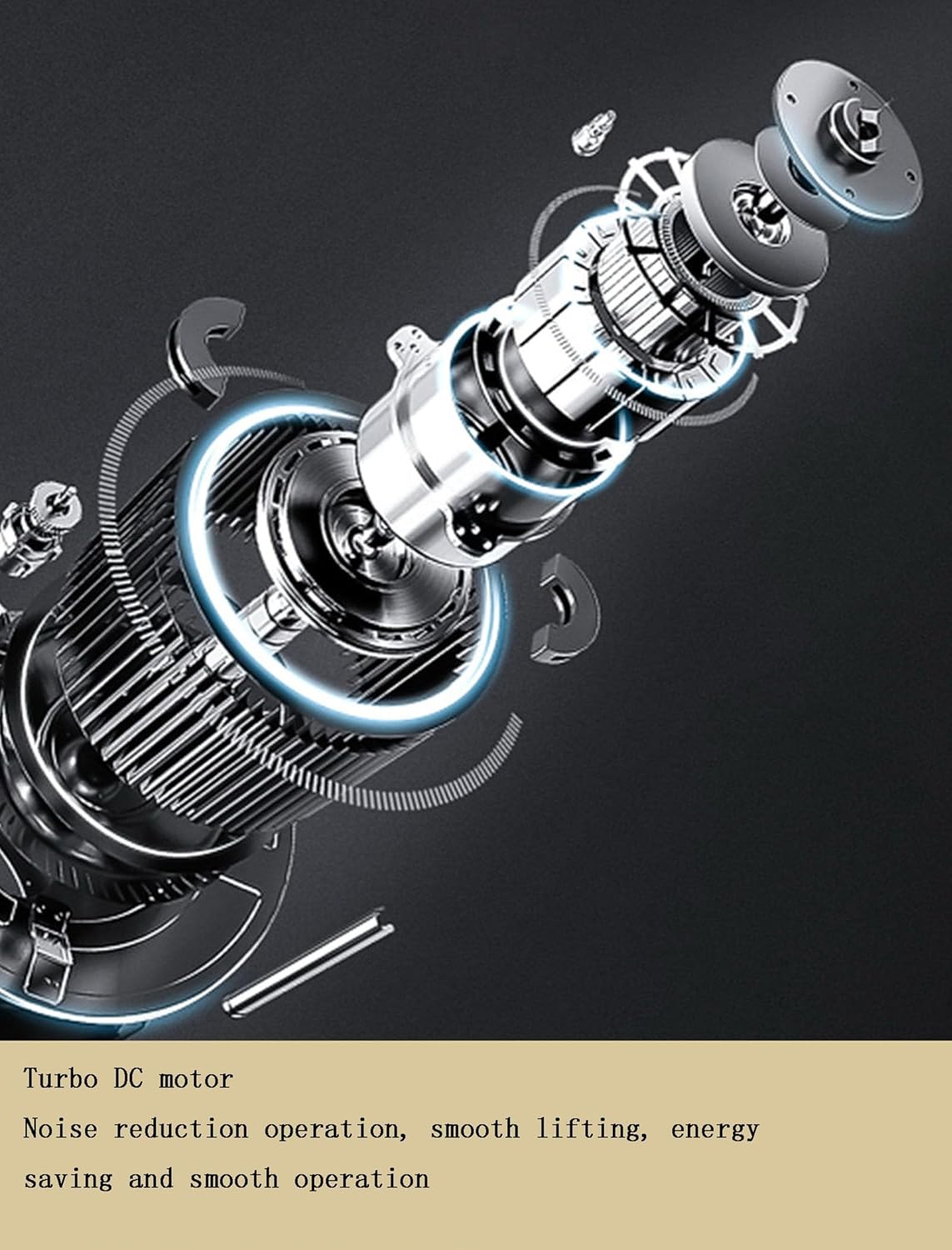

Figure 4.3: The Turbine DC motor, engineered for noise reduction, smooth lifting, and energy-efficient operation.
Figure 4.4: The double-layer basket provides large-capacity storage, allowing items to be clearly arranged and easily accessible.
5. Operating Instructions
The JYXYXSCP Intelligent Electric Lifting Basket is designed for ease of use, allowing you to access items in upper cabinets without climbing.
5.1 Loading the Basket
- Place items evenly across both layers of the basket.
- Utilize the double-layer space for large-capacity storage, ensuring items are clearly arranged.
- The heightened guardrail prevents items from falling easily, allowing for arbitrary placement according to your needs.
- Do not exceed the maximum load-bearing capacity of 18kg (39.6 lbs).
Figure 5.1: The basket can serve as a temporary storage rack, helping to keep countertops tidy during cooking.
5.2 Using the Remote Control
- The remote control allows for easy mastery of the basket's movement.
- Press the "Up" button to raise the basket into the cabinet.
- Press the "Down" button to lower the basket for access.
- The turbine DC motor ensures noise-reduction operation and smooth lifting.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your lifting basket.
- Cleaning: The basket is made of thickened carbon steel with anti-corrosion and moisture-proof treatment, making it easier to clean. Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals.
- Track and Rope Inspection: Periodically inspect the track and steel rope for any signs of wear or damage. Ensure they remain clean and free of obstructions to maintain smooth operation.
- Motor Check: Listen for any unusual noises during operation. If you notice any irregularities, contact customer support.
- Fastener Check: Periodically check all mounting screws and fasteners to ensure they are tight.
Figure 6.1: The carbon steel material is treated for anti-corrosion and moisture resistance, contributing to a longer service life.
7. Troubleshooting
If you encounter issues with your JYXYXSCP Intelligent Electric Lifting Basket, refer to the following common problems and solutions:
- Basket does not move:
- Ensure the power cable is securely plugged into both the unit and a working electrical outlet.
- Check if the remote control batteries need replacement.
- Verify that no obstructions are blocking the basket's path.
- Movement is not smooth or makes unusual noise:
- Check the track and steel rope for any debris or damage. Clean if necessary.
- Ensure the basket is not overloaded. Redistribute or remove some items.
- Confirm that all mounting hardware is securely fastened.
- Remote control not responding:
- Replace the remote control batteries.
- Ensure there are no strong interferences (e.g., other wireless devices) nearby.
If the problem persists after attempting these solutions, please contact customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | JYXYXSCP |
| Model | W70cm |
| Product Name | Intelligent Electric Lifting Basket for Wall Cabinets |
| Shape | Rectangular |
| Material | Thickened Carbon Steel (with anti-corrosion and moisture-proof treatment), Plastic |
| Applicable Cabinet Size (W*H*D) | 700mm * 700mm * 350mm (for W70cm model) |
| Opening Size (W*H*D) | 664mm * 682mm * 240mm (for W70cm model) |
| Load-bearing Capacity | ≥18 kg (39.6 lbs) |
| Product Weight | 20 kg |
| Motor Type | Turbine DC Motor |
| Operation | Electric Lift with Remote Control |
9. Warranty and Support
For warranty information, please refer to the documentation included with your purchase or contact your retailer. If you require technical assistance, have questions about installation, or need to report a problem, please contact JYXYXSCP customer support through the vendor's contact information provided at the point of purchase or on their official website.
Please have your model number (W70cm) and purchase date available when contacting support.
