HOLKIE 75mm Heavy Duty Swivel Casters User Manual

Introduction

Thank you for choosing HOLKIE 75mm Heavy Duty Swivel Casters. This set includes two casters with brakes and two without, designed for a wide range of applications from DIY projects to industrial use. With a total load capacity of 450 kg, these casters provide excellent mobility and stability for your furniture and equipment.

Please read this manual carefully before installation and use to ensure proper function and safety.

Package Contents

Verify that all items are present in your package:

• 2 x HOLKIE 75mm Swivel Casters with Brake
• 2 x HOLKIE 75mm Swivel Casters without Brake
• 16 x Mounting Screws
• 16 x Nuts

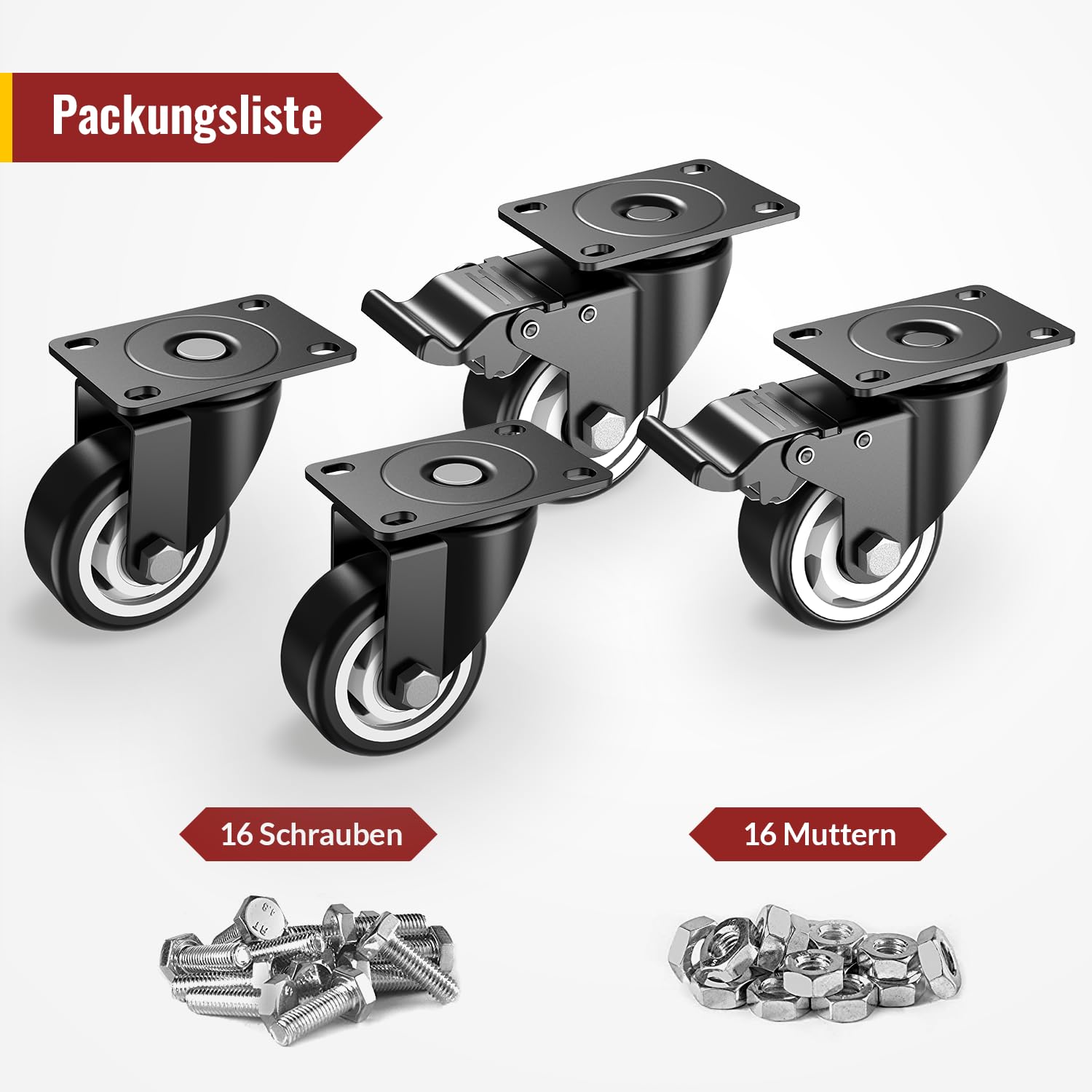

Figure 1: Package Contents (Casters, Screws, and Nuts)

Specifications

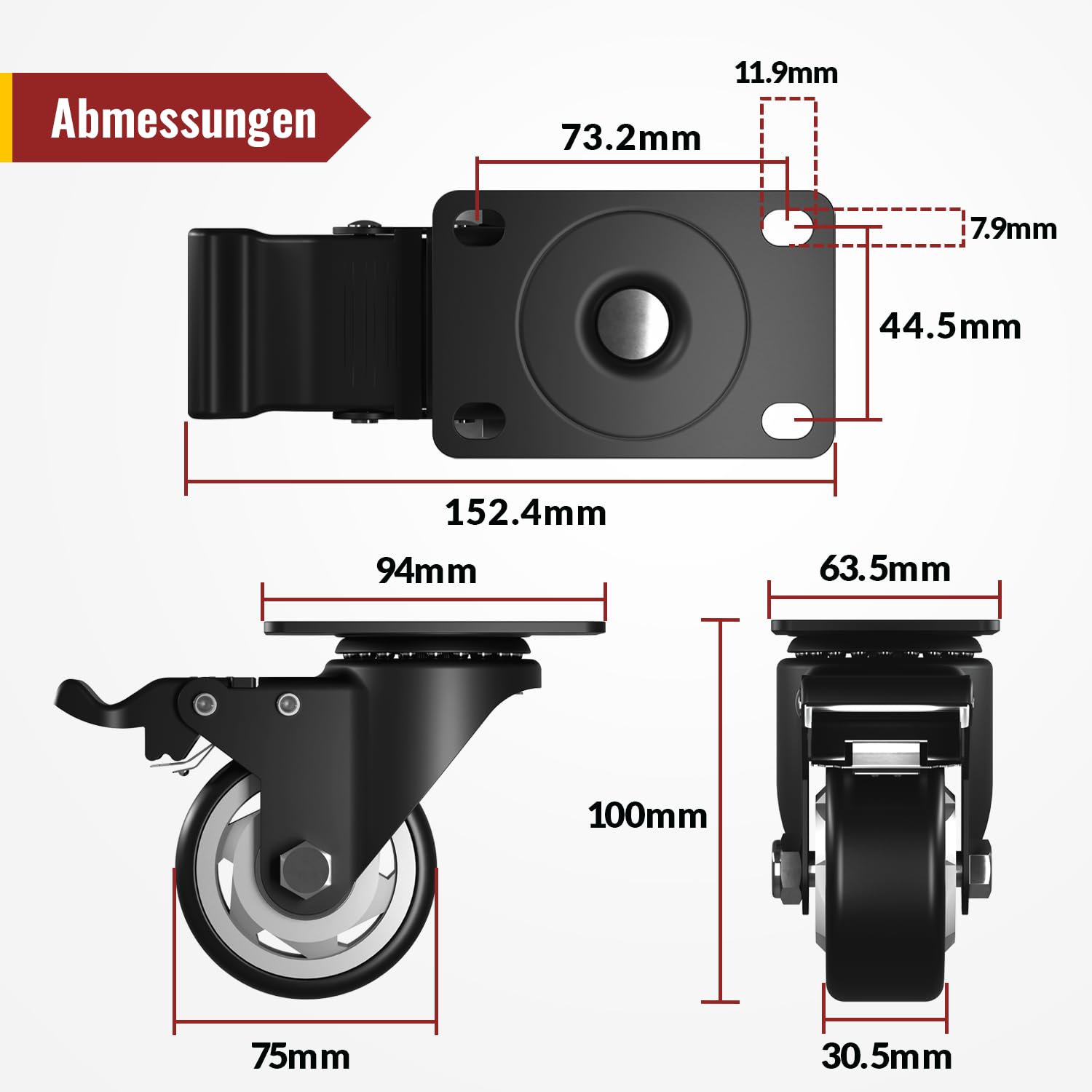

Figure 2: Caster Dimensions (Braked Caster)

Figure 3: Caster Dimensions (Non-Braked Caster)

Setup and Installation

These casters are designed for easy plate mounting. Follow these steps for secure installation:

1. Prepare the Mounting Surface: Ensure the surface where the casters will be mounted is flat, clean, and strong enough to support the combined weight of the item and its contents.
2. Mark Drilling Points: Place the caster's mounting plate on the desired installation spot. Use a pencil or marker to mark the positions of the four mounting holes.
3. Drill Pilot Holes: Using an appropriate drill bit size for your screws, drill pilot holes at the marked points. Ensure the holes are deep enough for the screws.
4. Attach Casters: Align the caster's mounting plate with the drilled holes. Insert the provided screws through the holes and secure them with the nuts from the underside. Tighten all screws firmly to ensure the caster is stable.
5. Repeat for All Casters: Install all four casters, ensuring that the two casters with brakes are positioned on the same side or diagonal corners for effective braking.

Important: For optimal stability and load distribution, it is recommended to use all four casters provided in the set.

Operating Instructions

Movement and Swivel

The HOLKIE casters feature a 360-degree swivel plate, allowing for effortless movement and directional changes of your furniture or equipment. The high-quality PU wheels provide smooth rolling on various surfaces, including wood, carpet, concrete, and tile, without causing damage.

Figure 4: Safe for All Floor Types

Brake Mechanism

Two of the casters in the set are equipped with a total lock mechanism. This brake system simultaneously locks both the wheel's rotation and the swivel plate, ensuring the item remains securely in place and prevents accidental movement.

• To Engage Brake: Press down firmly on the lever located on the side of the braked caster until it clicks into place. This will lock both the wheel and the swivel.
• To Release Brake: Lift the lever upwards until it disengages. The wheel and swivel will then be free to move.

Figure 5: Brake Engagement and Release

Versatile Applications

These heavy-duty casters are suitable for a wide array of uses, enhancing mobility and functionality for various items:

• Furniture: Easily move cabinets, kitchen islands, sofas, shelves, and other heavy furniture.
• Workbenches & Carts: Ideal for DIY rolling workbenches, tool carts, and utility trolleys in garages, workshops, and industrial settings.
• Equipment: Suitable for various equipment in households, schools, shops, and hospitals requiring mobility.

Figure 6: Example Applications

Figure 7: DIY Rolling Workbench Application

Figure 8: Furniture on Wheels Application

Figure 9: Replacing Trolley Wheels Application

Maintenance

Regular maintenance will prolong the life and performance of your HOLKIE casters:

• Cleaning: Periodically clean the wheels and swivel mechanisms to remove dust, dirt, hair, or debris that may hinder smooth operation. Use a damp cloth and mild detergent if necessary.
• Lubrication: For optimal performance, apply a small amount of silicone-based lubricant to the swivel bearings and wheel axles every 6-12 months, or as needed, especially in dusty or damp environments.
• Inspection: Regularly check all mounting screws and nuts for tightness. Re-tighten if any looseness is detected. Inspect the wheels for any signs of wear, cracks, or damage. Replace damaged casters immediately.
• Load Capacity: Do not exceed the maximum load capacity of 450 kg for the set of four casters. Overloading can lead to premature wear or failure.

Troubleshooting

Warranty and Support

HOLKIE is committed to providing high-quality products. For any questions, concerns, or support needs regarding your casters, please contact our customer service. While specific warranty details are not provided in this manual, please refer to your purchase documentation or the retailer's website for warranty information.

For further assistance, please visit the HOLKIE brand page on Amazon or contact the seller directly.

Manufacturer: HOLKIE
Model: PBJL3BHH
UPC: 785249515422
