DAYETTE Portable Air Purifier User Manual

1. Introduction

Thank you for choosing the DAYETTE Portable Air Purifier. This device is designed to significantly improve your indoor air quality by effectively removing airborne particles such as dust, pollen, pet dander, mold spores, and odors. Featuring a multi-stage HEPA filtration system, aroma function, night light, and quiet operation, it creates a cleaner and more comfortable environment. Please read this manual thoroughly before use to ensure proper operation and maintenance.

2. Important Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.

• Read all instructions before operating the appliance.
• Do not operate any appliance with a damaged cord or plug.
• Keep the cord away from heated surfaces.
• Do not use the appliance outdoors or on wet surfaces.
• Always unplug the air purifier before moving it, opening the grille, changing filters, or whenever it is not in use.
• Do not block air openings or place on a soft surface where openings may be blocked.
• Do not insert foreign objects into any opening.
• This appliance has been tested and certified for electrical safety (FCC/ETL) and environmental standards (ROHS, CE).

3. Product Overview

The DAYETTE Portable Air Purifier features a compact design with powerful 360-degree air purification, suitable for rooms up to 40 square meters. It incorporates a multi-stage filtration system to capture various airborne pollutants.

3.1 Filtration System

The air purifier utilizes a three-stage filtration system to ensure comprehensive air cleaning:

• Pre-filter: Captures large particles like dust, lint, fibers, and pet hair.
• H13 HEPA Filter: Removes up to 99.97% of airborne particles as small as 0.3 micrometers, including pet dander, pollen, and mold spores.
• Activated Carbon Filter: Absorbs odors, smoke, volatile organic compounds (VOCs), and pet smells.

Image: This diagram illustrates the internal components of the air purifier, highlighting the pre-filter for large particles, the HEPA filter for fine particles like pet dander and pollen, and the activated carbon filter for odors and smoke.

3.2 Coverage and Efficiency

The device provides 360-degree powerful air purification, refreshing the air in an 80 square meter area every 60 minutes, making it ideal for spaces up to 40 square meters.

Image: The air purifier is shown in a modern living room setting, demonstrating its ability to circulate and purify air throughout a 40 square meter space with 360-degree coverage.

3.3 Compact Design

With dimensions of approximately 13 x 13 x 20 cm (5.1 x 5.1 x 7.9 inches), the air purifier is compact and fits easily on a nightstand, desk, or table, making it suitable for various rooms and uses.

Image: This composite image displays the air purifier's compact size and its suitability for different environments, including a bedroom nightstand, an office desk, a living room, and a child's study area.

3.4 Allergen and Odor Elimination

The advanced filtration system effectively targets and eliminates common indoor pollutants, providing relief for allergy sufferers and improving overall air quality.

Image: A visual representation of the air purifier's effectiveness in removing common airborne irritants, including pet hair, pollen, dust, smoke, unpleasant odors, and mold spores.

4. Setup

Follow these steps to set up your DAYETTE Portable Air Purifier for first use:

1. Unpack the Device: Carefully remove the air purifier from its packaging.
2. Remove Filter Packaging: Before first use, open the bottom cover of the air purifier and remove the plastic packaging from the HEPA filter.
3. Install Filter: Place the filter back into the unit, ensuring it is seated correctly. Close the bottom cover securely.
4. Position the Purifier: Place the air purifier on a flat, stable surface, ensuring there is at least 15 cm (6 inches) of space around all sides for optimal airflow.
5. Connect Power: Plug the power adapter into the air purifier and then into a standard electrical outlet.

5. Operation

Your DAYETTE Portable Air Purifier is controlled via intuitive push buttons on the top panel.

5.1 Power On/Off

• Press the Power button once to turn the unit on.
• Press the Power button again to turn the unit off.

5.2 Fan Speed / Mode Selection

The air purifier typically offers multiple fan speeds or modes. Refer to the icons on the control panel for specific settings (e.g., Low, Medium, High, Auto).

• Press the Fan Speed button repeatedly to cycle through available fan speeds.

5.3 Sleep Mode

For undisturbed rest, activate the sleep mode. In this mode, the air purifier operates at its lowest fan speed (20dB) and automatically turns off its indicator lights.

Image: The air purifier is depicted on a nightstand beside a sleeping child, illustrating its quiet operation in sleep mode (20dB) with the night light deactivated for minimal disturbance.

5.4 Timer Function

The timer function allows you to set the air purifier to operate for a specific duration before automatically shutting off.

• Press the Timer button repeatedly to select a desired operating time (e.g., 2, 4, or 8 hours).

5.5 Aroma Function

Enhance your environment with soothing aromas by utilizing the integrated aroma function.

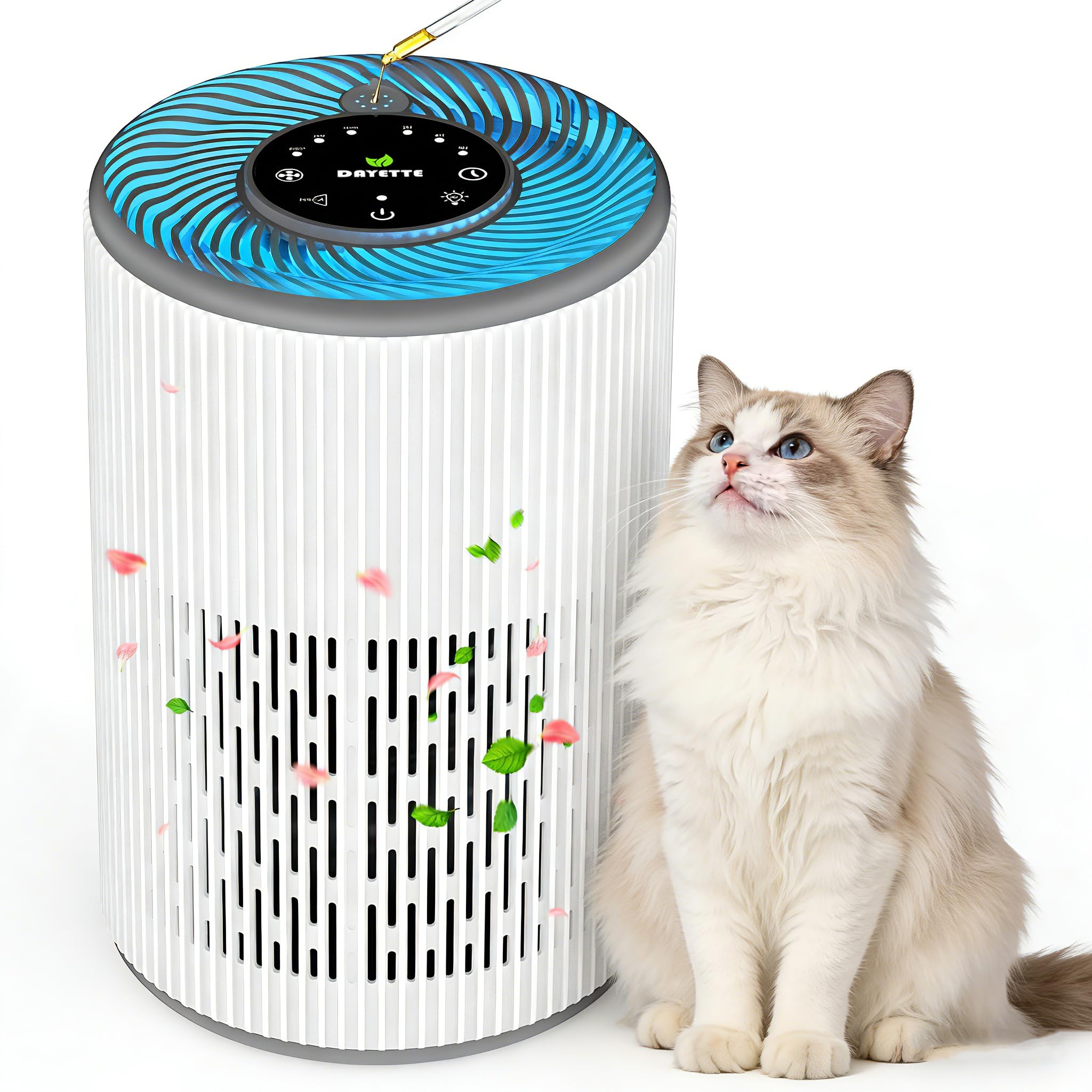

Image: A hand is shown carefully dripping essential oil onto the designated area on top of the air purifier, demonstrating how to activate the aroma diffusion feature.

1. Locate the aroma pad compartment (usually near the air outlet or filter area).
2. Add a few drops of your preferred essential oil (sold separately) onto the aroma pad.
3. Ensure the aroma pad is securely placed back in its compartment.
4. The aroma will diffuse with the purified air.

6. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your air purifier.

6.1 Cleaning the Exterior

• Unplug the air purifier before cleaning.
• Wipe the exterior surfaces with a soft, dry cloth.
• Do not use abrasive cleaners or solvents.

6.2 Filter Replacement

The HEPA filter is not washable and should be replaced regularly to maintain purification efficiency. The filter life depends on air quality and usage, but typically lasts 3-6 months.

1. Unplug the air purifier.
2. Turn the unit upside down and twist the base counter-clockwise to unlock and remove the bottom cover.
3. Carefully remove the old filter.
4. Insert a new DAYETTE replacement filter (Model: B0DRGDXG4J-FILTER, sold separately), ensuring it fits snugly.
5. Replace the bottom cover and twist clockwise to lock it into place.
6. Plug in the air purifier and reset the filter indicator (if applicable, refer to specific model instructions for reset procedure).

7. Troubleshooting

If you encounter issues with your air purifier, please refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact customer support.

8. Specifications

9. Warranty and Support

The DAYETTE Portable Air Purifier comes with a 24-month warranty, ensuring peace of mind for years of worry-free use. Our dedicated North American customer service team is available to assist you with any questions or concerns.

9.1 Warranty Coverage

This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accidents, unauthorized modifications, or failure to follow the instructions in this manual.

9.2 Customer Support

For warranty claims, technical assistance, or general inquiries, please contact our customer support team. Please have your model number (B0DRGDXG4J) and purchase date ready when contacting support.

Contact Information:

• Website: www.dayette.com/support (Example link, replace with actual if available)
• Email: support@dayette.com (Example email, replace with actual if available)
• Phone: 1-800-XXX-XXXX (Example number, replace with actual if available)
