1. Important Safety Information
Please read and understand all instructions before assembly and use. Keep this manual for future reference.
- Weight Capacity: Do not exceed a total weight of 1500 pounds (including mattress and occupants). Exceeding this limit may cause structural failure and injury.
- Assembly: Always follow assembly instructions carefully. Incorrect assembly can lead to instability and potential hazards.
- Sharp Edges: Be cautious around metal edges during assembly to prevent cuts or scrapes.
- Children: Keep small parts away from children during assembly.
- Maintenance: Regularly check all bolts and screws to ensure they remain tight. Loose connections can compromise stability.
2. Package Contents
Before beginning assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact customer support immediately.
- Bed Frame Components (Headboard, Footboard, Side Rails, Support Slats, Legs)
- Screws and Fasteners (1 set)
- Assembly Tools (1 set)
- Installation Manual (This document)
Figure 2.1: Overview of bed frame components and key features like easy assembly and no box spring needed.
3. Setup and Assembly Instructions
Assembly typically requires two adults. Follow these steps carefully:
- Unpack Components: Carefully remove all parts from the packaging. Lay them out on a clean, soft surface (like a carpet) to prevent scratches.
- Identify Parts: Refer to the included parts list and diagrams to identify each component.
- Attach Headboard and Footboard Legs: Secure the support legs to the headboard and footboard sections using the provided screws and tools. Ensure they are firmly tightened.
- Connect Side Rails: Attach the side rails to the headboard and footboard. Make sure the connections are secure and aligned. Do not fully tighten all screws until the frame is completely assembled.
- Install Support Slats: Place the metal support slats across the side rails. Ensure they are evenly spaced and securely fastened to the frame. The design includes 20+2 reinforced steel support slats, eliminating the need for a box spring.
- Tighten All Connections: Once all components are in place, systematically tighten all screws and bolts. This step is crucial for the frame's stability and to ensure a noise-free experience. The legs are equipped with anti-scratch rubber washers to prevent noise and protect floor surfaces.
- Final Check: Gently shake the assembled frame to ensure it is stable and all connections are secure.
Figure 3.1: The ZIYOO Full Size Metal Bed Frame fully assembled.
Figure 3.2: Detail of the robust side rail and leg connection points, designed for stability.
4. Operating and Usage
The ZIYOO Metal Bed Frame is designed for optimal support and convenience.
- Mattress Placement: Place your full-size mattress directly onto the installed support slats. A box spring is not required.
- Weight Distribution: Ensure weight is distributed evenly across the bed frame. Avoid concentrating heavy loads on a single point.
- Under-Bed Storage: The frame provides approximately 16 inches (40.6 cm) of clearance underneath, offering ample space for storage bins, luggage, or other items.
Figure 4.1: The generous 16-inch under-bed clearance for convenient storage.
5. Maintenance and Care
To ensure the longevity and appearance of your bed frame, follow these simple care instructions:
- Cleaning: Wipe the metal frame with a damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the powder-coated finish.
- Regular Checks: Periodically inspect all bolts and screws. Re-tighten any loose fasteners to maintain structural integrity and prevent squeaking.
- Floor Protection: The anti-scratch rubber washers on the legs protect your floor surfaces. Ensure they remain in place.
6. Troubleshooting
If you encounter any issues with your ZIYOO Metal Bed Frame, refer to the following common solutions:
- Squeaking Noise:
- Ensure all bolts and screws are fully tightened. Loose connections are the most common cause of noise.
- Verify that the anti-scratch rubber washers are correctly positioned on all legs.
- Check if the mattress is properly seated on the slats without shifting.
- Instability/Wobbling:
- Re-check all assembly steps to ensure components are correctly aligned and securely fastened.
- Confirm that the frame is on a level surface.
- Missing or Damaged Parts:
- Do not attempt to use the product with missing or damaged parts. Contact ZIYOO customer support for replacements.
7. Product Specifications
| Feature | Detail |
|---|---|
| Brand | ZIYOO |
| Model Number | RHF3203-18 |
| Size | Full |
| Product Dimensions (L x W x H) | 75"L x 54"W x 18"H |
| Compatible Mattress Size | Full L75" x W54" |
| Material | Metal |
| Finish Type | Powder Coated |
| Color | Black |
| Item Weight | 40.2 pounds |
| Weight Capacity | 1500 pounds |
| Under-Bed Clearance | 16 inches (40.6 cm) |
| Assembly Required | Yes |
| Special Features | Easy to Assemble, Easy to clean, Squeak Resistant, No Box Spring Needed, Under-bed storage |
| Product Care Instructions | Wipe with Damp Cloth |

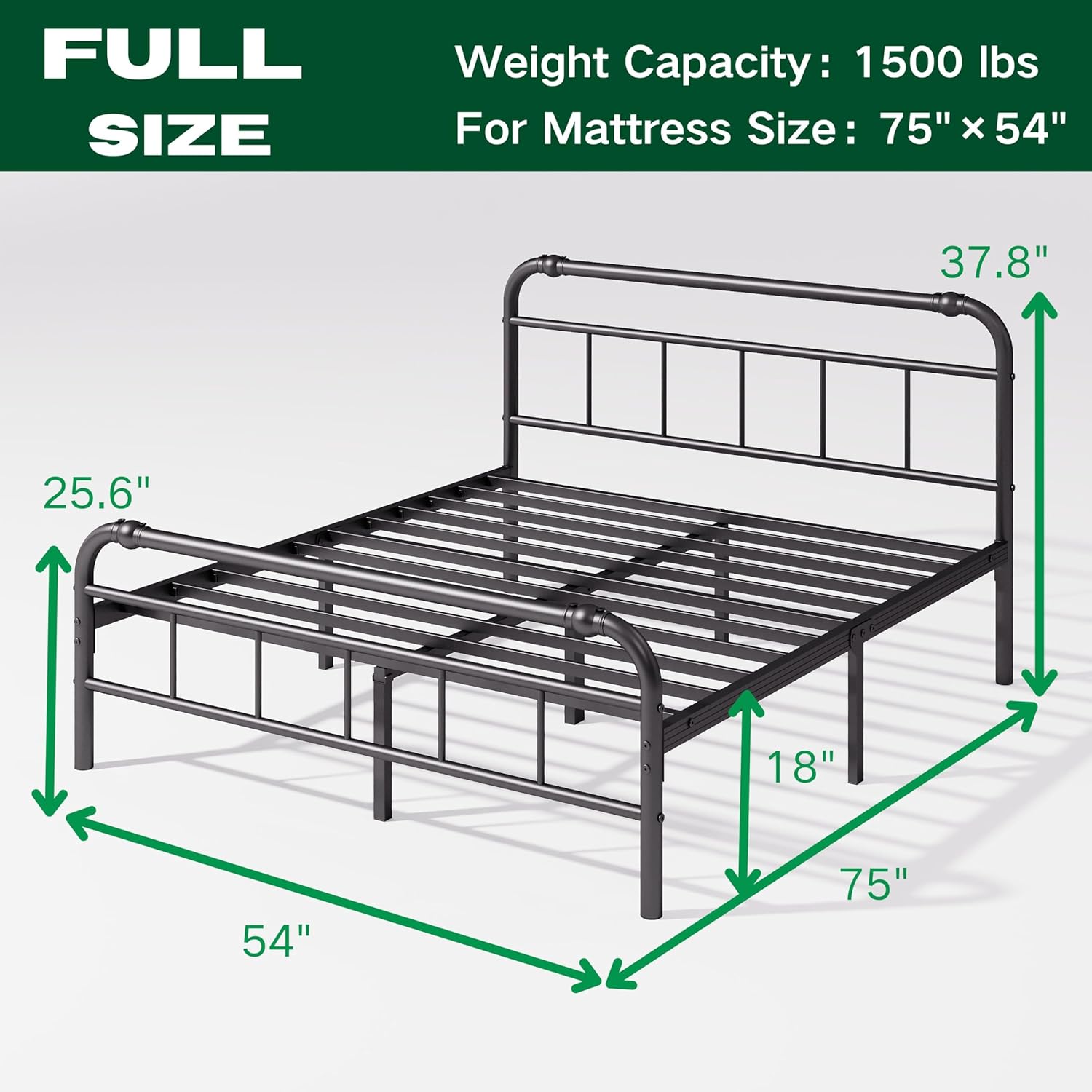

Figure 7.1: Detailed dimensions of the ZIYOO Full Size Metal Bed Frame.
8. Warranty and Customer Support
For warranty information, missing parts, or any other inquiries, please contact ZIYOO customer support directly. Refer to your purchase documentation for specific contact details or visit the official ZIYOO website.
Manufacturer: ZIYOO
Model: RHF3203-18
ASIN: B0DRG1LWHC
Date First Available: December 25, 2024
