FFanhia SM-600 600W Snow Machine User Manual

1. Important Safety Instructions

Please read and understand all safety instructions before operating the FFanhia SM-600 Snow Machine. Failure to follow these instructions may result in injury or damage to the product.

• Always disconnect the mains plug before opening the device or performing any service. Refer servicing to qualified service personnel.
• Never operate the machine without snow fluid in the tank.
• Use only approved snow fluid. Do not fill with water, hot liquid, or homemade fluid.
• Do not drink snow fluid or use it inside or outside the human body. Avoid aiming the nozzle directly at faces.
• The nozzle is made of cloth/fabric and should not be removed.
• Clean the snow machine with a dry cloth and keep it dry for storage.
• Do not leave the snow machine running unattended.
• For continuous use, it is recommended to cool the machine down for 20 minutes after two hours of operation.
• Turn off the product before the liquid is completely used up to prevent damage.
• Disconnect power before changing the fuse.
• Use this machine under adult supervision.

2. Product Overview

The FFanhia SM-600 is a 600W snow machine designed to produce artificial snowflakes for various indoor and outdoor events. It features a compact design, a 1-liter fluid tank, and can be controlled via a wired manual controller or a wireless remote control.

Figure 2.1: The FFanhia SM-600 Snow Machine actively producing artificial snow in an outdoor holiday scene. The machine is black with a handle, and a remote control is shown in use. In the background, a person and a snowman are visible, enhancing the festive atmosphere.

Key Features:

• High Efficiency: 600W power for rapid snowflake production.
• Low Noise Operation: Operates at approximately 66 dB.
• Wide Spraying Distance: Up to 3 meters (9.84 feet).
• Dual Control: Wired manual controller and wireless remote control (10m/32.81ft range).
• Integrated Fluid Tank: 1-liter (0.26 Gallon) capacity.
• Portable Design: Compact size with a practical handle for easy transport.

3. Package Contents

Verify that all items listed below are included in your package:

• 1x FFanhia SM-600 Snow Machine
• 1x Wireless Remote Control
• 1x Remote Control Receiver
• 1x Power Cord
• 1x English Manual (this document)
• 1x Manual Controller (wired)
• All necessary accessories for assembly (e.g., bracket, screws, rubber feet)

Figure 3.1: Contents of the FFanhia SM-600 Snow Machine package, including the main unit, remote control, wired controller, power cord, mounting bracket, and instruction manual.

4. Setup and Assembly

Follow these steps to set up your snow machine:

1. Unpack: Carefully remove all components from the packaging.
2. Positioning: Place the snow machine on a stable, flat surface. Ensure the four rubber feet are securely in place to prevent slipping and protect surfaces.
3. Optional Bracket Installation: If hanging the machine, attach the provided bracket to the sides of the unit using the screws. Ensure it is securely fastened.
4. Fill Fluid Tank: Unscrew the cap of the fluid tank located on top of the machine. Carefully pour approved snow fluid into the tank, ensuring not to overfill. The tank has a 1-liter (0.26 Gallon) capacity. Monitor the liquid level window on the rear panel.
5. Connect Controller:
   • For wired control: Connect the manual controller cable to the "MANUAL CONTROLLER" port on the rear panel.
   • For wireless control: Connect the remote control receiver cable to the "MANUAL CONTROLLER" port on the rear panel.
6. Power Connection: Connect the power cord to the "POWER" inlet on the rear panel of the machine, then plug the other end into a standard AC 110-130V, 60Hz power outlet.

Figure 4.1: Detailed view of the rear panel, highlighting the ON/OFF switch, fluid level window, and connection ports for power and controllers.

Figure 4.2: The snow machine with the wired manual controller connected to the rear panel, ready for operation.

5. Operating Instructions

Once the machine is set up and filled with snow fluid, you can begin operation:

1. Power On: Flip the ON/OFF switch on the rear panel to the "ON" position. The machine will begin to warm up.
2. Snow Production:
   • Using Manual Controller: Press and hold the button on the wired manual controller to activate snow production. Release the button to stop.
   • Using Wireless Remote Control: Press the button on the wireless remote control to activate snow production. Press it again to stop. The remote control has a range of approximately 10 meters (32.81 feet). The remote control uses 1* 23A Alkaline Dry Battery (included).
3. Adjusting Snowflake Size (if applicable): The product description mentions "Snowflake Size" on the rear panel, but no specific control is visible in images or described in detail. If a control exists, refer to the label on the machine for adjustment.
4. Monitoring Fluid Level: Regularly check the fluid level window. Turn off the machine and refill the tank before it runs completely dry to prevent damage to the pump.
5. Power Off: When finished, flip the ON/OFF switch to the "OFF" position and disconnect the power cord from the outlet.

Figure 5.1: The snow machine shown with both control options (wired and wireless remote) and examples of events where it can be used, such as parties, weddings, and stage performances.

6. Maintenance and Storage

Proper maintenance ensures the longevity and optimal performance of your snow machine.

• Cleaning: After each use, especially if storing for an extended period, ensure the fluid tank is empty. Clean the exterior of the machine with a dry, soft cloth. Do not use abrasive cleaners or solvents.
• Nozzle: The nozzle is a fabric component and should not be removed.
• Storage: Store the machine in a dry, cool place away from direct sunlight and extreme temperatures. Ensure the tank is empty before long-term storage.
• Fuse Replacement: If the machine does not power on, check the fuse. Disconnect power before attempting to replace the fuse. Use a fuse of the correct rating as specified in the specifications.

7. Troubleshooting

If you encounter issues with your FFanhia SM-600 Snow Machine, refer to the following common problems and solutions:

• No Snow Production:
  • Check if the machine is powered on and connected to a working outlet.
  • Ensure the fluid tank contains sufficient snow fluid.
  • Verify that the manual controller or remote control receiver is properly connected and functioning.
  • Allow adequate warm-up time after powering on.
• Machine Not Powering On:
  • Check the power cord connection at both the machine and the wall outlet.
  • Ensure the ON/OFF switch is in the "ON" position.
  • Inspect the fuse. If blown, replace it with a fuse of the same type and rating (refer to specifications).
• Weak Snow Output:
  • Ensure the fluid tank is adequately filled.
  • Check for any obstructions in the nozzle area.
  • If the machine has been running for an extended period, allow it to cool down for 20 minutes after two hours of use.

If the problem persists after attempting these solutions, please contact customer support.

8. Specifications

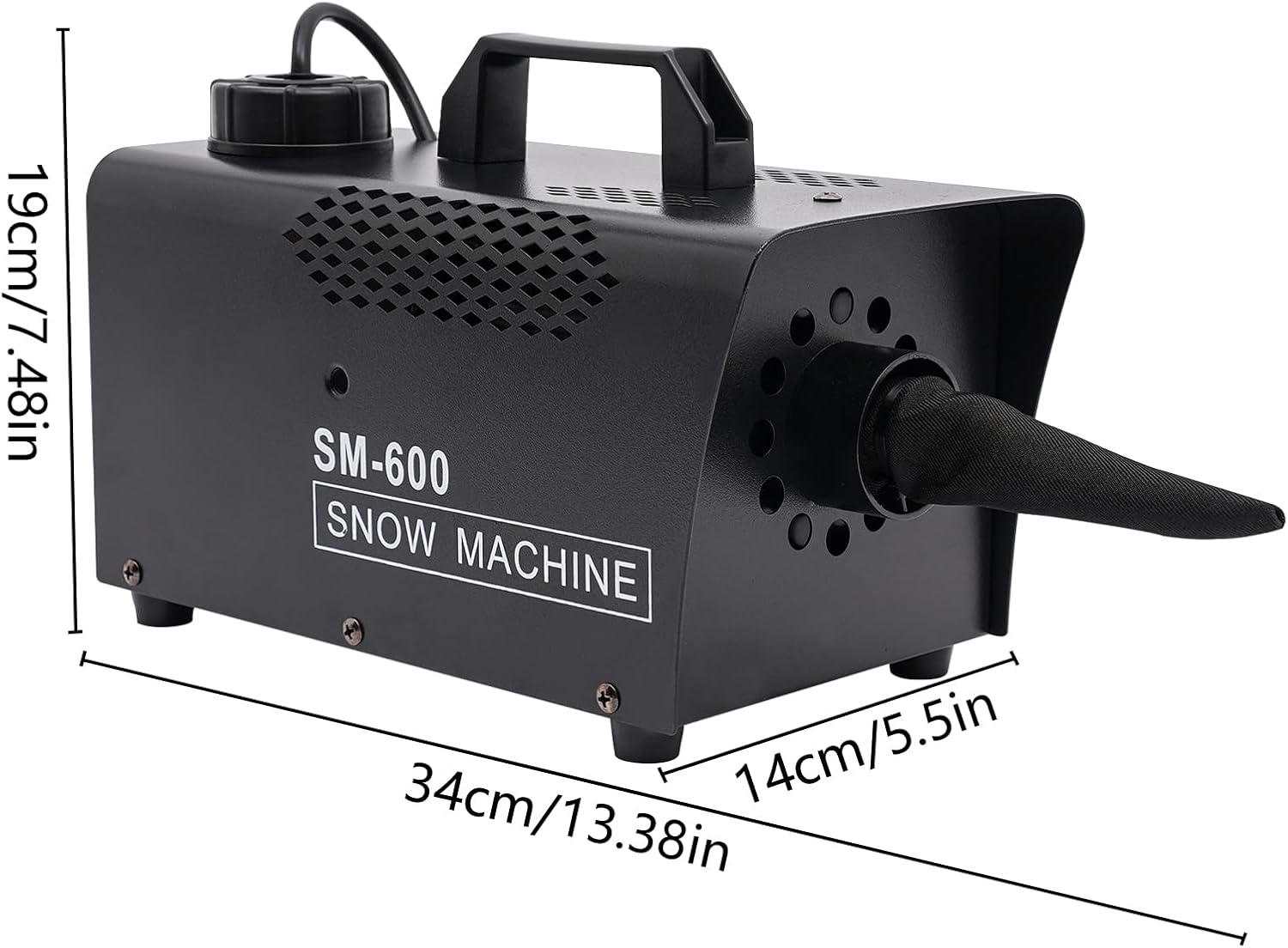

Figure 8.1: Visual representation of the SM-600 Snow Machine's dimensions: 34cm (13.38in) length, 14cm (5.5in) width, and 19cm (7.48in) height.

9. Warranty and Support

Specific warranty information is not provided in the product details. Please refer to your purchase documentation or contact the seller directly for warranty terms and conditions.

For technical support, troubleshooting assistance, or inquiries about replacement parts, please contact FFanhia customer service through the platform where you purchased the product.
