1. Introduction
This manual provides essential information for the installation, operation, and maintenance of the MEUS RACING V2.0 Isokinetic 3-Section CVD axle shaft. This component is designed to enhance the driveline system of MEUS Capra 1.9 1:10 scale RC car models.
The Isokinetic 3-section CVD structure ensures smooth power transmission and minimizes jerks, especially during turns at large angles. Its design incorporates a universal joint connecting two shafts via a U-shape buckle, allowing for a larger transmission angle, improved flexibility, and enhanced stability. This robust 3-section construction contributes to a longer service life for the entire car axle system.
2. Package Contents
Upon opening the package, verify that all components are present and undamaged:
- Capra 1.9 CVD Shaft (Quantity: As per order)
If any items are missing or damaged, please contact your retailer or MEUS RACING customer support.
3. Safety Information
WARNING:
- This product is intended for users aged 14 years and up.
- Keep small parts away from children to prevent choking hazards.
- Always wear appropriate safety gear when handling tools and installing components.
- Ensure the RC vehicle is powered off and disconnected from its power source before performing any installation or maintenance.
- Refer to your RC vehicle's main instruction manual for additional safety guidelines.
4. Compatibility and Setup
The MEUS RACING V2.0 Isokinetic 3-Section CVD axle shaft is specifically designed for MEUS RACING Capra 1.9 axles that utilize the Isokinetic 3-Section CVD axle V2.0 system. This upgraded version is not compatible with older versions of axles or other axle types.
4.1 Installation Overview
Installation of the CVD shafts involves disassembling the existing axle components, replacing the old shafts with the new V2.0 Isokinetic 3-Section CVDs, and reassembling the axle. It is recommended to consult the original MEUS Capra 1.9 axle manual for detailed disassembly and reassembly instructions.
Image 1: This image illustrates the structural differences between the first and second generation Isokinetic CVDs. The V2.0 features a thickened structure designed to improve overall strength and durability, ensuring a more robust driveline for your RC vehicle.
Image 2: Detailed dimensions of the MEUS RACING V2.0 Isokinetic 3-Section CVD. The overall length is 126.5 mm, with specific measurements for the universal joint section and shaft diameters. These measurements are crucial for ensuring proper fitment within compatible axles.
Image 3: A close-up view of the universal joint component of the CVD shaft. This joint is critical for allowing the axle to transmit power smoothly while accommodating steering angles and suspension travel.

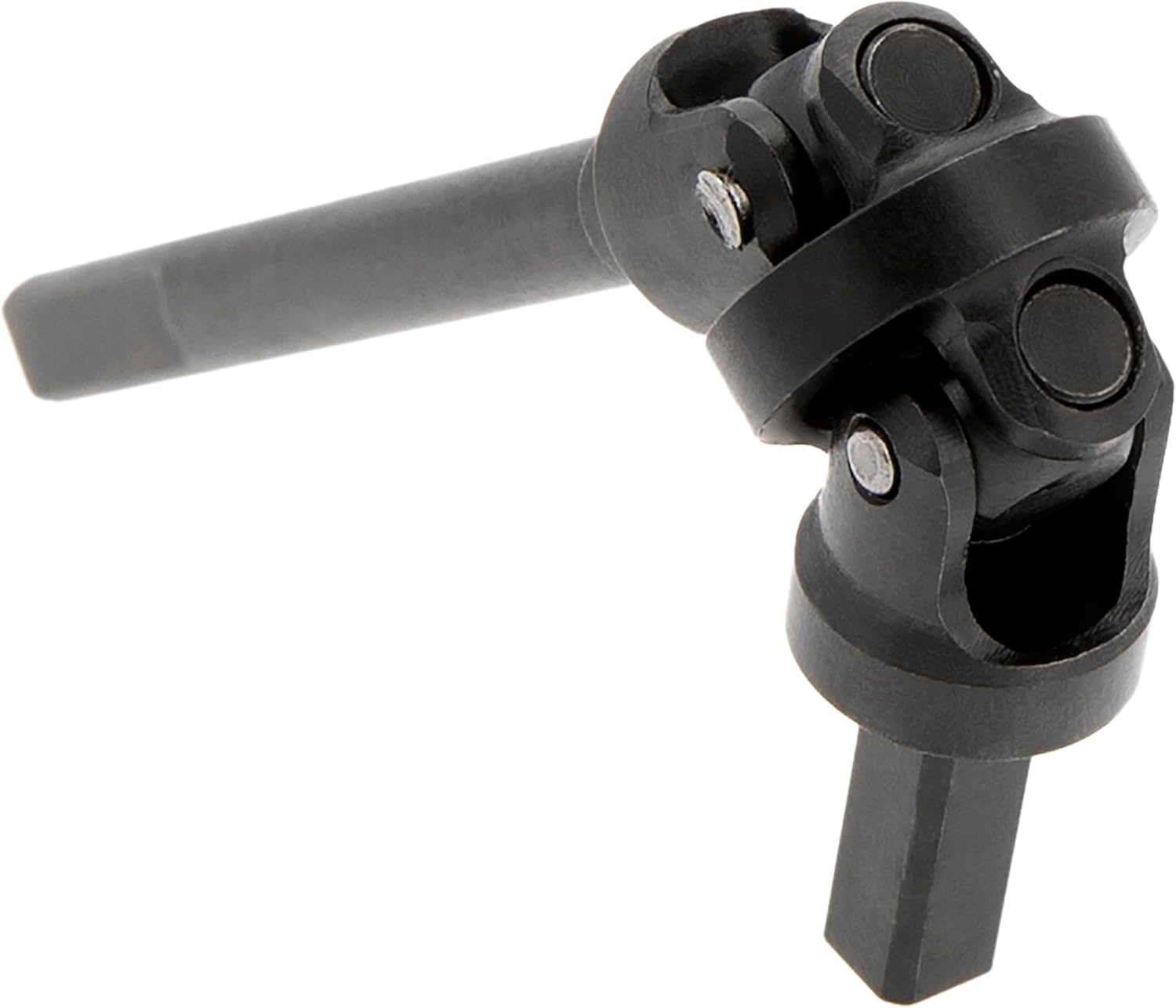

Image 4: This image shows the CVD universal joint at an angle, highlighting its ability to articulate. This flexibility is essential for maintaining consistent power delivery to the wheels during steering maneuvers.
Image 5: Two MEUS RACING V2.0 Isokinetic 3-Section CVD shafts are shown, with one articulated to demonstrate the range of motion provided by the universal joint. This articulation capability is key to the "Isokinetic" design, ensuring constant velocity power transfer.
Image 6: This image displays two MEUS RACING V2.0 Isokinetic 3-Section CVD shafts in their straight, unarticulated configuration. This view highlights the overall length and robust construction of the shafts.
Image 7: A pair of MEUS RACING V2.0 Isokinetic 3-Section CVD shafts, one longer and one shorter, both shown with articulation. This demonstrates the design's adaptability for different axle lengths within the Capra 1.9 system, while maintaining the critical constant velocity joint functionality.
5. Operating Principles
The Isokinetic 3-Section CVD (Constant Velocity Drive) shaft is engineered to provide a consistent rotational speed to the wheels, regardless of the steering angle. This is achieved through its unique universal joint design, which minimizes speed fluctuations and vibrations that can occur with traditional universal joints at high articulation angles.
When installed in your MEUS Capra 1.9 axles, these CVDs allow for a greater steering angle without binding or loss of power, contributing to improved maneuverability and control of your RC vehicle, especially in challenging terrains.
5.1 Demonstration Video
Video 1: This video demonstrates the functionality and steering capabilities of the MEUS RACING Capra 1.9 Portal Axles, which incorporate the Isokinetic 3-Section CVDs. Observe how the wheels maintain smooth rotation and wide steering angles, showcasing the benefits of the CVD design in an operational RC vehicle.
6. Maintenance
To ensure the longevity and optimal performance of your MEUS RACING V2.0 Isokinetic 3-Section CVDs, regular maintenance is recommended:
- Inspection: Periodically inspect the CVD shafts for any signs of wear, bending, or damage, especially after heavy use. Pay close attention to the universal joints.
- Cleaning: After running your RC vehicle in dusty or muddy conditions, clean the CVDs to remove dirt and debris. A soft brush and compressed air can be effective.
- Lubrication: Apply a small amount of high-quality grease or lubricant to the universal joints to reduce friction and wear. Avoid over-lubrication, which can attract more dirt.
- Fasteners: Check all screws and fasteners associated with the CVDs and axles to ensure they are securely tightened.
- Replacement: If any part of the CVD shaft shows significant wear or damage, replace it immediately to prevent further damage to your RC vehicle's driveline.
7. Troubleshooting
If you encounter issues with your MEUS RACING V2.0 Isokinetic 3-Section CVDs, consider the following:
- Binding or Sticking:
- Ensure the CVDs are correctly installed and not binding against other axle components.
- Check for excessive dirt or debris in the universal joints and clean as necessary.
- Verify proper lubrication.
- Unusual Noises (Clicking/Grinding):
- This often indicates wear in the universal joints or improper installation. Inspect for damaged pins or cups.
- Check for loose fasteners.
- Reduced Steering Angle:
- Confirm that the CVDs are the correct V2.0 version for your axles. Older versions may have different articulation limits.
- Ensure no other components (e.g., steering links, suspension parts) are obstructing the full range of motion.
- Shaft Bending or Breakage:
- While designed for durability, extreme impacts or excessive power can cause damage. Inspect for signs of stress or fatigue.
- Ensure the vehicle is not overloaded or subjected to forces beyond its design limits.
If troubleshooting steps do not resolve the issue, contact MEUS RACING customer support for further assistance.
8. Specifications
| Feature | Detail |
|---|---|
| Product Name | V2.0 Isokinetic 3-Section CVD |
| Brand | MEUS RACING |
| Compatibility | MEUS Capra 1.9 Axles (V2.0 Isokinetic 3-Section CVD compatible) |
| Structure | Isokinetic 3-Section CVD with Universal Joint |
| Product Dimensions | 1 x 1 x 1 inches (Approximate, refer to Image 2 for detailed measurements) |
| Item Weight | 0.8 ounces |
| Manufacturer Recommended Age | 14 years and up |
9. Warranty and Support
For warranty information, please refer to the official MEUS RACING website or contact your point of purchase. MEUS RACING stands behind the quality of its products.
If you require technical assistance, have questions about installation, or need to report a defect, please contact MEUS RACING customer support. Contact details can typically be found on the MEUS RACING official website or through your retailer.
Online Resources: For additional information, product updates, and community forums, visit the MEUS RACING Store on Amazon.
