1. Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your KUIPERAUTO GT45 TurboCharger. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. Retain this manual for future reference.
Figure 1: GT45 TurboCharger with included gaskets.
2. Safety Information
Always prioritize safety during installation and operation. Failure to follow safety guidelines can result in serious injury or damage to the product and vehicle.
- Ensure the engine is cool before beginning any work.
- Disconnect the vehicle's battery to prevent accidental electrical discharge.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Work in a well-ventilated area.
- Consult a qualified automotive technician if you are unsure about any installation steps.
3. Product Overview
The KUIPERAUTO GT45 TurboCharger is designed for 4.0L-6.0L engines, capable of boosting horsepower up to 600+ HP. It features high-quality materials for durability and performance.
- Ductile Iron QT450-10: Temperature resistant up to 700℃.
- K418 Alloy: High resistance up to 900℃.
- ZL104 Aluminum: Lightweight construction.
- Cast Aluminum Blades: Superior air tightness and anti-corrosion resistance.
Figure 2: Illustration of the high-quality materials used in the GT45 TurboCharger, including ductile iron, K418 alloy, ZL104 aluminum, and cast aluminum blades.
Figure 3: The GT45 TurboCharger is designed to increase engine power and torque, leading to improved vehicle performance and acceleration.
4. Setup and Installation
This section outlines the general steps for installing the GT45 TurboCharger. Professional installation is highly recommended.
4.1. Pre-Installation Checklist
- Verify all components are present: 1x Turbocharger, 1x Gasket Set.
- Ensure the vehicle's engine is compatible (4.0L-6.0L).
- Gather necessary tools (wrenches, sockets, torque wrench, etc.).
- Review vehicle-specific service manual for turbocharger removal and installation procedures.

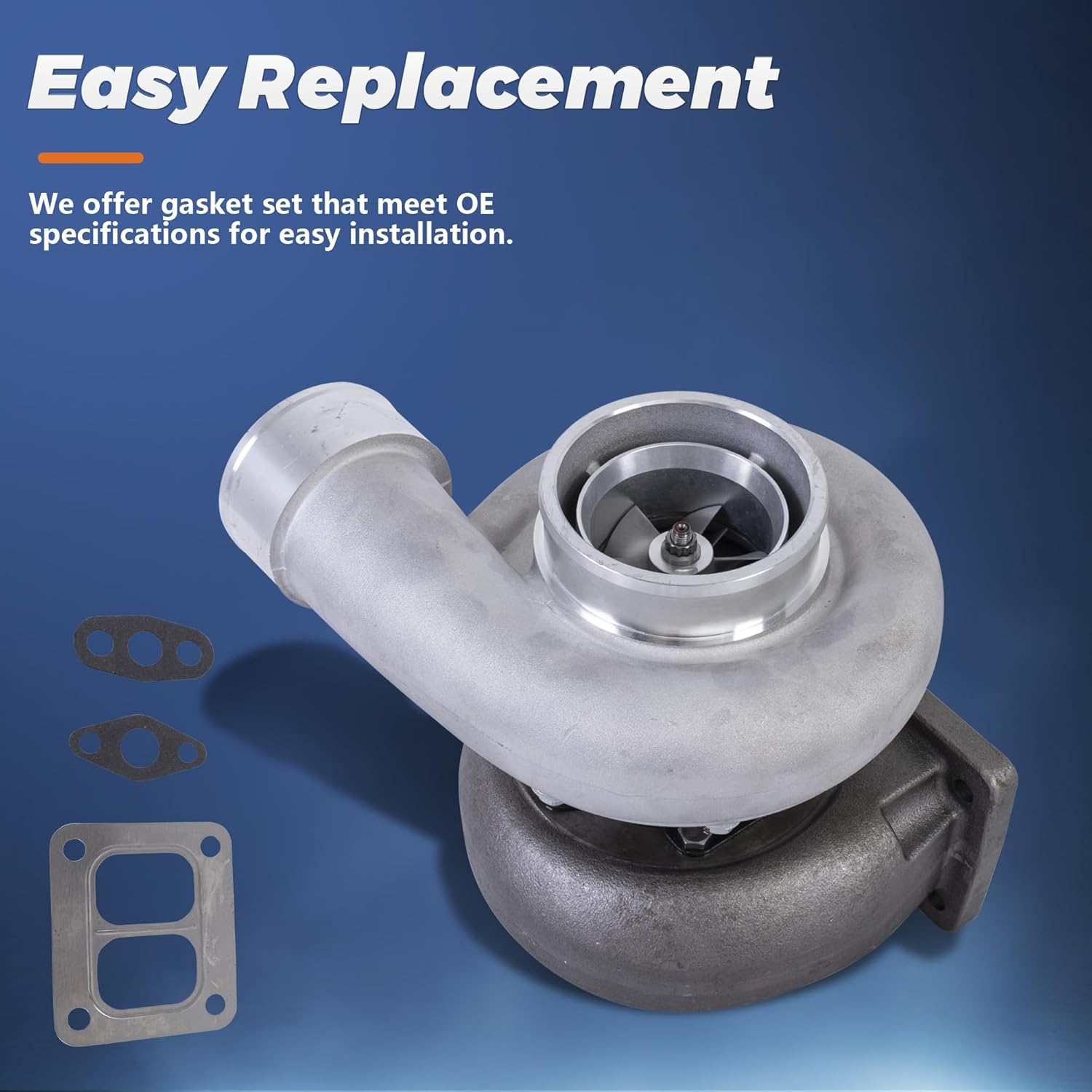

Figure 4: The turbocharger comes with a gasket set designed to meet OEM specifications for straightforward installation.
4.2. Installation Steps (General)
- Safely lift and secure the vehicle.
- Drain engine oil and coolant if necessary, depending on turbocharger location.
- Remove existing turbocharger (if applicable) and associated piping.
- Clean mounting surfaces thoroughly.
- Install new gaskets from the provided set.
- Mount the GT45 TurboCharger, ensuring proper alignment and torque specifications are met for all fasteners.
- Reconnect oil feed and drain lines, coolant lines (if applicable), and air intake/exhaust piping.
- Refill engine oil and coolant to appropriate levels.
- Perform initial engine start-up and check for leaks or unusual noises.

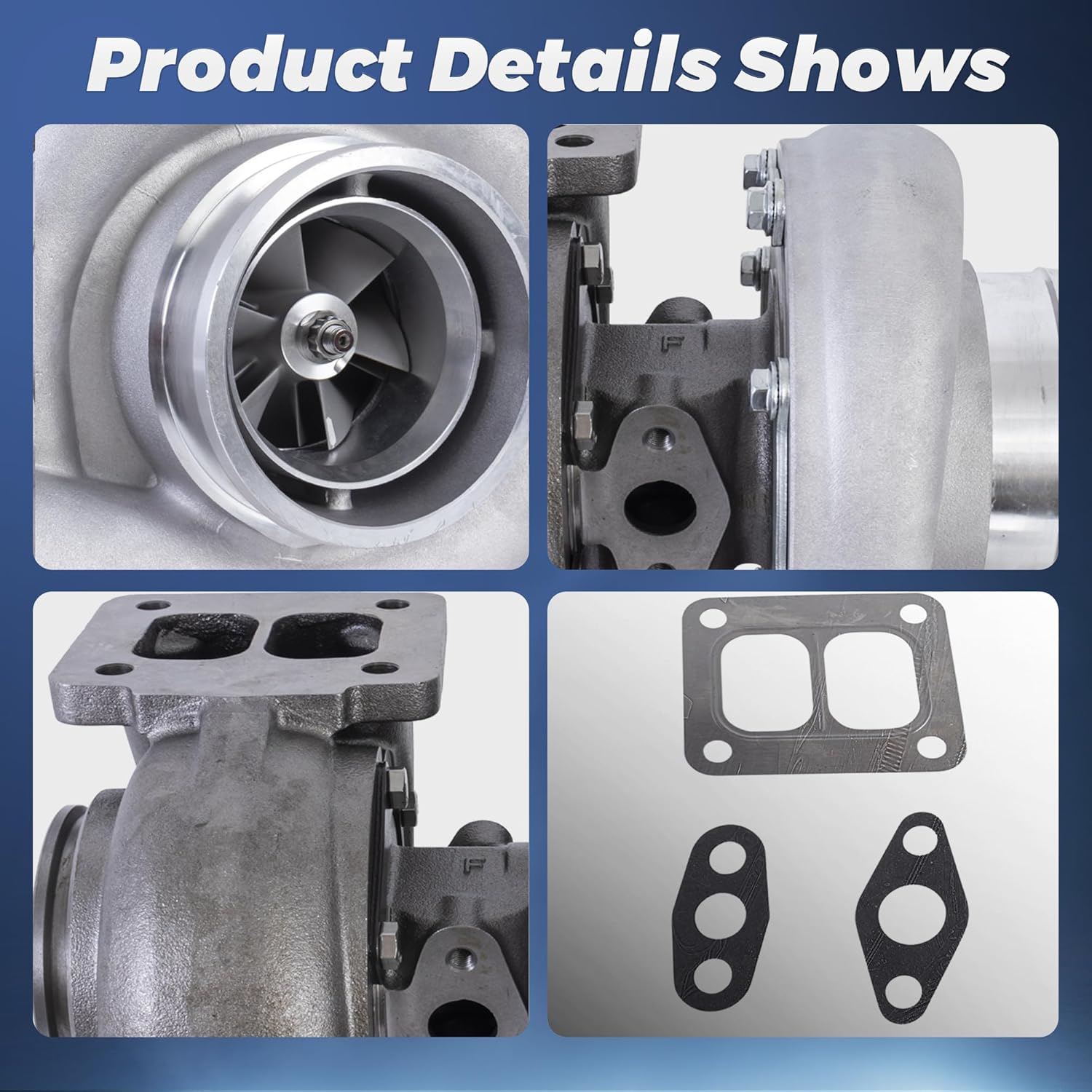

Figure 5: Close-up views showing the turbine housing, compressor housing, and the included T4 twin scroll flange gasket and exhaust gaskets.
5. Operating Guidelines
Proper operation ensures optimal performance and extends the life of your turbocharger.
- Allow the engine to reach operating temperature before applying full boost.
- Avoid immediate engine shutdown after high-load operation; allow the engine to idle for a few minutes to cool down the turbocharger.
- Regularly check engine oil levels and quality, as clean oil is crucial for turbocharger lubrication.
6. Maintenance
Routine maintenance is essential for the longevity and performance of your GT45 TurboCharger.
- Oil Changes: Adhere to your vehicle's recommended oil change intervals, using high-quality synthetic oil. Turbochargers are highly dependent on clean lubrication.
- Air Filter Inspection: Regularly inspect and replace the air filter to prevent contaminants from entering the turbocharger.
- Hose and Clamp Inspection: Check all boost and vacuum hoses, as well as clamps, for leaks or damage.
- Boost Leak Check: Periodically check for boost leaks, which can reduce performance and put strain on the turbocharger.
7. Troubleshooting
This section provides basic troubleshooting steps for common issues. For complex problems, consult a professional.
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced Boost/Power | Boost leak, clogged air filter, wastegate issue, oil starvation. | Check hoses and clamps, replace air filter, inspect wastegate, verify oil supply. |
| Unusual Noises (Whining, Hissing) | Air leak, bearing wear, foreign object ingestion. | Inspect piping for leaks, check shaft play (if safe), professional inspection. |
| Excessive Smoke from Exhaust | Oil leaking into exhaust/intake (worn seals/bearings). | Immediate professional inspection and repair/replacement. |
8. Specifications
| Attribute | Detail |
|---|---|
| Brand | KUIPERAUTO |
| Model | GT45 TurboCharger |
| Item Model Number | K093QK003KI3 |
| Application | 4.0L-6.0L Engines |
| Horsepower Capability | Up to 600+ HP |
| Turbine A/R | 1.05 |
| Flange Type | T4 Twin Scroll |
| Item Weight | 37.6 pounds |
| Package Dimensions | 13.39 x 12.2 x 11.02 inches |
| Included Components | 1x Turbocharger, 1x Gasket Set |
Figure 6: The GT45 TurboCharger is designed for 4.0L-6.0L engine applications, capable of boosting horsepower up to 600+ HP. The OEM part number is GT45.
9. Warranty and Support
For warranty information and technical support, please contact KUIPERAUTO customer service. Keep your purchase receipt as proof of purchase.
