CHARMAID Farmhouse Vanity Desk User Manual

1. Introduction

Thank you for choosing the CHARMAID Farmhouse Vanity Desk. This manual provides essential information for the safe assembly, operation, and maintenance of your new vanity desk. Please read these instructions thoroughly before use and retain them for future reference.

Image 1.1: Overview of the CHARMAID Farmhouse Vanity Desk.

2. Important Safety Information

To ensure safe operation and prevent damage, please adhere to the following safety guidelines:

• Always unplug the vanity from the power source before performing any assembly, disassembly, or maintenance.
• Keep the vanity desk away from direct heat sources and excessive moisture to prevent material damage.
• Do not place objects exceeding 110 lbs (50 kg) on the tabletop. The stool has a weight capacity of 330 lbs (150 kg).
• Secure the vanity to the wall using the provided anti-toppling kits to prevent accidental tipping, especially in households with children or pets.
• Ensure the electrical cord is positioned safely to avoid tripping hazards or damage.
• Always turn off the LED lights before adjusting the mirror or performing any electrical connections to prevent electric shock.

Image 2.1: Anti-toppling device for securing the vanity to a wall.

3. Package Contents

Verify that all components are present and undamaged before beginning assembly. Refer to the detailed parts list and diagrams included in your separate assembly instruction booklet for specific identification of each part and hardware.

Typical components include:

• Vanity Desk Panels (Tabletop, Side Panels, Back Panels, Drawer Components)
• Sliding Mirror Assembly with LED Lights
• Stool Components (Seat, Legs)
• Hardware Pack (Screws, dowels, cam locks, drawer slides, anti-toppling kit)
• Assembly Instruction Booklet

4. Setup and Assembly

Assembly is required for this vanity desk. For detailed, step-by-step instructions, please refer to the dedicated assembly instruction booklet provided in the packaging. Ensure you have adequate space and the necessary tools (typically a Phillips head screwdriver, often included) before starting.

General Assembly Steps:

1. Unpack all components and verify against the parts list.
2. Assemble the main desk frame according to the diagrams.
3. Install the drawers and drawer slides.
4. Attach the upper hutch and sliding mirror assembly.
5. Connect the LED light power cable.
6. Assemble the accompanying stool.
7. Secure the vanity to the wall using the anti-toppling device.

Image 4.1: Illustration of the vanity's storage capacity and adjustable shelves.

5. Operating Instructions

5.1. LED Mirror Lights

The vanity features an integrated LED mirror with customizable lighting. Locate the touch-sensitive button on the mirror surface.

• Turn On/Off: Tap the touch button once to turn the lights on or off.
• Change Color Mode: With the lights on, tap the touch button repeatedly to cycle through the three color modes: Warm Yellow, Warm White, and Cool White.
• Adjust Brightness: With the lights on, press and hold the touch button to adjust the brightness level. Release when the desired brightness is achieved.

Image 5.1: LED mirror light settings and touch control.

5.2. Sliding Mirror

The barn-style mirror is designed to slide smoothly along its rail, revealing concealed storage shelves behind it.

• Gently grasp the mirror frame and slide it left or right along the top rail to access the hidden compartments.
• Ensure the mirror is fully closed or positioned securely when not accessing the hidden storage.

Image 5.2: Operation of the barn-style sliding mirror.

5.3. Storage Features

The vanity desk offers various storage options:

• Open Shelves: Six open shelves provide easy access to frequently used items. Some shelves feature adjustable height settings (1.3-inch increments).
• Concealed Shelves: Two shelves are located behind the sliding mirror, offering discreet storage. These also have adjustable height settings.
• Side Cabinet: A cabinet with an adjustable shelf provides additional enclosed storage.
• Desktop Drawers: Two smaller drawers are integrated into the desktop for small items.
• Large & Small Drawers: One large and one small drawer offer ample space for various cosmetics and accessories.
• Transparent Glass Tabletop: The clear glass section of the tabletop allows for easy viewing of items stored in the drawers directly beneath it, facilitating quick organization and access.

Image 5.3: Transparent glass tabletop feature.

6. Maintenance

Proper care will extend the life and appearance of your vanity desk.

• Cleaning Surfaces: Wipe all surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish. For the glass tabletop, use a glass cleaner.
• Mirror Care: Clean the mirror surface with a soft, lint-free cloth and a non-ammonia glass cleaner. Do not spray cleaner directly onto the mirror; apply it to the cloth first.
• Drawer Slides: Periodically check drawer slides for smooth operation. If needed, a small amount of silicone-based lubricant can be applied.
• Hardware: Regularly check all screws and fasteners to ensure they are tight. Retighten if necessary to maintain stability.
• Electrical Components: Ensure all electrical connections are secure. If any damage to the power cord or LED lights is observed, discontinue use and contact customer support.

7. Troubleshooting

If you encounter issues with your vanity desk, refer to the following common problems and solutions:

8. Specifications

• Model: CD10924US-WH-UH
• Overall Dimensions (L x W x H): 42" x 16" x 54.5" (106.7 cm x 40.6 cm x 138.4 cm)
• Materials: Engineered Wood, MDF, Mirror, Tempered Glass, PVC Leather, Sponge
• Color: White & Oak
• Item Weight: 101 lbs (45.8 kg)
• Tabletop Weight Capacity: 110 lbs (50 kg)
• Stool Weight Capacity: 330 lbs (150 kg)
• Assembly Required: Yes

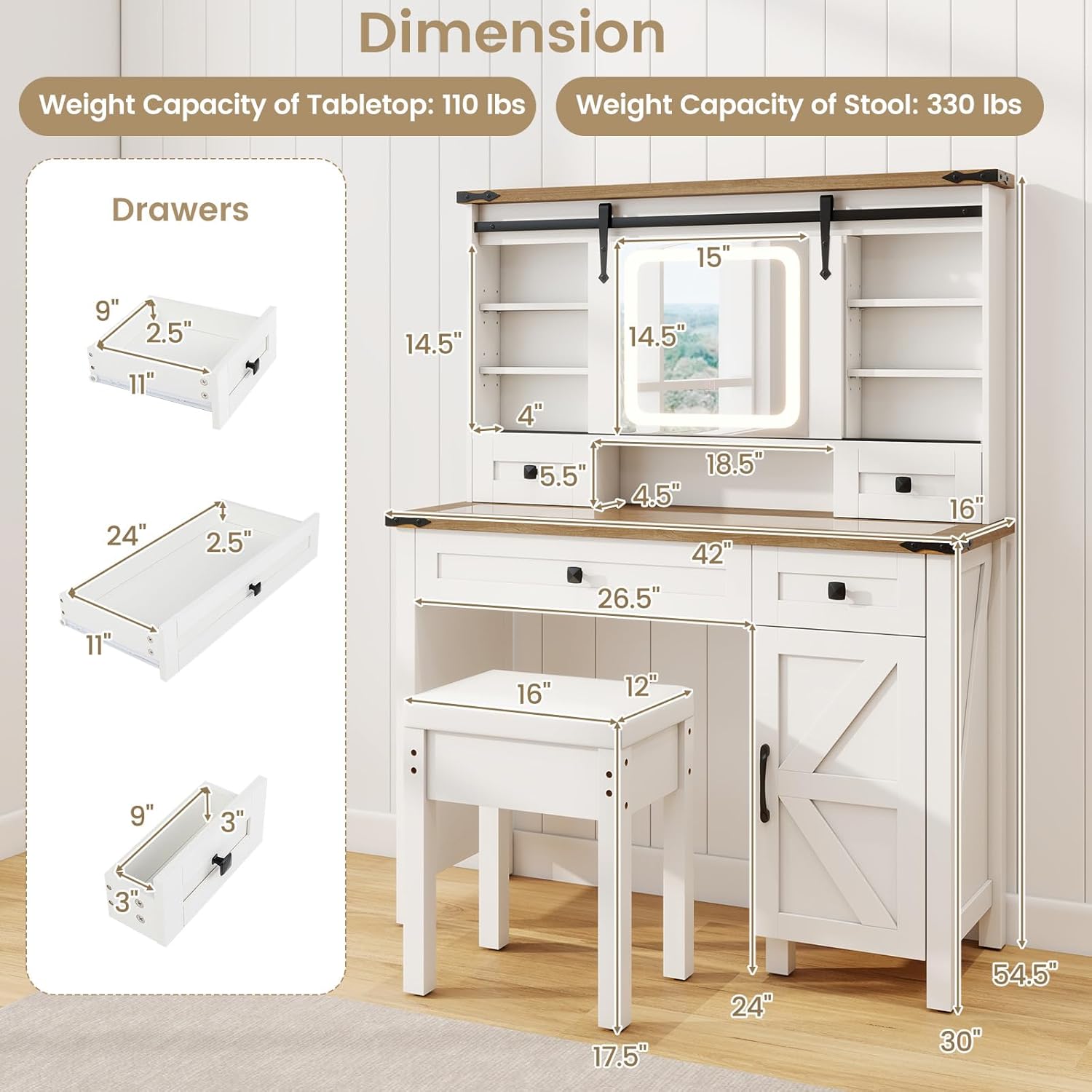

Image 8.1: Detailed dimensions of the vanity desk and stool.

9. Warranty and Support

For warranty information, product support, or to report missing/damaged parts, please refer to the contact information provided in your purchase documentation or visit the official CHARMAID website. Please have your model number (CD10924US-WH-UH) and purchase date available when contacting support.
