Introduction
This manual provides essential information for the safe and effective use of your VERVEWAVE 20V MAX 2.0 Ah Lithium-Ion Battery Pack. This battery is specifically designed for use with the RLBBM10 Leaf Blower (ONLY for BM10 Blower). Please read this manual thoroughly before first use and retain it for future reference.

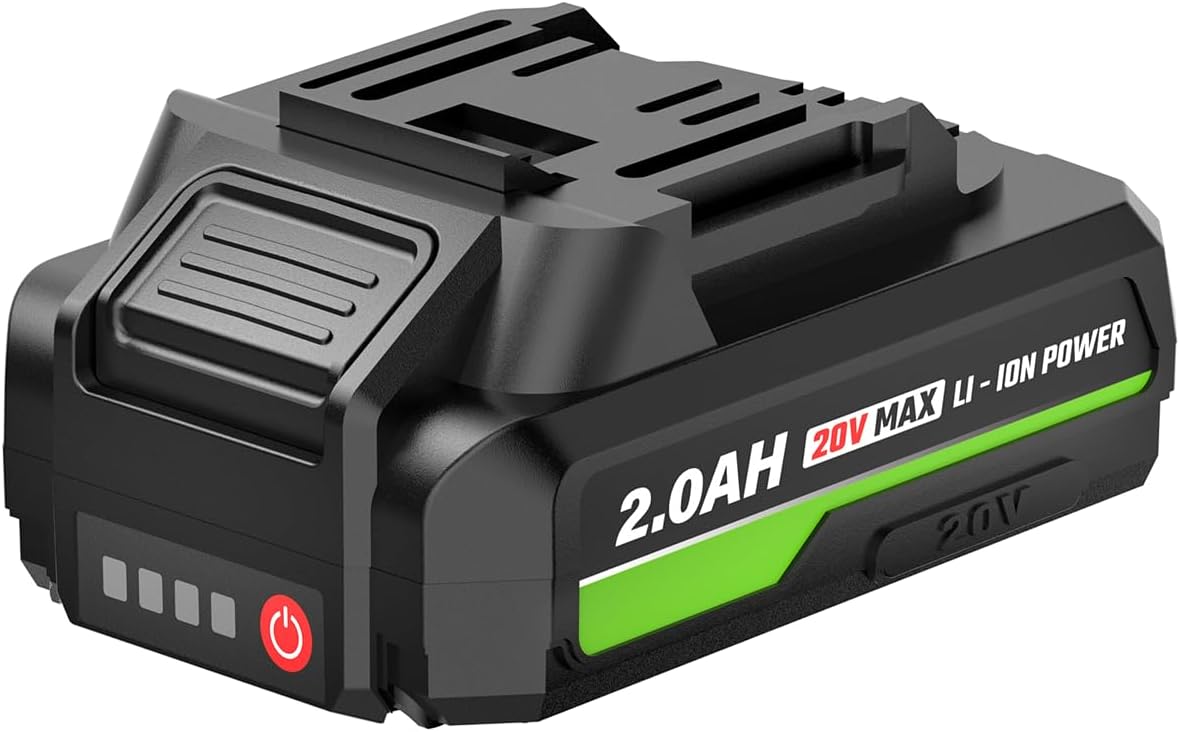

An image showing the VERVEWAVE 20V MAX 2.0 Ah Lithium-Ion Battery Pack. The battery is black with a green stripe, featuring '2.0AH 20V MAX LI-ION POWER' text. It has a power indicator with four grey squares and a red power button icon.
Important Safety Instructions
WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
- Always use the correct charger for this battery pack. Using an incompatible charger may cause fire or explosion.
- Do not disassemble, open, or shred the battery pack.
- Do not expose the battery pack to heat or fire. Avoid storage in direct sunlight.
- Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials.
- Do not subject battery pack to mechanical shock.
- In the event of battery leakage, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
- Keep battery packs clean and dry.
- Do not use any battery pack that is not designed for use with the equipment.
- Keep battery packs out of the reach of children.
- Observe the plus (+) and minus (-) marks on the battery and equipment and ensure correct use.
- Dispose of battery pack properly at a designated collection point.
Setup
Charging the Battery Pack
- Ensure the battery pack is clean and dry before charging.
- Connect the appropriate VERVEWAVE 20V battery charger (sold separately) to a standard power outlet.
- Slide the battery pack onto the charger until it clicks into place.
- Observe the charger's indicator lights. These lights will typically show the charging status (e.g., charging, fully charged, error). Refer to your charger's manual for specific indicator meanings.
- Once fully charged, disconnect the battery pack from the charger.
Installing the Battery Pack
- Ensure the RLBBM10 Leaf Blower is turned off and disconnected from any power source.
- Locate the battery compartment on the RLBBM10 Leaf Blower.
- Align the battery pack with the battery slot in the blower.
- Slide the battery pack firmly into the compartment until it locks securely into place. You should hear a click.
- To remove the battery, press the release button (if present on the blower) and slide the battery out.
Operating the Battery Pack
The VERVEWAVE 20V MAX 2.0 Ah Lithium-Ion Battery Pack is designed to power the VERVEWAVE RLBBM10 Leaf Blower. Its operation is integrated with the blower's functionality.
Battery Charge Indicator
The battery pack features an integrated charge indicator. Press the red power button icon on the battery to illuminate the indicator lights. The number of illuminated squares indicates the approximate charge level:
- Four lights: Full charge
- Three lights: Approximately 75% charge
- Two lights: Approximately 50% charge
- One light: Low charge, recharge soon
- No lights: Battery is depleted or requires charging
Using with RLBBM10 Leaf Blower
Once the battery is securely installed in the RLBBM10 Leaf Blower, operate the blower according to its specific instruction manual. The battery provides consistent power until its charge is depleted.
Maintenance
Charging Practices
- Do not overcharge the battery. Disconnect once fully charged.
- Avoid completely draining the battery before recharging, as this can reduce its lifespan.
- Charge the battery in a well-ventilated area, away from flammable materials.
Storage
- Store the battery pack in a cool, dry place, away from direct sunlight and extreme temperatures.
- For long-term storage, it is recommended to store the battery at approximately 50% charge.
- Remove the battery from the leaf blower when not in use for extended periods.
Cleaning
- Clean the battery pack with a soft, dry cloth.
- Do not use harsh chemicals or abrasive cleaners.
- Ensure the battery terminals are clean and free of debris for optimal connection.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Battery not charging | Charger not plugged in; Battery not properly seated on charger; Faulty charger or battery; Extreme temperature. | Check charger connection; Re-seat battery; Test with another charger/battery if available; Charge in recommended temperature range (40°F-105°F / 4°C-40°C). |
| Battery not powering blower | Battery not charged; Battery not properly installed; Battery or blower fault. | Check battery charge indicator and recharge if necessary; Ensure battery is fully clicked into place; Consult blower manual for troubleshooting; Contact customer support if issue persists. |
| Battery indicator lights not working | Battery fully depleted; Internal fault. | Attempt to charge the battery; If still unresponsive, the battery may be faulty and require replacement. |
Specifications
- Model Name: Battery-00-RLBBM10
- Battery Type: Lithium Ion
- Voltage: 20V MAX
- Capacity: 2.0 Ah
- Item Weight: 13.7 ounces
- Package Dimensions: 5.28 x 3.86 x 3.19 inches
- Manufacturer: VERVEWAVE
Warranty and Support
VERVEWAVE stands behind the quality of its products. For specific warranty information, please refer to the warranty card included with your purchase or visit the official VERVEWAVE website. For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact VERVEWAVE customer service.
Contact Information: Please refer to your product packaging or the VERVEWAVE official website for the most current contact details.
