Smart FENDEE Fluted 3-Drawer Dresser Instruction Manual

Introduction

This manual provides comprehensive instructions for the assembly, safe use, and maintenance of your Smart FENDEE Fluted 3-Drawer Dresser. Please read all instructions carefully before assembly and retain this manual for future reference.

Safety Information

WARNING: Serious or fatal crushing injuries can occur from furniture tip-over. To help prevent tip-over:

• Always use tip-over restraint devices provided.
• Never allow children to climb or hang on drawers, doors, or shelves.
• Never open more than one drawer at a time.
• Place heaviest items in the lowest drawers.
• Do not place televisions or other heavy objects on top of this product unless it is specifically designed to accommodate them.

If the provided tip-over restraint is not included or you require additional restraints, please contact customer support.

Ensure all parts are securely fastened before use. Periodically check and re-tighten all fasteners.

Package Contents

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.

Main Components:

• Top Panel (1)
• Side Panels (2, 3)
• Back Panels (7, 8)
• Bottom Panel (6)
• Support Bars (4, 5)
• Drawer Fronts (10) x3
• Drawer Side Panels (11, 12) x3 sets
• Drawer Back Panels (13) x3
• Drawer Bottom Panels (14) x3
• Drawer Support Bars (15) x3
• Legs (9) x4

Hardware:

• Various screws, cam locks, dowels, and drawer slides (CL, CR, DL, DR)
• Anti-tipping device (E, K)
• Handles (G) x3

Refer to the detailed parts diagram in the assembly video for specific quantities and identification.

Assembly Instructions

Assembly typically requires two hours and is best performed with two people. Follow the steps carefully to ensure proper construction and stability.

Assembly Video Guide:

Step-by-Step Assembly Overview:

For a visual and detailed guide, please refer to the "Smart FENDEE 3 Drawer Dresser Installation" video above. The following steps provide a textual overview:

1. Prepare Side Panels: Attach the left and right drawer slides to the respective side panels (parts 2 and 3). Ensure correct orientation and secure with screws.

2. Assemble Main Frame: Connect the prepared side panels with the horizontal support bars (parts 4 and 5) using cam locks and dowels. Tighten all connections.

3. Install Back Panels: Slide the back panels (parts 7 and 8) into the designated grooves on the assembled frame. Secure them with the provided hardware.

4. Attach Legs: Secure the four metal legs (part 9) to the bottom panel (part 6) using screws. Ensure they are firmly attached for stability.



   Image showing the sturdy metal legs of the dresser.

5. Assemble Drawers (Repeat 3 times): Construct each drawer by connecting the side, back, and bottom panels. Attach the fluted drawer front (part 10) and the integrated handles. Finally, install the remaining drawer slides to the sides of each drawer.



   The dresser with all three drawers open, showcasing storage capacity.

6. Install Anti-Tipping Device: For safety, attach the anti-tipping device to the top back of the dresser and secure it to a wall stud using appropriate wall anchors and screws. This is a critical step to prevent tip-over accidents.

7. Insert Drawers: Carefully slide each assembled drawer into its corresponding tracks on the dresser frame. Test each drawer to ensure it glides smoothly.

Product Features

• Elegant Fluted Panel Design: Crafted with a unique grooved wave panel and natural walnut wood veneer, offering a distinctive mid-century modern aesthetic.
• Ample Storage: Features three large drawers designed to provide significant space for organizing clothes, books, toys, and other items.
• Sturdy Construction: Made from high-quality medium-density fiberboard (MDF) and premium hardware, ensuring durability and stability.
• Metal Legs: Equipped with four robust metal legs for enhanced support and a sleek appearance.
• Smooth Sliding Rails: Drawers operate on smooth metal rails, allowing for effortless opening and closing.
• Integrated Handles: Features classy black metal handles seamlessly integrated into the fluted design.
• Anti-Tip Device: Includes a safety anti-tip device to secure the dresser to the wall, preventing accidents.

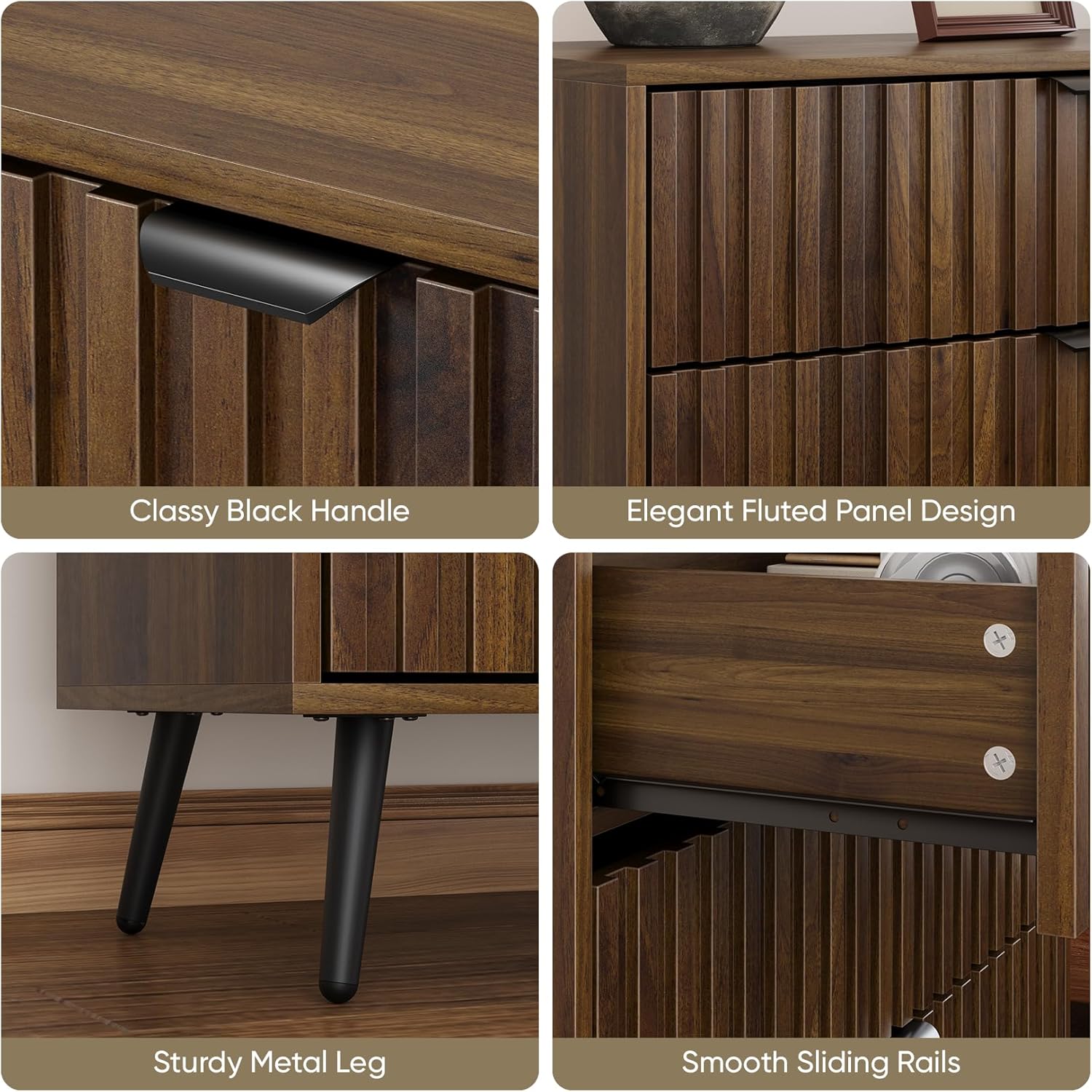

Detailed view of the dresser's key features: handles, fluted design, legs, and drawer slides.

Visual details of the metal handle, smooth drawer slides, and leg height.

Close-up on the fluted design, internal drawer capacity, and the anti-tipping mechanism.

Usage and Operation

The Smart FENDEE Fluted 3-Drawer Dresser is designed for organizing and storing various household items. To operate the drawers, gently pull the integrated handles. Avoid forcing drawers open or closed. For optimal stability, distribute weight evenly across the drawers.

The dresser integrated into a living space, demonstrating its practical use.

Maintenance

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
• Dusting: Regularly dust with a dry, soft cloth.
• Spills: Immediately wipe up spills to prevent staining or water damage.
• Fasteners: Periodically check all screws and connections to ensure they remain tight. Re-tighten as necessary.
• Sunlight Exposure: Avoid prolonged exposure to direct sunlight to prevent fading or discoloration of the wood veneer.

Troubleshooting

Specifications

Warranty and Support

Smart FENDEE is committed to providing quality products. For any queries, missing parts, or assistance with assembly, please feel free to reach out to our customer support team. We are here to assist you every step of the way.

Refer to your purchase documentation for specific warranty details and contact information.
