1. Important Safety Information
Please read all instructions carefully before assembly and use. Keep this manual for future reference.
- Maximum Weight Capacity: This chair is designed to support a maximum weight of 485 lbs (220 kg). Do not exceed this limit to prevent injury or damage to the chair.
- Ensure all bolts and screws are securely tightened before use. Periodically check and re-tighten as necessary.
- Do not stand on the chair.
- Use the chair only for its intended purpose.
- Keep children away from the assembly area. Small parts may be a choking hazard.
- Avoid placing the chair in direct sunlight or near heat sources to prevent material degradation.
2. Package Contents and Components
Verify that all components are present and undamaged before beginning assembly. If any parts are missing or damaged, please contact customer support.
Image: Key components of the Vinsetto office chair, highlighting the breathable linen-feel fabric, thick foam padding, high-end gas lift for smooth height adjustment, and the durable five-star base with swivel wheels.
Typical Components:
- Backrest
- Seat Cushion
- Armrests (2)
- Mechanism Plate
- Gas Lift Cylinder
- Gas Lift Cover
- Five-Star Base
- Casters (5)
- Hardware Pack (screws, washers, Allen wrench)
3. Assembly Instructions
Assembly typically requires two people. Lay out all parts on a soft, clean surface to prevent scratches.
- Attach Casters to Base: Insert the five casters into the holes at the end of each leg of the five-star base. Push firmly until they click into place.
- Install Gas Lift: Place the gas lift cylinder into the center hole of the five-star base. Cover it with the gas lift cover.
- Attach Armrests to Seat and Backrest: This step is crucial for proper alignment. It is recommended to attach the armrests to both the seat and backrest loosely before fully tightening any screws. This allows for flexibility to align all components correctly. Once both armrests are loosely attached to both the seat and backrest, gently align all parts and then gradually tighten all screws for the armrests.
- Attach Mechanism Plate: Secure the mechanism plate to the underside of the seat cushion using the designated screws. Ensure the front of the mechanism plate faces the front of the seat.
- Connect Seat to Gas Lift: Carefully place the assembled seat (with armrests and mechanism plate) onto the gas lift cylinder, ensuring the center hole of the mechanism plate aligns with the top of the gas lift. Press down firmly to secure.
Image: The Vinsetto High Back Big and Tall Executive Office Chair fully assembled, ready for use.
4. Operating Instructions
4.1. Height Adjustment
To adjust the chair's height:
- To raise: While seated, lift the lever located under the seat on the right side. The chair will rise. Release the lever at the desired height.
- To lower: While seated, lift the lever. The chair will lower. Release the lever at the desired height.
Image: Illustration of the chair's height adjustment feature, demonstrating how to use the lever to raise or lower the seat to match your desk and sitting style.
4.2. Rocking Function
The chair features a rocking function for added comfort and flexibility.
- To enable rocking: Pull the same lever (used for height adjustment) outwards from the chair.
- To lock upright: Push the lever inwards towards the chair.
- Adjusting Rocking Tension: A round knob located under the seat, usually at the front, controls the tension of the rocking mechanism. Turn clockwise to increase tension (making it harder to rock) and counter-clockwise to decrease tension (making it easier to rock).

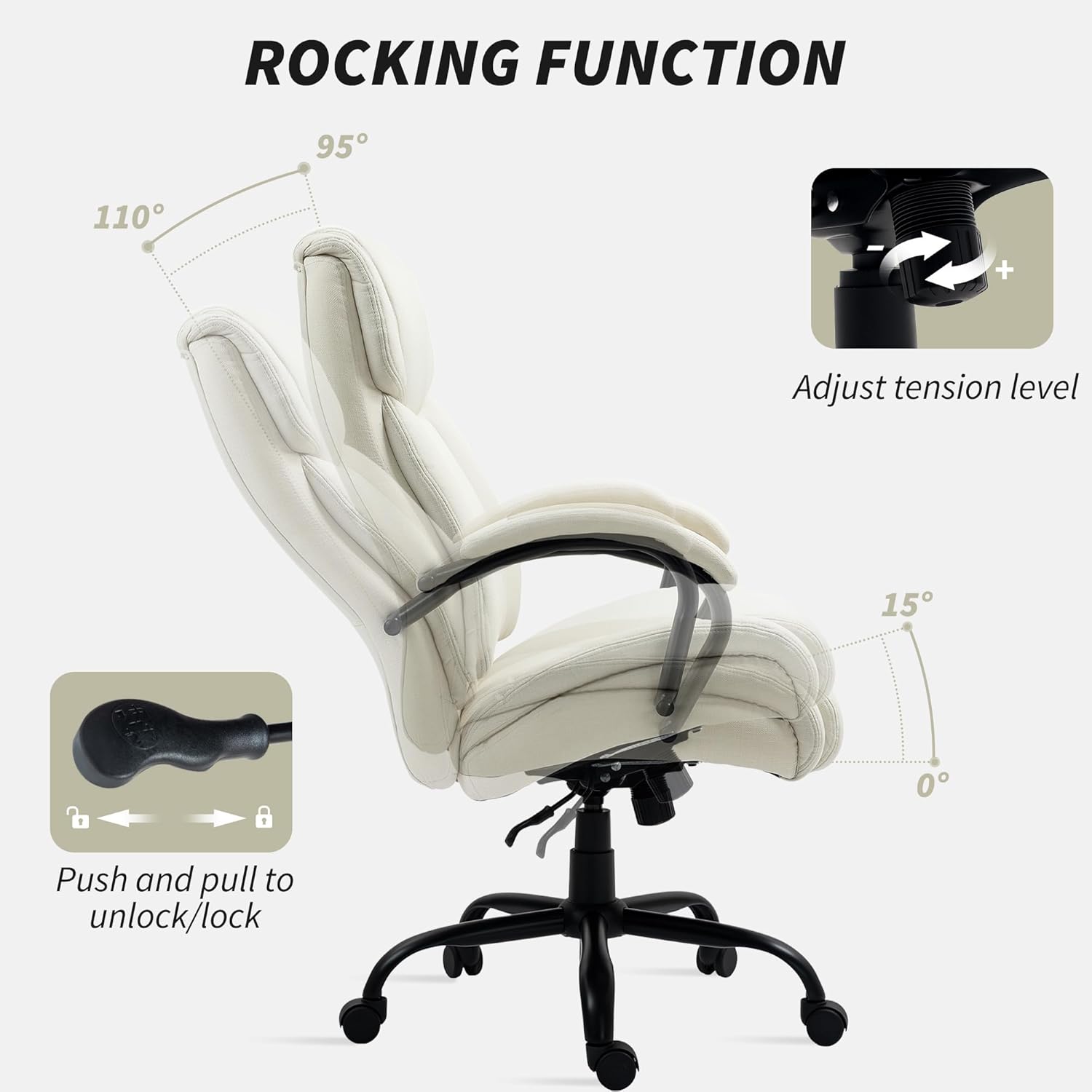

Image: Visual guide to the chair's rocking function, including how to engage and disengage the rock, and how to adjust the tilt tension for personalized comfort.
4.3. Swivel Function
The chair's seat and base are designed for 360-degree swivel mobility.
- Simply rotate the chair in any direction as needed.
- The smooth-rolling casters allow for easy movement across various floor surfaces.

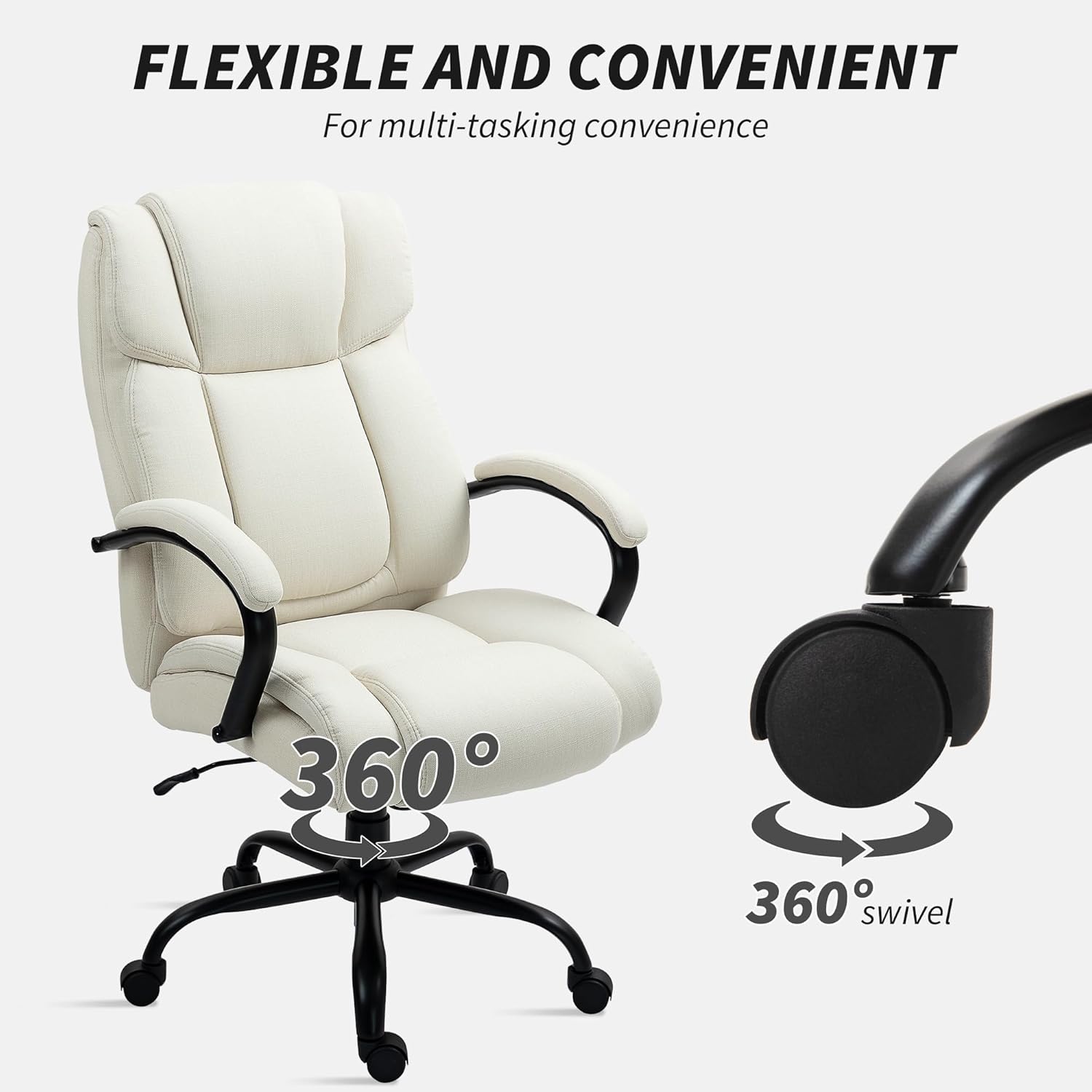

Image: Demonstration of the chair's 360-degree swivel feature and the mobility provided by its smooth-rolling casters, enhancing flexibility and convenience.
5. Maintenance
Proper care will extend the life and appearance of your Vinsetto office chair.
- Cleaning: Wipe clean with a damp cloth. For tougher stains on the linen-feel fabric, use a mild fabric cleaner and test on an inconspicuous area first. Avoid harsh chemicals or abrasive cleaners.
- Hardware Check: Periodically check all screws and bolts to ensure they are tight. Re-tighten as needed to maintain stability and safety.
- Caster Care: Keep casters free of hair, dust, and debris to ensure smooth rolling. You may need to clean them occasionally.
- Gas Lift: The gas lift is a sealed unit and requires no maintenance. If it fails to function, contact customer support.
6. Troubleshooting
If you encounter any issues with your chair, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair does not adjust height | Gas lift cylinder malfunction or lever not engaged. | Ensure the height adjustment lever is fully engaged. If the problem persists, the gas lift may need replacement. Contact customer support. |
| Chair wobbles or feels unstable | Loose screws or uneven assembly. | Check and re-tighten all assembly screws, especially those connecting the armrests to the seat and backrest, and the mechanism plate to the seat. Ensure the chair is on a flat surface. |
| Casters do not roll smoothly | Debris caught in casters or damaged casters. | Turn the chair over and remove any hair, dust, or debris from the caster wheels. If casters are damaged, they may need replacement. |
| Rocking function is too stiff or too loose | Tension knob incorrectly adjusted. | Adjust the tension knob located under the seat. Turn clockwise to increase tension, counter-clockwise to decrease tension. |
| Chair makes squeaking noises | Loose connections or friction between parts. | Re-tighten all screws. A small amount of silicone lubricant can be applied to moving parts (e.g., where the mechanism plate connects to the seat) if the noise persists, avoiding the gas lift. |
| Chair base or components appear broken | Material defect or excessive force/weight. | Immediately discontinue use. This may indicate a serious structural issue. Contact customer support for assistance and potential replacement parts. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Vinsetto |
| Model Number | 921-471V00CW |
| Color | Cream White |
| Overall Dimensions (D x W x H) | 32.75"D x 28.5"W x 43.25"-46.5"H |
| Seat Dimensions (W x D x H) | 24.5"W x 22"D x 20"-23.25"H |
| Backrest Width | 23.25 Inches |
| Arm Height (from seat) | 7.9 Inches |
| Maximum Weight Recommendation | 485 lbs (220 kg) |
| Material | Linen-feel Fabric, Foam, Metal Base |
| Special Features | Adjustable Height, 360° Swivel, Rocking Function, Padded Armrests |
| Product Care Instructions | Wipe Clean |
| Item Weight | 52 Pounds |
| UPC | 196393141984 |
Image: Comprehensive dimensional drawing of the Vinsetto office chair, providing exact measurements for height, width, depth, seat, and armrests.
8. Warranty and Customer Support
For warranty information, missing parts, or any other inquiries, please contact Vinsetto customer support.
Refer to your purchase documentation or the retailer's website for specific warranty terms and contact details.
