Product Overview
This Remote Smart Key Fob Replacement Kit provides a convenient solution for replacing your worn or broken keyless remote fob. It includes a new key fob and an OBD tool for easy, on-screen programming without the need for a cell phone or app. Designed for specific Lexus models, this kit aims to save time and cost associated with dealership or locksmith services.
Compatibility: This key fob replacement is compatible with Lexus vehicles featuring FCC ID: HYQ14ACX and Board Number: 271451-5290 GNE. Please verify your vehicle's original key fob details before proceeding.
- 2010-2015 Lexus RX350
- 2010-2015 Lexus RX450h
- 2010-2016 Lexus GX460
- 2008-2013 Lexus LX570
- 2011-2016 Lexus CT200h
Image: The key fob and the OBD programming tool included in the kit.
Image: Visual guide showing compatible Lexus models and key fob specifications (FCCID, Frequency, Board Number).
Setup and Programming
Before beginning the programming process, ensure you have a functional original car key. The programming tool is designed for ease of use with on-screen prompts.
Pre-Programming Check:
- Check New Key Fob Battery: Before using the OBD tool, verify the functionality of the new remote key by checking its light. If the light is dim or non-existent, replace the CR2032 battery.
Image: Illustration showing how to check the new key fob's light to ensure the battery is functional before programming.
Programming Steps:
- Locate OBD2 Port: Identify the OBD2 port in your vehicle, typically located under the steering wheel.
- Connect OBD Tool: Plug the receiver of the OBD tool into the vehicle's OBD2 port.
- Follow On-Screen Prompts: The OBD tool features a screen that will display clear instructions. Follow these prompts carefully to complete the programming process. No mobile app or Bluetooth connection is required.
- Verify Board Number: Ensure the original key's internal board shows the letters "GNE" and numbers "5290" stamped on it for proper compatibility.
- Test New Key Fob: After programming, test all functions of the new key fob (lock, unlock, trunk, panic alarm) to ensure successful pairing.
Image: The OBD tool's connector being plugged into the vehicle's OBD2 port, usually found under the steering wheel.
Image: Close-up view of an original key fob's internal circuit board, highlighting the "GNE" and "5290" markings for compatibility verification.
Operating the Key Fob
The replacement key fob functions identically to your original Lexus smart key. It features four primary buttons for vehicle control:

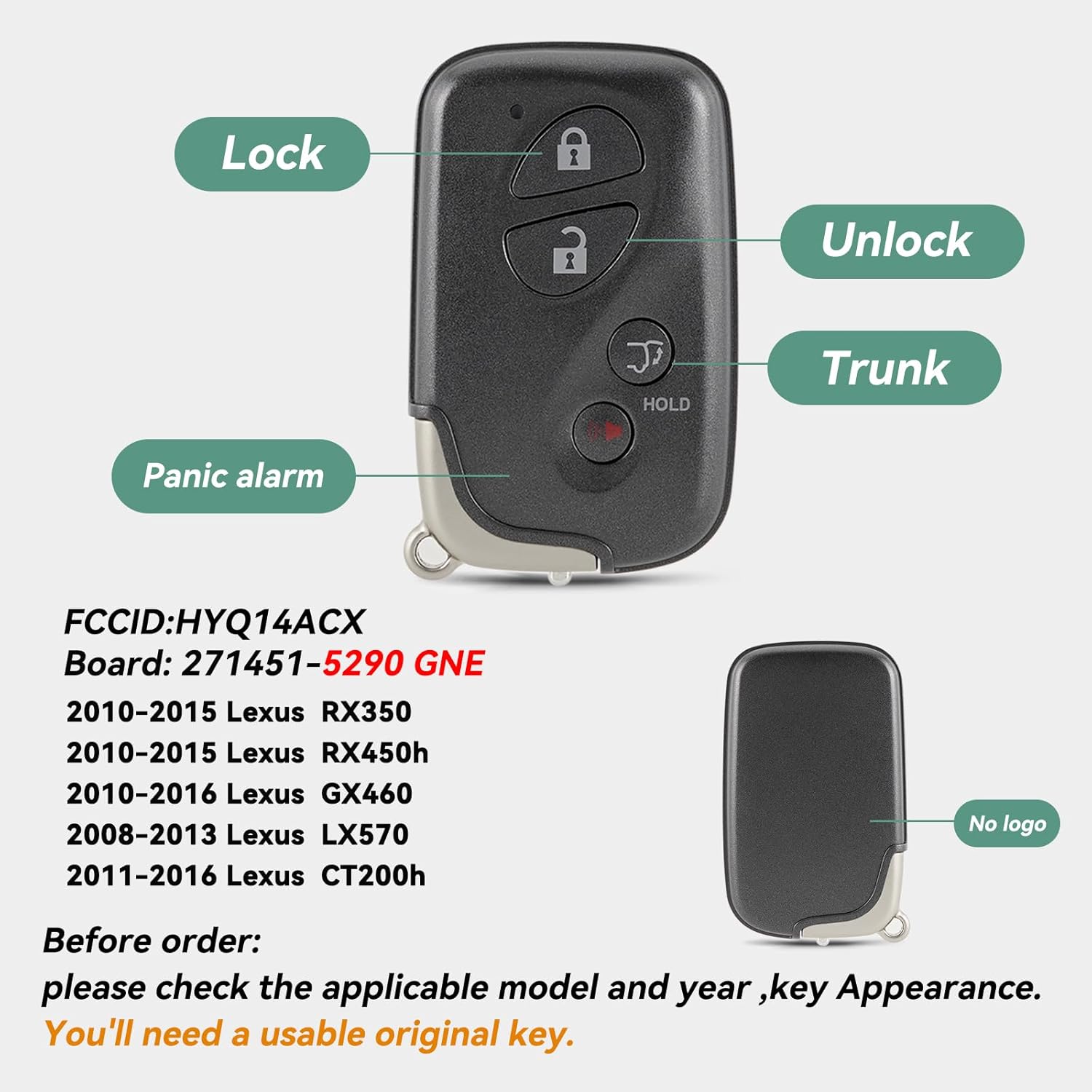

Image: Diagram illustrating the functions of each button on the key fob: Lock, Unlock, Trunk Release, and Panic Alarm.
- Lock Button: Press to lock all vehicle doors.
- Unlock Button: Press to unlock all vehicle doors.
- Trunk Release Button: Press and hold to open the vehicle's trunk or liftgate.
- Panic Alarm Button: Press the red button to activate the vehicle's panic alarm. Press again to deactivate.
Maintenance
The key fob is equipped with a CR2032 battery. If the key fob's signal weakens or the indicator light does not illuminate when a button is pressed, the battery may need replacement.
Battery Replacement:
- Carefully open the key fob casing.
- Remove the old CR2032 battery.
- Insert a new CR2032 battery with the positive (+) side facing up.
- Close the key fob casing securely.
- Test the key fob functions to ensure proper operation.
Troubleshooting
If you encounter issues during or after programming, consider the following troubleshooting steps:
- Programming Failure: If the key fob does not program on the first attempt, repeat the programming steps carefully. Ensure all connections are secure and on-screen prompts are followed precisely.
- Key Fob Not Responding: Check the battery in the new key fob. A weak or dead battery can prevent proper operation. Refer to the "Maintenance" section for battery replacement instructions.
- Specific Button Malfunction: If certain buttons (e.g., trunk release) do not work, re-attempt the programming process. Ensure the key fob is fully compatible with your vehicle's specific features.
- Original Key Requirement: Remember that a usable original car key is required for the programming process. Without it, the kit cannot be used.
- Compatibility Check: Double-check that your vehicle's model, year, FCC ID (HYQ14ACX), and original key's internal board number (271451-5290 GNE) match the product's specifications. Incompatibility is a common reason for programming issues.
Specifications
| Feature | Detail |
|---|---|
| Model Number | HYQ14ACX |
| FCC ID | HYQ14ACX |
| Board Number | 271451-5290 GNE |
| Compatible Vehicles | Lexus RX350 (2010-2015), RX450h (2010-2015), GX460 (2010-2016), LX570 (2008-2013), CT200h (2011-2016) |
| Number of Buttons | 4 (Lock, Unlock, Trunk, Panic) |
| Connectivity Technology | Radio Frequency |
| Battery Type | 1 x CR2032 (included) |
| Item Weight | 3.53 ounces |
| Package Dimensions | 7.09 x 2.76 x 1.97 inches |
Image: Detailed dimensions of the key fob and the OBD programming tool.
Warranty and Support
The manufacturer is committed to quality and customer satisfaction. For any questions or concerns regarding the product, please contact the seller directly. Our team is dedicated to providing quality service and addressing your inquiries.
Please refer to your purchase documentation for specific warranty terms and contact information.
