LUE BONA 26-Inch Counter Height Bar Stools (Set of 3) - Linen Upholstered Instruction Manual

1. Product Overview

The LUE BONA 26-inch counter height bar stools are designed to provide comfortable and stylish seating for your kitchen counter or island. This set of three bar stools features linen upholstery, a sturdy metal frame, and ergonomic design for extended sitting periods.

Key Features:

• Optimal Height: 26.5" seat height, suitable for 36-39" kitchen islands.
• Comfortable Seating: Super padded cushion (2.5 inches thick) made of breathable linen material.
• Enhanced Stability: Anti-slip protectors prevent floor damage, reduce noise, and prevent leaning.
• Durable Construction: Black powder-coated tubular metal frame supports up to 330 pounds.
• Ergonomic Design: Back and seat contours provide excellent support.

2. Safety Information

Please read and understand all safety instructions before assembly and use. Failure to follow these instructions may result in injury or product damage.

• Do not exceed the maximum weight recommendation of 330 pounds (150 kg) per stool.
• Ensure all screws and fasteners are securely tightened before use and periodically check for looseness.
• Properly attach the anti-slip protectors to prevent floor damage and ensure stability.
• Keep small parts and packaging materials away from children to prevent choking hazards.
• Do not stand on the stool or use it as a ladder.
• Avoid placing the stool near heat sources or in direct sunlight for prolonged periods to prevent material degradation.

3. Parts List

Before beginning assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, please contact customer support.

Image 3.1: All parts and hardware included for assembly.

Components:

• Upholstered Seat (Part 1)
• Left Leg Frame (Part 2)
• Right Leg Frame (Part 3)
• Rear Footrest Bar (Part 4)
• Front Footrest Bar (Part 5)

Hardware:

• Screws (Type A) - x4
• Screws (Type B) - x4
• Screws (Type C) - x4
• Allen Wrench - x1

4. Assembly Instructions

Assembly is designed to be completed in 5 simple steps, typically taking less than 10 minutes per stool. It is recommended to have a soft, clean surface to work on to prevent scratching the product.

Step 1: Attach Leg Frames

1. Align the Left Leg Frame (Part 2) and Right Leg Frame (Part 3) together.
2. Using the provided Allen wrench, insert and tighten Screws (Type A) from outside to inside to approximately 80% tightness. Do not fully tighten yet.

Step 2: Secure Seat to Leg Frames

3. Place the Upholstered Seat (Part 1) upside down on a soft surface, ensuring the holes on the underside face upward.
4. Carefully align the assembled leg frames (Parts 2 and 3) with the pre-drilled holes on the underside of the seat.
5. Insert and tighten Screws (Type B) from outside to inside to approximately 80% tightness.

Image 4.1: Underside of the seat showing attachment points for the leg frames.

Step 3: Install Footrest Bars

6. Attach the Front Footrest Bar (Part 5) to the front section of the leg frames.
7. Attach the Rear Footrest Bar (Part 4) to the rear section of the leg frames.
8. Tighten the screws for both footrest bars from outside to inside to approximately 80% tightness.

Image 4.2: Attaching the footrest bars to the leg frame.

Step 4: Final Tightening

9. Once all parts are assembled and aligned, fully tighten all Screws (Type C) to 100% to ensure maximum stability.
10. Ensure all screws are completely secure.

Image 4.3: Final tightening of all screws for a secure assembly.

Step 5: Attach Anti-Slip Protectors

11. Attach the anti-slip protectors to the bottom of each leg. These protectors help prevent floor scratches and enhance stability.

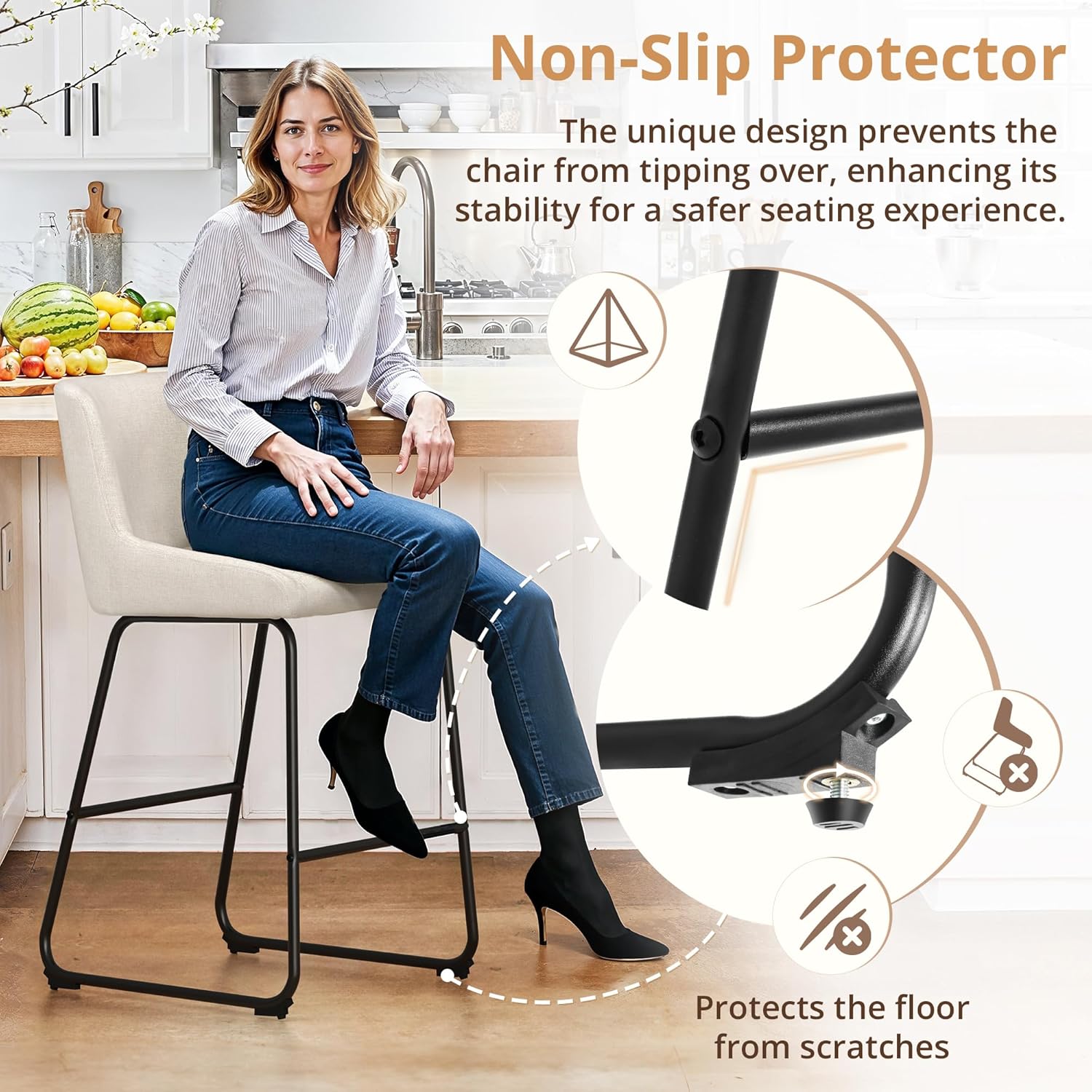

Image 4.4: Detail of the anti-slip protector on the base of the stool.

5. Operating Instructions

These bar stools are designed for stationary seating at counter height surfaces. Ensure the stool is placed on a flat, stable surface before use.

• Always sit centrally on the seat to distribute weight evenly.
• Use the footrest bars for comfortable foot placement.
• When moving the stool, lift it slightly to avoid dragging and potential floor damage.

Image 5.1: LUE BONA bar stools positioned at a kitchen island.

6. Maintenance and Care

Proper care will extend the life and appearance of your LUE BONA bar stools.

• Cleaning Upholstery: For daily cleaning, gently wipe the linen fabric with a soft, damp cloth. For spills, blot immediately with a clean, dry cloth. Avoid harsh chemicals or abrasive cleaners.
• Frame Care: Wipe the metal frame with a soft, dry cloth. Avoid using abrasive cleaners that could damage the powder-coated finish.
• Regular Inspection: Periodically check all screws and connections to ensure they remain tight. Re-tighten if necessary.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause fading or damage to the upholstery.

Image 6.1: Detail of the breathable linen material and padded cushion.

7. Troubleshooting

If you encounter any issues with your bar stools, refer to the following common solutions:

8. Specifications

Image 8.1: Diagram showing key dimensions and maximum weight capacity.

9. Warranty and Support

LUE BONA products are manufactured with quality and care. For warranty information, product support, or to report missing/damaged parts, please contact the seller directly through your purchase platform.

Please retain your proof of purchase for any warranty claims.
