vidaXL Bunk Bed Model 42000327 Instruction Manual

Important Safety Information

Please read and understand all instructions before assembling and using this bunk bed. Failure to follow these instructions can result in serious injury.

• Maximum Weight Capacity: Do not exceed the recommended weight limit for each bunk. (Note: Specific weight capacity not provided in product data, general safety advice.)
• Age Recommendation: The top bunk is not suitable for children under 6 years of age.
• Guardrails: Always use the guardrails on the top bunk. Ensure they are securely attached.
• Ladder Safety: Use the ladder for entry and exit from the top bunk. Do not use the bed as a climbing frame.
• Mattress Thickness: The maximum mattress thickness for the top bunk is 11 cm (4.3 inches). Ensure the mattress is positioned so that the top surface is at least 16 cm (6.3 inches) below the upper edge of the guardrails.
• Assembly: Adult assembly required. Ensure all parts are correctly assembled and tightened before use. Periodically check and re-tighten all fasteners.
• Ventilation: Ensure adequate ventilation around the bed.
• No Horseplay: Prohibit horseplay on or under the bed.
• Location: Do not place the bunk bed near windows where cords or blinds could pose a strangulation hazard.

Package Contents

Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

• Steel frame components (legs, side rails, end panels)
• Mesh fabric bed bases
• Ladder components
• Hardware pack (screws, bolts, nuts, Allen key)

Note: Mattresses are not included.

Setup and Assembly Instructions

Assembly requires two adults. Lay out all components on a soft, clean surface to prevent scratching. Do not fully tighten screws until assembly is complete.

Step 1: Unpack and Identify Parts

Carefully unpack all components from the packaging. Identify each part by comparing it to the parts list (not provided here, but implied in a real manual). Due to the lack of labels on parts, it is crucial to visually match components to the diagrams provided in the manual.

Image Description: A technical diagram illustrating the overall dimensions of the bunk bed frame, including length, width, height, and specific measurements for the ladder and guardrails. This image is crucial for identifying the correct orientation and size of various frame components during assembly.

Step 2: Assemble the Bed Ends

Connect the vertical posts with the horizontal crossbars for both the upper and lower bed ends. Ensure all connections are finger-tight only at this stage.

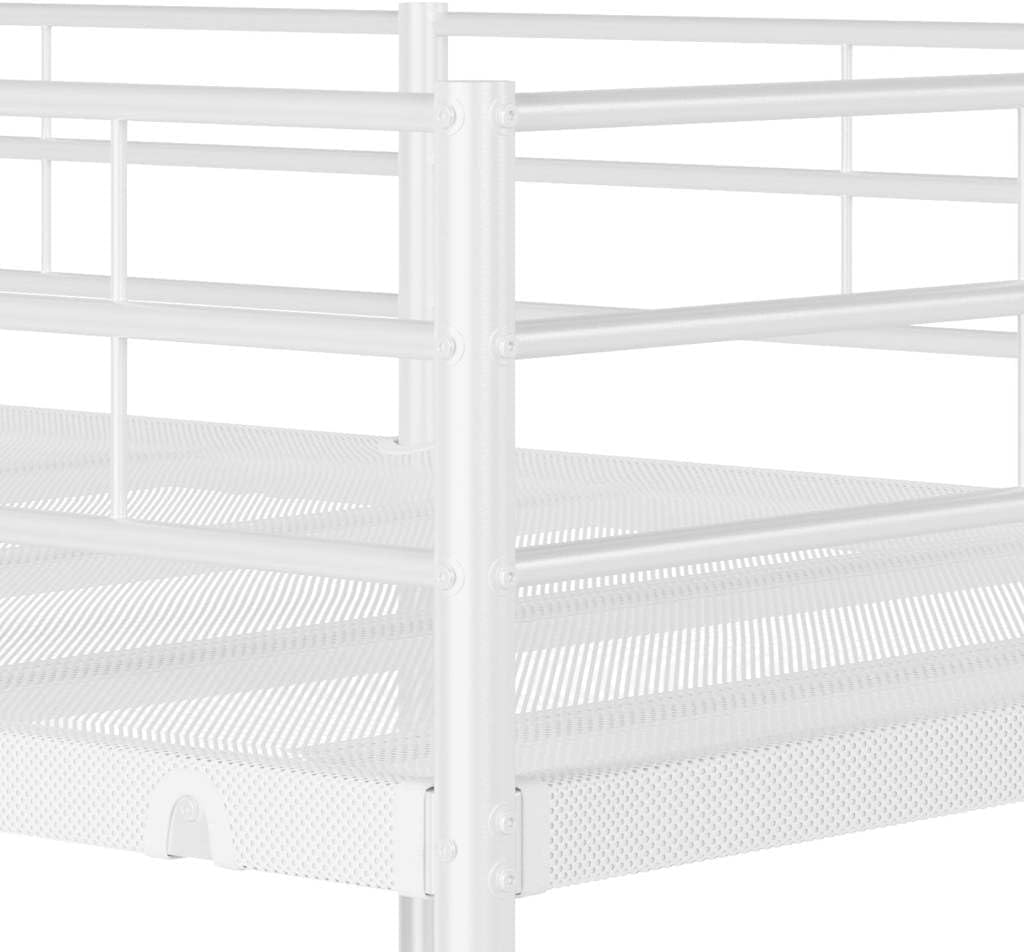

Image Description: A close-up view of a corner joint on the bunk bed frame, showing how the vertical and horizontal steel bars connect. This detail helps in understanding the assembly mechanism for the frame sections.

Step 3: Attach Side Rails

Attach the long side rails to the assembled bed ends for both the upper and lower bunks. Ensure the correct rails are used for each level. Again, only finger-tighten fasteners.

Image Description: A close-up image showing the mesh fabric bed base attached to the steel frame. This illustrates how the bed base is secured, which is a critical step in the assembly process.

Step 4: Install Mesh Bed Bases

Carefully place and secure the mesh fabric bed bases onto the support ledges of both the upper and lower bunk frames. Ensure they are properly aligned and secured according to the diagrams.

Image Description: A detailed view of the mesh fabric bed base, highlighting the hooks or attachment points that secure it to the bunk bed frame. This image helps clarify the method of securing the bed base.

Step 5: Attach the Ladder

Assemble the ladder components and securely attach the ladder to the designated points on the bunk bed frame. Ensure it is stable and does not wobble.

Image Description: A side view of the assembled bunk bed, clearly showing the integrated ladder. This image provides a visual reference for the correct placement and appearance of the ladder.

Step 6: Final Tightening and Inspection

Once all components are in place, systematically tighten all screws and bolts using the provided Allen key. Do not overtighten. Inspect the entire structure to ensure it is stable, all connections are secure, and there are no loose parts. Ensure the guardrails on the top bunk are firmly in place.

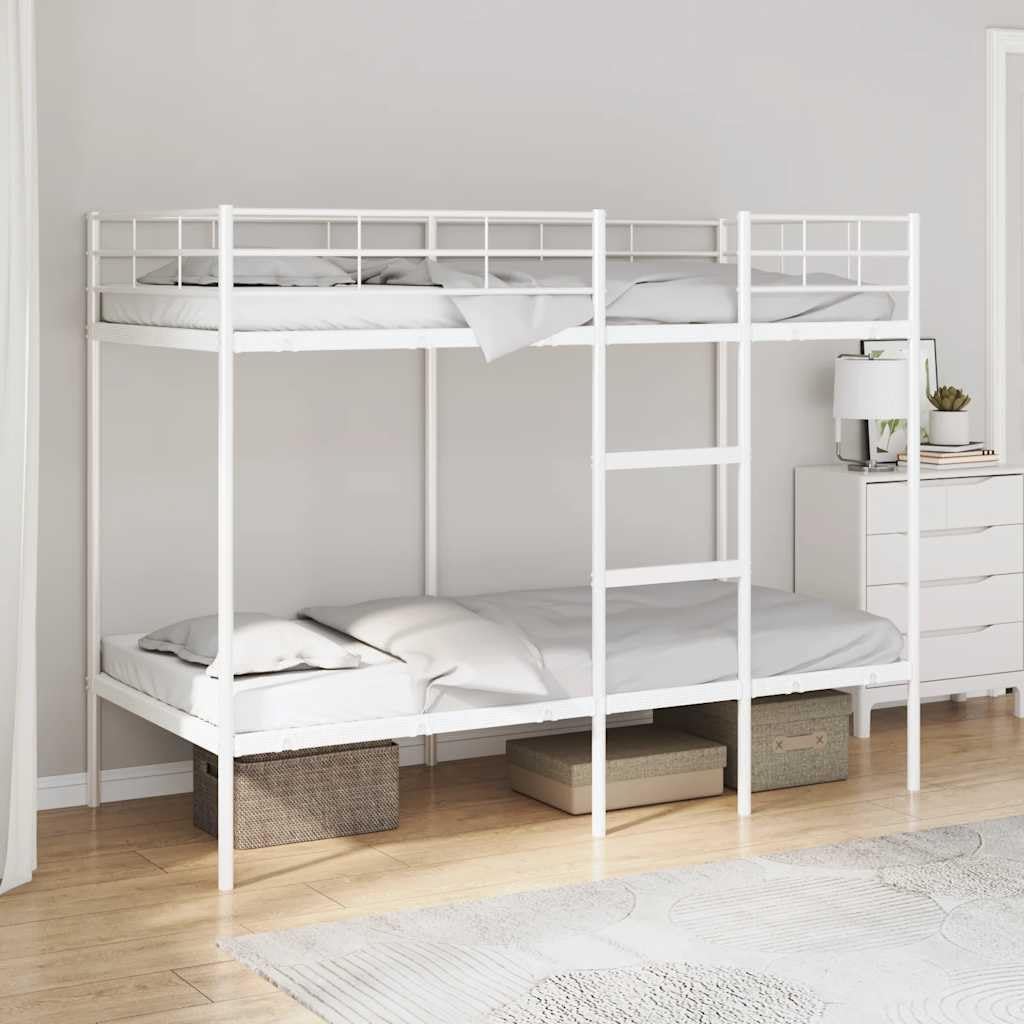

Image Description: A complete view of the white steel bunk bed, fully assembled and placed in a room. This image serves as a final visual reference for the completed product.

Operating Instructions

This bunk bed is designed for sleeping. Follow these guidelines for safe operation:

• Using the Ladder: Always use the ladder to access and exit the top bunk. Face the ladder when climbing up or down.
• Top Bunk Occupancy: Only one person should occupy the top bunk at a time.
• Mattress Placement: Ensure mattresses are correctly sized (80 x 200 cm) and placed centrally on the mesh bases.
• No Jumping: Do not jump on either bunk.
• Clearance: Ensure there is adequate head clearance for the lower bunk occupant.

Maintenance

Regular maintenance will ensure the longevity and safety of your bunk bed.

• Cleaning: Wipe the steel frame with a damp cloth and mild detergent. Avoid abrasive cleaners. Dry thoroughly.
• Fastener Check: Periodically (e.g., every 3 months) check all bolts, screws, and connections. Re-tighten if necessary to maintain stability.
• Inspect for Damage: Regularly inspect the frame, ladder, and mesh bases for any signs of wear, damage, or fatigue. If any damage is found, discontinue use and contact customer support for replacement parts or advice.
• Mesh Base Care: Ensure the mesh fabric remains taut and free from tears.

Troubleshooting

Here are solutions to common issues you might encounter:

• Bed is Wobbly:
  • Ensure all bolts and screws are fully tightened.
  • Check that the bed is on a level surface.
  • Verify that all components are correctly assembled according to the instructions.
• Squeaking Noises:
  • Re-tighten all fasteners.
  • Apply a small amount of silicone lubricant to metal-on-metal contact points if squeaking persists.
• Ladder Feels Unstable:
  • Ensure the ladder is correctly attached to the bunk bed frame and all its fasteners are tight.
  • Verify that the ladder is resting firmly on the floor or its designated support points.

Specifications

Warranty and Support

For warranty information, missing parts, or technical assistance, please contact vidaXL customer support. Refer to your purchase documentation for specific warranty terms and contact details.

You can typically find support contact information on the manufacturer's official website or through the retailer where the product was purchased.
