1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your METEESER 2+64G Android Car Radio Stereo. Designed specifically for Toyota Camry models from 1997 to 2003 with manual AC, this unit offers a modern in-car entertainment and navigation experience. It features a 9-inch touchscreen, Android 13 OS, wireless CarPlay and Android Auto, Bluetooth, GPS, WiFi, Steering Wheel Control (SWC) compatibility, DSP audio processing, and includes an HD backup camera.
2. Package Contents
Please verify that all items listed below are included in your package:
- Android Car Radio Stereo Unit
- Wiring Harness (for plug and play installation in Toyota Camry 1997-2003 Manual AC)
- Backup Camera
- GPS Module
- External Microphone
- Rear Camera Input Cable
- USB Cables (Dual USB)
- RCA Cable
- Installation Tool
- User Manual (this document)

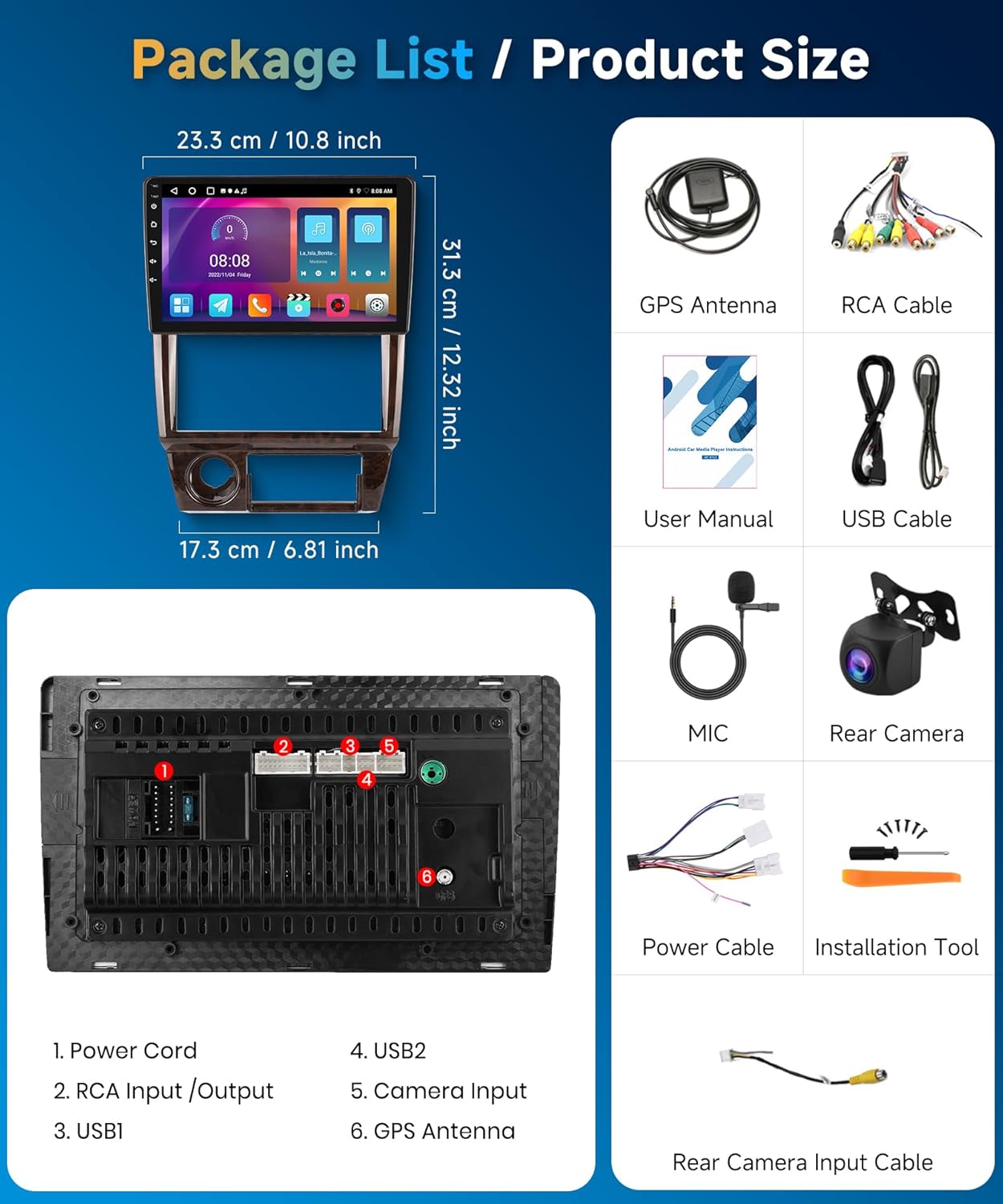

Image: Package contents and rear view of the head unit with labeled ports.
3. Setup and Installation
This Android car radio is designed for plug-and-play installation in Toyota Camry models from 1997 to 2003 with manual AC. While the wiring harness simplifies connections, professional installation is recommended if you are unfamiliar with car audio systems.
3.1 Pre-Installation Check
- Ensure the vehicle's ignition is off and the battery is disconnected before starting installation.
- Confirm compatibility with your specific Toyota Camry model (1997-2003, Manual AC).
3.2 Installation Steps (General)
- Carefully remove the original car radio and trim panel from your vehicle's dashboard.
- Connect the provided wiring harness to the car's existing wiring and to the new Android car radio. Ensure all connections are secure.
- Connect the GPS antenna, external microphone, and rear camera input cable to the corresponding ports on the back of the unit.
- Mount the new car radio into the dashboard opening. Ensure it is securely fastened.
- Reconnect the vehicle's battery and turn on the ignition to test the unit.
- Perform initial setup and configuration as prompted on the screen.
Image: Before and After Installation in a Toyota Camry dashboard.
4. Operating Instructions
4.1 Android Operating System
The unit runs on Android 13 OS, providing a familiar smartphone-like interface. Navigate through apps, settings, and features using the 9-inch 1080P 2.5D glass touchscreen. The quad-core processor with 2GB RAM and 64GB ROM ensures smooth operation and quick response times.
4.2 Wireless CarPlay and Android Auto
Connect your iPhone or Android smartphone wirelessly for seamless integration. Access navigation, make calls, send texts, and stream music directly from your phone's interface displayed on the car stereo. Wired connections are also supported.
Image: Wireless CarPlay and Android Auto interface.
4.3 GPS Navigation
Utilize the built-in GPS module for navigation. The system supports both online and offline maps, allowing you to plan routes and get directions even without an internet connection. Connect to Wi-Fi to download maps and receive real-time traffic updates.
Image: GPS Navigation and Wi-Fi connection.
4.4 Bluetooth Connectivity
Pair your smartphone via Bluetooth 5.0 for hands-free calling and audio streaming (A2DP). Access your phone's contacts and call history directly from the car stereo. The external microphone ensures clear voice quality during calls.
Video: Demonstrates Bluetooth connection and hands-free calling functionality on the car stereo.
4.5 FM/RDS Radio
Tune into your favorite radio stations with the built-in FM/RDS radio tuner. RDS (Radio Data System) provides additional information such as station name and song title where available.
Image: FM Radio and Bluetooth interface.
4.6 Split Screen Functionality
Multitask efficiently with the split-screen feature. Run two applications simultaneously, such as navigation on one side and music playback on the other, enhancing convenience during your drive.
Image: Split Screen functionality.
4.7 Audio Equalizer (DSP)
Customize your audio experience with the integrated 32-band EQ AI DSP. Adjust frequency bands to fine-tune the sound output to your preference. The system also supports subwoofer outputs for enhanced bass.
Video: Demonstrates the audio equalizer (EQ) and balance settings on the car stereo.
4.8 HD Backup Camera
The included HD backup camera provides a clear view of the area behind your vehicle when reversing. Features include night vision and an IP69 waterproof rating for durability in various conditions. Dynamic guidelines assist with parking maneuvers.
Image: HD Backup Camera view and features.
4.9 Steering Wheel Control (SWC)
The unit supports your vehicle's existing steering wheel controls, allowing you to manage audio, calls, and other functions without taking your hands off the wheel. Calibration may be required during initial setup.
Video: Demonstrates the split screen function and steering wheel control setup.
4.10 Mirror Link
Mirror the screen of your iOS or Android device directly onto the car stereo display. This feature allows you to view content from your phone on the larger screen.
5. Maintenance
To ensure the longevity and optimal performance of your car stereo, follow these maintenance guidelines:
- Screen Cleaning: Use a soft, lint-free cloth to gently wipe the touchscreen. For stubborn smudges, slightly dampen the cloth with water or a screen-safe cleaner. Avoid harsh chemicals or abrasive materials.
- Software Updates: Periodically check for available software updates to ensure you have the latest features and bug fixes. Connect the unit to Wi-Fi to perform updates.
- Environmental Conditions: Avoid exposing the unit to extreme temperatures, direct sunlight for prolonged periods, or excessive moisture.
- Cable Connections: Ensure all cables are securely connected and free from damage. Loose connections can lead to intermittent issues.
6. Troubleshooting
If you encounter any issues with your METEESER Android Car Radio Stereo, please refer to the following general troubleshooting tips. For more specific problems, contact customer support.
- No Power: Check all power connections and ensure the vehicle's battery is properly connected and charged. Verify the fuse for the car stereo.
- No Sound: Check speaker connections, volume levels, and audio settings (EQ, balance). Ensure the correct audio source is selected.
- Touchscreen Unresponsive: Try restarting the unit. If the issue persists, a factory reset might be necessary (note: this will erase all user data).
- Bluetooth Connection Issues: Ensure Bluetooth is enabled on both the car stereo and your mobile device. Delete previous pairings and try reconnecting.
- GPS Signal Loss: Ensure the GPS antenna is properly installed and has a clear view of the sky. Move the vehicle to an open area if necessary.
- CarPlay/Android Auto Not Connecting: Verify your phone's compatibility and ensure the feature is enabled on both the stereo and your phone. Try a different USB cable if using a wired connection.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | METEESER |
| Operating System | Android 13 |
| RAM | 2GB |
| ROM | 64GB |
| Screen Size | 9 Inches |
| Display Type | LCD, Capacitive Touchscreen |
| Display Resolution | 1024*600p |
| Connectivity | Bluetooth 5.0, WiFi, USB, FM/RDS |
| Special Features | Wireless CarPlay & Android Auto, GPS, DSP (32EQ), Split Screen, Mirror Link |
| Included Components | Backup camera, External microphone, GPS module, Rear Camera Input Cable |
| Compatible Vehicle Type | Toyota Camry 1997-2003 Manual AC |
| Mounting Type | Dashboard Mount |
8. Warranty Information
This METEESER Android Car Radio Stereo comes with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper installation, misuse, accidents, or unauthorized modifications.
9. Customer Support
METEESER specializes in car electronics and is committed to providing excellent customer service. If you have any questions regarding compatibility, installation, operation, or require technical assistance, please do not hesitate to contact us.
You can reach METEESER Tech customer support through the platform where you purchased the product. Look for the seller's contact information, typically found on the product page or in your order details.
