Kioxiuin Dual Inner Multi-Function Electric Rice Cooker User Manual

1. Introduction

Thank you for purchasing the Kioxiuin Dual Inner Multi-Function Electric Rice Cooker. This appliance is designed to simplify your cooking experience with its versatile functions and user-friendly interface. It features a unique dual-pot design, allowing you to cook two different dishes simultaneously, saving time and effort in the kitchen.

Please read this manual thoroughly before operating the appliance to ensure safe and efficient use. Keep this manual for future reference.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or the main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• This appliance generates heat during use. Adequate precautions must be taken to prevent the risk of burns, scalds, fires or other damage to persons or property caused by touching the appliance during use or during cooling.
• Keep away from open flames or high temperatures.

3. Product Components

Familiarize yourself with the parts of your Kioxiuin Dual Inner Multi-Function Electric Rice Cooker.

Figure 3.1: Overview of the rice cooker with both inner pots visible, one containing rice and the other a stew. This illustrates the dual cooking capability.

Figure 3.2: The smart touch screen control panel, indicating flexible regulation and ease of operation. Users interact with this screen to select cooking modes and set timers.

Figure 3.3: Demonstrates the left and right partition cooking, with a steamer basket being placed into one of the pots, highlighting the versatility for different dishes.

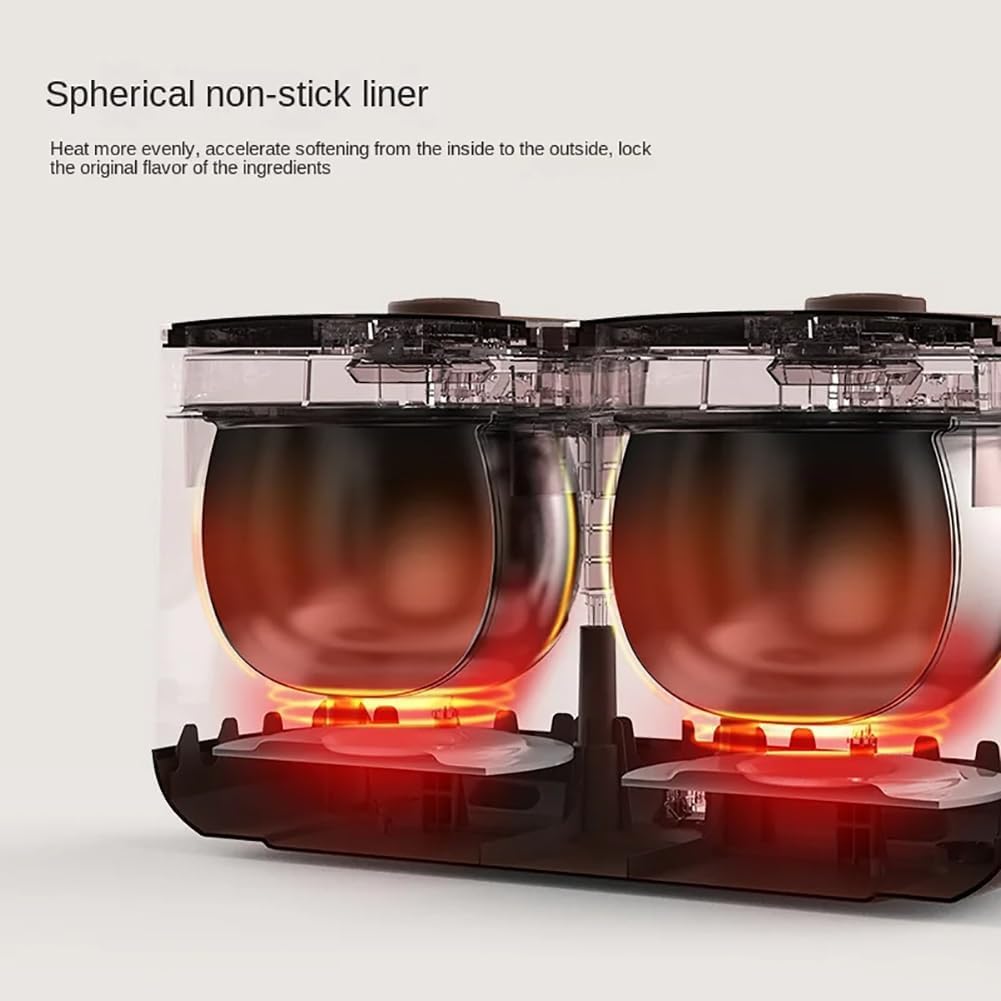

Figure 3.4: An internal diagram illustrating the spherical non-stick liner and how heat is evenly distributed to accelerate softening and lock in flavor.

Figure 3.5: A comparative image highlighting the benefits of the dual-liner rice cooker, such as cooking rice/stew in one pot, separate control, spherical liner heating, and 1000Pa fast pressure boiling, contrasted with limitations of other cooker types.

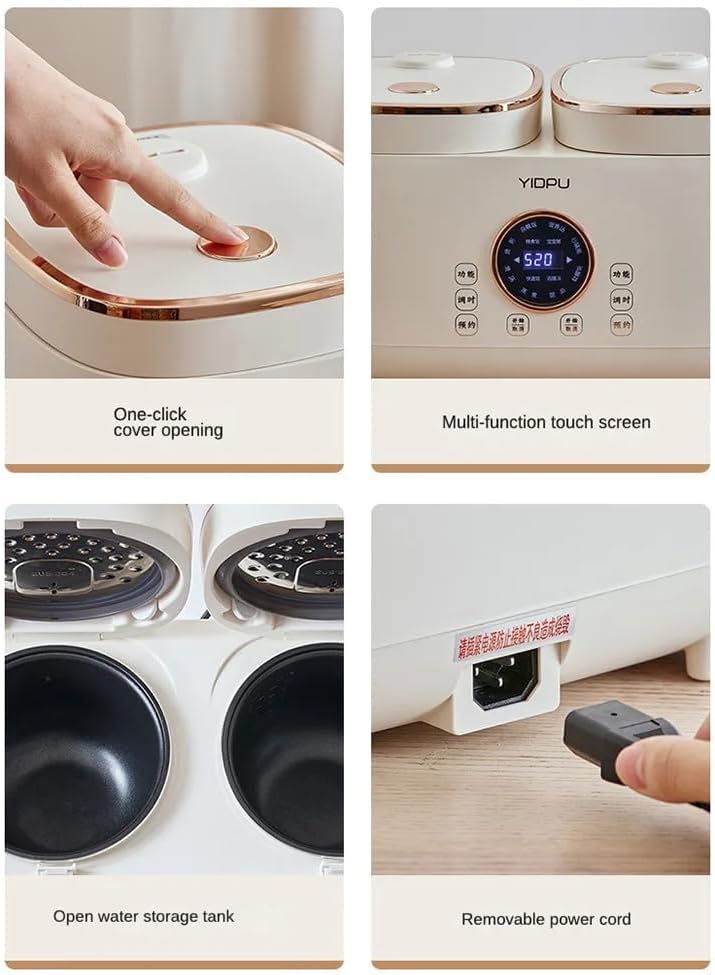

Figure 3.6: Detailed views of key features: the one-click cover opening mechanism, the multi-function touch screen, the open water storage tank, and the removable power cord for easy storage and cleaning.

List of Components:

• Main Rice Cooker Unit with Smart Touch Screen
• 2 x Non-Stick Inner Pots (2L capacity each)
• 2 x Lids with Steam Vents
• Removable Power Cord
• Measuring Cup (may be included)
• Rice Paddle (may be included)
• Steamer Basket (may be included)

4. Setup

4.1 Unpacking

1. Carefully remove all components from the packaging.
2. Remove any packaging materials, stickers, or protective films from the appliance.
3. Inspect the appliance for any damage. Do not use if damaged.

4.2 Initial Cleaning

Before first use, clean all parts that will come into contact with food.

• Wash the inner pots, lids, measuring cup, rice paddle, and steamer basket with warm, soapy water.
• Rinse thoroughly and dry completely.
• Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water.

4.3 Placement

• Place the rice cooker on a stable, flat, heat-resistant surface.
• Ensure there is adequate ventilation around the appliance, especially above the steam vents.
• Keep the appliance away from walls, cabinets, and other heat-sensitive materials.
• Ensure the power cord is not tangled or obstructed.

5. Operating Instructions

5.1 Basic Operation

1. Prepare Ingredients: Measure your ingredients (e.g., rice and water) according to your recipe or the recommended ratios. For rice, a common ratio is 1 cup of rice to 1.5-2 cups of water, depending on the type of rice.
2. Place Inner Pot: Place the prepared inner pot(s) into the main unit. Ensure they are seated correctly.
3. Close Lid: Close the lid(s) securely. You should hear a click if properly closed.
4. Connect Power: Plug the removable power cord into the appliance, then into a standard electrical outlet. The display will illuminate.
5. Select Function: Use the smart touch screen to select your desired cooking function (e.g., Fine Cooked Rice, Quick Cooked Rice, Soup, Porridge, Stew, etc.). The available functions are typically indicated by icons or text on the display.
6. Start Cooking: Press the "Start" or "Cook" button to begin the cooking process. The indicator light for the selected function will illuminate.
7. Keep Warm: Once cooking is complete, the appliance will typically switch to "Keep Warm" mode automatically. This function maintains the food at an optimal serving temperature.
8. Serve: Carefully open the lid(s) using the one-click cover opening button (refer to Figure 3.6). Use a rice paddle or serving spoon to remove the cooked food.
9. Unplug: After serving, unplug the appliance from the power outlet.

5.2 Using the Dual Cooking Feature

The dual-pot design allows for simultaneous cooking of two different dishes. Each pot operates independently.

• Prepare ingredients for both dishes.
• Place each inner pot with its respective ingredients into its designated compartment.
• Close both lids.
• On the touch screen, select the desired function for the left pot, then the desired function for the right pot. The cooker will manage the cooking times for each independently.
• Press "Start" to begin.

5.3 Using the 12/24-Hour Appointment Timer (Delay Start)

The appointment timer allows you to set a delayed start time for your cooking.

1. Prepare ingredients and place them in the inner pot(s).
2. Close the lid(s) and plug in the appliance.
3. Select your desired cooking function.
4. Press the "Appointment" or "Timer" button.
5. Use the "+" and "-" buttons to adjust the desired delay time (e.g., 8 hours). This is the time until cooking finishes, not when it starts.
6. Press "Start" to confirm the timer setting. The display will show the countdown.
7. The cooker will automatically start cooking at the appropriate time to ensure your meal is ready at the set appointment time.

6. Maintenance & Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your rice cooker.

6.1 Cleaning Instructions

1. Unplug and Cool: Always unplug the appliance from the power outlet and allow it to cool completely before cleaning.
2. Inner Pots and Lids:
   • Remove the inner pots and lids.
   • Wash them with warm, soapy water using a soft sponge or cloth. Do not use abrasive cleaners or metal scouring pads, as this can damage the non-stick coating.
   • Rinse thoroughly and dry completely before storing or reassembling.
3. Main Unit Exterior:
   • Wipe the exterior of the main unit with a damp cloth.
   • For stubborn stains, use a mild detergent on the cloth.
   • Do not immerse the main unit in water or any other liquid.
4. Heating Plate:
   • Wipe the heating plate with a damp cloth. Ensure no food particles are stuck to it.
   • Do not use abrasive materials.
5. Water Storage Tank:
   • The open water storage tank (refer to Figure 3.6) collects condensation. Empty and clean it regularly to prevent odors and mold.
   • Remove the tank, empty water, wash with soapy water, rinse, and dry.

6.2 Storage

Store the appliance in a cool, dry place when not in use. Ensure all parts are clean and dry before storage.

7. Troubleshooting

If you encounter any issues with your rice cooker, please refer to the following table before contacting customer support.

8. Specifications

9. Warranty & Support

This Kioxiuin appliance is manufactured with high-quality materials and is warranted to be free from defects in material and workmanship under normal use and service.

9.1 Warranty Information

Specific warranty terms and duration may vary by region and retailer. Please refer to the warranty card included with your product or contact your point of purchase for detailed warranty information. Generally, the warranty covers manufacturing defects and malfunctions under normal household use.

The warranty does not cover:

• Damage caused by accident, misuse, abuse, or neglect.
• Damage from unauthorized repair or modification.
• Normal wear and tear, including scratches, dents, or discoloration.
• Damage caused by failure to follow the instructions in this manual.

9.2 Customer Support

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Kioxiuin customer support or the retailer from whom you purchased the product.

Please have your product model number and purchase date ready when contacting support.

Manufacturer information from product packaging (Figure 7.1):

Figure 9.1: Manufacturer and EC-REP contact information.

• Manufacturer: Kioxiuin (as per product details)
• EC-REP Name: VAT SPEED SL
• EC-REP Address: Calle Antonio Salvador N99.1, Madrid 28026, Spain
• EC-REP E-mail: services@vatspeed-eu.Com
