Budora 154578801 Hinge Cable Instruction Manual

Introduction

This instruction manual provides comprehensive guidance for the installation, operation, and maintenance of your Budora 154578801 Hinge Cable. This component is designed as a direct replacement for the hinge cable in various dishwasher models, primarily from Frigidaire, Electrolux, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore. Proper installation and care are essential for the safe and effective operation of your dishwasher door.

Safety Information

Always prioritize safety when performing any appliance repair. Disconnect power to the dishwasher before beginning any work. Wear appropriate personal protective equipment, such as gloves, to prevent injury. If you are unsure about any step, consult a qualified technician.

• Power Disconnection: Ensure the dishwasher is unplugged or the circuit breaker is turned off before starting installation.
• Sharp Edges: Be aware of potentially sharp edges inside the dishwasher cabinet.
• Proper Tools: Use only the correct tools for the job to avoid damage to the appliance or injury.
• Child Safety: Keep small parts away from children.

Product Overview

The Budora 154578801 Hinge Cable is a critical component that assists in the smooth opening and closing of your dishwasher door. It works in conjunction with the door springs to provide tension and support, preventing the door from dropping too quickly or remaining open at an awkward angle. This package contains one replacement hinge cable.

Image 1: The Budora 154578801 Hinge Cable, showing its full length and attachment points.

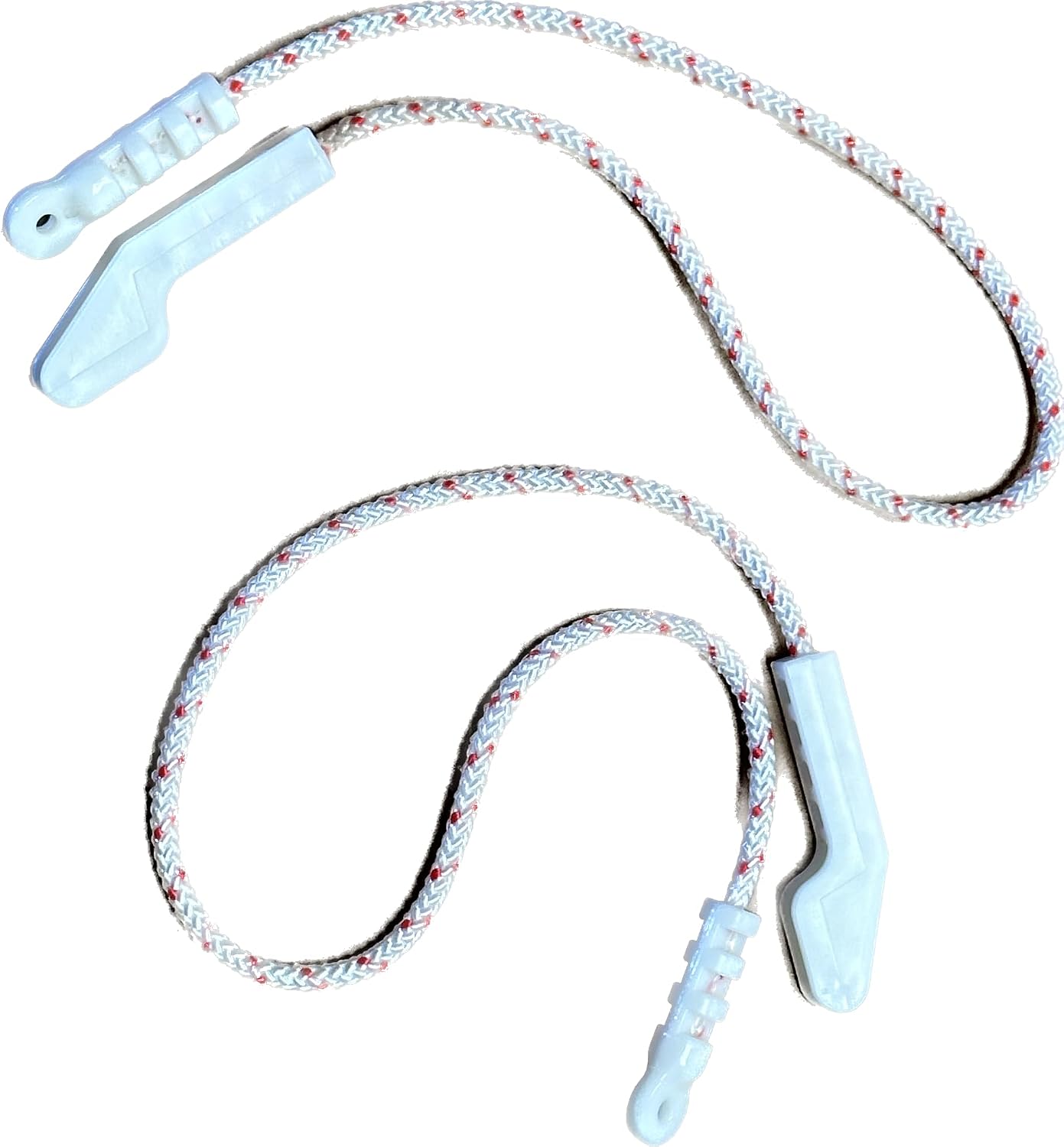

Image 2: A closer view of the two ends of the hinge cable, highlighting the plastic attachment pieces.

Image 3: A detailed shot of one end of the hinge cable, showing the textured grip and loop for attachment.

Image 4: Two hinge cables displayed together, illustrating their identical design.

Setup and Installation

Replacing a dishwasher hinge cable typically involves accessing the underside of the dishwasher. It is recommended to have a second person assist with tilting the dishwasher if necessary.

Tools Required:

• Screwdriver (Phillips or flathead, depending on your dishwasher model)
• Pliers (optional, for spring manipulation)
• Work gloves

Installation Steps:

1. Disconnect Power: Unplug the dishwasher from the electrical outlet or turn off the circuit breaker supplying power to the dishwasher.
2. Access the Hinge Mechanism:
   • Carefully pull the dishwasher out from its cabinet enclosure.
   • Lay the dishwasher on its back or side to access the bottom panel. You may need to remove a kick plate or access panel.
3. Locate Old Hinge Cable: Identify the broken or worn hinge cable. There is typically one cable on each side of the dishwasher door. Note how the old cable is attached to both the door hinge and the tension spring mechanism.
4. Remove Old Cable: Detach the old cable from the door hinge and the spring. This may involve unhooking it from a small lever or pin. Be cautious as the spring may still have some tension.
5. Install New Cable:
   • Attach one end of the new Budora 154578801 Hinge Cable to the door hinge mechanism. Ensure it is securely seated.
   • Route the cable correctly, ensuring it does not snag on other components.
   • Attach the other end of the cable to the tension spring. This step may require some force to stretch the spring slightly to hook the cable into place.
6. Repeat for Other Side (if necessary): If both cables are being replaced, repeat steps 3-5 for the other side.
7. Test Door Operation: Gently open and close the dishwasher door to ensure it operates smoothly and holds its position at various angles. The door should not drop freely.
8. Reassemble and Reconnect Power: Reattach any removed panels or kick plates. Carefully slide the dishwasher back into its cabinet. Reconnect the power supply.

Operating

The hinge cable is a passive component that facilitates the proper operation of your dishwasher door. Once installed correctly, it requires no direct user interaction. Its function is to provide the necessary tension and support for the door, allowing it to open and close smoothly and remain stable when partially open.

Maintenance

The Budora 154578801 Hinge Cable is designed for durability and typically requires minimal maintenance. However, periodic inspection can help identify potential issues before they lead to complete failure.

• Visual Inspection: Approximately once a year, or if you notice the dishwasher door feeling loose or dropping quickly, inspect the hinge cables for signs of fraying, stretching, or damage. This usually requires pulling the dishwasher out and accessing the underside.
• Cleanliness: Ensure the area around the hinge mechanism is free from debris or food particles that could impede the cable's movement.
• Lubrication: The cable itself does not require lubrication. However, if the hinge points or springs appear stiff, a small amount of appliance-safe lubricant can be applied to the metal pivot points, avoiding contact with the cable itself.

Troubleshooting

If your dishwasher door is not operating correctly after replacing the hinge cable, consider the following common issues:

Specifications

The following specifications apply to the Budora 154578801 Hinge Cable:

• Part Number: 154578801 (Cross Reference: 154756401, AP7212793)
• Model Number: PL-154578801
• Included Components: Hinge Cable
• Item Weight: Approximately 0.493 ounces
• Product Dimensions: Approximately 4 x 2 x 2 inches (packaged)
• Country of Origin: China
• Compatible Brands: Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Sears/Kenmore, and others.

Partial List of Compatible Models:

FDPH431LAF, FDPH4316AD, FDPH4316AB, FDPH4316AW, FDPH4316AS, 004621711A, 58715202800, 58715202801, 58715202802, 58715202803A, 58715203800, 58715203801, 58715203802, 58715203803A, 58715313000A, 58715392100A, 58715393100A, 58715399100A, 804655850A, BGHD2433KB0, BGHD2433KB1, BGHD2433KF0, BGHD2433KF1, BGHD2433KW0, BGHD2433KW1, CDB500NB0A, CDB500NB1A, CDB500NB2A, CDB500NB3A, CDB500NB4A, CDB500NB5B, CDB500NS0A, CDB500NS1A, CDB500NS2A, CDB500NS3A, CDB500NS4A, CDB500NS5B, CDB500NW0A, CDB500NW1A, CDB500NW2A, CDB500NW3A, CDB500NW4A, CDB500NW5B, CDB900NB0A, CDB900NB1A, CDB900NB2A, CDB900NB3A, CDB900NB4A, CDB900NB5A, CDB900NB6B, CDB900NS0A, CDB900NS1A, CDB900NS2A, CDB900NS3A, CDB900NS4A, CDB900NS5A, CDB900NS6B, CDB900NW0A, CDB900NW1A, CDB900NW2A, CDB900NW3A, CDB900NW4A, CDB900NW5A, CDB900NW6B, CDBEH600SB0A, CDBEH600SB2A, CDBEH600SS0A, CDBEH600SS2A, CDBEH600SW0A, CDBEH600SW2A, CDBEH950SB0A, CDBEH950SB1A, CDBEH950SS0A, CDBEH950SS1A, CDBEH950SW0A, CDBEH950SW1A, CDBEH960TD0A, CDBEH960TS0A, DGBD2438PF0A, DGBD2438PF1A, DGBD2438PF3A, DGBD2438PF4A, DGBD2438PF5A, DGBD2438PF6A, DGBD2438PF7A, DGBD2438PF8B, DGCD2444SA0A, DGCD2444SA1A, DGCD2444SA2A, DGCD2444SD0A, DGHD2433KF0, DGHD2433KF1, FDB2415LFB0, FDB2415LFB1, FDB2415LFB2, FDB2415LFC0, FDB2415LFC1, FDB2415LFC2, FDB2415LFS0, FDB2415LFS1, FDB2415LFS2, FDB4315LFB0, FDB4315LFB1, FDB4315LFB2, FDB4315LFB3, FDB4315LFC0, FDB4315LFC1, FDB4315LFC2, FDB4315LFC3, FDB4315LFS0, FDB4315LFS1, FDB4315LFS2, FDB4315LFS3, FDBB4365FB0, FDBB4365FB1, FDBB4365FB2, FDBB4365FB3, FDBB4365FC0, FDBB4365FC1, FDBB4365FC2, FDBB4365FC3, FDBB4365FC4, FDBB4365FS0, FDBB4365FS1, FDBB4365FS2, FDBB4365FS3, FDPH4316AB0A, FDPH4316AD0A, FDPH4316AS0A, FDPH4316AW0A, FDPH431LAF0A, FFBD2411NB0A, FFBD2411NM0A, FFBD2411NQ0A, FFBD2411NS0A, FFBD2411NW0A, FFCD2413UB0A, FFCD2413US0A, FFCD2413UW0A, FFCD2418UB0A, FFCD2418US0A, FFCD2418UW0A, FFID2421QS0A, FFID2421QS2A, FFID2423RS0A, FFID2423RS1A, FFID2423RS2A, FFID2423RS3B, FFID2423RS4B, FFID2426TB0A, FFID2426TB1A, FFID2426TB2A, FFID2426TB3A, FFID2426TD0A, FFID2426TD1A, FFID2426TD2A, FFID2426TD3A, FFID2426TD4A, FFID2426TD5A, FFID2426TD6A, FFID2426TS0A, FFID2426TS2A, FFID2426TS4A, FFID2426TS5A, FFID2426TS6A, FFID2426TW0A, FFID2426TW1A, FFID2426TW3A, FGBD2431NB0A, FGBD2431NF0A, FGBD2431NW0A, FGBD2434PB0A, FGBD2434PB1A, FGBD2434PB2A, FGBD2434PB3A, FGBD2434PB4A, FGBD2434PB5A, FGBD2434PB6B, FGBD2434PF0A, FGBD2434PF1A, FGBD2434PF2A, FGBD2434PF3A, FGBD2434PF4A, FGBD2434PF5A, FGBD2434PF6B, FGBD2434PW0A, FGBD2434PW1A, FGBD2434PW2A, FGBD2434PW3A, FGBD2434PW4A, FGBD2434PW5A, FGBD2434PW6B, FGBD2435NB0A, FGBD2435NF0A, FGBD2435NW0A, FGBD2438PB0A, FGBD2438PB1A, FGBD2438PB3A, FGBD2438PB4A, FGBD2438PB5A, FGBD2438PB6A, FGBD2438PB7A, FGBD2438PB8B, FGBD2438PB9B, FGBD2438PF0A, FGBD2438PF1A, FGBD2438PF3A, FGBD2438PF4A, FGBD2438PF5A, FGBD2438PF6A, FGBD2438PF7A, FGBD2438PF8B, FGBD2438PF9B, FGBD2438PW0A, FGBD2438PW1A, FGBD2438PW3A, FGBD2438PW4A, FGBD2438PW5A, FGBD2438PW6A, FGBD2438PW7A, FGBD2438PW8B, FGBD2438PW9B, FGBD2445NB0A, FGBD2445NB1A, FGBD2445NB2A, FGBD2445NB4A, FGBD2445NB5A, FGBD2445NB6A, FGBD2445NB7A, FGBD2445NB8A, FGBD2445NB9B, FGBD2445NF0A, FGBD2445NF1A, FGBD2445NF2A, FGBD2445NF4A, FGBD2445NF5A, FGBD2445NF6A, FGBD2445NF7A, FGBD2445NF8A, FGBD2445NF9B, FGBD2445NQ0A, FGBD2445NQ1A, FGBD2445NQ2A, FGBD2445NQ4A, FGBD2445NQ5A, FGBD2445NQ6A, FGBD2445NQ7A, FGBD2445NQ8A, FGBD2445NQ9B, FGBD2445NW0A, FGBD2445NW1A, FGBD2445NW2A, FGBD2445NW4A, FGBD2445NW5A, FGBD2445NW6A, FGBD2445NW7A, FGBD2445NW8A, FGBD2445NW9B, FGCD2436SF0A, FGCD2444SA0A, FGCD2444SA1A, FGCD2444SA2A, FGCD2444SA3A, FGCD2444SB0A, FGCD2444SB1A, FGCD2444SB2A, FGCD2444SF0A, FGCD2444SF1A, FGCD2444SF2A, FGCD2444SW0A, FGCD2444SW1A, FGCD2444SW2A, FGHD2433KB0, FGHD2433KB1, FGHD2433KF0, FGHD2433KF1, FGHD2433KW0, FGHD2433KW1, FGHD2461KB0, FGHD2461KB1, FGHD2461KW0, FGHD2461KW1, FGHD2465NB0A, FGHD2465NB1A, FGHD2465NB2A, FGHD2465NF0A, FGHD2465NF1A, FGHD2465NF2A, FGHD2465NW0A, FGHD2465NW1A, FGHD2465NW2A, FGHD2471KB0, FGHD2471KB1, FGHD2471KW0, FGHD2471KW1, FGID2466QB0A, FGID2466QB1A, FGID2466QB2A, FGID2466QB3A, FGID2466QB4A, FGID2466QB5A, FGID2466QB6A, FGID2466QB7A, FGID2466QD0A, FGID2466QD1A, FGID2466QD2A, FGID2466QF0A, FGID2466QF1A, FGID2466QF2A, FGID2466QF3A, FGID2466QF4A, FGID2466QF5A, FGID2466QF6A, FGID2466QF7A, FGID2466QF8A, FGID2466QF9A, FGID2466QW0A, FGID2466QW1A, FGID2466QW2A, FGID2466QW3A, FGID2466QW4A, FGID2466QW5A, FGID2466QW6A, FGID2466QW7A, FGID2468UD0A, FGID2468UD1A, FGID2468UD2A, FGID2468UF0A, FGID2468UF1A, FGID2468UF2A, FGIP2468UD0A, FGIP2468UD1A, FGIP2468UD2A, FGIP2468UF0A, FGIP2468UF1A, FGIP2468UF2A, FGIP2468UF3A, FPHD2481KF0, FPHD2481KF1, FPHD2485NF0A, FPHD2485NF1A, FPHD2485NF2A, FPID2486TF0A, FPID2486TF1A, GDPH4515AD0A, GDPH4515AD1B, GDPH4515AF0A, GDPH4515AF1B, GDPP4515AF0A, GDPP4515AF1B, GDPP4517AD0A, GDPP4517AF0A, GDPP4517AF1B, GLD4355RFB0, GLD4355RFB1, GLD4355RFB2, GLD4355RFB3, GLD4355RFS0, GLD4355RFS1, GLD4355RFS2, GLD4355RFS3, LEDB400FEE0, LEDB500FEE0, LFID2422RF0A, LFID2422RF1A, LFID2422RF2A, LFID2422RF3B, LFID2426TF0A, LFID2426TF1A, LFID2426TF2A, LFID2426TF3A, LFID2426TF4A, LFID2426TF5A, LFID2426TF6A, LGBD2431NF0B, LGBD2431NF1B, LGBD2435NB0A, LGBD2435NB1A, LGBD2435NB3A, LGBD2435NQ0A, LGBD2435NQ1A, LGBD2435NQ3A, LGBD2435NW0A, LGBD2435NW1A, LGBD2435NW3A, LGHD2433KM0, LGHD2433KM1, PLD4375RFC0, PLD4375RFC1, PLD4375RFC2, PLD4375RFC3, PLD4555RFC0, PLD4555RFC1, PLD4555RFC2, PLD4555RFC3.

Warranty and Support

The Budora 154578801 Hinge Cable comes with a One Year Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. For warranty claims or technical support, please refer to the contact information provided with your purchase or visit the official Budora website.
