Dawnice 12KW Hybrid Solar Power System

1. Introduction

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Dawnice 12KW Hybrid Solar Power System. This complete kit includes 550W solar panels, a 48V 12KW hybrid inverter with built-in MPPT controller, and 51.2V 314Ah 16kWh LiFePO4 home lithium batteries. Please read this manual thoroughly before proceeding with any installation or operation.

The system is designed to provide reliable and independent power, reducing reliance on traditional grid electricity. It is suitable for various applications, including residential, commercial, and off-grid setups.

2. Safety Information

WARNING: Installation and maintenance of this solar power system involve high voltage and current. Improper handling can result in serious injury or death. It is strongly recommended that installation and all electrical connections be performed by qualified and licensed professionals.

• Always disconnect all power sources (solar, battery, grid) before performing any service or maintenance.
• Use appropriate personal protective equipment (PPE), including insulated gloves and safety glasses.
• Ensure proper grounding of all components.
• Do not attempt to open or repair any component unless specifically instructed by the manufacturer.
• Keep children and unauthorized personnel away from the system components.
• Follow all local electrical codes and regulations.

3. Product Overview

The Dawnice 12KW Hybrid Solar Power System is an all-in-one solution for energy independence. It integrates solar power generation, energy conversion, and storage into a single comprehensive package.

3.1 System Components

• Solar Panels: 20 pieces of 550W bifacial solar panels (total 11KW capacity). These panels offer high module efficiency and are designed to withstand various weather conditions.
• Hybrid Inverter: One 48V 12KW Pure Sine Wave Hybrid Inverter with built-in MPPT solar controller. Features high tracking efficiency (up to 99%) and peak conversion efficiency (98%). Supports split-phase 240Vac and single-phase 120Vac output.
• LiFePO4 Batteries: Two sets of 51.2V 314Ah 16kWh LiFePO4 home lithium batteries. These batteries provide reliable energy storage for continuous power supply, even during the night or cloudy days.
• Accessories: Includes necessary connectors and cables for system integration.

3.2 Key Features

• All-in-one Solution: Integrated inverter, solar panels, and batteries for complete energy independence.
• High Efficiency: Inverter with 99% MPPT tracking efficiency and 98% peak conversion efficiency. Solar panels with 21.5% maximum module efficiency.
• Battery Storage: LiFePO4 batteries ensure power availability during off-peak sunlight hours.
• Smart LED Touchscreen: Battery units feature a smart LED touchscreen for easy monitoring of battery condition, parameters, and historical data.
• Wide Application: Suitable for home energy storage, RVs, sheds, cabins, and other backup power needs.

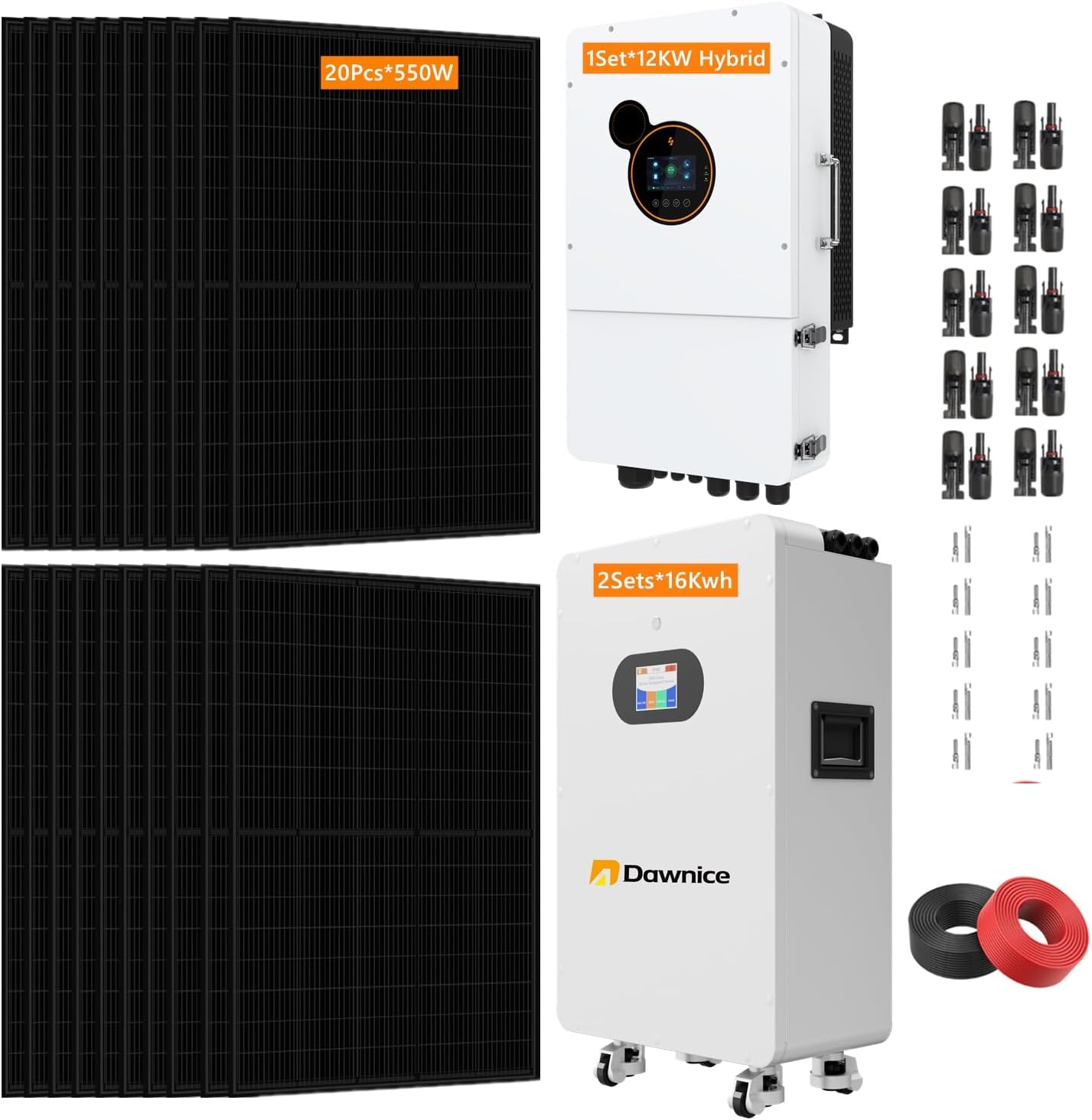

Figure 3.1: Overview of the Dawnice 12KW Hybrid Solar Power System components, including 20 solar panels, a 12KW hybrid inverter, and two 16kWh LiFePO4 battery units, along with connection cables.

Figure 3.2: Detailed view of the 12KW Hybrid Inverter, highlighting its pure sine wave output, 200A max battery charge current, 6600W+6600W max PV array power, and 99.9% conversion efficiency.

Figure 3.3: Features of the 51.2V 314Ah LiFePO4 battery, including a fully removable bracket, smart LED touchscreen for monitoring, and freewheeling casters for easy movement.

Figure 3.4: The LED touchscreen interface on the battery unit, showing options for checking battery condition, BMS management system status (SOC, Voltage, Current, Capacity), and historical records.

Figure 3.5: Details of the 550W bifacial solar panels, highlighting 21.5% maximum module efficiency, anti-UV properties, and resistance to snow, water, dust, and other inclement weather.

4. Setup and Installation

Proper installation is crucial for the safety and performance of your solar power system. It is highly recommended to engage certified solar installers for this process.

4.1 Site Selection

• Solar Panels: Choose a location with maximum sun exposure throughout the day, free from shading by trees or buildings. Consider roof mounting or ground mounting options.
• Inverter and Batteries: Install the inverter and batteries in a cool, dry, well-ventilated area, away from direct sunlight, flammable materials, and moisture. Ensure adequate clearance for air circulation and maintenance access.

4.2 Mounting Solar Panels

• Install appropriate racking systems suitable for your chosen location (roof or ground).
• Securely mount each solar panel according to the racking system manufacturer's instructions and local building codes.
• Ensure proper tilt and azimuth for optimal energy harvesting.

4.3 Electrical Connections

All wiring must comply with national and local electrical codes. Use appropriately sized cables and circuit breakers.

• Solar Panel Wiring: Connect solar panels in series and/or parallel configurations as specified by the inverter's input voltage and current requirements. Use MC4 connectors for secure and waterproof connections.
• Battery Connection: Connect the LiFePO4 batteries to the inverter's battery terminals. Ensure correct polarity (+ to + and - to -).
• AC Output Connection: Connect the inverter's AC output to your home's electrical panel or designated load center. The inverter supports both split-phase 240Vac and single-phase 120Vac.
• Grid Connection (Optional): If connecting to the utility grid, ensure proper anti-islanding protection and compliance with grid-tie regulations.
• Grounding: Properly ground all system components to prevent electrical hazards.

Figure 4.1: Simplified wiring diagram illustrating the connection of solar panels, wall-mounted battery, smart meter, and hybrid solar inverter to power household appliances.

Figure 4.2: Conceptual diagram of a hybrid home solar power system, showing solar panels, inverter, battery, and their integration with household loads and potential grid connection.

5. Operating Instructions

Once the system is fully installed and all connections are verified, you can proceed with system startup.

5.1 System Startup Procedure

1. Ensure all circuit breakers (AC and DC) are in the OFF position.
2. Turn on the battery breaker/switch. The battery unit's LED touchscreen should power on.
3. Turn on the DC disconnect switch for the solar panels (if applicable).
4. Turn on the AC input breaker (if connected to grid).
5. Turn on the AC output breaker to your loads.
6. Power on the hybrid inverter. The inverter will perform a self-test and begin operation.

5.2 Monitoring System Performance

• Inverter Display: The inverter's display provides real-time information on solar input, battery charge/discharge, AC output, and system status. Refer to the inverter's specific manual for detailed navigation.
• Battery Touchscreen: Use the battery's LED touchscreen to monitor State of Charge (SOC), voltage, current, capacity, and access historical data.
• Remote Monitoring (if applicable): Some inverters offer remote monitoring capabilities via Wi-Fi or Ethernet. Consult your inverter's manual for setup instructions.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your solar power system.

6.1 Solar Panels

• Cleaning: Periodically clean the surface of the solar panels to remove dust, dirt, leaves, or snow. Use soft brush or cloth with water. Avoid abrasive materials.
• Inspection: Annually inspect panels for any physical damage, cracks, or discoloration. Check for loose connections or corrosion on wiring.

6.2 Hybrid Inverter

• Ventilation: Ensure the inverter's ventilation openings are clear and not obstructed. Dust accumulation can lead to overheating.
• Connections: Periodically check all electrical connections for tightness and signs of corrosion.
• Firmware: Keep the inverter firmware updated as recommended by the manufacturer.

6.3 LiFePO4 Batteries

• Visual Inspection: Check battery units for any swelling, leaks, or physical damage.
• Connections: Ensure battery cable connections are secure and free from corrosion.
• Environment: Maintain the battery operating environment within specified temperature ranges.

7. Troubleshooting

This section provides guidance for common issues. For complex problems, contact technical support.

8. Specifications

9. Warranty and Support

Dawnice is committed to providing high-quality products and customer satisfaction.

• Warranty: This product comes with a 10-Year limited Warranty.
• Technical Support: Lifetime technical support is provided for this system.

For any questions, technical assistance, or warranty claims, please contact the Dawnice support team. Refer to your purchase documentation or the Dawnice official website for contact details.
