COMP2EADY 2 Gallon Portable Air Compressor Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your COMP2EADY 2 Gallon Portable Air Compressor. This oil-free compressor is designed for various applications including tire inflation, pneumatic tool operation, and spray painting, offering quiet operation at 60 dB.

Image 1.1: The COMP2EADY 2 Gallon Portable Air Compressor, a compact and versatile unit.

2. Safety Information

Always read and understand all safety warnings and instructions before operating the air compressor. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Electrical Safety: Ensure the power source matches the compressor's voltage (115V/60Hz). Do not operate in wet conditions.
• Pressure Safety: The compressor features thermal overload protection and pressure relief mechanisms. Do not tamper with safety valves or exceed the maximum operating pressure of 350 PSI.
• Noise Level: While designed for quiet operation (60 dB), prolonged exposure to any machinery noise can be harmful. Consider hearing protection during extended use.
• Operating Environment: Use the compressor within its specified operating temperature range of -40℉ to 104℉. Ensure adequate ventilation.
• Stability: Place the compressor on a stable, level surface to prevent tipping.
• Maintenance: Disconnect power before performing any maintenance or adjustments.

3. Product Components

Familiarize yourself with the main components of your air compressor:

Image 3.1: Labeled diagram showing key components such as the air silencer, tank air gauge, air regulator, oil-free air compressor unit, 2-gallon steel tank, rubber floor mat, and wheel.

• Air Silencer: Reduces operational noise.
• Tank Air Gauge: Displays the pressure inside the air tank.
• Air Regulator (0-125psi dry air): Allows adjustment of the output air pressure for tools.
• Oil-Free Air Compressor: The pump mechanism that compresses air, requiring no oil maintenance.
• 2 Gallon Steel Tank: Stores compressed air.
• Rubber Floor Mat / Wheels: Provides stability and portability.
• Stainless Steel Braided Tube: Connects components, designed for durability and temperature resistance.

4. Setup

1. Unpacking: Carefully remove the compressor from its packaging. Inspect for any shipping damage.
2. Placement: Position the compressor on a firm, level surface. Ensure adequate space around the unit for ventilation.
3. Power Connection: Connect the power cord to a grounded 115V/60Hz electrical outlet.
4. Initial Start-up: Before connecting any tools, turn on the compressor to allow the tank to fill. The compressor will automatically shut off when the maximum pressure is reached.

5. Operating Instructions

Your COMP2EADY air compressor is designed for efficient and quiet operation.

Image 5.1: The compressor operates at a low noise level of 60 dB, comparable to normal conversation.

1. Power On: Turn the power switch to the 'ON' position. The compressor will begin to fill the tank.
2. Tank Filling: The 2-gallon tank fills from empty in approximately 45 seconds. Quick recovery from low pressure takes about 13 seconds.
3. Adjusting Pressure: Use the air regulator knob to set the desired output pressure for your pneumatic tool. Monitor the tank air gauge for current tank pressure.
4. Connecting Tools: Attach your pneumatic tool to the quick-connect air-coupler outlet.
5. Applications: This compressor is suitable for a wide range of applications including:
   • Tire Inflation
   • Automotive Repairs
   • Paint Spraying
   • Woodworking (e.g., nail guns)
   • Operating various pneumatic tools (e.g., Brad Nailer, Air Drill, Sander, Impact Wrench, Framing Nailer, Spray Gun, Pneumatic Screwdriver)

Image 5.2: The compressor supports various pneumatic tools and applications.

Image 5.3: Example of using the compressor for tire inflation.

6. Maintenance

The COMP2EADY air compressor features an oil-free pump, significantly reducing maintenance requirements.

• Oil-Free Operation: The pump is oil-free, meaning no oil changes or checks are necessary. This design allows operation in a wide temperature range (-40℉ to 104℉).
• Drain Tank: Regularly drain any moisture from the air tank to prevent rust and ensure optimal performance. Locate the drain valve at the bottom of the tank.
• Clean Exterior: Keep the exterior of the compressor clean and free of dust and debris. Use a damp cloth for cleaning.
• Inspect Hoses and Connections: Periodically check all hoses and connections for leaks or damage. Replace any worn or damaged parts immediately.
• Storage: When not in use, store the compressor in a clean, dry environment.

7. Troubleshooting

If you encounter issues with your air compressor, refer to the following common problems and solutions:

8. Specifications

Detailed technical specifications for the COMP2EADY 2 Gallon Portable Air Compressor:

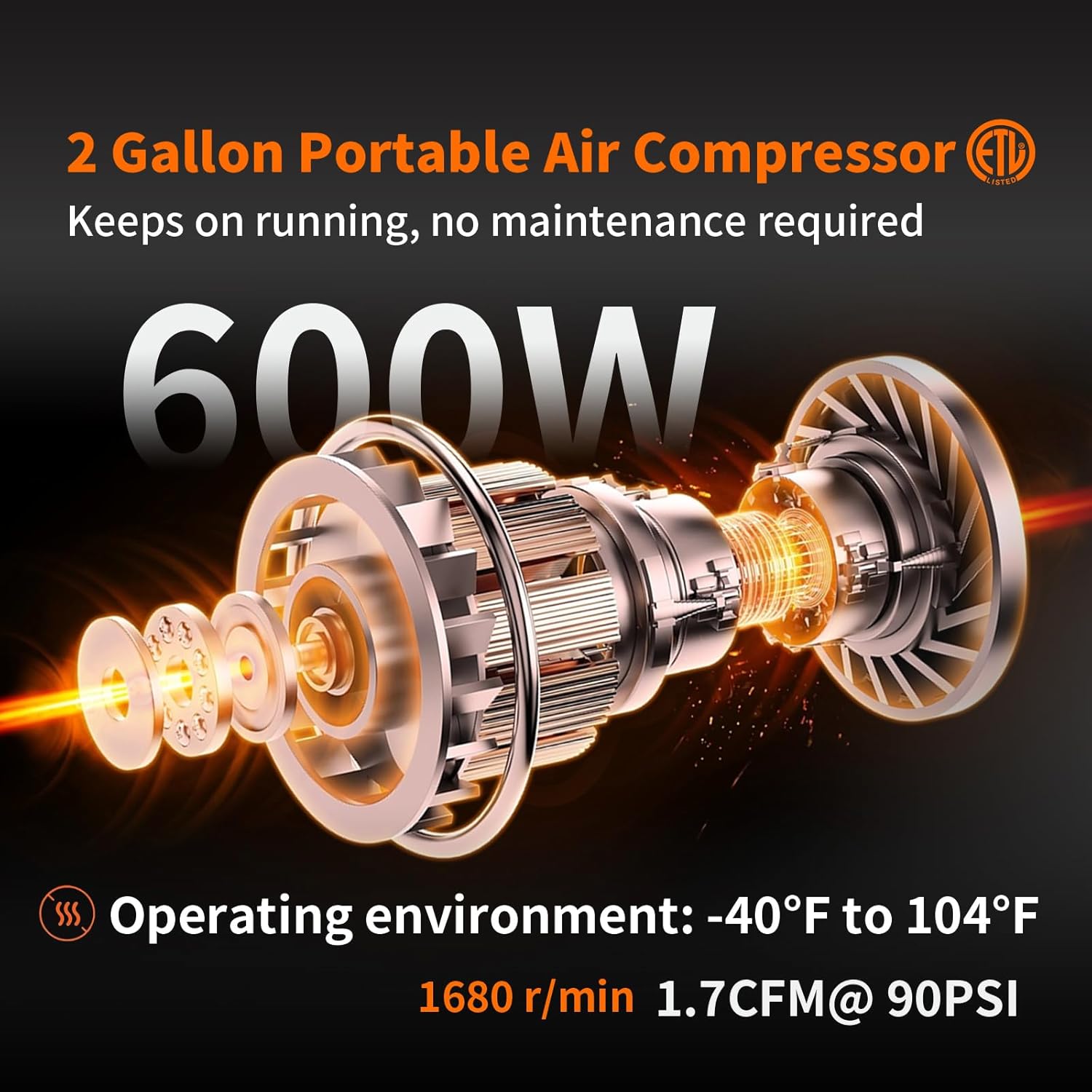

Image 8.1: Visual representation of the compressor's 600W power, 1680 r/min motor speed, and 1.7 CFM at 90 PSI performance.

9. Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or contact COMP2EADY directly. Keep your purchase receipt for warranty claims.
