1. Introduction
The MOOER GS1000 Li is an advanced guitar multi-effect processor and amp sampler designed for musicians seeking comprehensive tone shaping and performance capabilities. It features dual effects chains, XLR microphone input, a responsive touch screen, and over 350 effects. The GS1000 Li also includes 120 sampling slots, a MIDI port, and a built-in battery for portable use, making it a versatile tool for practice, recording, and live performances.

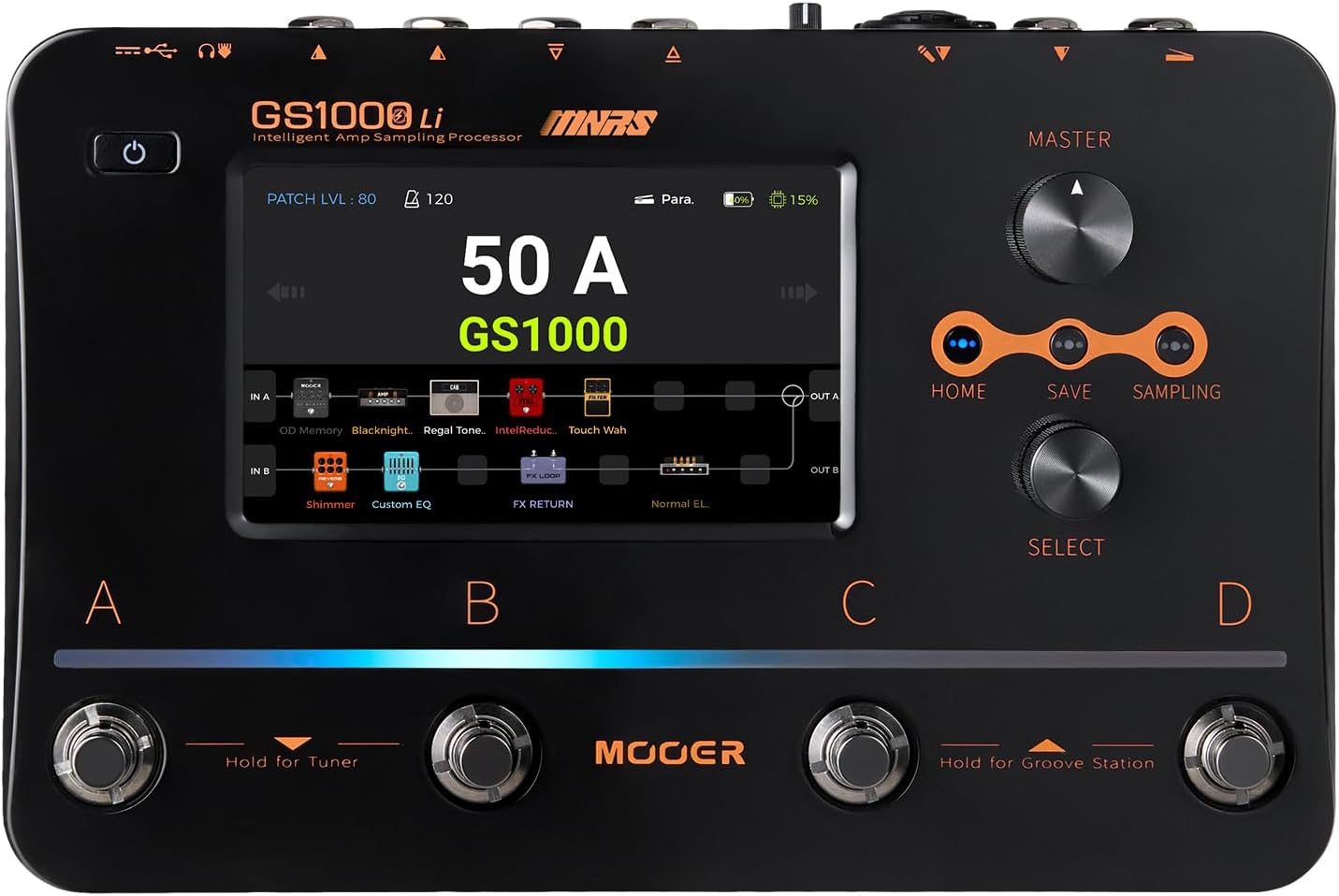

Figure 1: Front view of the MOOER GS1000 Li Multi-Effect Processor.
2. Key Features
2.1 MOOER Generation 4.0 Algorithm Chip & Effect Modules
The GS1000 Li utilizes the advanced MOOER Generation 4.0 Algorithm Chip, offering 14 effect modules that can be freely connected in series or parallel. This provides powerful algorithms and first-class effects for high-quality and professional sound processing.
Figure 2: Illustration of the 14 effect modules and flexible signal chain routing.
2.2 Amp Sampling & Effects Complex
Freely save up to 120 sample slots using 2048 IR sampling points, allowing for extensive customization and replication of amplifier tones.
Figure 3: The GS1000 Li's amp sampling capabilities.
2.3 Multi-Platform Compatibility
The GS1000 Li supports uploading and downloading tones (GNR/GIR) and sharing them across various platforms, including Android/iOS mobile devices and Win/Mac computers.
Figure 4: Multi-platform compatibility for tone management.
2.4 Rich Professional Interfaces
Equipped with a set of stereo inputs, the GS1000 Li supports microphone inputs suitable for stage performances, offering versatile connectivity options.

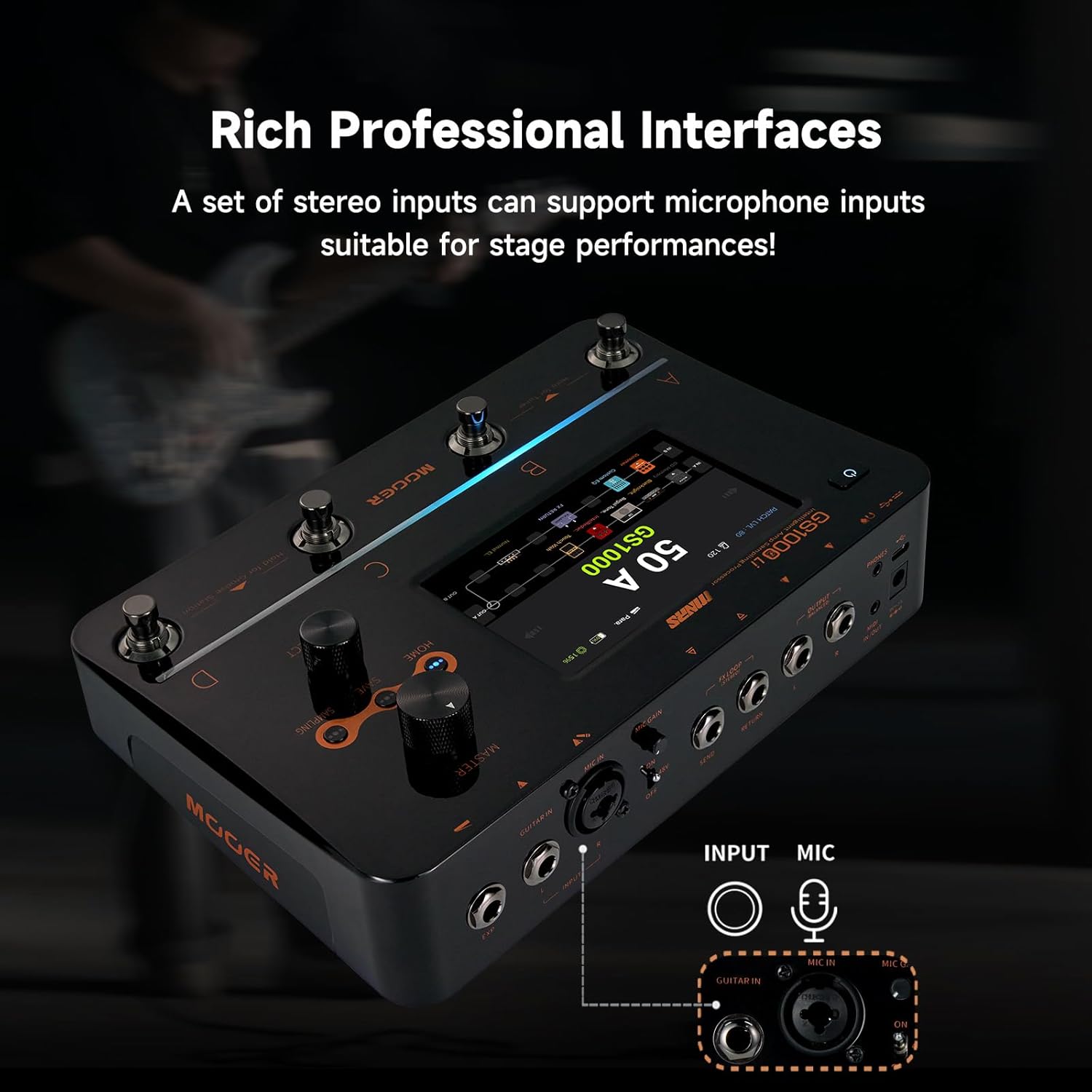

Figure 5: Professional input/output interfaces.
2.5 Touch Screen and Customized Lighting
Navigate and control the unit with ease using the intuitive 5-inch touch screen. The customized ambient lighting strip offers adjustable different lighting modes for various usage scenarios.

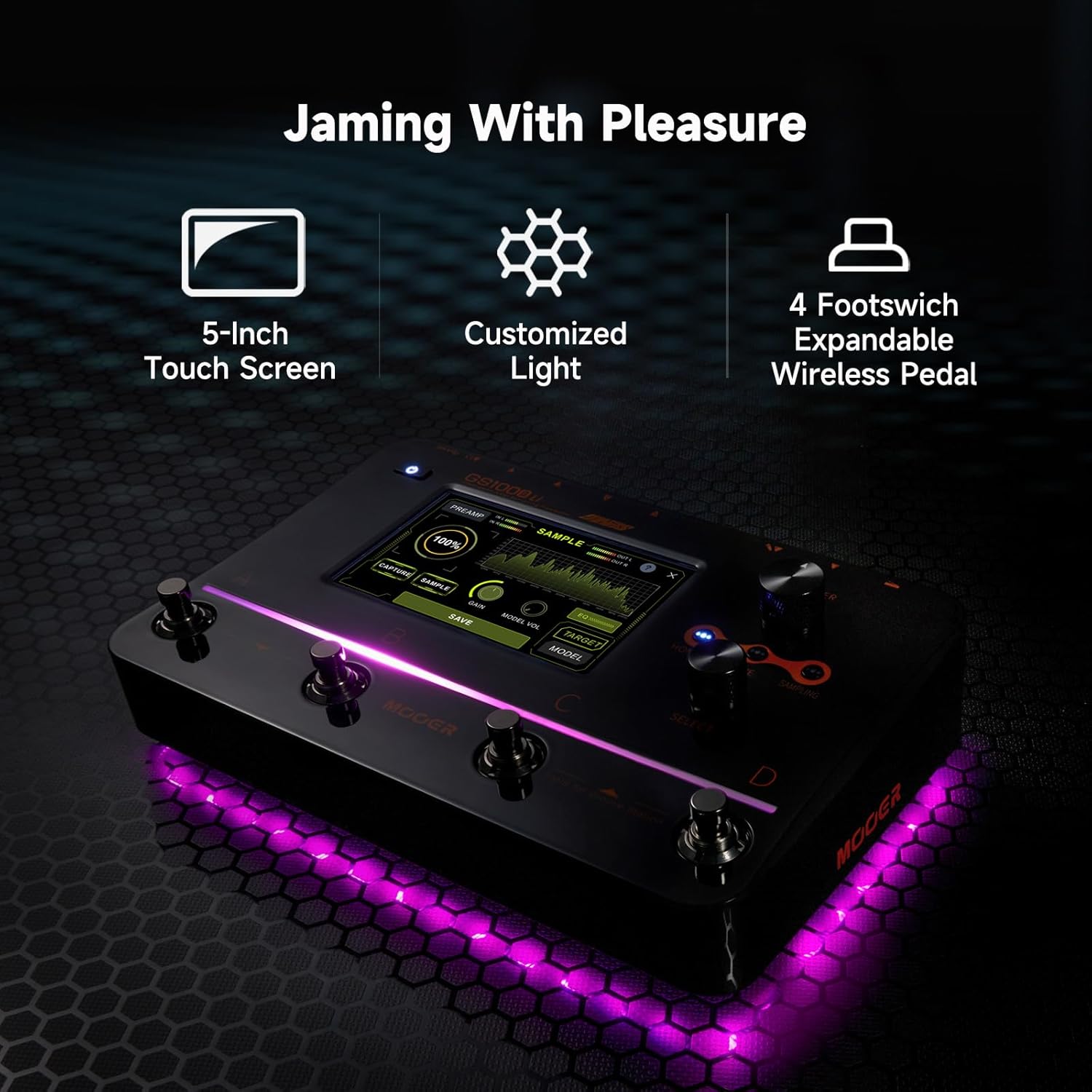

Figure 6: Touch screen interface and customizable ambient lighting.
2.6 Powerful Amp Profiling
The GS1000 is not only an effects pedal but also an AMP Tone Capture device. It features four sound collection carriers, each with 30 saving slots. The GS1000 uses new generation optimization algorithms to make simulated sounds more similar to the original carriers, supporting secondary matching and lubrication of simulated sounds.
Figure 7: Amp profiling interface and capabilities.
2.7 Freely Adjustable Dual Chain
The dual-effect chain design allows for flexible routing and creative workflows, enabling users to easily adjust and customize their sound.
Figure 8: Dual signal chain routing options.
2.8 Official Product Video
Watch the official product video for a comprehensive overview of the MOOER GS1000's features and capabilities.
Video 1: MOOER GS1000 Intelligent Amp Profiling Processor overview.
3. Setup
3.1 Connections
Before powering on the GS1000 Li, ensure all connections are made correctly. Refer to the diagram below for typical setup configurations.

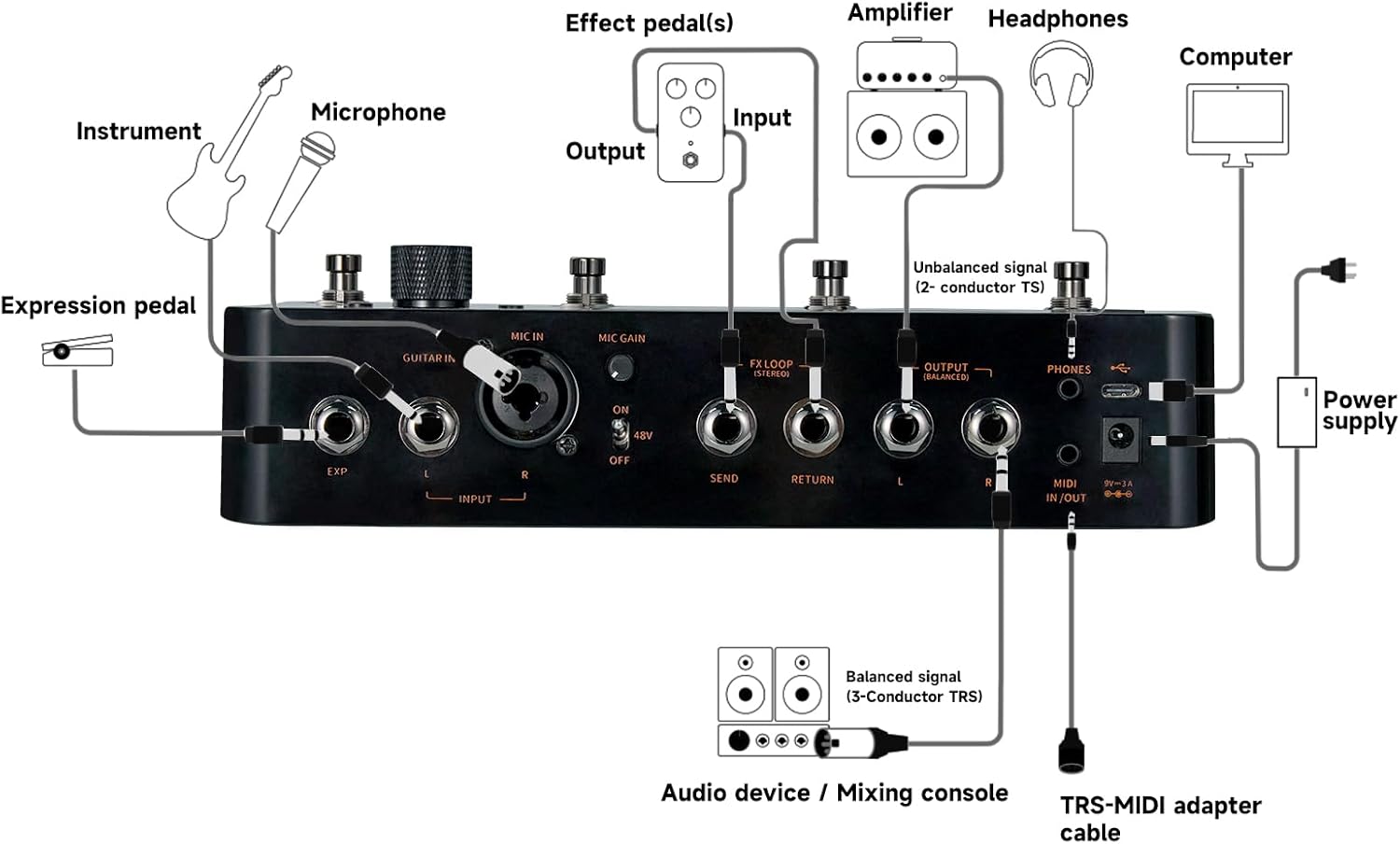

Figure 9: Detailed connection diagram for the GS1000 Li.
- Instrument Input: Connect your guitar or other instrument to the GUITAR IN (L/MONO) jack.
- Microphone Input: Use the MIC IN (XLR) for connecting a microphone.
- Output to Amplifier/PA: Connect the OUTPUT (BALANCED) L/R or OUTPUT (UNBALANCED) L/R to your amplifier or PA system.
- Headphones: Connect headphones to the PHONES jack for monitoring.
- FX Loop: Use the SEND and RETURN jacks to integrate external effects pedals into your signal chain.
- Expression Pedal: Connect an external expression pedal to the EXP jack for real-time control of parameters.
- MIDI: Use the MIDI IN/OUT port with a TRS-MIDI adapter cable for MIDI control.
- USB: Connect to a computer or mobile device via the USB-C port for software control, firmware updates, and audio interface functionality.
- Power Supply: Connect the included power adapter to the 9V DC IN jack. The GS1000 Li version also features an internal battery for portable use.
4. Operating Instructions
4.1 Power On/Off
Press and hold the power button located on the top left of the unit to power on or off the GS1000 Li. The touch screen will illuminate upon startup.
4.2 Navigating the Touch Screen
The 5-inch touch screen provides intuitive access to all functions. Tap icons and swipe to navigate through menus, adjust parameters, and select presets. The physical knobs (MASTER, HOME, SAVE, SELECT) provide additional tactile control.
4.3 Effect Chain Editing
To edit the effect chain, navigate to the main effect chain view on the touch screen. You can drag and drop modules, change their order, and adjust individual effect parameters. The dual-chain functionality allows for complex routing scenarios.
4.4 Amp Profiling and Sampling
The GS1000 Li allows you to capture the unique characteristics of your favorite amplifiers and pedals. Follow the on-screen prompts in the "Sampling" section to profile an entire amplifier, preamp, distortion pedal, or cabinet. Save your captured tones to one of the 120 available slots.
4.5 Using the MOOER Cloud App
Connect your GS1000 Li to a computer or mobile device via USB or Bluetooth (for mobile) to use the MOOER Cloud App. This software allows for comprehensive preset and data management, including downloading new tones from the cloud community or uploading your own custom tones.
4.6 Groove Station
The Groove Station features 54 high-quality drum kits and 4 metronomes. It can sync with the 480-second looper, providing a powerful tool for practice and songwriting. Access this feature by holding down the footswitch labeled "Hold for Groove Station".
4.7 Bluetooth Audio
Utilize the Bluetooth audio input functionality for accompaniment playback. Connect your mobile device or other Bluetooth-enabled audio source to play along with backing tracks or music.
5. Maintenance
- Cleaning: Use a soft, dry cloth to clean the unit. Avoid abrasive cleaners or solvents.
- Storage: Store the unit in a cool, dry place away from direct sunlight and extreme temperatures.
- Battery Care (GS1000 Li): For optimal battery life, avoid fully discharging the battery frequently. If storing for extended periods, charge the battery to approximately 50% and recharge every few months.
- Firmware Updates: Periodically check the official MOOER website for firmware updates to ensure optimal performance and access to new features.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound output. | Incorrect connections, volume too low, effect bypassed. | Check all cables, increase MASTER volume, ensure effects are active in the signal chain. |
| Unit does not power on. | Power adapter not connected, battery drained (GS1000 Li). | Ensure power adapter is securely connected. Charge the battery if using the Li version. |
| Touch screen unresponsive. | Temporary software glitch. | Restart the unit. If problem persists, check for firmware updates. |
| Noise/Hum in audio. | Ground loop, faulty cables, interference. | Use high-quality shielded cables. Try a different power outlet. Ensure proper grounding. |
7. Specifications
| Feature | Detail |
|---|---|
| Item Weight | 5.17 pounds |
| Package Dimensions | 10.35 x 9.21 x 3.23 inches |
| Item Model Number | GS1000Li |
| Batteries | 1 Lithium Ion battery required (included) |
| Signal Format | Analog |
| Voltage | 7.4 Volts |
| Audio Output Effects | Multi-Effect |
8. Warranty and Support
For warranty information and technical support, please refer to the official MOOER website or contact MOOER customer service directly. Keep your purchase receipt for warranty claims.
