1. Introduction
Thank you for choosing the Taipow LED Ceiling Light. This product is designed to provide versatile and energy-efficient lighting for various indoor spaces. It features adjustable color temperature, multiple RGB color options, and convenient remote control operation. Please read this manual thoroughly before installation and use to ensure proper function and safety.

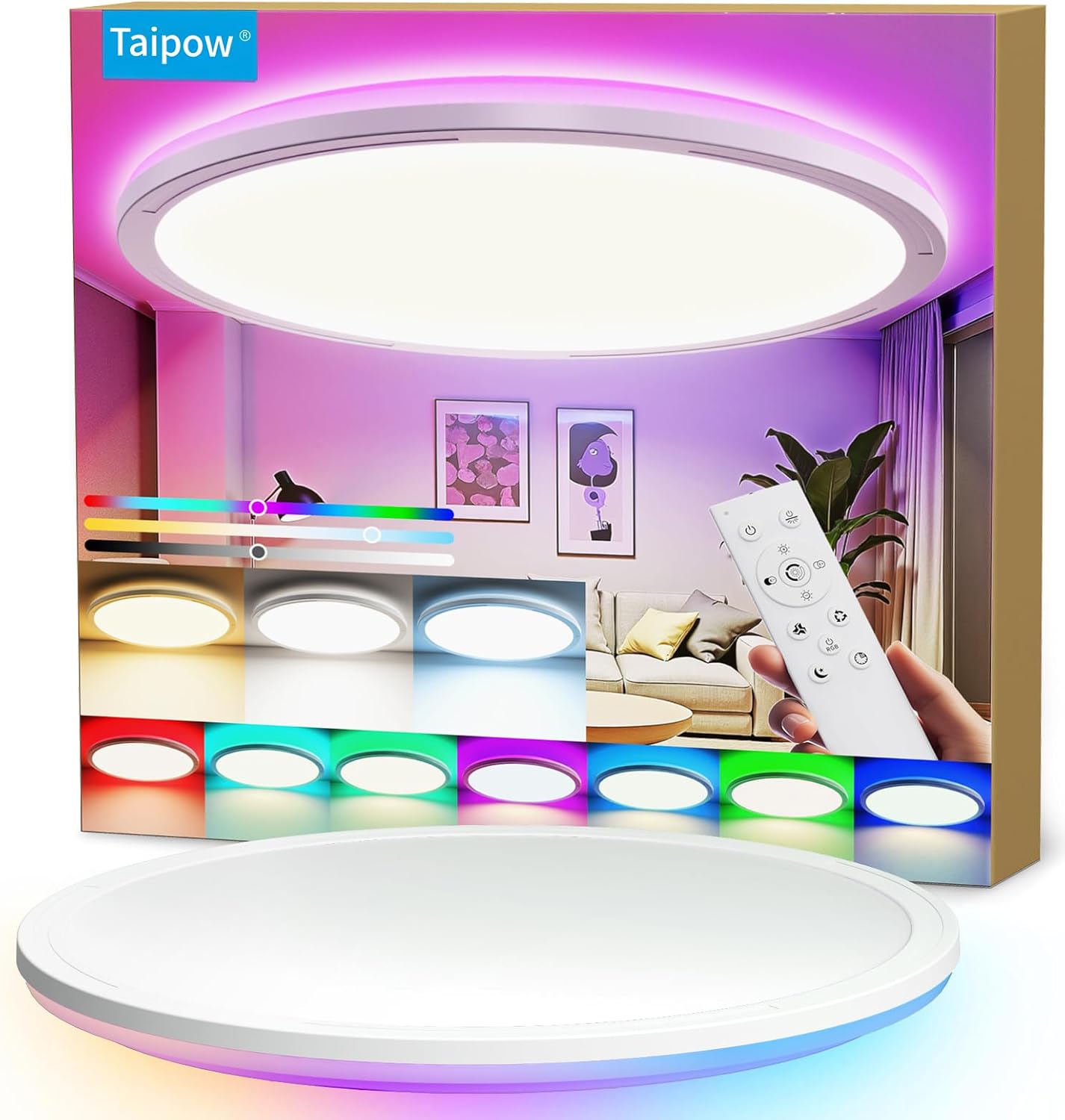

Image 1.1: Taipow LED Ceiling Light showcasing its features and remote control.
2. Safety Information
WARNING: Risk of Electric Shock. Installation should be performed by a qualified electrician or a person with electrical knowledge.
- Always disconnect the power supply at the main circuit breaker before installation, maintenance, or cleaning.
- Ensure the voltage supply (220V) matches the requirements of the fixture.
- This product is intended for indoor use only. Do not expose to water or high humidity.
- Do not attempt to modify or disassemble the fixture. There are no user-serviceable parts inside.
- Keep packaging materials out of reach of children.
- Ensure all connections are secure and properly insulated.
3. Package Contents
Verify that all components are present and undamaged:
- 1x Taipow LED Ceiling Light (Model YLXDD420-S24W-01)
- 1x 433MHz Remote Control
- 1x Set of Mounting Hardware (screws, wall anchors)
- 1x User Manual (this document)
4. Product Features
The Taipow LED Ceiling Light offers a range of advanced features:
- Multi-Scene Lighting Modes: Includes Dimmable Daylight (3000K-6500K), Cozy Night Light, 7-Color RGB, and RGB Cycle Mode.
- Adjustable Color Temperature & Brightness: Seamlessly adjust from warm white (3000K) to cool white (6500K) and brightness from 10% to 100%.
- Night Light Mode with Timer: Soft 3000K light at 5% brightness, with an optional 30-minute auto-off timer.
- Double Independent Light Sources: Main light and RGB backlight can operate separately or simultaneously.
- Memory Function: Automatically saves your last brightness, color temperature, and color settings.
- Eye-Caring Illumination: Flicker-free technology with a 120° wide-angle beam for uniform light distribution and reduced eye strain.
- Energy Efficient & Durable: 24W LED with 2160 lumens output, saving up to 80% energy compared to traditional bulbs, and a lifespan of over 20,000 hours. Constructed from high-quality ABS+PP composite material.
- Ultra-Thin Design: Slim profile (Ø30cm, 2.7cm thickness) for easy integration into various ceiling types.
- Remote Control: Convenient 433MHz remote control with a maximum range of 15 meters.
Image 4.1: Key features and dimensions of the Taipow LED Ceiling Light.
5. Specifications
| Parameter | Value |
|---|---|
| Brand | Taipow |
| Model Number | YLXDD420-S24W-01 |
| Power (Main Light) | 24W |
| Power (RGB Backlight) | 6W |
| Luminous Flux | 2160 Lumens |
| Color Temperature | 3000K-6500K (Adjustable) |
| RGB Colors | 7 Colors + Cycle Mode |
| Voltage | 220V |
| Dimensions (Diameter x Thickness) | 30 cm x 2.7 cm (11.81 in x 1.06 in) |
| Material | Polypropylene Acrylonitrile Butadiene Styrene (ABS+PP) |
| Lifespan | >20,000 hours |
| Beam Angle | 120° |
| Color Rendering Index (CRI) | >80 |
| Control Method | 433MHz Remote Control |
| Remote Control Range | Max 15 meters |
| Certifications | CE, RoHS |
6. Installation Guide
Follow these steps for safe and correct installation:
- Prepare for Installation: Turn off the main power supply at the circuit breaker before starting any electrical work. Ensure the mounting surface is clean, dry, and structurally sound.
- Mount the Bracket: Use the provided mounting hardware to securely attach the ceiling bracket to the ceiling. Mark the drilling points, drill holes, insert wall anchors (if necessary), and fasten the bracket.
- Connect Wiring: Carefully connect the household electrical wires to the corresponding wires of the ceiling light fixture. Ensure proper polarity (Live to Live, Neutral to Neutral, Ground to Ground, if applicable). Use appropriate wire connectors and ensure all connections are secure.
- Attach the Fixture: Align the ceiling light fixture with the mounted bracket. Gently push the fixture upwards and twist or secure it according to the design until it locks firmly into place.
- Restore Power: Once the fixture is securely installed, restore power at the main circuit breaker. Test the light using the remote control.
Image 6.1: Step-by-step installation process for the LED Ceiling Light.
7. Operating Instructions
The Taipow LED Ceiling Light is controlled using the included 433MHz remote control. Ensure the remote has batteries installed (not included, typically 2x AAA).
7.1 Remote Control Overview
Image 7.1: Layout and functions of the 433MHz remote control.
- Power Button (Main Light): Turns the main light ON/OFF.
- Brightness Up/Down: Adjusts the brightness of the main light (10%-100%).
- Color Temperature Adjustment (Warm to Cool): Cycles through 3000K, 4000K, 6500K.
- Mode Switching: Toggles between different preset lighting modes.
- 7-Color RGB Switch: Cycles through 7 static RGB colors for the backlight.
- RGB Cycle: Activates dynamic RGB color transitions.
- Night Light Button: Activates the soft 3000K night light mode (5% brightness).
- Timer for Auto-Off: Sets a 30-minute timer for the light to automatically turn off.
7.2 Lighting Modes and Functions
- Dimmable Daylight Mode (3000K-6500K): Use the 'Color Temperature Adjustment' and 'Brightness Up/Down' buttons to customize the main light from warm to cool white and adjust its intensity.
- Cozy Night Light Mode: Press the 'Night Light' button. The light will switch to a soft 3000K at 5% brightness. This mode is ideal for low-light environments or as a sleep aid.
- 7 RGB Color Change Mode: Press the '7-Color RGB Switch' button to cycle through individual static RGB colors for the backlight.
- RGB Cycle Mode: Press the 'RGB Cycle' button to initiate a dynamic transition through all RGB colors.
- Independent/Combined Operation: The main light and RGB backlight can be controlled independently or used together to create various ambiances.
- Memory Function: The light will remember your last used brightness, color temperature, and RGB color settings when turned off and on again.
Image 7.2: Examples of different lighting modes: Main, Night, RGB, and combined.
Image 7.3: Scheduled Night Light Mode with 30-minute timer.
8. Maintenance
To ensure the longevity and optimal performance of your Taipow LED Ceiling Light, follow these simple maintenance guidelines:
- Cleaning: Disconnect power before cleaning. Use a soft, dry, or slightly damp cloth to wipe the surface of the fixture. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electrical components.
- No User-Serviceable Parts: The LED components are integrated and not replaceable by the user. Do not attempt to open or repair the fixture.
- Regular Inspection: Periodically check the fixture for any signs of damage or loose connections. If any issues are found, disconnect power and consult a qualified electrician.
9. Troubleshooting
If you encounter issues with your Taipow LED Ceiling Light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply. Loose wiring connection. Remote control battery depleted. | Check the circuit breaker and wall switch. Ensure all wires are securely connected (with power off). Replace remote control batteries. |
| Remote control is not working. | Remote control battery depleted. Remote control out of range. Obstruction between remote and light. | Replace remote control batteries. Ensure you are within the 15-meter range. Remove any objects blocking the signal path. |
| Light flickers or dims unexpectedly. | Unstable power supply. Loose wiring. | Ensure the power supply is stable. Check wiring connections (with power off). If the problem persists, consult a qualified electrician. |
| Incorrect color or brightness settings. | Settings were changed inadvertently. | Use the remote control to re-adjust the desired color temperature, brightness, or RGB color. The memory function should retain your last setting. |
10. Warranty and Support
Taipow products are manufactured to high-quality standards. While specific warranty details are not provided in this manual, please retain your proof of purchase. For any warranty claims, technical support, or inquiries regarding your Taipow LED Ceiling Light, please contact the seller or Taipow customer service directly through the platform where you purchased the product.
You can often find contact information for the seller or manufacturer on your order details page or by visiting the Taipow Store.
