1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Domi 12x20FT Lean-to Gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference. This gazebo is designed to provide a spacious and protected outdoor area for relaxation and entertainment.

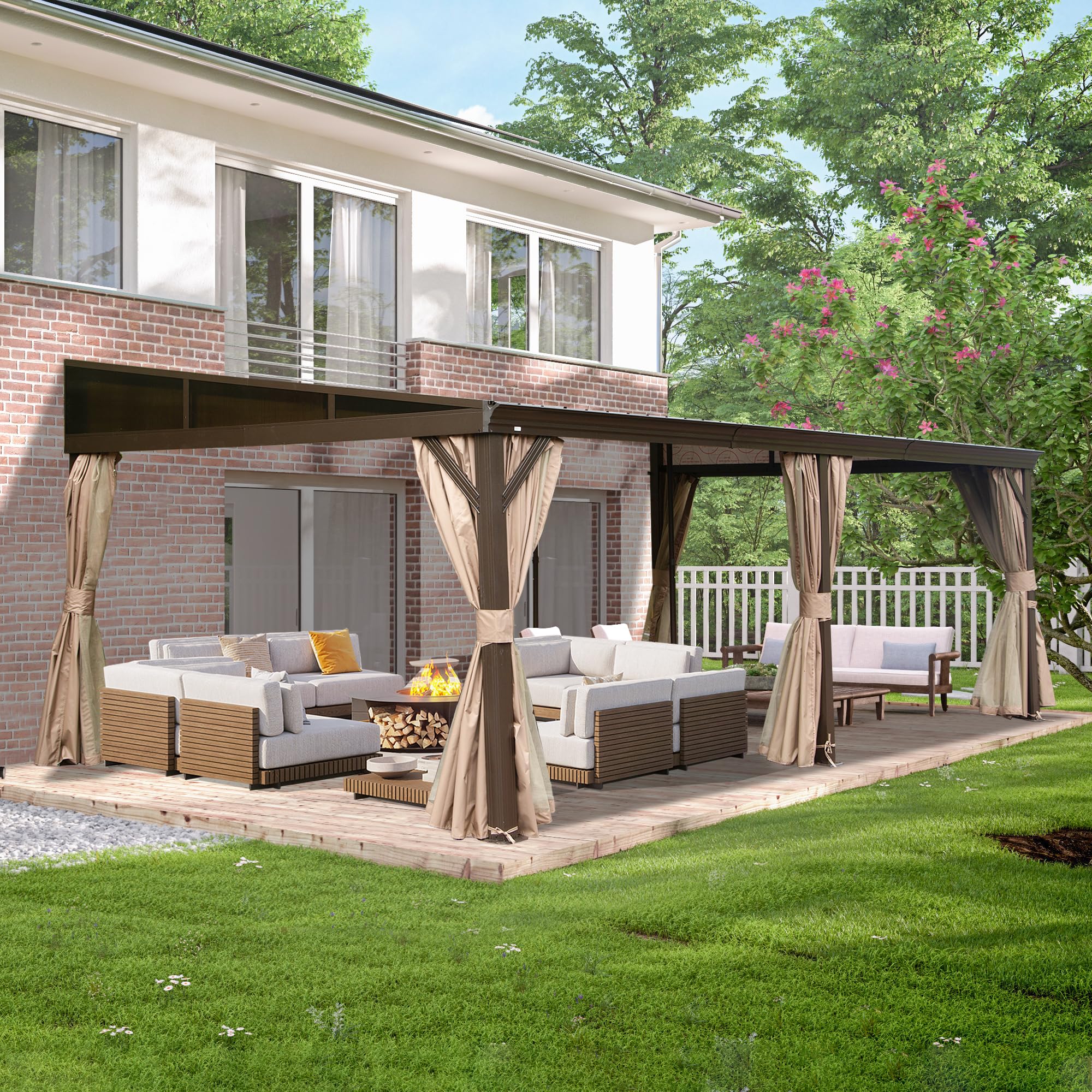

Image 1.1: The Domi 12x20FT Lean-to Gazebo, showcasing its spacious design and integration with an outdoor living space.
2. Safety Information
Adherence to the following safety guidelines is crucial for safe assembly and long-term use of your gazebo:
- Weight Limit: Do not exceed the maximum weight capacity of 2500 pounds for the structure.
- Wind Resistance: The gazebo is designed to withstand winds up to 40 miles per hour. In conditions exceeding this, it is recommended to secure or temporarily dismantle the structure to prevent damage.
- Snow Load: The roof has a snow load capacity of 22 lbs per square foot. Clear heavy snow accumulation promptly to prevent structural stress.
- Proper Installation: Ensure all components are installed correctly and securely according to the provided assembly guide. Improper installation can compromise stability and safety.
- Clearance: Maintain adequate clearance around the gazebo, especially during assembly, to avoid obstructions and ensure proper ventilation.
- Supervision: Keep children and pets away from the assembly area to prevent accidents.
3. Product Features
The Domi 12x20FT Lean-to Gazebo offers a range of features designed for comfort, durability, and aesthetic appeal:
- Spacious Design: Measuring 245.08"(L) x 143.50"(W) x 98.58"(H), this gazebo provides over 240 square feet of usable space.
- Wall-Mounted Structure: Designed to be mounted against a wall, offering a seamless extension to your home or building.
- Galvanized Steel Roof: The sloping hardtop roof is constructed from galvanized steel, providing excellent durability, UV reflection, and waterproof protection. It is also anti-corrosion.
- Integrated Drainage System: A built-in gutter system effectively channels rainwater away from the roof, keeping the interior dry and comfortable.
- Robust Aluminum Frame: Features a powder-coated, rust-proof aluminum frame for enhanced stability and longevity.
- Essential Support Poles: Includes 2 additional removable support poles for enhanced stability, particularly important in varying weather conditions.
- Privacy Curtains and Mosquito Netting: Equipped with a double track system for premium mosquito netting and privacy curtains, allowing for insect protection and adjustable privacy.
- Polycarbonate Side Panels: Features translucent, anti-UV polycarbonate side panels that allow natural light while offering protection.
- Pre-drilled Holes: Multiple pre-drilled holes are provided for reinforcement and better stabilization of the entire frame.
Image 3.1: Detail of the integrated gutter system, designed to manage rainwater effectively.
Image 3.2: Illustration of the wall-mounted design, showing how the gazebo attaches to a structure.
Image 3.3: View of the essential support poles, crucial for maintaining structural integrity.
Image 3.4: Detail of the powder-coated aluminum frame, highlighting its stable, rustproof, and durable construction.
Image 3.5: Close-up of the polycarbonate side panel, showing its translucent and anti-UV properties.
4. Setup & Installation
The Domi 12x20FT Lean-to Gazebo is delivered in 6 separate packages. A comprehensive installation guide is included with your purchase. Please follow the steps outlined in the guide carefully. For optimal results and safety, we recommend the following:
- Team Assembly: Assembly is significantly easier and safer with at least two people.
- Tool Recommendation: Using an Allen driver in a cordless drill can expedite the assembly process, as there are numerous screws.
- Screw Installation: Always hand-thread screws first before using a power driver to prevent cross-threading. A Phillips screwdriver can assist in aligning holes.
- Clearance for Assembly: Some screws are located on the back of the structure, requiring approximately one foot of clearance from the house wall during initial assembly. The gazebo can then be maneuvered into its final position.
- Support Poles: The essential support poles MUST be assembled in all conditions to ensure stability and safety.
Image 4.1: Dimensional diagram of the 12x20FT Wall-Mounted Hardtop Gazebo, providing key measurements for planning and installation.
Installation Video Guides
For visual assistance during installation, please refer to the following official video guides:
Video 4.2: Domi Wall Mounted Sunroom - This video demonstrates the features and assembly process of a similar wall-mounted structure, offering helpful visual cues for your gazebo installation.
Video 4.3: Upgrade Your Home with the Domi Wall Mounted Sunroom - A vertical format video providing additional perspectives on the wall-mounted sunroom, which shares structural similarities with your gazebo.
Video 4.4: Transform Your Patio with the Domi Wall Mounted Sunroom - This video offers a broader view of the sunroom's functionality and aesthetic, relevant for understanding the overall product experience.
5. Operating Instructions
Using your Domi Lean-to Gazebo is straightforward:
- Curtains and Netting: The gazebo features a double track system for both privacy curtains and mosquito netting. These can be easily opened or closed independently to control privacy, airflow, and protection from insects. Secure curtains with the provided ties when not in use or during windy conditions.
- Drainage System: The integrated gutter system is designed to automatically direct rainwater away from the roof. Ensure the gutters remain clear of debris (leaves, twigs) to maintain optimal drainage function.
- Support Poles: The removable support poles should be installed to ensure the gazebo's stability, especially during periods of high wind or potential snow accumulation.
Image 5.1: The double track system for curtains and netting, providing versatile options for privacy and insect control.
6. Maintenance
Regular maintenance will extend the life and appearance of your gazebo:
- Cleaning the Frame: Wipe the aluminum frame with a soft cloth and mild soap and water. Rinse thoroughly and dry to prevent water spots. Avoid abrasive cleaners.
- Roof Care: Periodically inspect the galvanized steel roof for any debris, especially in the gutters. Clear leaves, twigs, and other obstructions to ensure proper water drainage. Clean the roof panels with a soft brush and water.
- Curtains and Netting: Curtains and netting can be removed for cleaning. Follow the care instructions on their labels. Store them in a dry place during off-season or extreme weather.
- Fastener Check: Annually, or after severe weather, check all bolts and screws to ensure they are tight. Re-tighten as necessary.
- Snow Removal: During winter, promptly remove heavy snow accumulation from the roof to prevent structural damage.
7. Troubleshooting
Here are solutions to common issues you might encounter:
| Problem | Possible Cause | Solution |
|---|---|---|
| Difficulty aligning holes during assembly | Manufacturing tolerances; parts not perfectly aligned. | Use a Phillips screwdriver to help align holes. For minor misalignments, gentle pressure or slight adjustments (e.g., careful bending) may be required. Avoid forcing parts. |
| Missing or damaged parts upon delivery | Shipping damage or packaging error. | Contact Domi customer support immediately with your purchase details and photos of damaged parts. Refer to the 'Support' section for contact information. |
| Gazebo feels unstable after assembly | Fasteners not fully tightened; support poles not installed; improper anchoring. | Ensure all bolts and screws are securely tightened. Verify that the essential support poles are correctly installed. Ensure the gazebo is properly anchored to a stable surface. |
| Water accumulation on the roof or poor drainage | Gutters are clogged with debris. | Regularly inspect and clear the gutter system of leaves, twigs, and other debris to ensure proper water flow. |
| Curtains/netting detach in windy conditions | Velcro attachments may not be sufficient for strong winds. | Ensure curtains are securely tied back or fully closed. Consider adding additional tie-down points or clips for extra security in high winds. |
8. Specifications
Key specifications for the Domi 12x20FT Lean-to Gazebo (Model: LGMF-DR-1676-US):
- Brand: domi outdoor living
- Model Number: LGMF-DR-1676-US
- Material: Galvanized Steel Roof, Aluminum Frame, Polycarbonate Side Panels
- Style: Modern
- Product Dimensions (L x W x H): 245.08" x 143.5" x 98.58"
- Floor Area: 240 Square Feet
- Item Weight: 405 Pounds
- Water Resistance Level: Waterproof
- Shape: Rectangular
- Ultraviolet Light Protection: 99% UV-proof, UPF 50+
- Wind Resistance: Up to 40 MPH
- Snow Load Capacity: 22 LBS./Square foot
- Assembly Required: Yes
- Occupancy: 15-20 people
- Color: Dark Brown
9. Support & Warranty
For any questions, assistance with assembly, or to report missing/damaged parts, please contact Domi Outdoor Living customer support. Your purchase includes a 30-day easy return policy. For specific warranty details, please refer to the documentation included with your product or contact customer service.
Customer Support:
- Refer to the contact information provided in your product packaging.
- Visit the official Domi Outdoor Living website for support resources.
