1. Introduction and Overview
Thank you for choosing the SEEKONE 100W Cordless Hot Glue Gun. This versatile tool is designed for a wide range of applications, from crafts and DIY projects to home repairs. Its cordless design offers unparalleled freedom and convenience, powered by compatible Dewalt 20V Lithium-ion batteries (battery not included). Featuring a fast preheating system and multiple safety mechanisms, this glue gun ensures efficient and secure operation for all your gluing needs.
Figure 1: SEEKONE 100W Cordless Hot Glue Gun and included glue sticks.
2. Safety Instructions
Always prioritize safety when operating any power tool. Please read and understand all safety warnings and instructions before use.
- Hot Surfaces: The nozzle and melted glue become very hot during operation. Avoid direct contact with skin to prevent burns. Use heat-resistant gloves if necessary.
- Ventilation: Use the glue gun in a well-ventilated area.
- Material Compatibility: Ensure the materials you are gluing are suitable for hot melt adhesive. Some delicate materials may be damaged by heat.
- Power Source: Only use compatible Dewalt 20V Lithium-ion batteries. Do not attempt to use other battery types or voltages.
- Low Voltage Protection: The glue gun features a built-in low voltage protection device that automatically shuts down when the battery voltage drops below 15V to protect the battery.
- Overheat Protection: An overheat protection system monitors the internal temperature and stops operation if it becomes too high, prolonging battery life and ensuring safe use.
- Material Construction: The PA6+30%GF material and insulated case are designed to prevent burns during normal operation.
- Storage: Store the glue gun in a dry, safe place, out of reach of children and pets, when not in use. Ensure it is completely cooled before storing.
- Maintenance: Do not attempt to disassemble or repair the glue gun yourself. Refer to the Maintenance section for proper care.
Figure 2: Dual protection features for safe operation.
3. Package Contents
Verify that all items are present and in good condition upon opening the package:
- 1 x SEEKONE Cordless Hot Melt Glue Gun (Model: SCE103)
- 20 x Premium Glue Sticks (11mm x 150mm)
- 1 x User Manual
Note: Battery is NOT included and must be purchased separately. This glue gun is compatible with Dewalt 20V Lithium-ion batteries (e.g., DCB200, DCB201, DCB203, DCB204, DCB205, DCB206, DCB208, DCB210).
Figure 3: Important note regarding battery exclusion.
4. Specifications
| Feature | Detail |
|---|---|
| Brand | SEEKONE |
| Model Number | SCE103 |
| Color | Yellow |
| Style | Trigger |
| Power Source | Battery Powered (Dewalt 20V compatible) |
| Wattage | 100 watts |
| Voltage | 20 Volts (DC) |
| Preheating Time | 1-2 minutes |
| Operating Temperature | 190℃ / 374°F |
| Glue Stick Diameter | 11mm (Full Size) |
| Item Weight | 630 Grams / 1.39 pounds |
| Product Dimensions | 6.3 x 2.36 x 6.69 inches |
| Compatible Material | Ceramic (and various other common materials) |
5. Setup
5.1 Installing the Battery
- Ensure the glue gun is turned off.
- Align a compatible Dewalt 20V Lithium-ion battery with the battery slot at the base of the glue gun.
- Slide the battery firmly into place until it clicks, indicating it is securely locked.
Figure 4: Compatible Dewalt 20V battery models.
5.2 Inserting a Glue Stick
- Insert an 11mm (full size) glue stick into the circular opening at the rear of the glue gun.
- Gently push the glue stick forward until it stops. Do not force it.
- During initial use, you may need to press the trigger a few times to help feed the glue stick into the heating chamber.
Figure 5: Proper insertion of a glue stick and nozzle features.
6. Operating Instructions
6.1 Powering On and Preheating
- Press the power button (usually orange or red) on the top of the glue gun.
- The indicator light will begin to blink, signifying that the glue gun is preheating.
- Allow 1-2 minutes for the glue gun to reach its operating temperature of 190℃ (374°F). The indicator light will stop blinking and remain solid blue when preheating is complete and the tool is ready for use.

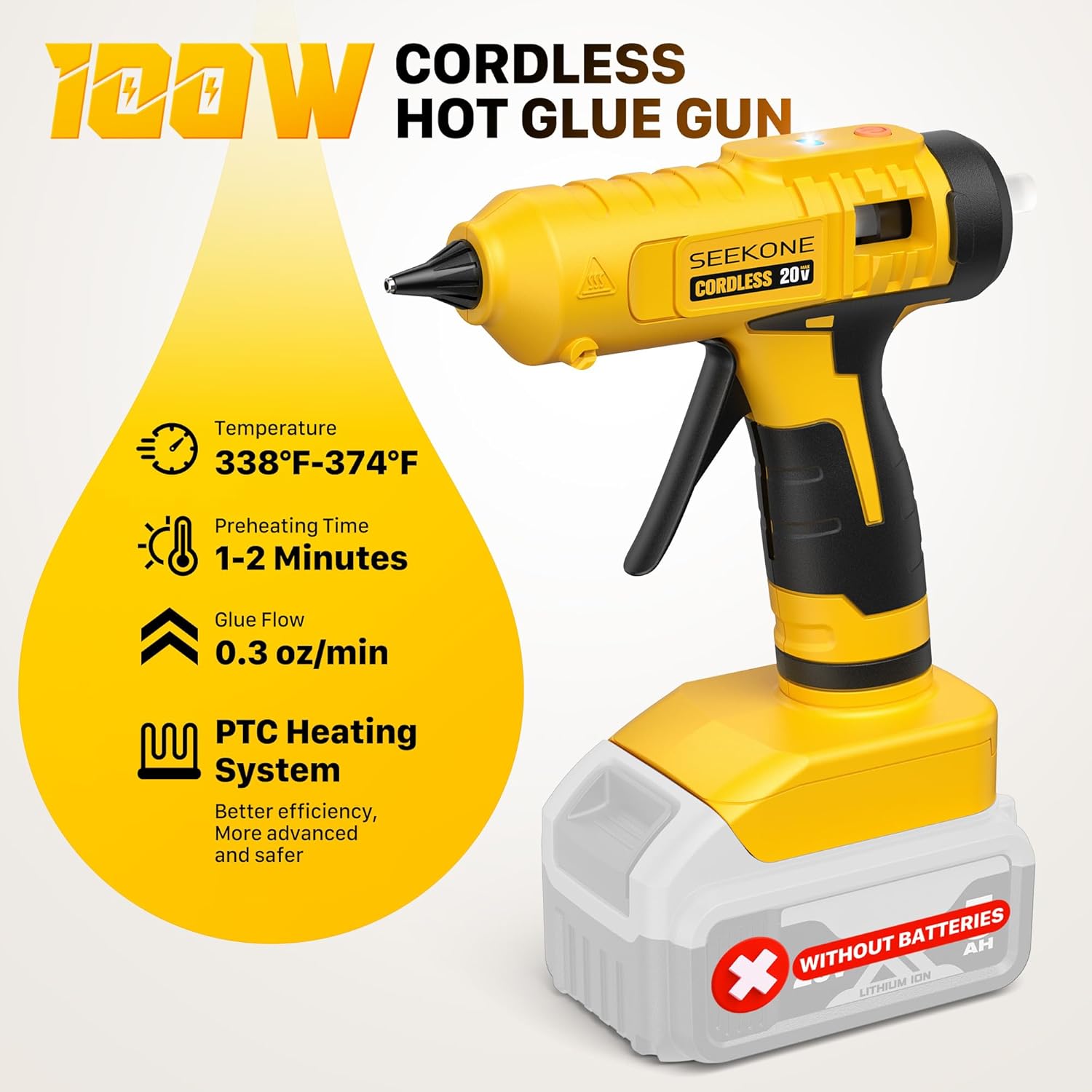

Figure 6: Preheating specifications and PTC heating system.
Figure 7: Benefits of the PTC heating system for efficient and safer operation.
6.2 Applying Glue
- Once the indicator light is solid blue, aim the nozzle at the desired application area.
- Gently press the trigger to dispense melted glue. The advanced PTC heating system ensures a smooth and even flow.
- Release the trigger to stop the glue flow. The unique insulated nozzle has an anti-dripping design to minimize excess glue and keep your workspace clean.
- Press the surfaces together immediately after applying glue, as hot glue sets quickly.
Figure 8: The advantage of cordless design for greater convenience.
6.3 Powering Off
When finished, press and hold the power button until the indicator light turns off. Remove the battery for long-term storage.
7. Maintenance
Proper maintenance ensures the longevity and optimal performance of your SEEKONE Hot Glue Gun.
- Cleaning the Nozzle: After use, allow the glue gun to cool completely. Any excess glue on the nozzle can be carefully peeled or scraped off once hardened. Do not use sharp metal objects that could damage the nozzle.
- Exterior Cleaning: Wipe the exterior of the glue gun with a clean, damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Storage: Store the glue gun in a dry, dust-free environment. Ensure no glue sticks are left partially inserted if storing for extended periods, as they can harden and become difficult to remove.
- Battery Care: Always remove the battery when the glue gun is not in use or during cleaning. Store batteries in a cool, dry place away from direct sunlight.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Glue gun does not heat up. | Battery not installed correctly or discharged. | Power button not pressed. | Overheat protection activated. | Ensure battery is fully charged and properly seated. | Press the power button firmly. | Allow the glue gun to cool down. |
| No glue dispenses when trigger is pressed. | Glue stick not fully inserted. | Not enough preheating time. | Glue stick jammed. | Push glue stick further into the chamber. | Wait for the indicator light to turn solid blue. | Turn off, allow to cool, then try to gently remove and reinsert glue stick. Do not force. |
| Indicator light is blinking rapidly or not lighting up. | Preheating in progress (blinking). | Insufficient battery level (not lighting up). | Wait for the light to turn solid blue. | Recharge or replace the battery. |
| Excessive dripping from the nozzle. | Overheating (unlikely due to protection). | Incorrect glue stick size. | Residual glue. | Ensure proper 11mm glue sticks are used. | Clean the nozzle after use. |
9. Warranty and Support
For information regarding warranty coverage, returns, or technical support, please refer to the warranty card included with your product packaging or visit the official SEEKONE website. Keep your purchase receipt as proof of purchase for any warranty claims.
If you encounter any issues not covered in this manual, please contact SEEKONE customer service for assistance.
