1. Introduction
Thank you for choosing the BuleVina Handle Stem Assembly. This manual provides essential information for the safe and effective installation, operation, and maintenance of your new faucet replacement part. Please read these instructions thoroughly before beginning installation and retain them for future reference.
2. Product Overview
The BuleVina Handle Stem Assembly is designed as a direct replacement for the T&S Brass Faucet red hot side spindle assembly valve, specifically part number 002712-40. This quarter-turn cartridge features a spring check for optimal performance. Constructed from premium brass materials with multiple layers of electroplating, it offers resistance to rust and corrosion. A durable rubber gasket seal ensures a tight, leak-free connection.
Image: The BuleVina Handle Stem Assembly shown installed on a faucet, highlighting its design and integration.
3. Specifications
| Feature | Detail |
|---|---|
| Brand | BuleVina |
| Model Number | 17122024Q |
| Replacement Part For | T&S Brass Faucet 002712-40 |
| Material | Brass |
| Exterior Finish | Brushed |
| Handle Type | Lever |
| Item Weight | 0.49 Pounds |
| Number of Items | 1 |
Image: Detailed dimensions of the handle stem assembly, including overall height (8.4cm/3.3"), width (3.2cm/1.25"), handle length (6.13cm/2.4"), and internal diameter (0.86cm/0.33") and depth (2.2cm/0.85").
4. Safety Information
- Always turn off the main water supply to the faucet before attempting any installation or maintenance.
- Wear appropriate personal protective equipment, such as gloves and eye protection, during installation.
- Ensure all connections are secure to prevent leaks. Do not overtighten components.
- If you are unsure about any step, consult a qualified plumber.
5. Setup and Installation
The installation of the handle stem assembly is designed to be straightforward. Follow these steps carefully:
- Turn off Water Supply: Locate the main water shut-off valve for your faucet and turn it off completely. Open the faucet handles to relieve any remaining water pressure.
- Remove Old Component: Carefully remove the existing handle and stem assembly from your faucet. This may involve unscrewing a retaining screw or nut.
- Assemble New Stem (if necessary): The BuleVina Handle Stem Assembly may come in a few parts. Ensure the internal components, such as the spring and rubber seal, are correctly seated within the brass body and the chrome housing.
- Install New Stem: Insert the new handle stem assembly into the faucet body. Screw it in hand-tight, then use a wrench to gently tighten until secure. Avoid overtightening.
- Attach Handle: Place the lever handle onto the stem and secure it with the provided screw.
- Restore Water Supply: Slowly turn the main water supply back on. Check for any leaks around the newly installed assembly.
Image: Exploded view illustrating the components of the handle stem assembly: electroplating layer, water sealing rubber ring, thick gasket, and copper spool shell.
Video: This video demonstrates the assembly process of the handle stem, showing how to combine the internal valve components and attach the handle.
6. Operating Instructions
This handle stem assembly provides easy control over water flow and temperature for the hot water side of your faucet.
- Water Flow: The quarter-turn design allows for quick on/off operation. Rotate the lever handle 90 degrees to fully open or close the water flow.
- Temperature Control: As this is a hot side spindle assembly, it controls the hot water supply. Adjusting the handle will regulate the flow of hot water.

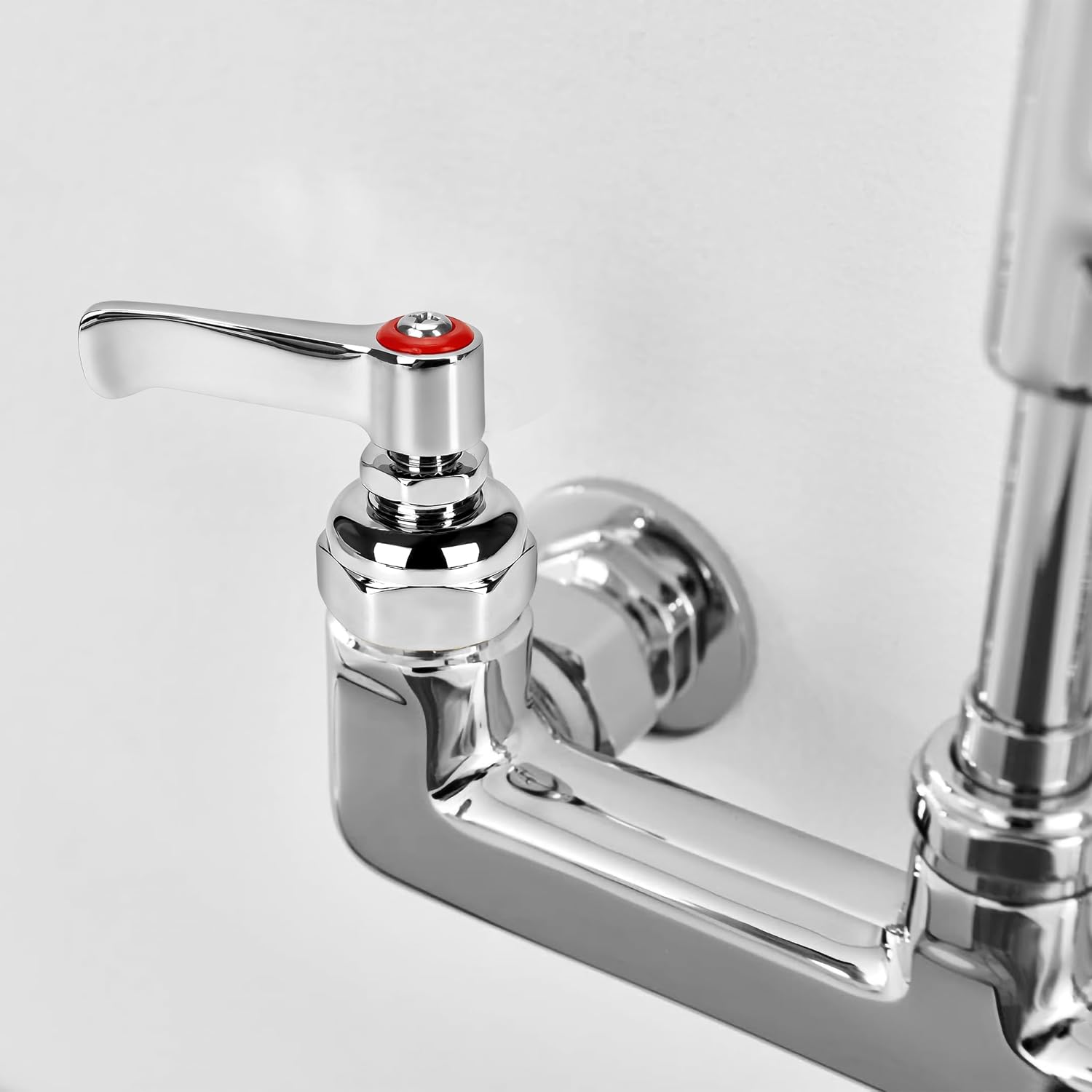

Image: A close-up view of the BuleVina Handle Stem Assembly, highlighting the lever handle for water control.
7. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your handle stem assembly.
- Cleaning: Clean the exterior of the handle and visible parts of the stem with a soft cloth and mild soap. Avoid abrasive cleaners or harsh chemicals that could damage the electroplated finish.
- Leak Checks: Periodically inspect the area around the handle stem for any signs of water leakage. Address any leaks promptly to prevent further damage.
- Internal Inspection: If you notice a change in water flow or persistent dripping, the internal rubber gasket or spring may need inspection or replacement. Refer to the installation steps for disassembly.
8. Troubleshooting
Here are solutions to common issues you might encounter:
| Problem | Possible Cause | Solution |
|---|---|---|
| Faucet is dripping or leaking from the handle base. | Damaged or worn rubber gasket seal. Improperly seated components. | Turn off water supply, disassemble the stem, inspect and replace the rubber gasket if damaged. Ensure all components are correctly seated during reassembly. |
| Reduced water flow. | Scale buildup or debris inside the valve. | Turn off water supply, remove the stem assembly, and carefully clean any mineral deposits or debris from the internal parts. |
| Handle is stiff or difficult to turn. | Mineral buildup or lack of lubrication. | Disassemble the stem, clean components, and apply a small amount of plumber's grease to moving parts if necessary. |
9. Warranty and Support
For warranty information or technical support, please contact BuleVina customer service. Keep your purchase receipt as proof of purchase.
- Customer Service: Refer to the contact information provided with your product packaging or visit the official BuleVina website.
- Online Resources: Additional support and FAQs may be available on the manufacturer's website.
