1. Introduction
This manual provides essential information for the safe and effective operation, setup, and maintenance of your NGH 9CC 2-Stroke Gas Engine GT9pro. This engine is designed for use in RC airplanes, multicopters, and drones, offering reliable performance and a lightweight, compact design. Please read this manual thoroughly before operating the engine.
2. Safety Instructions
Operating internal combustion engines involves inherent risks. Adhere to all safety precautions to prevent injury or damage.
- Fuel Handling: Use only recommended fuel types. Store fuel in a well-ventilated area, away from ignition sources. Do not refuel near open flames or while the engine is hot.
- Ventilation: Operate the engine in a well-ventilated area to avoid carbon monoxide buildup. Never run the engine indoors.
- Propeller Safety: Always treat the propeller as if the engine could start at any moment. Keep hands, face, and loose clothing clear of the propeller arc. Remove the spark plug cap before making adjustments.
- Hot Surfaces: The engine and exhaust system become extremely hot during operation. Avoid contact to prevent burns. Allow the engine to cool completely before handling.
- Eye Protection: Always wear appropriate eye protection when working with or operating the engine.
- Hearing Protection: Engine noise can be significant. Consider wearing hearing protection during operation.
- Children and Pets: Keep children and pets away from the engine and operating area.
- Engine Mounting: Ensure the engine is securely mounted to the airframe according to the airframe manufacturer's instructions.
3. Package Contents
Carefully unpack the box and verify that all items are present and undamaged. If any items are missing or damaged, contact your retailer immediately.

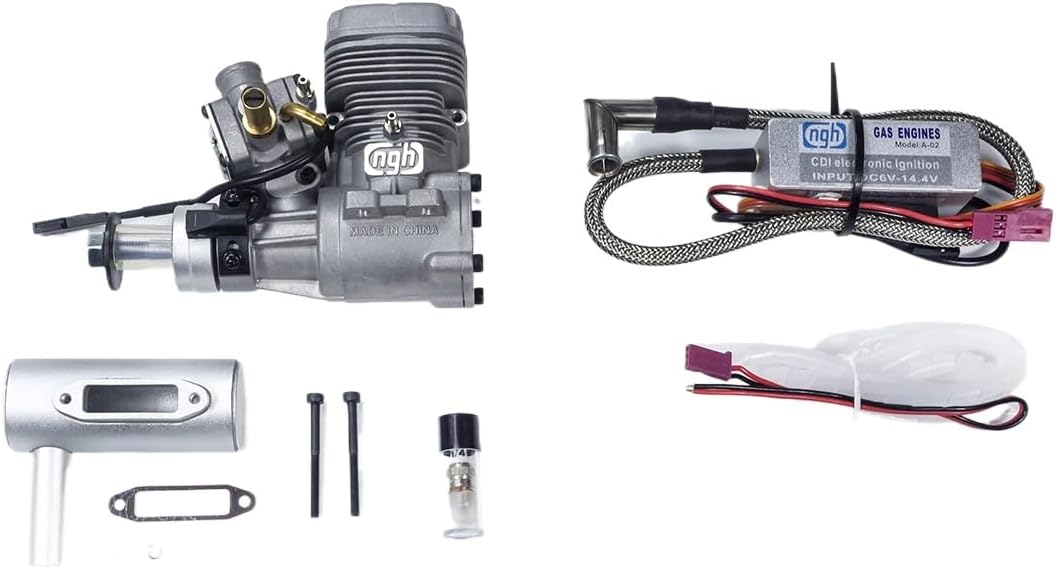

Figure 3.1: The NGH 9CC GT9pro engine shown with its primary components, including the engine block, carburetor, and ignition system.
- NGH 9CC 2-Stroke Gas Engine GT9pro
- CDI Electronic Ignition Module
- Spark Plug
- Muffler/Exhaust System
- Mounting Screws and Hardware
- Fuel Line (may be included or required separately)

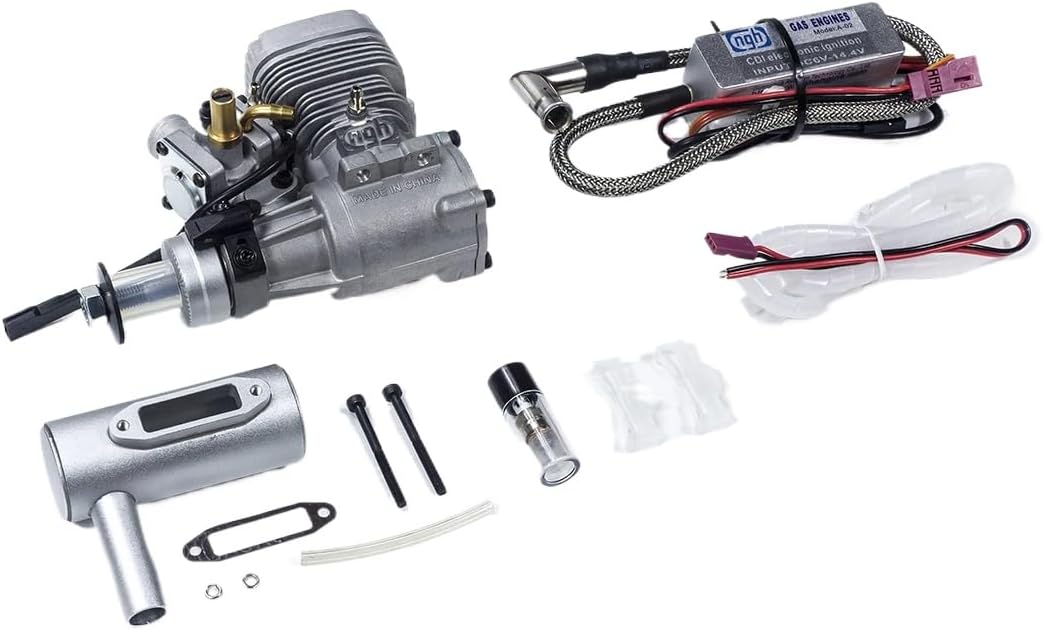

Figure 3.2: A comprehensive view of the NGH 9CC GT9pro engine package, displaying all included accessories such as the ignition module, muffler, and mounting hardware.
4. Setup and Installation
Proper installation is crucial for engine performance and safety. Consult your RC model's manual for specific mounting instructions.
- Engine Mounting:
Securely mount the engine to the firewall or engine mount using the provided screws. Ensure the engine is aligned correctly with the propeller shaft. Use thread-locking compound on all mounting bolts to prevent loosening due to vibration.

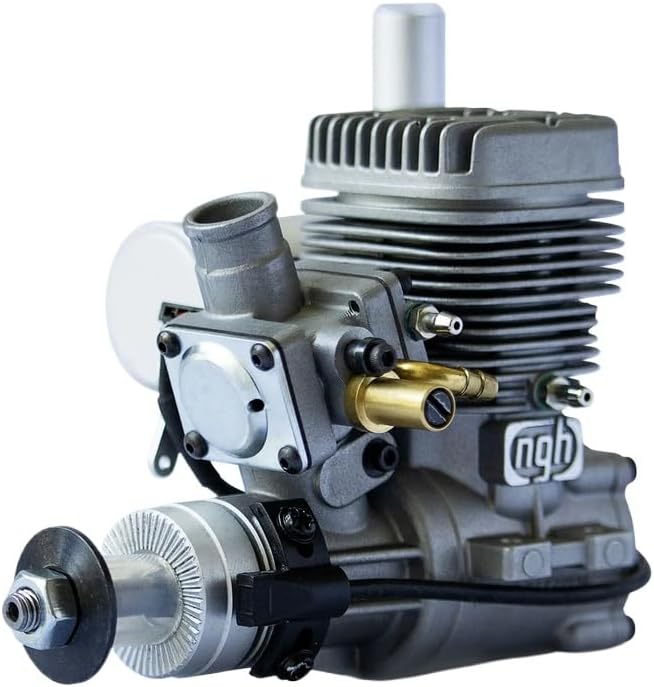

Figure 4.1: Detailed view of the NGH 9CC GT9pro engine, highlighting its compact design and mounting points.
- Fuel System Connection:
Connect the fuel tank to the carburetor's fuel inlet using appropriate fuel tubing. Ensure all connections are secure and leak-free. Install a fuel filter between the tank and carburetor to prevent contaminants from entering the engine.
- Ignition System Wiring:
Connect the CDI electronic ignition module to the spark plug and to a suitable power source (e.g., a dedicated ignition battery or BEC). Follow the wiring diagram provided with the ignition module. Ensure all electrical connections are tight and insulated.
- Muffler Installation:
Attach the muffler to the engine's exhaust port using the supplied gasket and screws. Ensure a tight seal to prevent exhaust leaks. Route the exhaust away from critical components and the airframe structure.
- Propeller Installation:
Install the propeller onto the engine's propeller shaft, ensuring it is balanced and oriented correctly. Tighten the propeller nut securely. Always ensure the spark plug cap is removed during propeller installation and adjustment.
5. Operating Instructions
Follow these steps for safe and effective engine operation.
5.1 Fuel Mixture
The NGH 9CC GT9pro is a 2-stroke engine and requires a specific fuel mixture of gasoline and 2-stroke oil. Refer to the engine manufacturer's recommendations for the exact oil-to-fuel ratio. Typically, a break-in period may require a richer oil mixture.
5.2 Starting Procedure
- Ensure the model is securely restrained.
- Open the throttle fully.
- Close the choke.
- Flip the propeller briskly until fuel is drawn into the carburetor (engine may "pop").
- Open the choke.
- Turn on the ignition system.
- Flip the propeller briskly until the engine starts.
- Once started, slowly advance the throttle to a stable idle.
5.3 Engine Tuning (Carburetor Adjustment)
The carburetor has high-speed and low-speed needles for tuning. Adjust these in small increments to achieve optimal performance. Consult online resources or experienced RC enthusiasts for detailed tuning guides specific to gas engines.
- High-Speed Needle: Controls fuel mixture at high RPMs. Adjust for maximum RPM without leaning out (engine sputtering or overheating).
- Low-Speed Needle: Controls fuel mixture at idle and transition. Adjust for smooth idle and transition to high RPMs without hesitation.
5.4 Engine Shutdown
To stop the engine, either close the throttle completely and engage the kill switch on your radio system (if configured) or manually close the choke until the engine stops. Never attempt to stop the engine by blocking the propeller.
6. Maintenance
Regular maintenance ensures longevity and reliable performance of your engine.
- After Each Use:
- Inspect the engine for loose screws or connections.
- Clean any fuel or oil residue from the engine exterior.
- Check propeller for damage and tightness.
- Every 5-10 Hours of Operation:
- Check and clean the spark plug. Replace if electrodes are worn or fouled.
- Inspect fuel lines for cracks or hardening. Replace as needed.
- Clean or replace the fuel filter.
- Check carburetor mounting screws for tightness.
- Long-Term Storage:
- Drain all fuel from the tank and fuel lines.
- Run the engine dry to consume any remaining fuel in the carburetor.
- Remove the spark plug and add a few drops of after-run oil into the cylinder. Rotate the crankshaft a few times to distribute the oil.
- Store the engine in a clean, dry place.
7. Troubleshooting
This section provides solutions to common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine won't start | No fuel, fouled spark plug, no spark, incorrect choke setting, flooded engine. | Check fuel level and lines. Clean/replace spark plug. Verify ignition system. Adjust choke. Clear flood by opening throttle and flipping without ignition. |
| Engine runs rough/stalls | Incorrect carburetor tuning, air leak, dirty fuel filter, old fuel. | Adjust high/low speed needles. Check for air leaks around carburetor/gaskets. Clean/replace fuel filter. Use fresh fuel. |
| Loss of power | Lean fuel mixture, worn spark plug, exhaust restriction, propeller damage. | Enrich fuel mixture (adjust needles). Replace spark plug. Check muffler for blockages. Inspect/replace propeller. |
| Overheating | Lean fuel mixture, insufficient cooling airflow, excessive load. | Enrich fuel mixture. Ensure adequate airflow around engine. Use appropriate propeller size. |
8. Specifications
Key technical specifications for the NGH 9CC 2-Stroke Gas Engine GT9pro.
| Feature | Detail |
|---|---|
| Engine Type | 2-Stroke Gas Engine |
| Displacement | 9CC |
| Model Number | CUIPPWRJ123 |
| Item Weight | 14.1 ounces (approx. 400 Grams) |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
| Recommended Age | 36 months - 18 years |
| Manufacturer | CUIPPWRJ |
9. Warranty and Support
For warranty information and technical support, please refer to the documentation provided with your purchase or contact the manufacturer directly. Keep your proof of purchase for any warranty claims.
Manufacturer: CUIPPWRJ
For further assistance, you may also consult online forums and communities dedicated to RC gas engines, as they often provide valuable insights and troubleshooting tips from experienced users.
