buedmsk Commercial Induction Cooktop User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your buedmsk Commercial Induction Cooktop. Please read this manual thoroughly before use and retain it for future reference.

Product Overview

The buedmsk Commercial Induction Cooktop is a powerful and versatile appliance designed for both residential and professional kitchen environments. It features flexible power and temperature settings, ensuring precise control for various cooking needs.

• Material: Microcrystalline glass, Stainless steel
• Power: 3500W
• Voltage: 220-240V, 50/60Hz
• Control: Button controls with LED display
• Applicable Pot Diameter: 12 – 30 cm (4.72 – 11.81 inches)
• Max Load Capacity: 75 kg

2. Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.

• Do not immerse the cooktop in water or other liquids.
• Ensure the power outlet matches the voltage specified on the appliance.
• Keep children and pets away from the appliance during operation.
• Do not touch hot surfaces. Use handles or knobs.
• Unplug from outlet when not in use and before cleaning.
• Use only induction-compatible cookware.
• Do not operate if the power cord or plug is damaged.
• Ensure proper ventilation around the cooktop.
• The appliance will automatically stop heating and display an error code if no cookware is detected, voltage is abnormal, or overheating occurs.

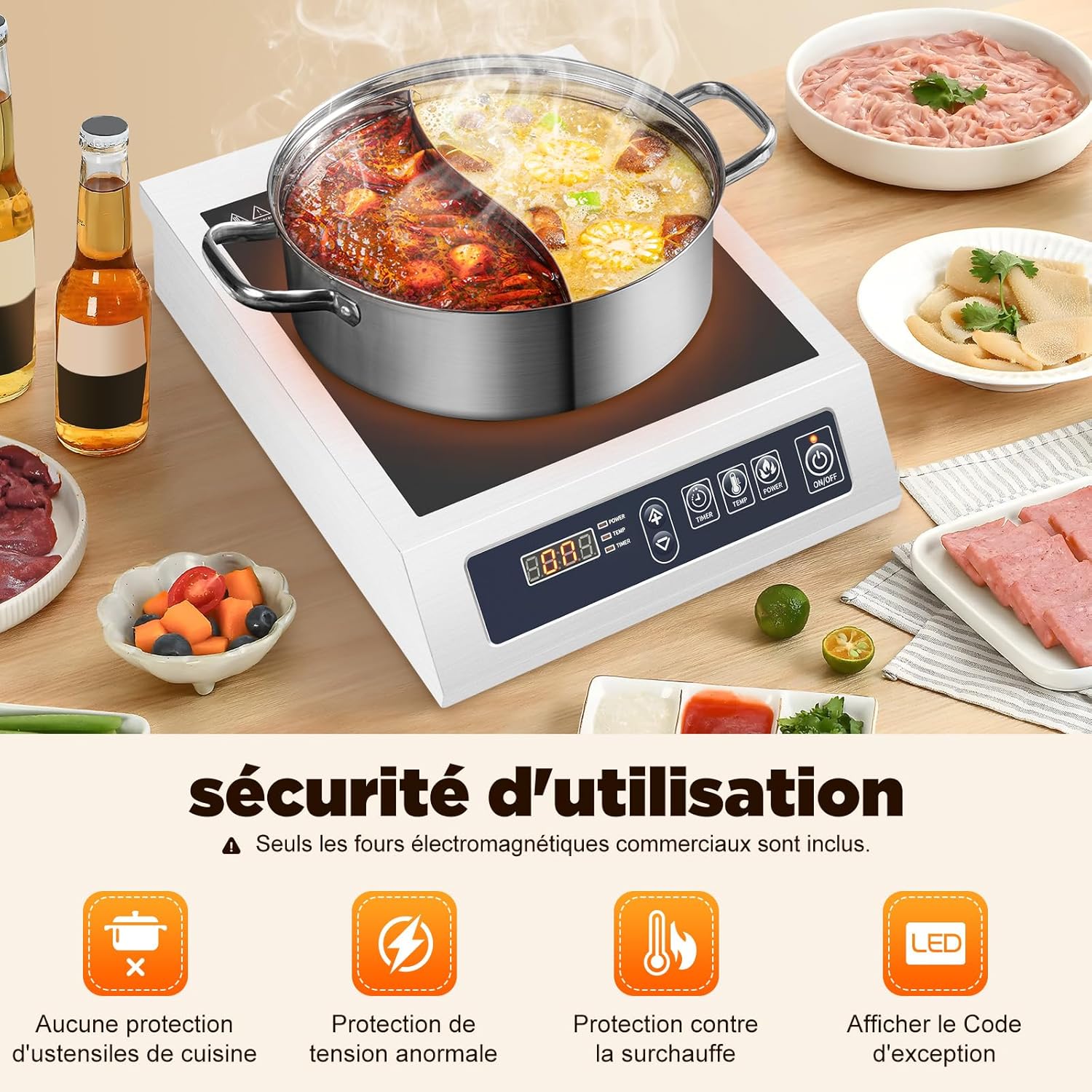

Figure 2.1: Safety features of the buedmsk Induction Cooktop, including protection against no cookware, abnormal voltage, and overheating, with error codes displayed on the LED screen.

3. Setup

Unpacking

1. Carefully remove the induction cooktop from its packaging.
2. Check for any damage during transit. If damaged, do not use and contact customer support.
3. Ensure all components are present: 1x Commercial Induction Cooktop, 1x English Manual.

Placement

• Place the cooktop on a stable, flat, and heat-resistant surface.
• Ensure adequate clearance around the unit for ventilation. Do not block air vents.
• Keep the cooktop away from water sources and flammable materials.
• The cooktop dimensions are approximately 35 cm (width) x 42 cm (depth) x 11 cm (height).

Figure 3.1: Dimensions of the buedmsk Commercial Induction Cooktop.

Power Connection

Plug the power cord into a grounded 220-240V, 50/60Hz electrical outlet. Ensure the outlet can support the 3500W power requirement of the cooktop.

4. Operating Instructions

Compatible Cookware

The buedmsk Induction Cooktop requires magnetic flat-bottomed cookware. Compatible materials include stainless steel, enamel, and iron pots. Non-compatible materials include ceramic, glass, and aluminum pots without a magnetic base.

Figure 4.1: Compatible and Incompatible Cookware Types.

Basic Operation

1. Place compatible cookware with food on the center of the cooktop.
2. Press the ON/OFF button to turn on the appliance. The LED display will illuminate.
3. Select your desired cooking mode:
• Power Setting: Press the POWER button. Use the UP/DOWN arrows to adjust power levels from 400W to 3500W.
• Temperature Setting: Press the TEMP button. Use the UP/DOWN arrows to adjust temperature from 60°C to 270°C (140°F to 518°F).
• Timer Setting: Press the TIMER button. Use the UP/DOWN arrows to set the cooking time up to 24 hours.
4. The cooktop will begin heating. The LED display will show the selected power, temperature, or remaining time.
5. To stop cooking, press the ON/OFF button.

Figure 4.2: Control Panel and Display.

Cooking Options and Uniform Heating

The cooktop offers 10 temperature gears and 11 power gears, along with a 24-hour heating time adjustment, suitable for various cooking methods such as stewing, frying, boiling, steaming, or stir-frying.

It utilizes dual current tubes and a double-layer energy collection coil to ensure uniform heat distribution, preventing scorching and enhancing cooking efficiency.

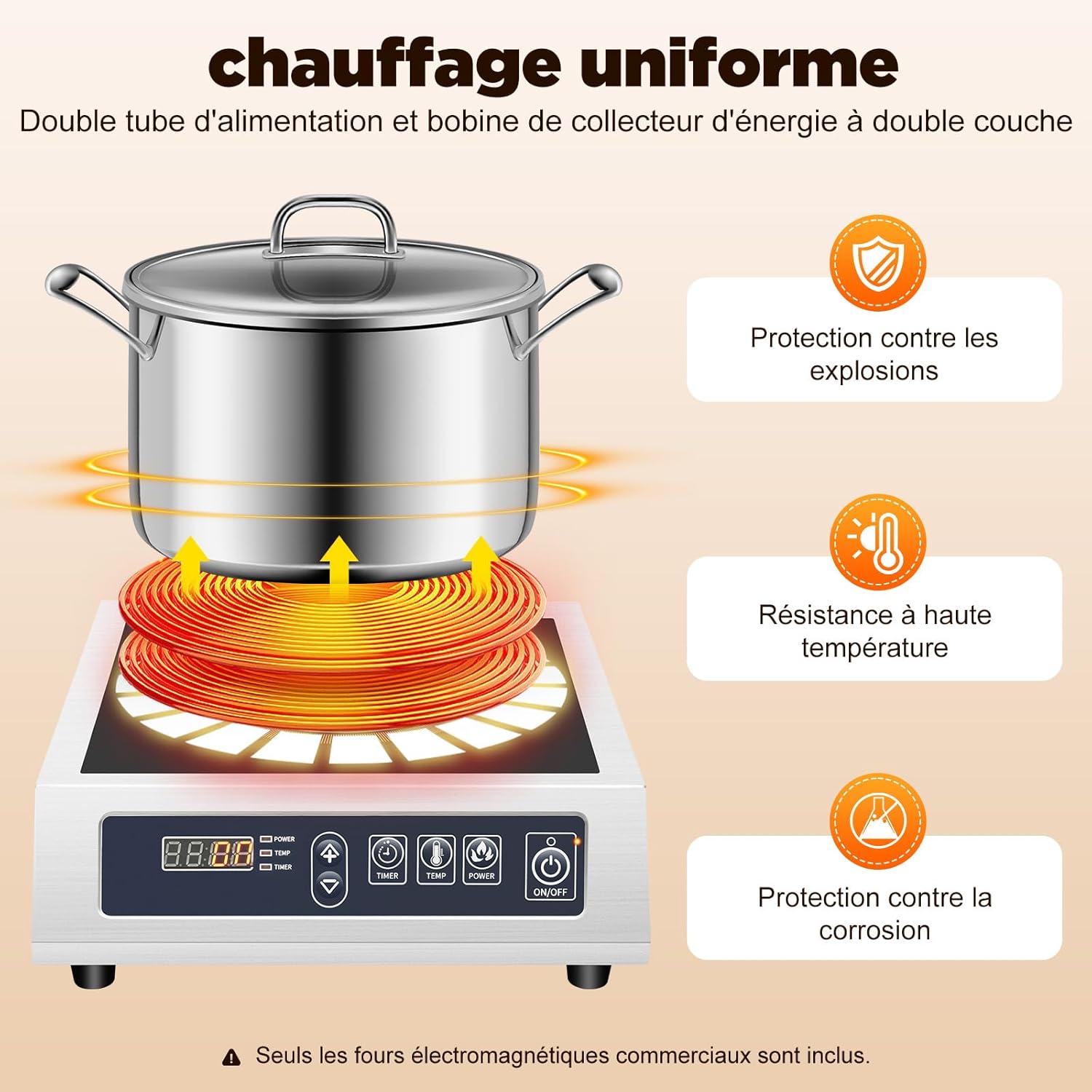

Figure 4.3: Uniform Heating Technology.

Figure 4.4: Wide Range of Applications.

5. Maintenance and Cleaning

General Cleaning

• Always unplug the cooktop and allow it to cool completely before cleaning.
• Wipe the glass surface with a soft, damp cloth and mild detergent. For stubborn stains, use a non-abrasive cleaner specifically designed for glass cooktops.
• Do not use abrasive pads, harsh chemicals, or steel wool, as these can scratch the surface.
• Clean the stainless steel body with a soft cloth.
• Ensure no water enters the internal components.

Storage

Store the cooktop in a cool, dry place when not in use. Protect it from dust and moisture.

6. Troubleshooting

If you encounter issues with your induction cooktop, refer to the table below for common problems and solutions.

If the problem persists after attempting these solutions, please contact buedmsk customer support.

7. Specifications

8. Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or contact buedmsk directly through their official channels. Keep your purchase receipt as proof of purchase.

Contact Information: Refer to the seller's information on the platform where the product was purchased or the contact details provided in the product packaging.
