Generic 6-Quart Air Fryer User Manual

1. Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.

• Read all instructions before operating the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• This appliance is for household use only.

2. Product Overview

The Generic 6-Quart Air Fryer is designed for versatile cooking with minimal oil, offering a healthier alternative to traditional frying. It features a viewing window to monitor cooking progress and a digital touch panel for easy operation.

Image: The Generic 6-Quart Air Fryer with its cooking basket partially extended, revealing food inside.

Components:

• Main Unit with Digital Touch Panel
• Removable Cooking Basket
• Crisper Tray (Non-stick coated)
• Viewing Window
• Power Cord

Image: Diagram illustrating the dimensions of the air fryer: 12.9 inches (width), 10.5 inches (depth), and 13.6 inches (height).

3. Specifications

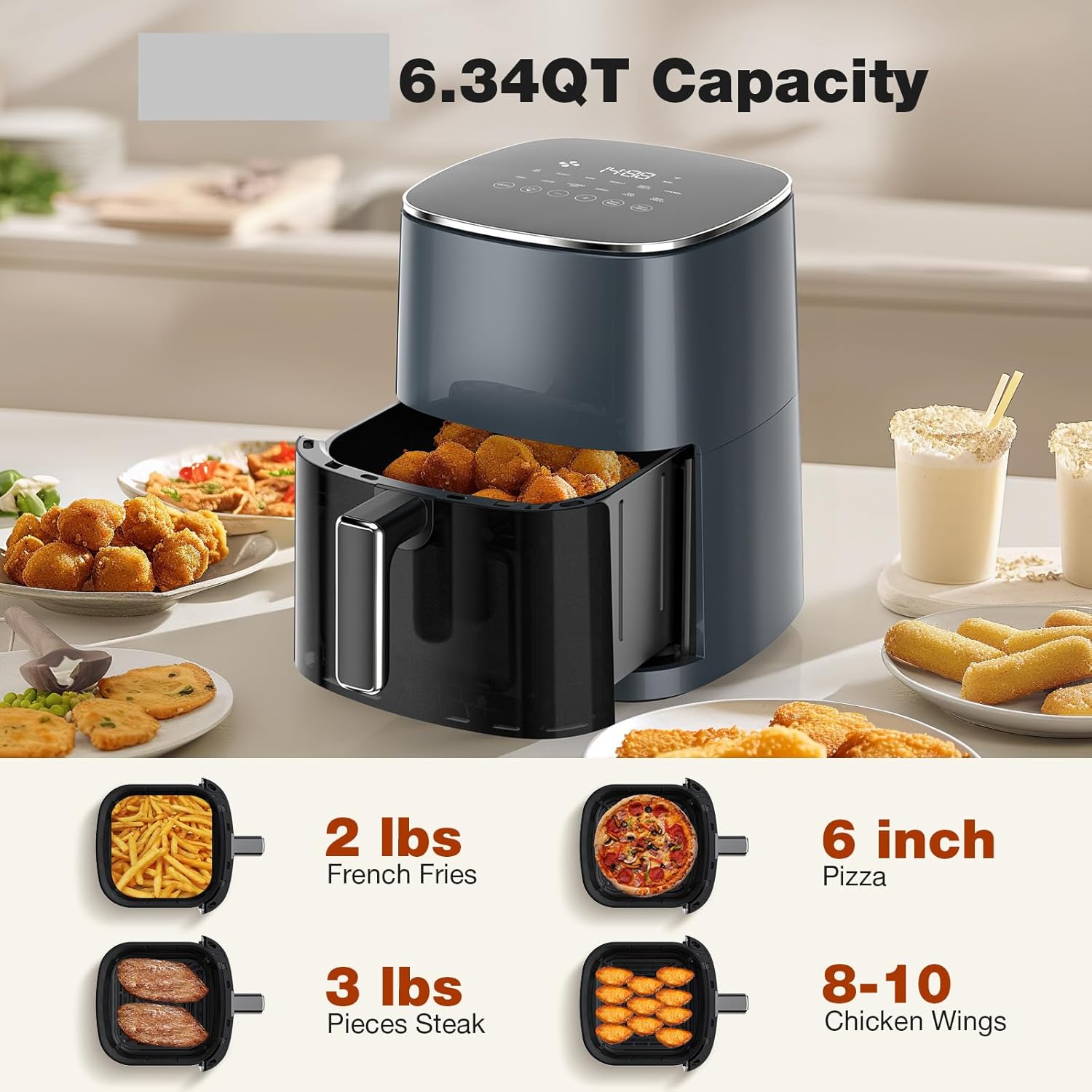

Image: Visual representation of the 6.34-quart capacity, showing it can accommodate 2 lbs of French fries, 3 lbs of steak, a 6-inch pizza, or 8-10 chicken wings.

4. Before First Use

1. Unpack: Carefully remove all packaging materials and promotional labels from the air fryer.
2. Clean Components: Wash the cooking basket and crisper tray thoroughly with hot, soapy water. Rinse and dry completely. The main unit can be wiped with a damp cloth.
3. Initial Run: Before cooking food, run the air fryer for approximately 10-15 minutes at 350°F (175°C) without any food inside. This helps to burn off any manufacturing residues and eliminate initial odors. Ensure the area is well-ventilated during this process.
4. Placement: Place the air fryer on a stable, heat-resistant surface, away from walls or other appliances to allow for proper air circulation.

5. Operating Your Air Fryer

The air fryer features a digital touch control panel for easy selection of cooking functions and adjustments.

Image: The digital touch control panel of the air fryer, displaying various cooking functions and food presets.

5.1. Control Panel Overview

• Power Button: Turns the unit on/off.
• Menu Button: Cycles through the 12 pre-set cooking functions.
• Temperature Control (+/-): Adjusts cooking temperature.
• Time Control (+/-): Adjusts cooking time.
• Start/Pause Button: Begins or pauses the cooking cycle.

5.2. 12-in-1 Functions

The air fryer comes with 12 pre-programmed functions for common dishes:

• Air Fry
• Roast
• Bake
• Reheat
• Dehydrate
• Steam
• Fries
• Chicken
• Seafood
• Vegetable
• Steak
• Cake

5.3. General Operation Steps

1. Prepare Food: Place food in the cooking basket. Do not overfill the basket to ensure even cooking.
2. Insert Basket: Slide the cooking basket firmly into the main unit.
3. Power On: Press the Power button to turn on the air fryer.
4. Select Function:
   • Pre-set: Press the Menu button repeatedly to cycle through the 12 pre-set functions. The display will show the default time and temperature for the selected function.
   • Manual: Alternatively, use the Temperature (+/-) and Time (+/-) buttons to set your desired cooking temperature (up to 400°F) and time.
5. Start Cooking: Press the Start/Pause button to begin the cooking cycle.
6. Monitor Progress: Utilize the built-in viewing window to observe the cooking process without opening the basket. This helps maintain consistent temperature and cooking times.

Image: The air fryer unit displaying its viewing window, allowing users to monitor food as it cooks.
7. Shake/Flip (Optional): For some foods, it may be necessary to shake or flip the food halfway through cooking to ensure even crisping. The air fryer may beep to remind you. Pull out the basket, shake/flip, and reinsert. The cooking will resume automatically.
8. Finish: The air fryer will beep when the cooking cycle is complete. Carefully pull out the basket and remove the cooked food.
9. Power Off: Press the Power button to turn off the unit and unplug it from the wall outlet.

6. Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the life of your air fryer. The non-stick basket and accessories are designed for easy cleaning.

Image: The air fryer's non-stick basket and crisper tray positioned inside a dishwasher, demonstrating their dishwasher-safe feature.

1. Unplug and Cool: Always unplug the air fryer from the power outlet and allow it to cool completely before cleaning.
2. Clean Basket and Tray: The cooking basket and crisper tray are dishwasher safe. Alternatively, they can be washed by hand with hot water, dish soap, and a non-abrasive sponge. For stubborn residue, soak them in warm soapy water for 10-15 minutes before cleaning.
3. Clean Interior: Wipe the interior of the air fryer with a damp cloth and mild detergent. Do not use abrasive cleaners or scouring pads.
4. Clean Exterior: Wipe the exterior of the air fryer with a soft, damp cloth.
5. Storage: Ensure all parts are completely dry before storing the air fryer in a cool, dry place.

7. Troubleshooting

If you encounter issues with your air fryer, refer to the following common problems and solutions:

8. Warranty and Support

For warranty information or technical support, please refer to the documentation included with your purchase or contact the manufacturer directly. Keep your purchase receipt as proof of purchase for any warranty claims.
