Giuqa 842232-0075 Turbo Electronic Actuator User Manual

1. Product Overview

This manual provides essential information for the installation, function, and maintenance of the Giuqa 842232-0075 Turbo Electronic Actuator. This component is designed for specific ROEWE and MG 1.5T and 1.3T engine applications.

The turbo electronic actuator is a critical component in modern turbocharged engines, responsible for precisely controlling the turbocharger's wastegate or variable geometry vanes. This control optimizes boost pressure, improving engine performance and fuel efficiency while reducing emissions.

Key Features

• Item Type: 842232-0075 Turbo Electronic Actuator
• Part number: 842232-0075
• Application: Fits For ROEWE For MG 1.5T 1.3T

Figure 1: Main view of the Giuqa 842232-0075 Turbo Electronic Actuator. This image shows the overall shape and primary connections of the unit.

2. Setup and Installation

Important: Installation of this component should only be performed by a qualified automotive technician. Improper installation can lead to vehicle damage, component failure, or personal injury.

Pre-Installation Checks

• Verify the part number (842232-0075) matches the required replacement part for your vehicle's make and model (ROEWE or MG 1.5T/1.3T).
• Inspect the new actuator for any signs of shipping damage.
• Ensure all necessary tools and safety equipment are available.
• Disconnect the vehicle's battery before beginning any work.

Installation Steps (General Guidance)

1. Safely lift and secure the vehicle as required to access the turbocharger assembly.
2. Locate the existing turbo electronic actuator on the turbocharger.
3. Carefully disconnect any electrical connectors and vacuum lines (if applicable) from the old actuator.
4. Unbolt and remove the old actuator, noting its orientation and any linkage connections.
5. Clean the mounting surface on the turbocharger.
6. Install the new Giuqa 842232-0075 actuator, ensuring proper alignment with the wastegate or VGT linkage.
7. Secure the actuator with appropriate fasteners, tightening to manufacturer specifications (refer to vehicle service manual).
8. Reconnect all electrical connectors and vacuum lines securely.
9. Reconnect the vehicle's battery.
10. Perform any necessary calibration or adaptation procedures using a diagnostic scan tool, as required by the vehicle manufacturer.

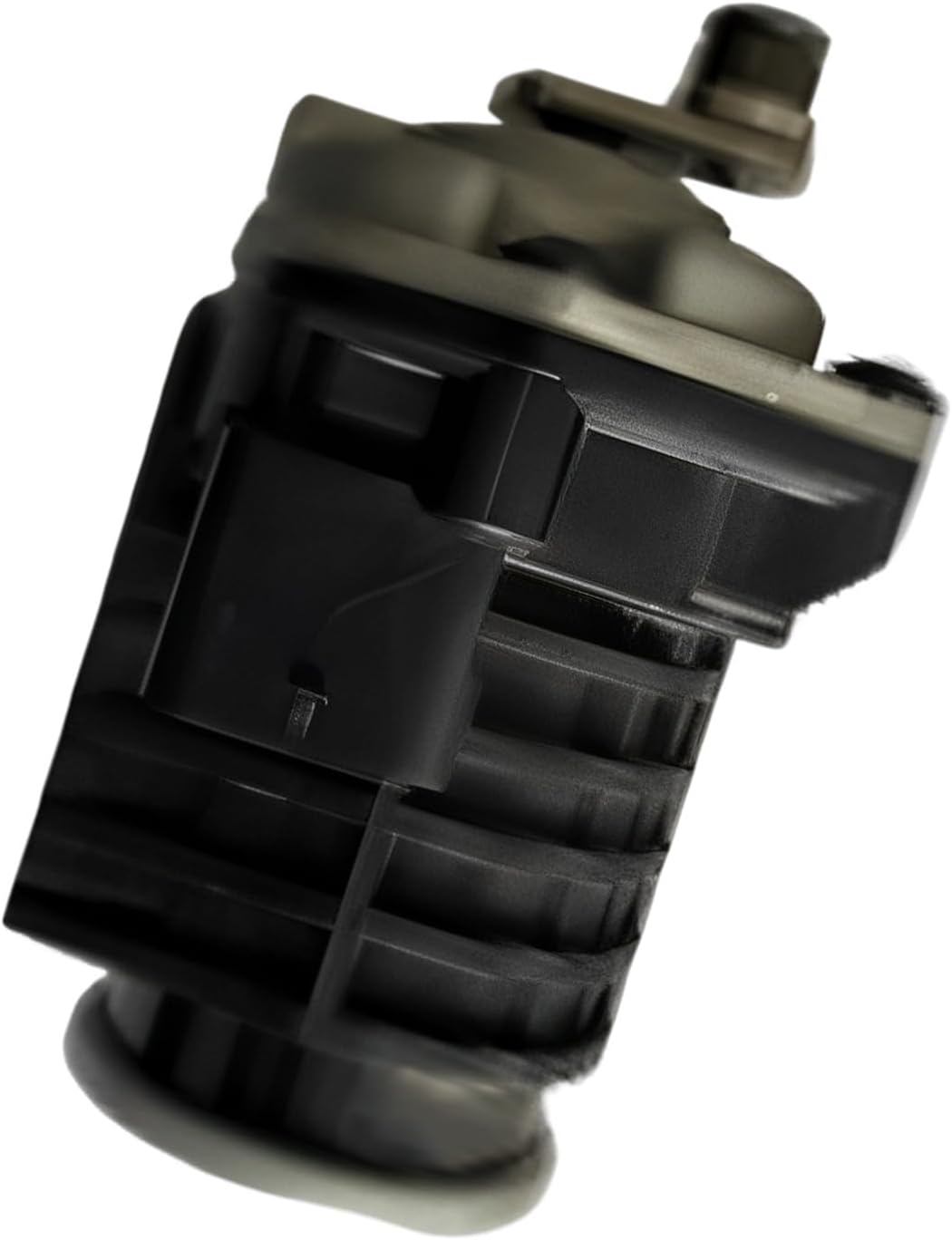

Figure 2: Side view of the actuator, highlighting the mounting points and electrical connector.

3. Operating Principles

The 842232-0075 Turbo Electronic Actuator operates by receiving signals from the vehicle's Engine Control Unit (ECU). Based on these signals, the actuator precisely moves a rod or lever that controls the turbocharger's wastegate or variable geometry vanes.

This precise control allows the ECU to regulate the amount of exhaust gas flowing through the turbine, thereby controlling the turbocharger's speed and the resulting boost pressure. This dynamic adjustment ensures optimal engine performance across various RPMs and load conditions, contributing to efficient power delivery and reduced turbo lag.

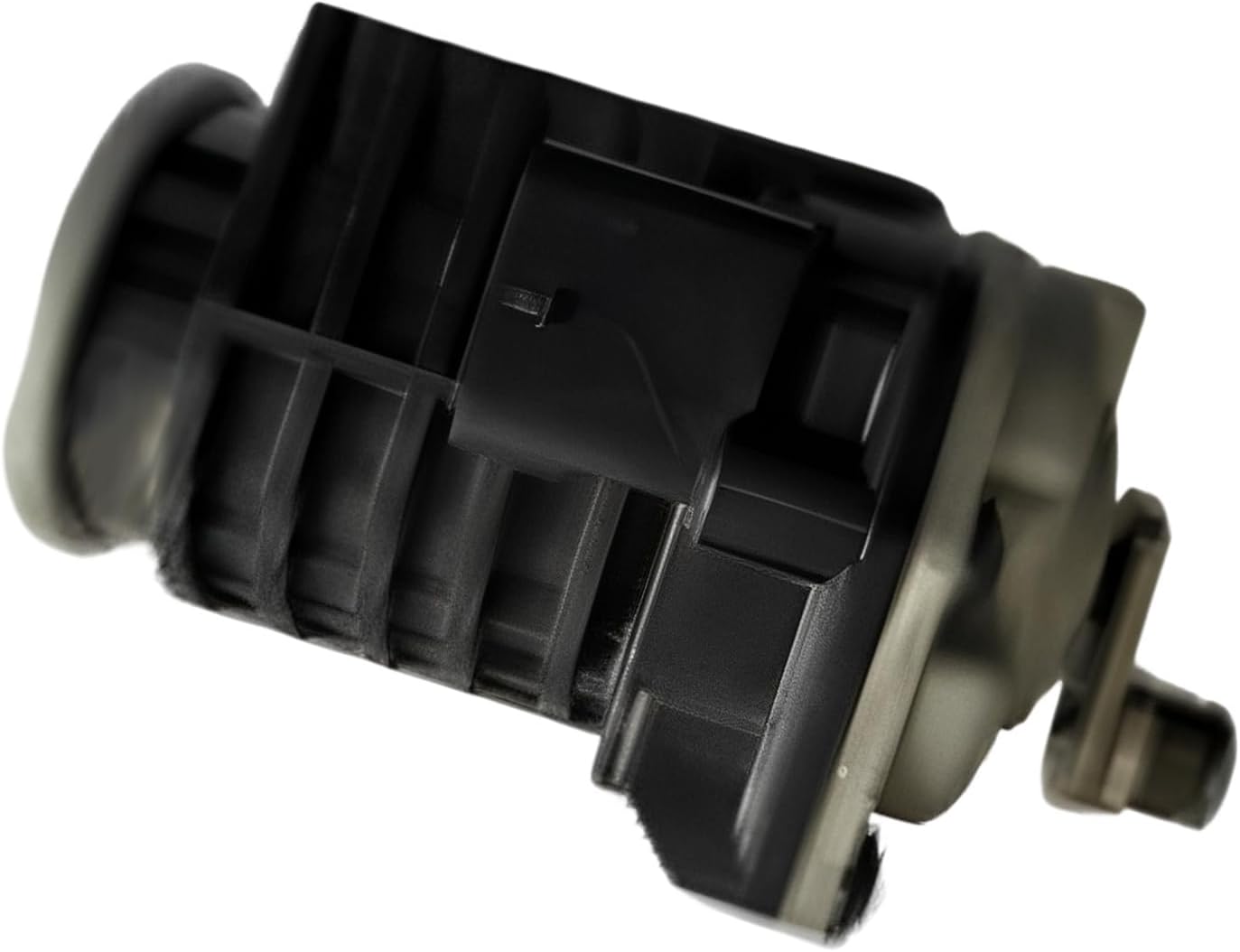

Figure 3: Another perspective of the actuator, showing the intricate details of its housing.

4. Maintenance

The Giuqa 842232-0075 Turbo Electronic Actuator is designed for durability and typically requires minimal routine maintenance. However, regular vehicle maintenance and inspection of related components can help ensure its longevity.

Recommended Practices

• Regular Inspections: During routine vehicle servicing, visually inspect the actuator and its connections for any signs of damage, corrosion, or loose wiring.
• Cleanliness: Keep the area around the turbocharger and actuator free from excessive dirt, oil, or debris.
• Avoid Physical Damage: Protect the actuator from impacts or excessive force during other engine bay work.
• Professional Diagnosis: If any issues related to turbocharger performance arise, seek professional diagnostic services to identify the root cause.

Figure 4: Bottom view of the actuator, showing the connection point for the wastegate or VGT linkage.

5. Troubleshooting

Note: Troubleshooting complex automotive components like turbo electronic actuators often requires specialized diagnostic tools and expertise. It is highly recommended to consult a qualified technician for accurate diagnosis and repair.

Common Symptoms of Actuator Issues

• Reduced Engine Power (Limp Mode): The ECU may limit engine power if it detects an issue with boost control.
• Check Engine Light (CEL): Diagnostic Trouble Codes (DTCs) related to turbocharger boost control or actuator performance may be stored.
• Excessive Turbo Lag: Slow response from the turbocharger.
• Unusual Noises: Whining or rattling sounds from the turbocharger area.
• Over-boosting or Under-boosting: Inconsistent or incorrect boost pressure.

Basic Checks (for qualified technicians)

• Diagnostic Scan: Use an OBD-II scanner to check for DTCs. Common codes might include P0234 (Overboost Condition) or P0299 (Underboost Condition).
• Wiring Inspection: Check the electrical connector and wiring harness for continuity, shorts, or corrosion.
• Linkage Movement: With the engine off, carefully check if the wastegate or VGT linkage moves freely without binding.
• Actuator Function Test: Some diagnostic tools can command the actuator to move, allowing for observation of its operation.

6. Specifications

7. Warranty and Support

This product is sold by Sijucundalao. For specific warranty information, please refer to the seller's policies at the time of purchase.

General return policy for this item is 30 days for refund/replacement.

For technical support or inquiries regarding the Giuqa 842232-0075 Turbo Electronic Actuator, please contact the seller directly through the platform where the purchase was made.
