CQSPMOTO 6 Pin DC CDI Box and Wiring Harness User Manual

1. Product Overview

The CQSPMOTO 6 Pin DC CDI Box with CDI Cable Wire Harness Plug is designed to enhance the ignition system of various recreational vehicles. This unit is compatible with a wide range of GY6 4-stroke engines, providing reliable performance and improved operational efficiency.

The package includes one 4+2 wiring harness plug set, featuring a durable construction of copper wire and high-quality ABS engineering plastic for heat and chemical resistance.

2. Key Features

• 6 Pin DC CDI Box: Specifically designed for DC GY6 engines and GY6 clone engines.
• Wide Compatibility: Suitable for GY6 49cc, 50cc, 70cc, 90cc, 110cc, 125cc, 150cc, 200cc, and 250cc 4-stroke engines.
• Vehicle Applications: Compatible with dirt pit bikes, scooters, ATVs, Go Karts, Mopeds, Dune Buggies, quads, and other similar vehicles.
• Durable Construction: Made from copper wire and high-quality ABS engineering plastic for enhanced heat and chemical resistance, ensuring long-term reliability.
• Extended Cable Length: The wiring harness cable measures approximately 180mm (7.1 inches), offering increased operating space and flexibility during installation.

3. Compatibility Details

This CDI box and wiring harness are compatible with a broad range of Chinese and imported GY6 4-stroke engines. Please verify your vehicle uses a DC type ignition system, as this product is not suitable for AC type systems.

Compatible Engine Sizes:

• 49cc
• 50cc
• 70cc
• 90cc
• 110cc
• 125cc
• 150cc
• 200cc
• 250cc

Commonly Compatible Brands and Vehicle Types:

Includes, but is not limited to, brands such as TaoTao, Buyang, SunI, Roketa, Jonway, Kymco, Hammerhead, Twister, Kazuma, and many others. Applicable to Mopeds, Scooters, ATVs, Go Karts, Dirt Bikes, Pit Bikes, Racing Bikes, and Super Bikes.

4. Installation Guide

Installation of the CDI box and wiring harness requires basic mechanical knowledge. Always ensure the vehicle's power is disconnected before beginning installation to prevent electrical shock or damage to components.

4.1 Identifying the CDI Box

The CDI box is typically a small, rectangular black box with electrical connectors. Locate your vehicle's existing CDI unit.

Image 1: Top view of the CQSPMOTO 6 Pin DC CDI Box, showing the 4-pin and 2-pin connectors.

Image 2: Side view of the CQSPMOTO 6 Pin DC CDI Box.

4.2 Connector Type Verification

Ensure your vehicle's wiring harness matches the 4+2 pin configuration of this CDI box. The included wiring harness cable is designed to provide ample connection length.

Image 3: Detailed view of the 4-pin and 2-pin connectors on the CDI box.

Image 4: Illustration of the separate 4-pin and 2-pin connectors.

Image 5: The included CDI Cable Wire Harness Plug.

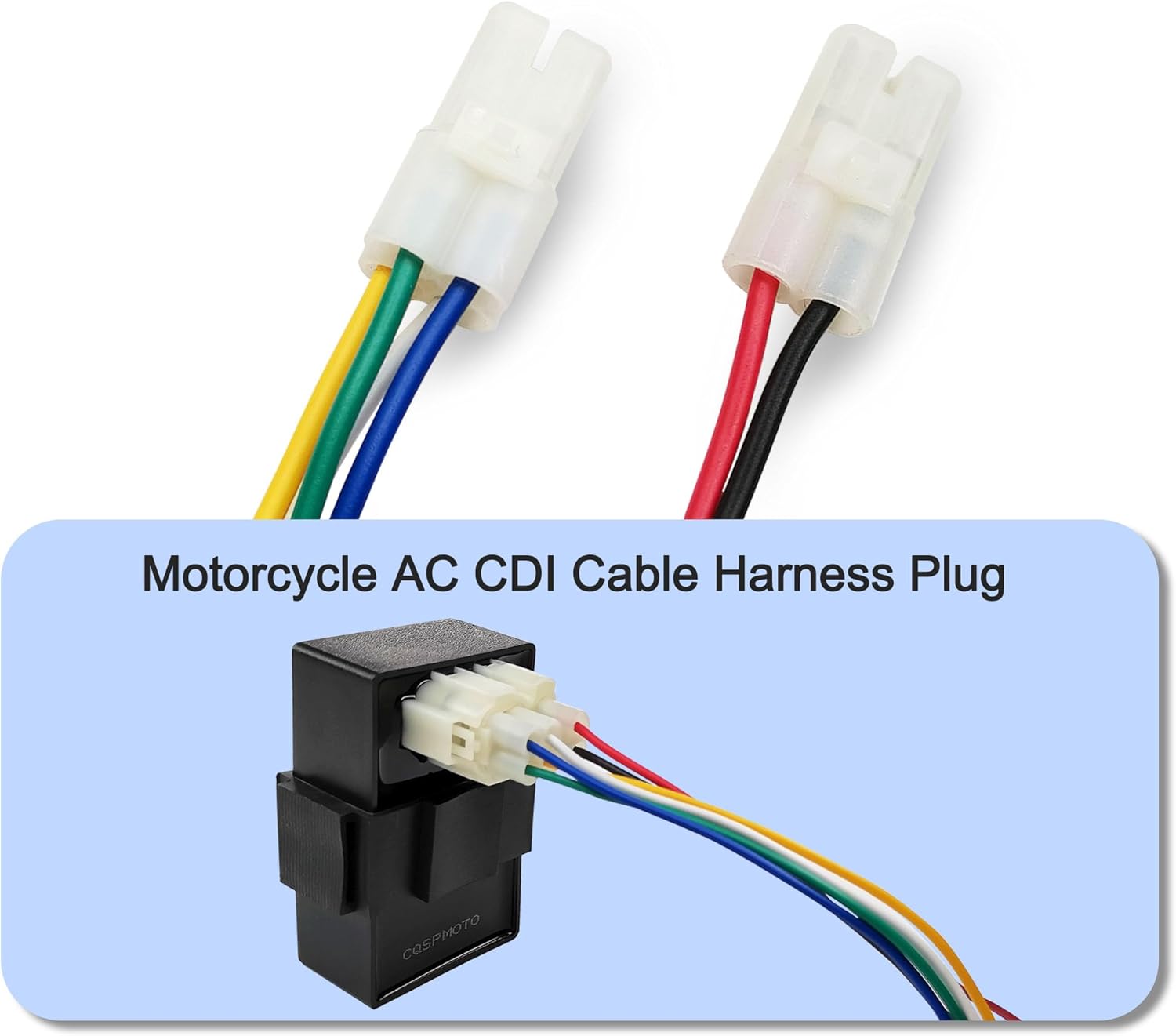

Image 6: The CDI Box with the Cable Harness Plug connected.

4.3 Installation Steps:

1. Disconnect Power: Turn off the vehicle and disconnect the battery to prevent accidental electrical issues.
2. Locate Old CDI: Find the existing CDI box on your vehicle. It is usually near the battery or under the seat.
3. Remove Old CDI: Carefully disconnect the wiring harness from the old CDI box and remove the unit.
4. Connect New CDI: Connect the new CQSPMOTO 6 Pin DC CDI Box to the vehicle's wiring harness. Ensure all pins align correctly and connections are secure. The extended cable length (180mm) provides flexibility for routing.
5. Secure CDI: Mount the new CDI box securely in a suitable location, away from excessive heat or moisture.
6. Reconnect Power: Reconnect the battery and test the vehicle's ignition.

Note: Always confirm your vehicle uses a DC type CDI. This product is not compatible with AC type CDI systems.

5. Operating Principles

The CDI (Capacitor Discharge Ignition) box is a crucial component of your vehicle's ignition system. It stores an electrical charge in a capacitor and then discharges it through the ignition coil at the precise moment required to ignite the fuel-air mixture in the engine cylinder. This process ensures efficient combustion and optimal engine performance.

This DC CDI box is designed to work with DC-powered ignition systems, receiving power directly from the vehicle's battery or DC charging system.

6. Maintenance

The CQSPMOTO CDI box is designed for durability and minimal maintenance. However, regular checks can help ensure its longevity:

• Inspect Connections: Periodically check the wiring harness connections to ensure they are clean, tight, and free from corrosion.
• Keep Clean and Dry: While the unit is designed to be resistant to heat and chemicals, avoid exposing it to excessive moisture or harsh chemicals.
• Avoid Physical Damage: Ensure the CDI box is securely mounted to prevent vibrations or impacts that could damage the internal components.

7. Troubleshooting

If you experience ignition problems after installing the CDI box, consider the following troubleshooting steps:

• No Spark or Weak Spark:
  • Verify all connections are secure and correctly plugged in.
  • Check if the vehicle's battery has sufficient charge.
  • Ensure the spark plug is in good condition and properly gapped.
  • Confirm the CDI box is indeed a DC type and your vehicle requires a DC CDI.
• Engine Not Starting:
  • Beyond ignition, check fuel supply, air filter, and engine compression.
  • Re-verify CDI connections.
• Intermittent Issues:
  • Inspect wiring for any frayed or damaged sections.
  • Ensure the CDI box is not overheating due to poor ventilation or proximity to heat sources.

If problems persist, it is recommended to consult a qualified mechanic or contact CQSPMOTO customer support.

8. Specifications

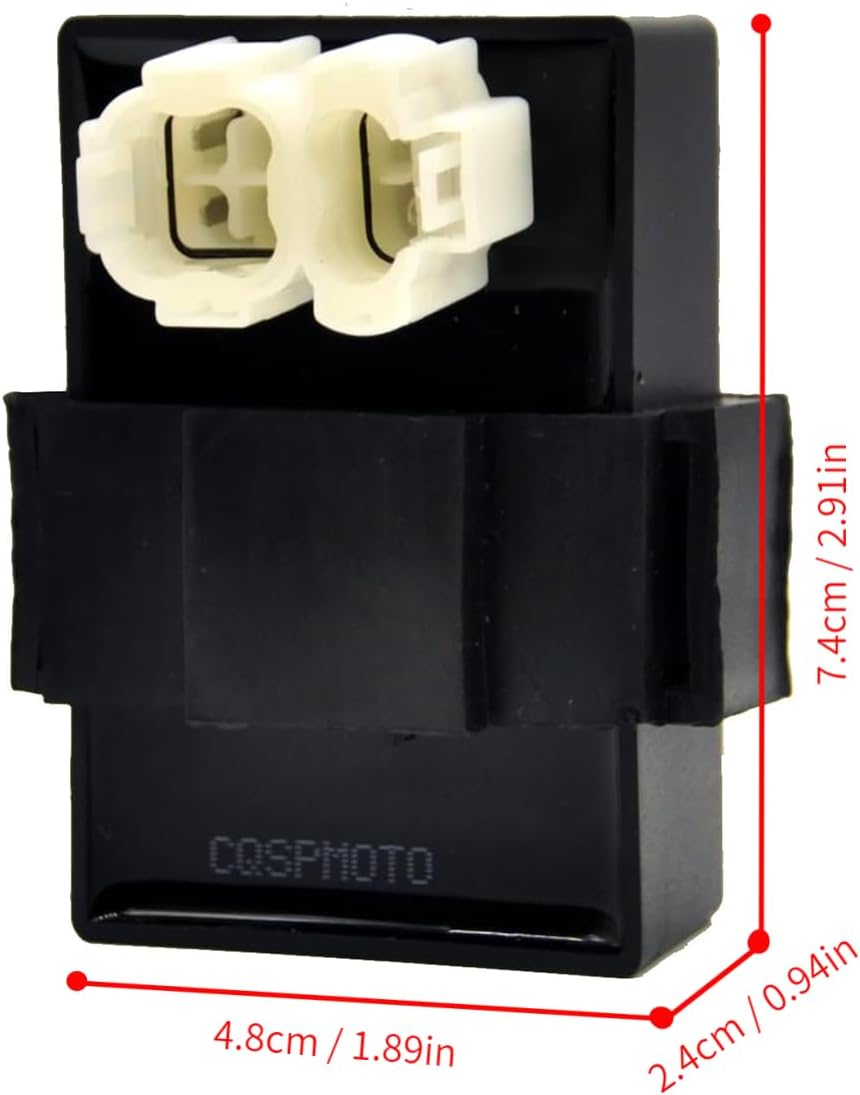

Image 7: Detailed dimensions of the CDI Box.
