1. Introduction
Thank you for choosing the Bella Depot 52 Inch Wood Ceiling Fan. This manual provides detailed instructions for the safe installation, operation, and maintenance of your new ceiling fan. Please read this manual thoroughly before installation and keep it for future reference. This ceiling fan combines elegant design with versatile functionality, offering 6 wind speed settings, remote control convenience, and quiet operation for year-round comfort.
2. Safety Instructions
To reduce the risk of fire, electric shock, or personal injury, please follow these important safety guidelines:
- Always disconnect power at the main circuit breaker before installation or servicing.
- Ensure all electrical connections comply with local codes and ordinances. If you are unsure, consult a qualified electrician.
- The fan must be mounted to a structurally sound ceiling joist or outlet box capable of supporting the fan's weight (minimum 35 lbs).
- Do not operate the fan with damaged blades or any visible defects.
- Keep hands, clothing, and other objects clear of the fan blades when the fan is in operation.
- This fan is designed for indoor use only.
- Do not attempt to repair or modify the fan yourself. Refer all servicing to qualified personnel.
3. Package Contents
Before beginning installation, verify that all components listed below are present and undamaged:
- Motor Housing Assembly
- Solid Wood Fan Blades (3)
- LED Light Kit
- Remote Control with Wall Mount
- Downrods (5" and 10" included)
- Mounting Bracket
- Hardware Pack (screws, washers, wire nuts)
- Instruction Manual
Image: The Bella Depot 52 Inch Wood Ceiling Fan, showcasing its light wood blades and integrated LED light.
4. Product Overview
4.1 Features
- Sleek Design: Features solid wood fan blades and clean lines for a minimalist aesthetic, complemented by a 6-speed setting and dimmable LED lights.
- Efficient DC Motor: Offers superior performance with 6 wind speed options, powerful airflow, and ultra-quiet 35 dB operation for a peaceful environment.
- Versatile Blade Rotation: Supports both forward rotation for cooling in summer and reverse rotation for enhanced air circulation in winter.
- Convenient Remote Control: Allows easy adjustment of fan speed, light color temperature (Warm/Neutral/Cool), and timing options (1/2/4/8 hours). Fan and light can be controlled independently.
- Customizable Lighting: Dimmable LED light enables adjustment of brightness to create the desired ambiance for any occasion.
4.2 Components

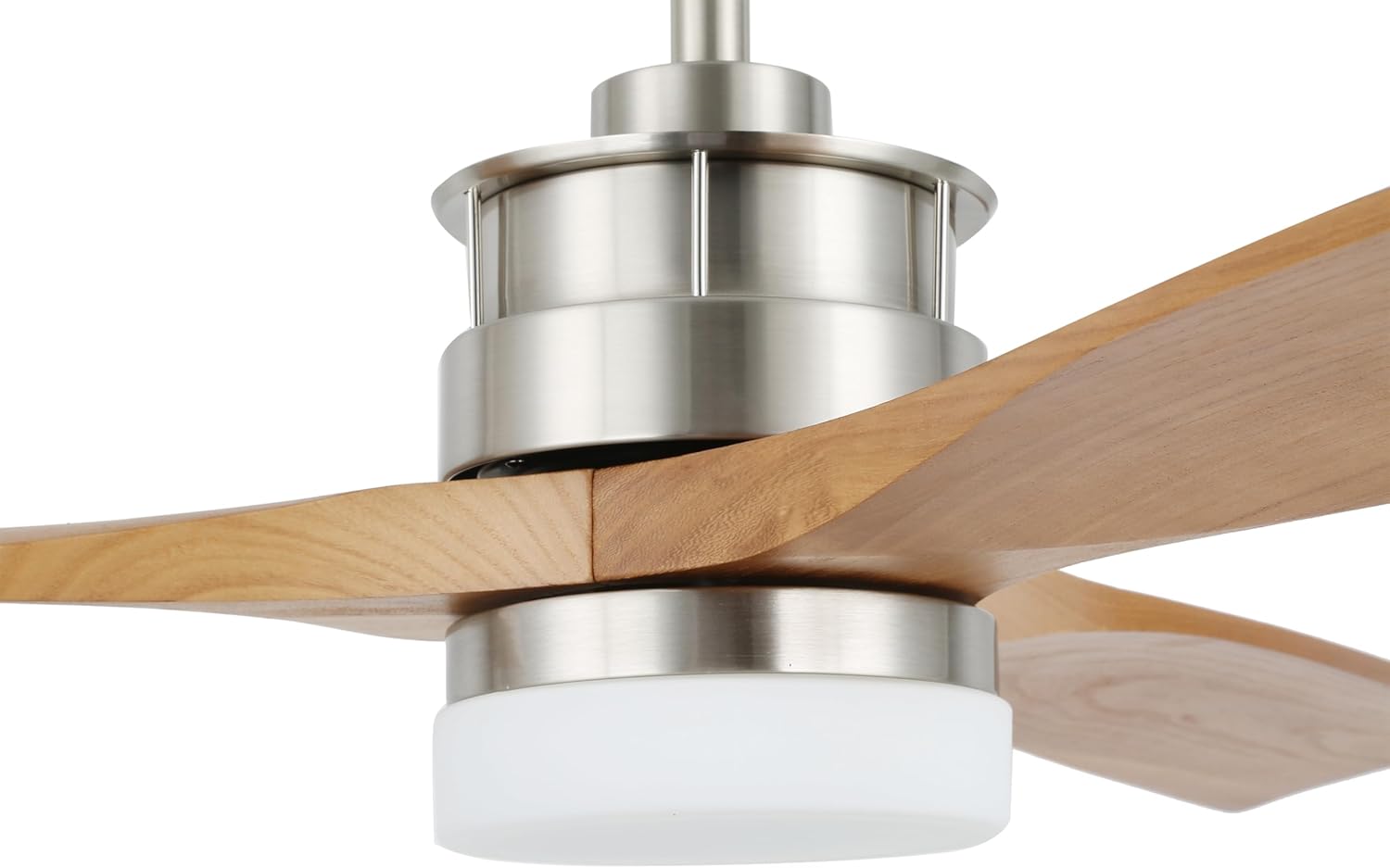

Image: A detailed view of the fan's motor housing and integrated LED light fixture.
The fan consists of a robust DC motor housed in a sleek metal casing, three precisely balanced solid wood blades, and an integrated LED light kit with a frosted diffuser. The remote control provides full functionality for fan and light settings.
4.3 Dimensions

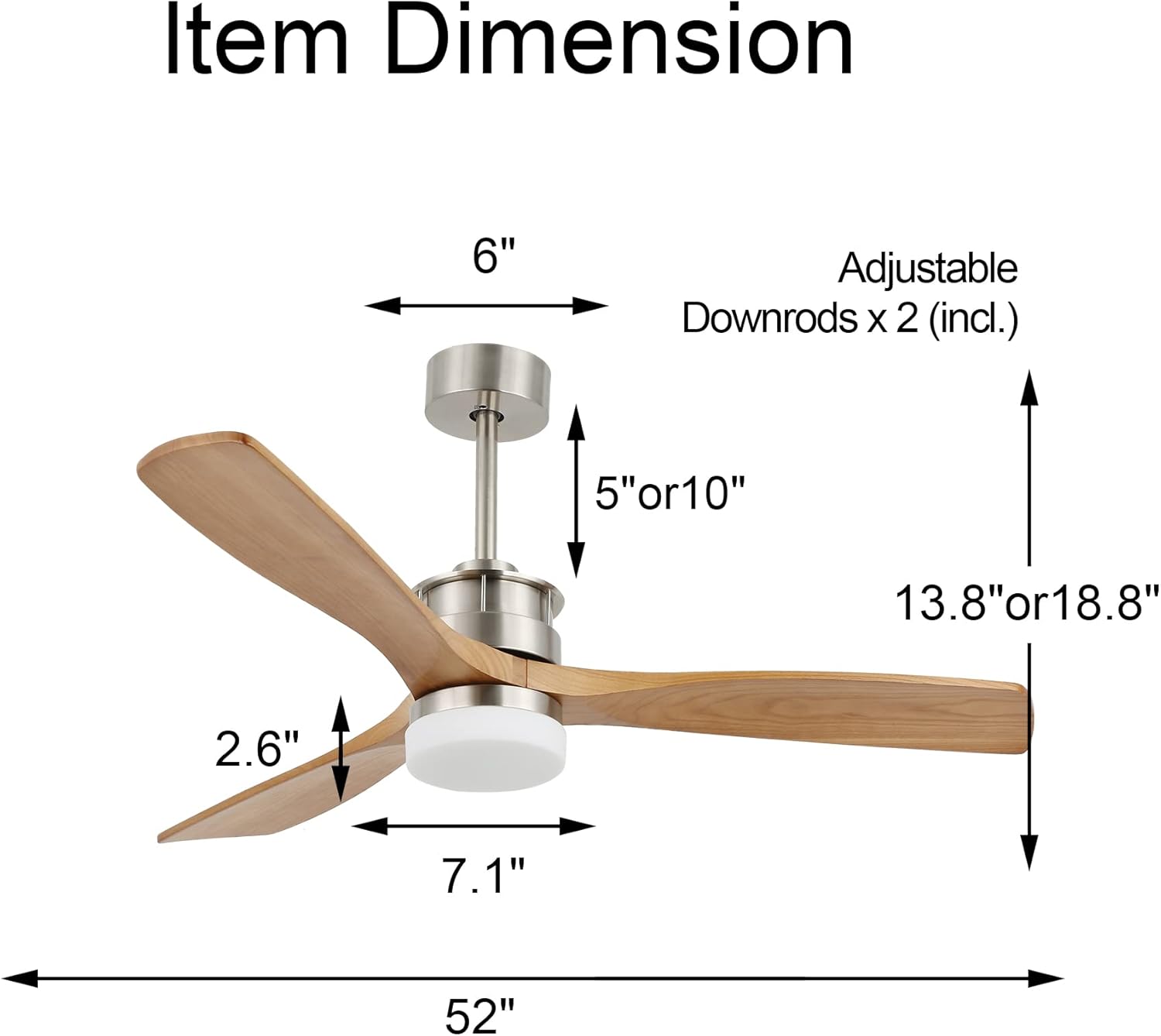

Image: Diagram illustrating the dimensions of the Bella Depot 52 Inch Ceiling Fan, including blade span and adjustable downrod lengths.
The fan has a 52-inch blade span. The overall height from the ceiling to the bottom of the light kit is adjustable, with options for 13.8 inches (using the 5-inch downrod) or 18.8 inches (using the 10-inch downrod). The motor housing has a diameter of 6 inches, and the light kit has a diameter of 7.1 inches.
5. Setup and Installation
Installation of this ceiling fan requires basic electrical knowledge and adherence to safety precautions. It is recommended to have two people for installation. Ensure the power is OFF at the circuit breaker before starting.
- Mounting Bracket Installation: Secure the mounting bracket to a ceiling joist or an approved outlet box capable of supporting the fan's weight.
- Wiring Connections: Connect the fan's electrical wires to the household wiring according to the provided wiring diagram in the separate installation guide. Ensure all connections are secure and insulated.
- Assemble Downrod and Motor: Attach the chosen downrod (5" or 10") to the motor housing and feed the wires through.
- Hang Fan Assembly: Carefully lift the fan assembly and hang it on the mounting bracket.
- Attach Fan Blades: Securely attach the three solid wood fan blades to the motor housing.
- Install Light Kit: Connect the LED light kit wires and attach the light kit to the bottom of the fan motor housing.
- Final Checks: Ensure all screws are tightened and connections are secure. Restore power at the circuit breaker.
Image: The Bella Depot 52 Inch Wood Ceiling Fan elegantly installed in a modern living room setting.
6. Operating Instructions
Your Bella Depot ceiling fan is operated using the included remote control. Ensure the remote has fresh batteries installed.
6.1 Remote Control Functions
- Fan ON/OFF: Press to turn the fan on or off.
- Fan Speed Control: Buttons for 6 distinct wind speeds (1-6).
- Light ON/OFF: Press to turn the light on or off.
- Light Color Temperature (CCT) Adjustment: Cycle through Warm Light, Neutral Light, and Cool Light settings.
- Light Dimming: Hold the light button to adjust brightness from 5% to 100%.
- Timer Function: Set the fan to turn off automatically after 1, 2, 4, or 8 hours.
- Reverse Function: Toggle between forward (downward airflow for cooling) and reverse (upward airflow for air circulation) modes.

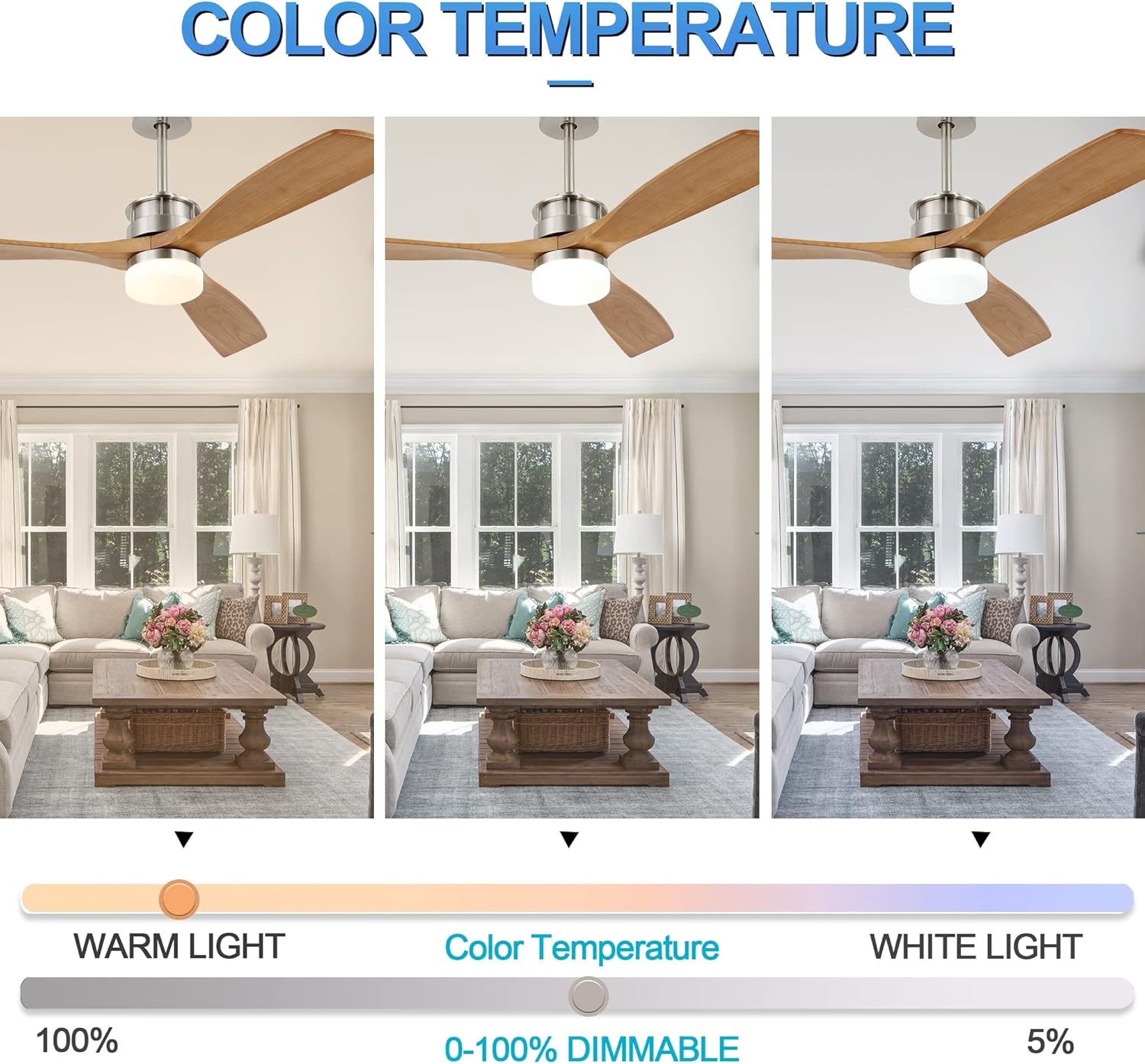

Image: Illustration demonstrating the adjustable color temperature settings (Warm, Neutral, Cool) of the fan's LED light.
Image: Visual explanation of the fan's dual-use functionality, showing downward airflow for summer cooling and upward airflow for winter air circulation.
7. Maintenance
Regular maintenance will ensure the longevity and optimal performance of your ceiling fan.
- Cleaning: To clean the fan, wipe with a soft, damp cloth. Do not use abrasive cleaners or solvents, as they may damage the finish or blades.
- Blade Cleaning: Dust the fan blades regularly to prevent dust buildup, which can affect balance and performance.
- Tighten Fasteners: Periodically check all screws and fasteners on the fan and mounting hardware to ensure they are secure.
- No Lubrication Needed: The DC motor is permanently lubricated and does not require oiling.
8. Troubleshooting
If you experience issues with your ceiling fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan; Loose wire connections; Remote control battery low. | Check circuit breaker; Verify all wire connections are secure; Replace remote control batteries. |
| Fan wobbles | Loose blade screws; Unbalanced blades; Loose mounting bracket. | Tighten all blade screws; Use balancing kit (not included) if necessary; Ensure mounting bracket is securely fastened. |
| Light does not work | Loose wire connection to light kit; Faulty LED driver. | Check light kit wiring; Contact customer support for replacement parts if necessary. |
| Remote control not working | Low battery; Remote not paired with fan. | Replace batteries; Refer to the separate remote pairing instructions (if applicable). |
9. Specifications
| Attribute | Detail |
|---|---|
| Brand | Bella Depot |
| Model Name | 5206-5213 |
| Color | Light wood |
| Electric Fan Design | Ceiling Fan |
| Power Source | DC |
| Style | Farmhouse |
| Product Dimensions | 52"D x 52"W x 12"H (adjustable height) |
| Room Type | Bedroom (also suitable for Living Room, Dining Room) |
| Special Feature | Adjustable Height, Dimmable LED Light, Reversible Motor, 6-Speed |
| Included Components | Remote Control |
| Size | 52 inch |
| Assembly Required | Yes |
| Country of Origin | USA |
10. Warranty and Support
Bella Depot stands behind the quality of its products. For specific warranty details and duration, please refer to the warranty card included with your purchase or visit the official Bella Depot website. If you have any questions, require technical assistance, or need to order replacement parts, please contact Bella Depot customer support through the contact information provided on your purchase documentation or the brand's official channels.
For additional information and support, you may visit the Bella Depot Store on Amazon.
