Modern Shade The Horizon 12'x14' Hardtop Gazebo with 4 LED Lights - Instruction Manual

Introduction

This manual provides essential information for the assembly, operation, and maintenance of your Modern Shade The Horizon 12'x14' Hardtop Gazebo. Designed for durability and comfort, this permanent outdoor structure features a galvanized steel double roof, integrated LED lighting, and mosquito nettings, offering a versatile space for relaxation and gatherings.

Safety Information

Your safety is paramount. Please read and adhere to all safety warnings and instructions before assembly and use.

• Assembly: Always follow assembly instructions carefully. A minimum of 2-3 people are recommended for installation.
• Anchoring: Securely anchor the gazebo to a stable foundation (concrete or decking) using the provided concrete screws to prevent movement, especially in windy conditions.
• Weather Conditions: Do not use in winds exceeding 70 mph. The gazebo has a snow load capacity of 20 lbs. per square foot; clear heavy snow accumulation promptly to prevent structural damage.
• Fire Safety: Exercise caution with any heat sources or open flames near the gazebo. Ensure adequate ventilation if using a grill or fire pit inside.

Product Features

• Double Roof Design: Fade-resistant and rust-resistant galvanized steel double roof blocks UV rays and withstands heavy snow and rain. The double-layered design allows for air circulation, providing ventilation and helping to keep the gazebo cool.
• Sturdy Construction: Crafted with premium heavy-duty metal frames, corrosion-resistant and rust-proof. Features additional expansion screws at the base for stable installation.
• Integrated LED Lighting: Equipped with 4 solar-powered LED lights to create ambiance for evening use.
• Mosquito Nettings: Detachable nettings with a dual-track system provide privacy, block sunlight and UV rays, and protect against insects.
• Wood-Looking Frame: The frame mimics the appearance of wood, combining natural aesthetics with the structural integrity and longevity of metal.
• Decor Hooks: "U" hooks on the top roof allow for hanging lights or fans.
• Spacious Design: Measures 12' x 14', accommodating 10-14 guests comfortably.

Setup and Installation

The gazebo package contains 5 boxes, which may arrive at different times. Please ensure all boxes are received before beginning assembly.

1. Unpacking: Carefully unpack all components and verify against the parts list provided in the assembly instructions.
2. Frame Assembly: Assemble the main frame structure according to the detailed instructions. It is recommended to have 2-3 people for this step.
3. Roof Installation: Install the galvanized steel roof panels. Ensure all bolts are hand-tightened until all panels are in place, then fully tighten for a secure fit.
4. Anchoring: Use the provided concrete screws to securely anchor the gazebo's legs to your chosen foundation (concrete or decking).
5. Nettings Installation: Attach the mosquito nettings using the dual-track system.
6. LED Lights: The solar-powered LED lights are designed for easy integration.

For detailed step-by-step instructions, please refer to the comprehensive assembly manual included in your package.

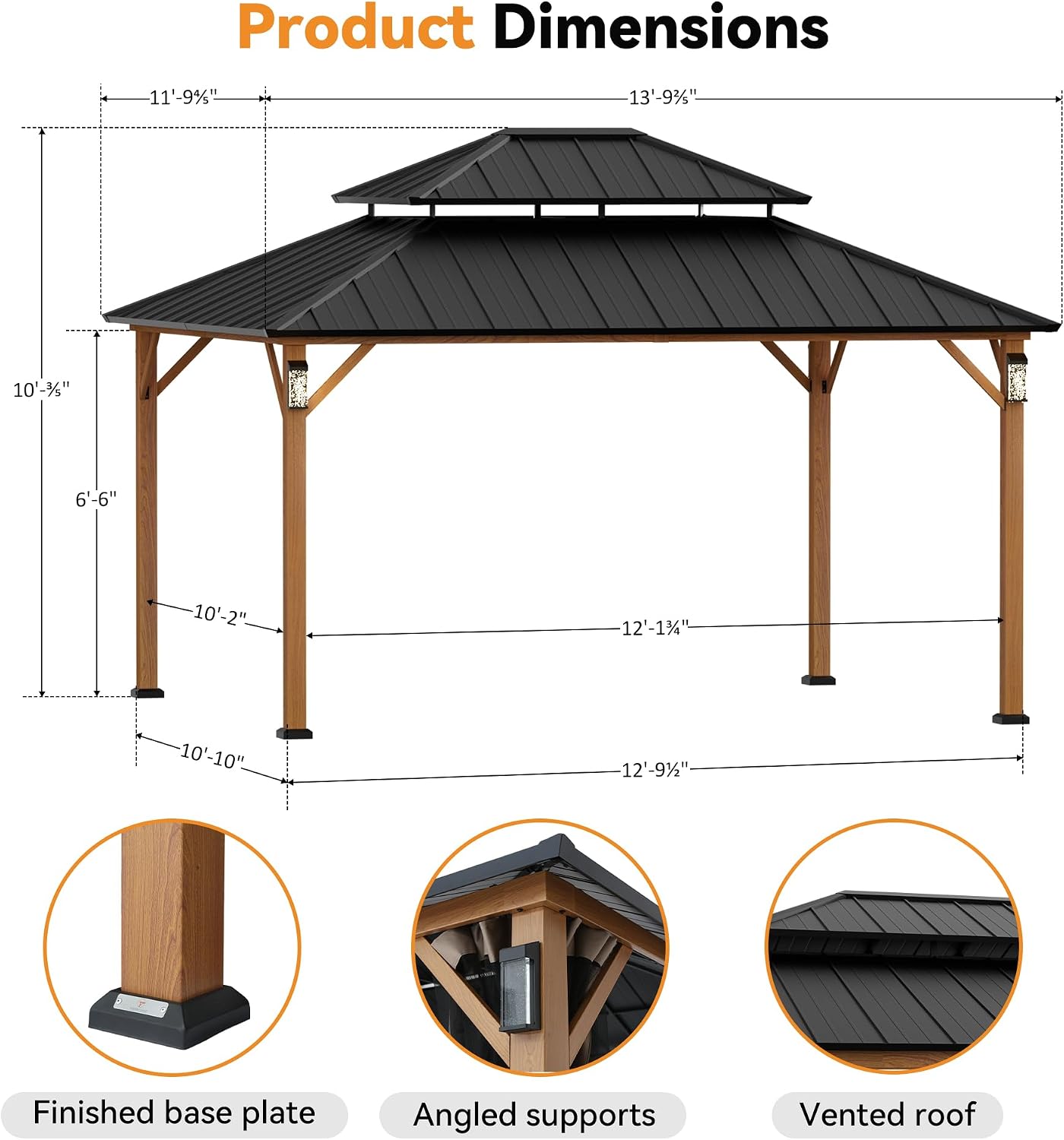

Image: A diagram illustrating the product dimensions and key structural components like the finished base plate, angled supports, and vented roof.

Image: Close-up view of the sturdy base plate and expansion screws designed to anchor the gazebo securely into concrete or decking.

Operation

• LED Lights: The 4 solar-powered LED lights automatically charge during the day and illuminate at night, providing ambient lighting.
• Mosquito Nettings: The detachable nettings operate on a dual-track system, allowing them to be easily opened, closed, or tied back as needed for privacy, sun protection, or insect barrier.
• Integrated Drainage: The roof's design includes an internal drainage system that channels rainwater down through the legs, preventing water from dripping around the perimeter.

Image: A close-up of the Firefly Solar Lighting unit integrated into the gazebo's frame, showing its design and illumination.

Image: A detailed view of the dual-track system for the mosquito nettings, highlighting the ease of installation and adjustment.

Maintenance

• Cleaning: Regularly clean the galvanized steel roof and frame with mild soap and water. Avoid abrasive cleaners that could damage the finish.
• Nettings Care: Detach and clean mosquito nettings as needed. Store them in a dry place during off-seasons or extreme weather to prolong their lifespan.
• Winter Preparation: While designed for all seasons, consider removing nettings and any hanging accessories during harsh winter conditions to minimize wear and tear. Ensure heavy snow is cleared from the roof.
• Frame Inspection: Periodically inspect the frame and anchoring points for any signs of loosening or damage. Tighten screws as necessary.

Troubleshooting

• Water Accumulation on Roof: Ensure the roof panels are correctly installed and all drainage channels are clear of debris.
• Gazebo Instability: Verify that all anchoring screws are properly secured to a stable foundation. Re-tighten any loose connections.
• Difficulty during Assembly: Refer to the detailed instructions. Ensure all parts are correctly identified and oriented. Having an extra set of hands is crucial for certain steps.

Specifications

Warranty and Support

For any questions, concerns, or assistance with your Modern Shade gazebo, please do not hesitate to contact our customer service team. We offer 24/7 customer support to ensure your satisfaction.

Contact information can be found on the product packaging or the official Modern Shade website.
