RETROSUN Replacement Remote Control User Manual

1. Introduction & Product Overview

This manual provides instructions for the RETROSUN Replacement Remote Control, designed to operate various vibration plate exercise machines. This remote offers a seamless replacement experience with no programming or pairing required.

What's in the Box:

• 1 x RETROSUN Replacement Remote Control

Note: Batteries and additional manuals are not included.

Compatibility:

This replacement remote control is compatible with the following vibration plate exercise machines:

• MERACH Vibration Plate Exercise Machine models: MR-2398, MR-2398P, MR-2398B1, MR-2398L1
• YESOUL ‎YS-VM60 Vibration Plate
• ZENACTIVE Vibration Plate

Image: The RETROSUN replacement remote control is designed to work seamlessly with various vibration plate exercise machines, including the MERACH model shown.

Image: Front and rear views of the RETROSUN replacement remote control, highlighting its sleek design.

2. Setup

Battery Installation:

The remote control requires two (2) AAA alkaline batteries for operation. Please follow these steps to install the batteries:

1. Locate the battery compartment cover on the back of the remote control.
2. Slide the cover downwards to open the compartment.
3. Insert two AAA alkaline batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
4. Slide the battery compartment cover back into place until it clicks securely.

Note: Batteries are not included with the remote control.

Image: Illustration of how to correctly insert two 1.5V AAA batteries into the remote control's battery compartment.

3. Operating Instructions

The RETROSUN replacement remote control utilizes infrared technology for communication with your vibration plate machine. No programming or pairing is required; simply point the remote at the machine and press the desired button.

Button Functions:

Image: A clear view of the remote control's buttons with their corresponding functions labeled for easy operation.

• Power (开/关): Turns the vibration plate machine on or off.
• Speed +: Increases the vibration speed or intensity.
• Speed -: Decreases the vibration speed or intensity.
• Automatically Mode (模式 A): Activates the automatic program mode on the vibration plate.

Control Performance:

Equipped with upgraded smart chips, this remote provides reliable performance:

• Long Distance Control: Effective control range up to 8 meters (26 feet).
• Fast Response: Responds to commands in less than 0.2 seconds.
• Wide Angle Control: Supports a 360-degree effective angle for flexible use.

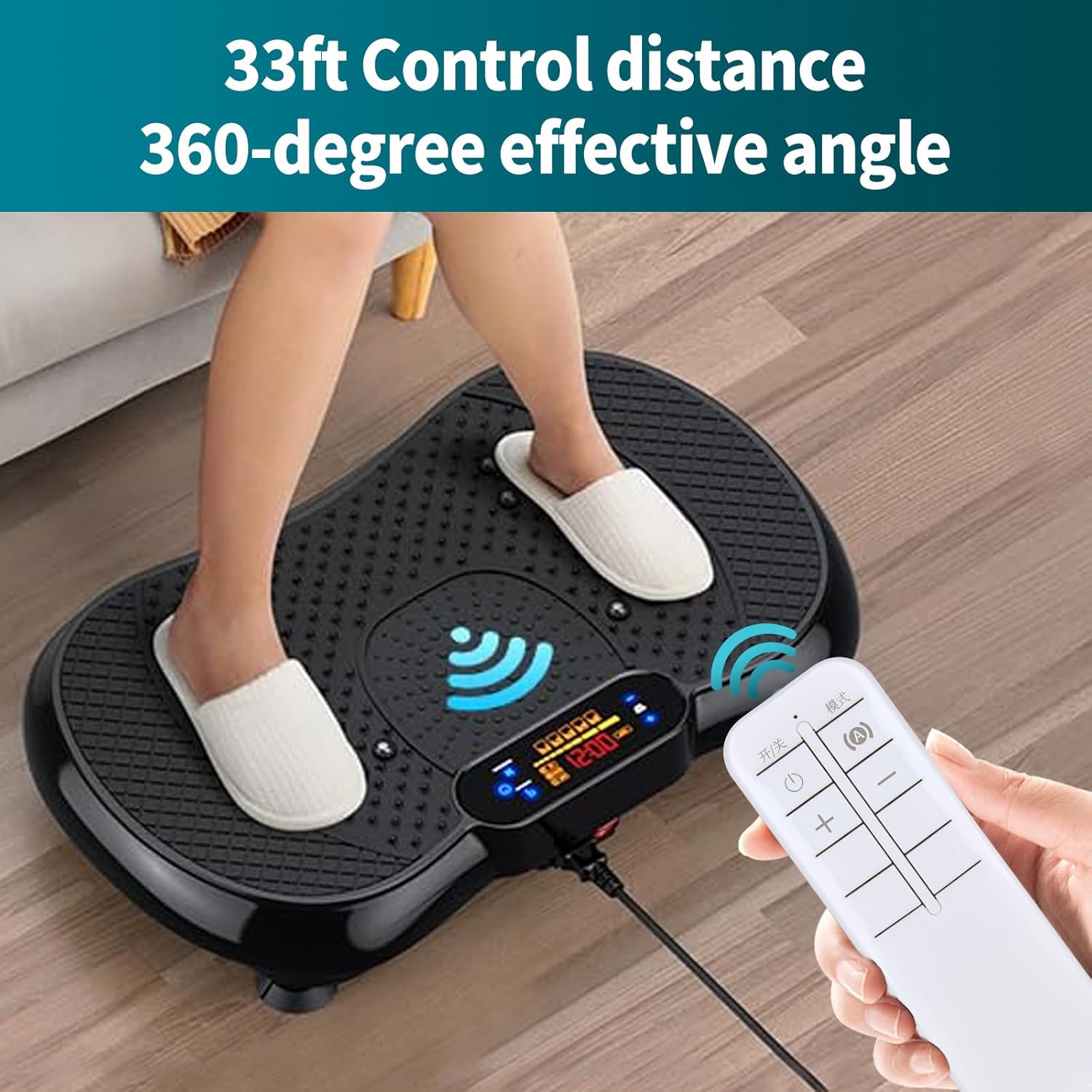

Image: The remote control offers a wide control angle and significant distance, allowing for flexible use during exercise.

4. Maintenance

To ensure the longevity and optimal performance of your RETROSUN replacement remote control, please follow these maintenance guidelines:

• Cleaning: Wipe the remote control regularly with a soft, dry cloth. For stubborn dirt, a slightly damp cloth can be used, but ensure no moisture enters the remote. Avoid using harsh chemicals or abrasive cleaners.
• Storage: Store the remote in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity.
• Battery Replacement: Replace batteries promptly when the remote's performance degrades or it stops responding. Remove batteries if the remote will not be used for an extended period to prevent leakage.
• Avoid Drops: While durable, repeated drops can damage internal components. Handle the remote with care.

5. Troubleshooting

If you experience issues with your RETROSUN replacement remote control, please refer to the following common troubleshooting steps:

• Remote Not Responding:
  • Check if the batteries are inserted correctly with the correct polarity (+/-).
  • Replace the batteries with new AAA alkaline batteries.
  • Ensure there are no obstructions between the remote control and the vibration plate machine's infrared receiver.
  • Confirm you are within the effective operating range (up to 8 meters / 26 feet).
• Intermittent Response:
  • This often indicates low battery power. Replace the batteries.
  • Ensure the infrared emitter on the remote is clean and unobstructed.
• Buttons Not Working:
  • If only specific buttons are not working, try replacing the batteries. If the issue persists, the remote may be faulty.

If these steps do not resolve the issue, please contact customer support for further assistance.

6. Specifications

Image: Detailed dimensions of the remote control for reference.

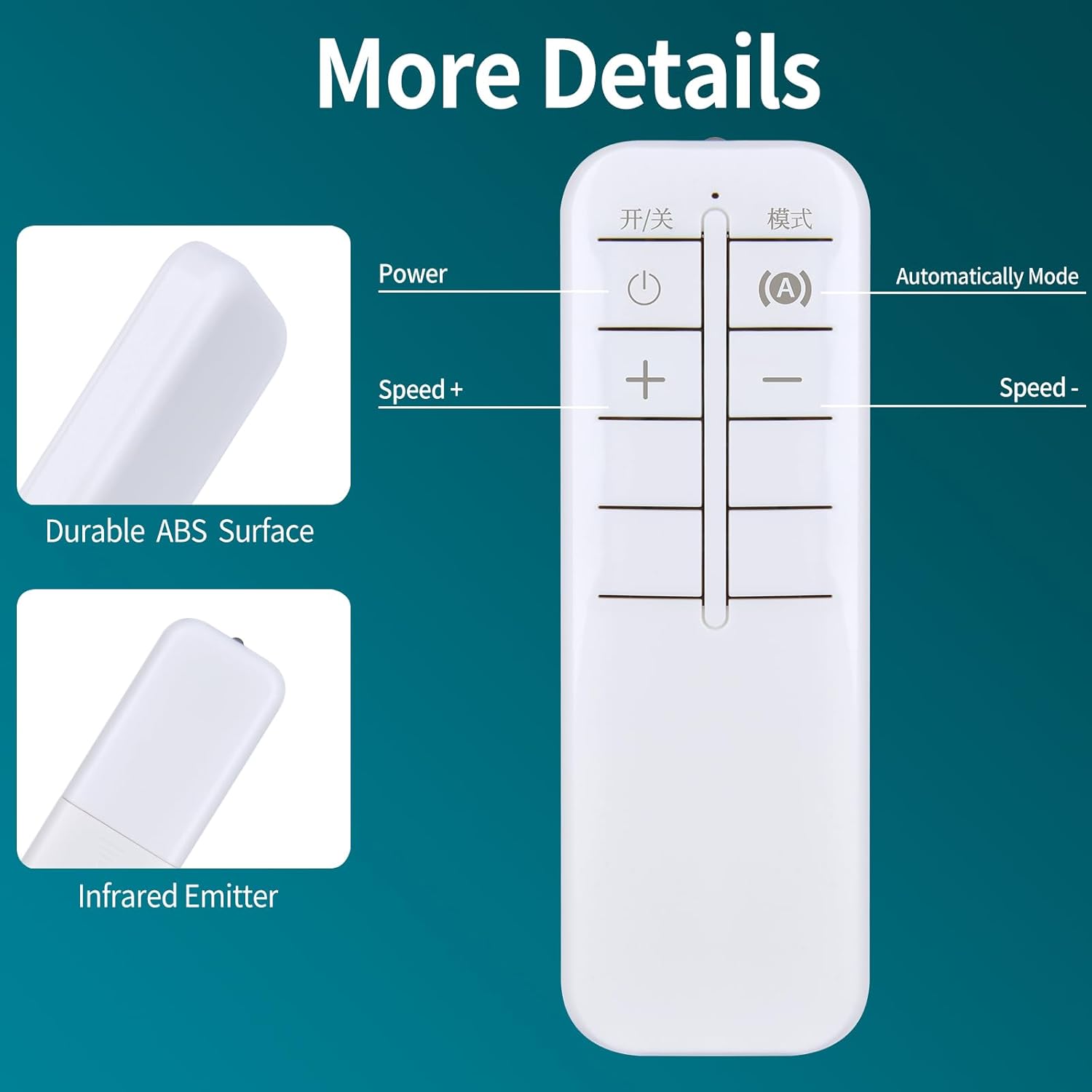

Image: Key features of the remote control, including its durable ABS construction and infrared emitter.

7. Warranty & Support

For any questions, concerns, or technical support regarding your RETROSUN replacement remote control, please contact the seller or manufacturer through your purchase platform.

Please refer to your purchase documentation for specific warranty information, as warranty terms may vary.
