User Manual for W10861000 Dishwasher Detergent Dispenser Assembly

1. Product Overview

The W10861000 Dishwasher Detergent Dispenser Assembly is a replacement part designed to ensure proper dispensing of detergent and rinse aid in compatible dishwashers. This assembly is crucial for effective cleaning cycles, addressing common issues such as detergent not dispensing or the dispenser door failing to open.

Figure 1: W10861000 Dishwasher Detergent Dispenser Assembly (Front View)

Figure 2: Internal Mechanism of the Dispenser

2. Key Features

• Perfect Replacement: Direct replacement for part number W10861000 and compatible with WPW10861000, AP5988999, PS11726225, EAP11726225.
• Reliable Dispensing: Designed for reliable detergent and rinse aid release during dishwasher cycles.
• Durable Construction: Made from high-quality ABS plastic with a strong spring-loaded door for longevity.
• Cost-Effective Solution: Provides OEM-level performance as an aftermarket part.

3. Compatibility

This detergent dispenser assembly is compatible with a wide range of dishwasher models from popular brands, including:

• Whirlpool (WDF and WDT series)
• KitchenAid (KDFE, KDPE, KDPM, KDFE, and KDTE series)
• Maytag (MDB series)
• Amana (ADB1700 series)
• Jenn-Air

It is recommended to verify compatibility with your specific dishwasher model by checking your appliance's user manual or the existing part number before purchase.

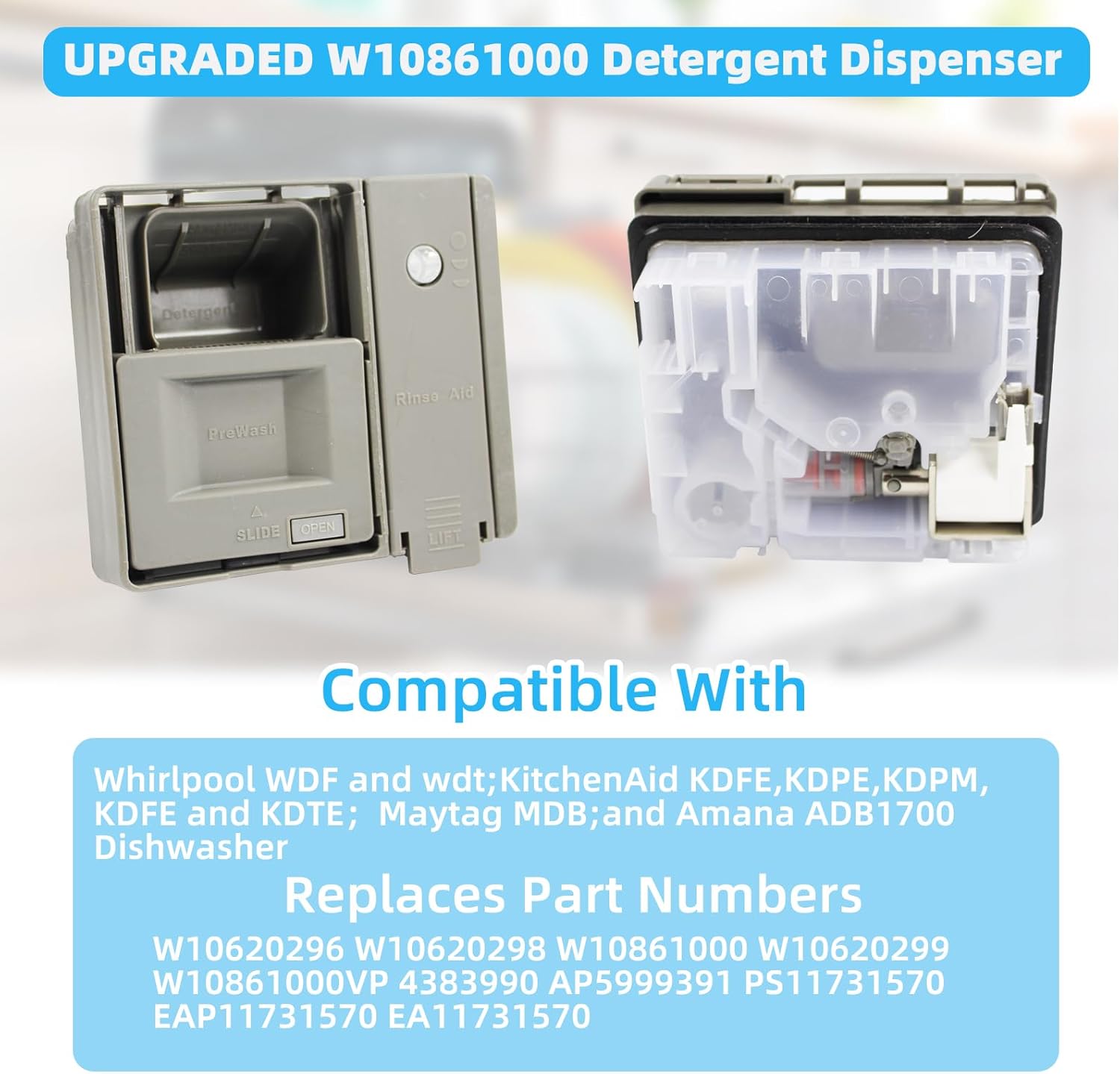

Figure 3: Compatibility Overview and Replaces Part Numbers

4. Setup and Installation

Installation of the W10861000 Dishwasher Detergent Dispenser Assembly is designed to be straightforward. While specific steps may vary slightly by dishwasher model, the general procedure involves:

1. Safety First: Disconnect power to the dishwasher by unplugging it or turning off the circuit breaker before beginning any repair.
2. Access the Dispenser: Open the dishwasher door. The dispenser is typically located on the inside of the dishwasher door.
3. Remove Old Dispenser: Carefully remove any screws or clips securing the old dispenser. You may need to gently pry it out. Note the position of any wiring connections.
4. Disconnect Wiring: Disconnect the electrical connectors from the old dispenser.
5. Install New Dispenser: Connect the electrical connectors to the new W10861000 dispenser.
6. Secure New Dispenser: Insert the new dispenser into its housing on the dishwasher door, ensuring it clicks into place or is secured with the original screws/clips.
7. Test: Close the dishwasher door, restore power, and run a short cycle to ensure the dispenser operates correctly.

For detailed, model-specific installation instructions, refer to your dishwasher's service manual or consult a qualified appliance technician.

5. Operating Instructions

The W10861000 dispenser features compartments for both powdered/gel detergent and liquid rinse aid. Proper filling ensures optimal cleaning and drying results.

5.1. Filling Detergent

1. Open the main detergent compartment door by sliding the "OPEN" button.
2. Add the recommended amount of powdered or gel dishwasher detergent into the main compartment. Refer to your detergent's instructions and your dishwasher's manual for appropriate dosage.
3. Close the detergent compartment door firmly until it latches.
4. If your dishwasher has a pre-wash compartment, add a small amount of detergent to it as well, if desired.

5.2. Filling Rinse Aid

1. Lift the rinse aid dispenser cap, typically marked "Rinse Aid" or with a star symbol.
2. Slowly pour liquid rinse aid into the opening until the indicator shows it is full (do not overfill).
3. Close the rinse aid cap securely.

Figure 4: Filling Detergent and Rinse Aid Compartments

6. Maintenance

To ensure the longevity and proper function of your W10861000 dispenser, consider the following maintenance tips:

• Regular Cleaning: Periodically wipe down the dispenser and its surrounding area with a damp cloth to remove any detergent residue or buildup.
• Check for Obstructions: Ensure the dispenser door and rinse aid cap are free from obstructions that could prevent them from opening or closing properly.
• Avoid Overfilling: Do not overfill the detergent or rinse aid compartments, as this can lead to spills and residue buildup.
• Use Recommended Detergents: Only use detergents and rinse aids specifically designed for automatic dishwashers.

7. Troubleshooting

The W10861000 dispenser is designed to resolve common issues related to detergent dispensing. If you experience problems, consider the following:

Figure 5: Common Symptoms Addressed by This Dispenser

8. Specifications

• Part Number: W10861000
• Item Weight: 9.9 ounces
• Product Dimensions: 4.7 x 4.7 x 2.3 inches
• Included Components: W10861000 Dishwasher Detergent Dispenser
• Material: High-quality ABS plastic

9. Warranty and Support

This product comes with a 365-day warranty from the date of purchase, as specified by the manufacturer.

For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact the manufacturer, DeSuixiong, or your point of purchase. Ensure you have your product model number (W10861000) and purchase details available when contacting support.
