Introduction
This manual provides essential information for the installation, operation, and maintenance of your Solatube Light Add-On Kit. This kit is designed to seamlessly integrate electric lighting into your existing Solatube tubular daylighting system, offering both natural daylight during the day and convenient electric illumination at night. Please read these instructions thoroughly before installation and use to ensure proper function and safety.
Key Features
- Dual-Purpose Lighting: Provides both natural daylight and nighttime electric illumination through a single ceiling fixture.
- Seamless Integration: Designed to fit directly into existing Solatube 160 DS and 290 DS systems, maintaining a clean ceiling aesthetic.
- Space-Saving Design: Eliminates the need for additional ceiling light fixtures.
- Flexible Compatibility: Supports single (160 DS) or dual (290 DS) E26 medium base bulbs (bulbs not included).
- Enhanced Home Lighting: Upgrades your Solatube system for increased convenience and functionality.
Compatibility
This Solatube Light Add-On Kit is specifically designed for use with existing Solatube 160 DS and 290 DS tubular daylighting systems with a 14-inch tube diameter. It is not a standalone skylight kit and requires a pre-installed Solatube system for proper function.

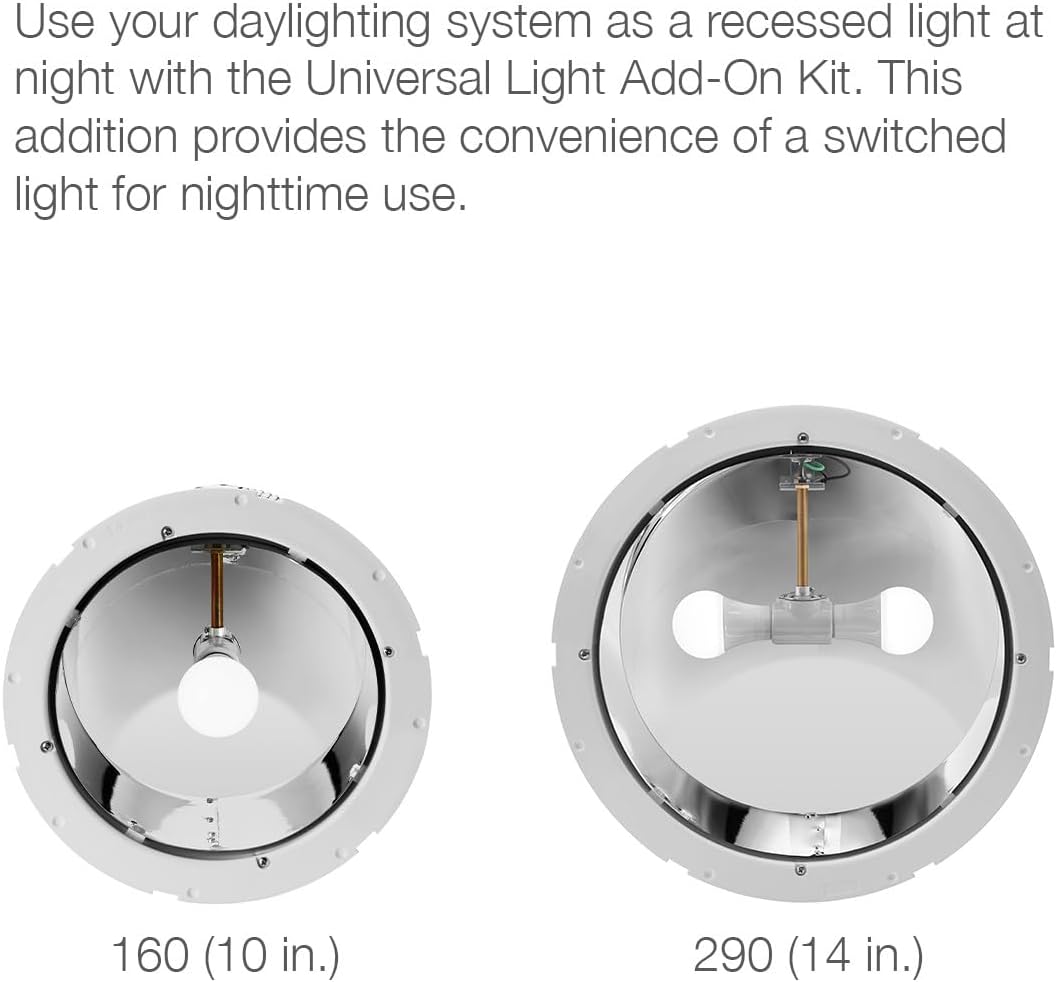

Image: Comparison of the 160 DS (10 inch) and 290 DS (14 inch) Light Add-On Kits, showing bulb configurations.
What's in the Box
The Solatube Light Add-On Kit includes the necessary components to integrate electric lighting into your Solatube system. Please verify all parts are present before beginning installation.
- Light Add-On Kit components (specific parts may vary slightly based on model, refer to packaging for detailed list).
Note: E26 medium base bulbs are not included and must be purchased separately.
Setup and Installation
Installation of the Solatube Light Add-On Kit requires access to your existing Solatube system's ceiling fixture. It is recommended that installation be performed by a qualified professional or an individual with experience in electrical and ceiling work.
- Safety First: Ensure power to the circuit where the Solatube is installed is turned off at the main breaker before beginning any work.
- Access the Fixture: Carefully remove the existing diffuser from your Solatube ceiling fixture to expose the interior.
- Mount the Light Kit: Follow the specific instructions provided with your kit to securely mount the light add-on assembly within the Solatube fixture. This typically involves attaching it to designated points within the tube.
- Electrical Connection: Connect the electrical wiring of the add-on kit to your home's electrical system. This step is crucial and should only be performed by a qualified electrician if you are not comfortable with electrical work. Ensure all connections are secure and comply with local electrical codes.
- Install Bulbs: Screw in the appropriate E26 medium base bulbs (not included) into the sockets.
- Reinstall Diffuser: Carefully reattach the Solatube diffuser to the ceiling fixture.
- Test Functionality: Restore power at the main breaker and test both the daylighting and electric lighting functions.
Image: A Solatube 160 ISn with Ventilation Add-On Kit installed in a bathroom, demonstrating the integrated light.
Image: An illustration showing the Solatube Daylighting and Ventilation system, highlighting the components from roof to ceiling.
Operating Instructions
The Solatube Light Add-On Kit operates in conjunction with your existing Solatube system. During daylight hours, the system will provide natural illumination. For nighttime use, the integrated electric light can be activated.
- Daylight Operation: The Solatube system will automatically provide natural light whenever sunlight is available. No manual operation is required for daylighting.
- Nighttime Electric Light: The electric light component of the add-on kit is typically controlled by a standard wall switch (not included, wired during installation). Flip the switch to turn the electric light on or off as needed.
Video: Overview of Solatube Nightlight functionality, demonstrating how the system provides light during both day and night.
Video: Overview of the Solatube Daylighting System, illustrating how natural light is captured and delivered indoors.
Maintenance
The Solatube Light Add-On Kit is designed for minimal maintenance. Regular cleaning of the ceiling diffuser is generally sufficient to maintain optimal light output.
- Diffuser Cleaning: Periodically remove the ceiling diffuser and clean it with a soft, damp cloth and mild soap. Ensure it is completely dry before reinstallation.
- Bulb Replacement: If an electric bulb burns out, ensure the power is off at the breaker before carefully removing the old bulb and screwing in a new E26 medium base bulb of the appropriate wattage.
- Exterior Components: The exterior dome and flashing of your Solatube system are designed to be weather-resistant and typically require no maintenance. If debris accumulates, it can be carefully removed from the roof level.
Troubleshooting
If you encounter issues with your Solatube Light Add-On Kit, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| No electric light when switch is on |
|
|
| Reduced natural light output |
|
|
| Flickering electric light |
|
|
If problems persist after attempting these solutions, please contact Solatube customer support or a certified installer.
Specifications
- Model Name: Light Add-On Kit
- Compatible Solatube Models: 160 DS, 290 DS
- Tube Diameter: 14 inches
- Bulb Base: E26 (medium base)
- Number of Light Sources: 2 (for 290 DS, 1 for 160 DS)
- Power Source: Corded Electric
- Material: Aluminum
- Finish Type: Polished
- Product Dimensions: 12.25"D x 10.75"W x 10.5"H
- Indoor/Outdoor Usage: Indoor
- UPC: 769276510001
Warranty and Support
For detailed warranty information and customer support, please refer to the official Solatube website or contact Solatube directly. Warranty terms typically cover manufacturing defects and specific components. Keep your purchase receipt as proof of purchase.
Manufacturer: Solatube
Return Policy: 30 days (refund/replacement, as per Amazon's buybox winner information)
Important Safety Information
- Always disconnect power at the main circuit breaker before installing, servicing, or replacing bulbs in the Light Add-On Kit.
- Ensure all electrical connections are made in accordance with national and local electrical codes. If unsure, consult a qualified electrician.
- Do not exceed the maximum wattage specified for the bulb sockets.
- This product is for indoor use only.
- Keep packaging materials away from children.
