1. Introduction
This manual provides detailed instructions for the proper use, installation, and maintenance of the HGTTREA 6 Pin Female Automobile Harness Connector, Model CY-06-1.5-F. This connector is designed for automotive electrical mirror applications and other compatible 6-pin systems.
The product is a female 6-pin connector, typically used in automotive wiring harnesses. It is constructed from durable Nylon material and is designed for 1.5 mm automotive sockets.
2. Product Overview
The HGTTREA CY-06-1.5-F is a specialized 6-pin female connector. It is available in different configurations, such as "Female with Pin B" as described for this specific product. Understanding the connector's physical characteristics is crucial for correct application.

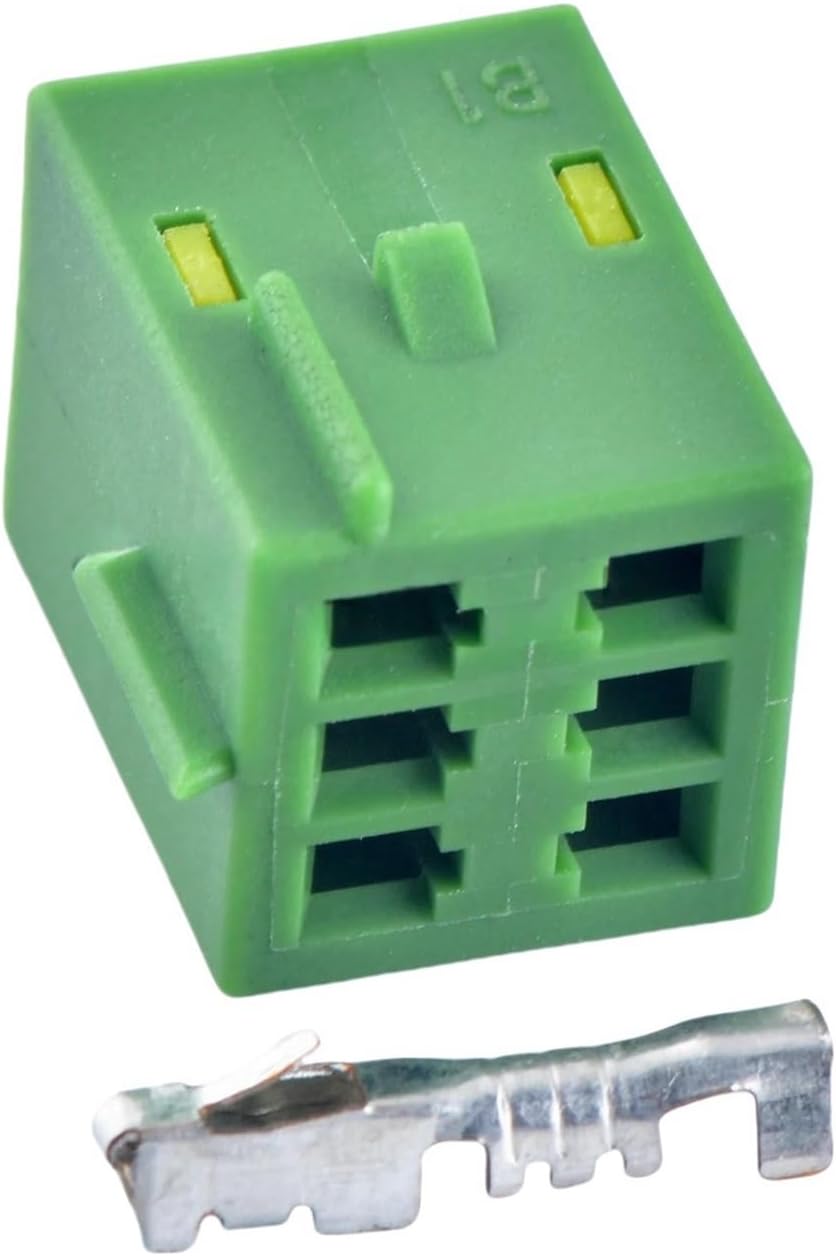

Figure 2.1: The 6-pin female connector (green) and a single terminal pin. This image illustrates the primary components included with the product.
Figure 2.2: Comparison of a green 6-pin female connector and a black 6-pin female connector, alongside a terminal pin. This shows potential color variations or different types of the connector.
Figure 2.3: Side-by-side view of connector type 'B' (green) and type 'A' (black). It is important to select the correct connector type (A or B) to ensure compatibility with the existing wiring harness or component.
3. Setup and Installation
Proper installation is critical for the reliable operation of the electrical system. Always ensure the vehicle's power is disconnected before beginning any electrical work.
- Identify the Correct Connector: Before installation, carefully compare the new connector (CY-06-1.5-F, Female with Pin B) with the existing connector or the component it will connect to. Ensure the pin configuration and overall shape match. Refer to Figure 2.3 for visual identification of connector types A and B.
- Prepare Wiring: If new wiring is being used, ensure the wires are stripped to the appropriate length for the terminal pins. For existing wiring, inspect for any damage or corrosion.
- Crimp Terminal Pins: Securely crimp the individual wires to the provided terminal pins. Use a suitable crimping tool to ensure a strong, reliable electrical and mechanical connection.
- Insert Pins into Connector Housing: Carefully insert the crimped terminal pins into the correct cavities of the female connector housing. Ensure they click into place, indicating they are fully seated and locked.
- Connect to Mating Component: Once all pins are correctly inserted, align the female connector with its corresponding male connector or component. Push firmly until a secure connection is established.
- Verify Connection: After connection, gently tug on the wires to ensure the pins are securely seated and the connector is fully engaged.
Note: Select the appropriate connection port to match the accessory that needs to be replaced. Incorrect matching can lead to electrical malfunction or damage.
4. Operating Instructions
This connector is a passive component designed to facilitate electrical connections within an automotive system. Its "operation" involves maintaining a stable and secure electrical pathway.
- Once installed, the connector functions by providing a reliable interface for electrical signals and power between two points in the vehicle's wiring harness.
- Ensure the connector is free from excessive strain, vibration, or physical impact that could compromise its integrity.
- Avoid exposing the connector to extreme temperatures or corrosive chemicals beyond its intended operating environment.
5. Maintenance
The HGTTREA 6 Pin Female Automobile Harness Connector requires minimal maintenance. Regular inspection can help ensure its longevity and performance.
- Periodic Inspection: Annually or during other vehicle maintenance, visually inspect the connector for signs of wear, cracking, discoloration, or corrosion.
- Cleaning: If dust or debris accumulates, gently clean the exterior of the connector with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
- Corrosion Prevention: For connectors in high-moisture environments, consider applying a dielectric grease to the pins and mating surfaces to prevent corrosion, ensuring the vehicle's power is off before application.
- Secure Fit: Ensure the connector remains securely seated. A loose connection can lead to intermittent electrical issues or arcing.
6. Troubleshooting
If you experience issues related to the electrical connection, consider the following troubleshooting steps:
- No Electrical Continuity:
- Check if the connector is fully seated and locked into its mating component.
- Inspect individual terminal pins for proper crimping and insertion into the connector housing. A loose or improperly crimped pin can prevent continuity.
- Examine wires for breaks or damage leading to or from the connector.
- Check for corrosion on the pins or within the connector cavities.
- Intermittent Connection:
- This often indicates a loose pin or a partially seated connector. Re-check the seating of both the connector and individual pins.
- Inspect for slight bending or damage to the pins that might prevent a consistent connection.
- Difficulty Connecting/Disconnecting:
- Ensure correct alignment of the connector with its mating part. Do not force the connection.
- Check for any foreign objects or debris within the connector cavities.
- Verify that the correct connector type (e.g., Female with Pin B) is being used for the application.
If issues persist after performing these checks, it may be necessary to consult a qualified automotive technician or replace the connector.
7. Specifications
| Attribute | Detail |
|---|---|
| Model Number | CY-06-1.5-F |
| Brand | HGTTREA |
| Gender | Female |
| Material | Nylon |
| Position | 6 pins |
| Socket Size | 1.5 mm Automotive Socket |
| Item Weight | 1.76 ounces (50 Grams) |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
| Country of Origin | China |
| ASIN | B0DPZPSSGK |
8. Warranty and Support
For any questions, concerns, or assistance regarding the HGTTREA 6 Pin Female Automobile Harness Connector, please contact the seller or manufacturer directly.
If you are not satisfied with the goods you received or require further help, please reach out to the point of purchase or the manufacturer's customer service. Contact information is typically provided with your purchase documentation or on the product packaging.
