Trimigo Baby Swing for Infant to Toddler - Instruction Manual

1. Important Safety Information

Please read all instructions before assembly and use of the Trimigo Baby Swing. Failure to follow these instructions could result in serious injury or death.

• Weight Limit: This baby swing is designed for infants up to 20 lbs (9 kg). Do not use for children exceeding this weight.
• Age Range: Suitable for babies from 0 to 12 months.
• Supervision: Always supervise your baby while they are in the swing. Never leave your child unattended.
• Harness Use: Always use the 5-point safety harness. Ensure it is securely fastened and properly adjusted to fit your child snugly.
• Placement: Place the swing on a flat, stable, and level surface. Do not place near stairs, heat sources, or open flames. Avoid humid environments.
• Inspection: Regularly inspect the swing for loose parts, damaged components, or torn fabric. Discontinue use if any damage is found.
• Assembly: Ensure all parts are correctly assembled and locked before placing your child in the swing.
• Power: Use only the provided power adapter. Keep cords away from children.

2. Package Contents

Verify that all components are present before assembly:

• Swing Unit Base
• Seat Assembly with 5-point Harness
• Overhead Mobile Arm with Plush Toy
• Remote Control
• Power Adapter
• User Manual (this document)

3. Setup

3.1 Assembly

1. Carefully unpack all components from the box.
2. Place the swing base on a flat, stable surface.
3. Attach the seat assembly to the main support arm, ensuring it clicks securely into place.
4. Connect the overhead mobile arm to the designated slot on the seat assembly.
5. Plug the power adapter into the swing unit and then into a standard electrical outlet.

3.2 Harness Adjustment

The 5-point safety harness ensures your baby's security. Adjust the shoulder straps and waist straps to fit snugly around your child without being too tight. The crotch strap should also be adjusted for a secure fit. Always ensure the buckle is fully engaged.

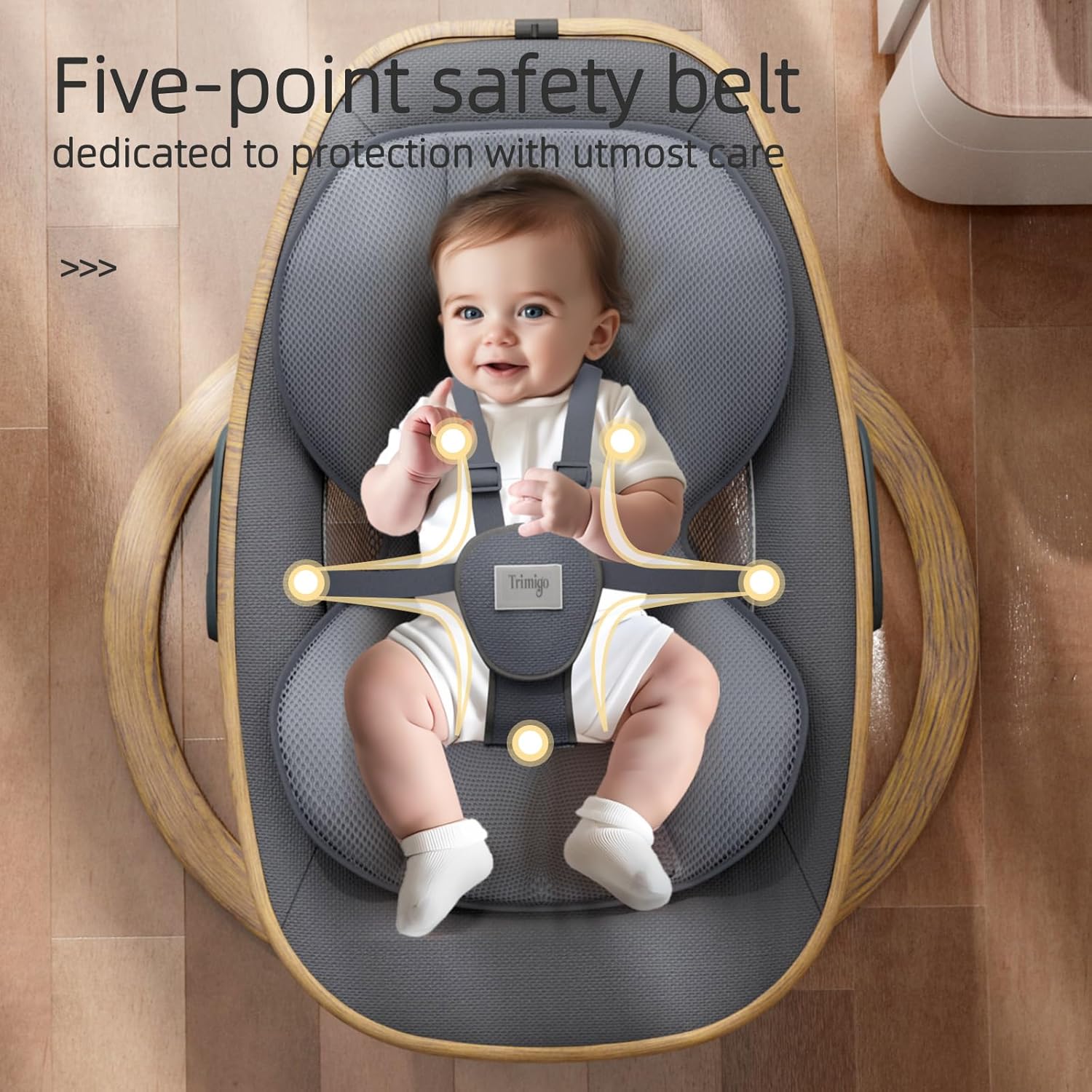

Image: Detailed view of the 5-point safety harness, showing how to secure the baby.

3.3 Seat Recline Adjustment

The swing features 3 adjustable seat heights (18-25°). To adjust, locate the recline mechanism (usually a button or lever on the side or back of the seat) and adjust to the desired position. Ensure the seat is locked into place before use.

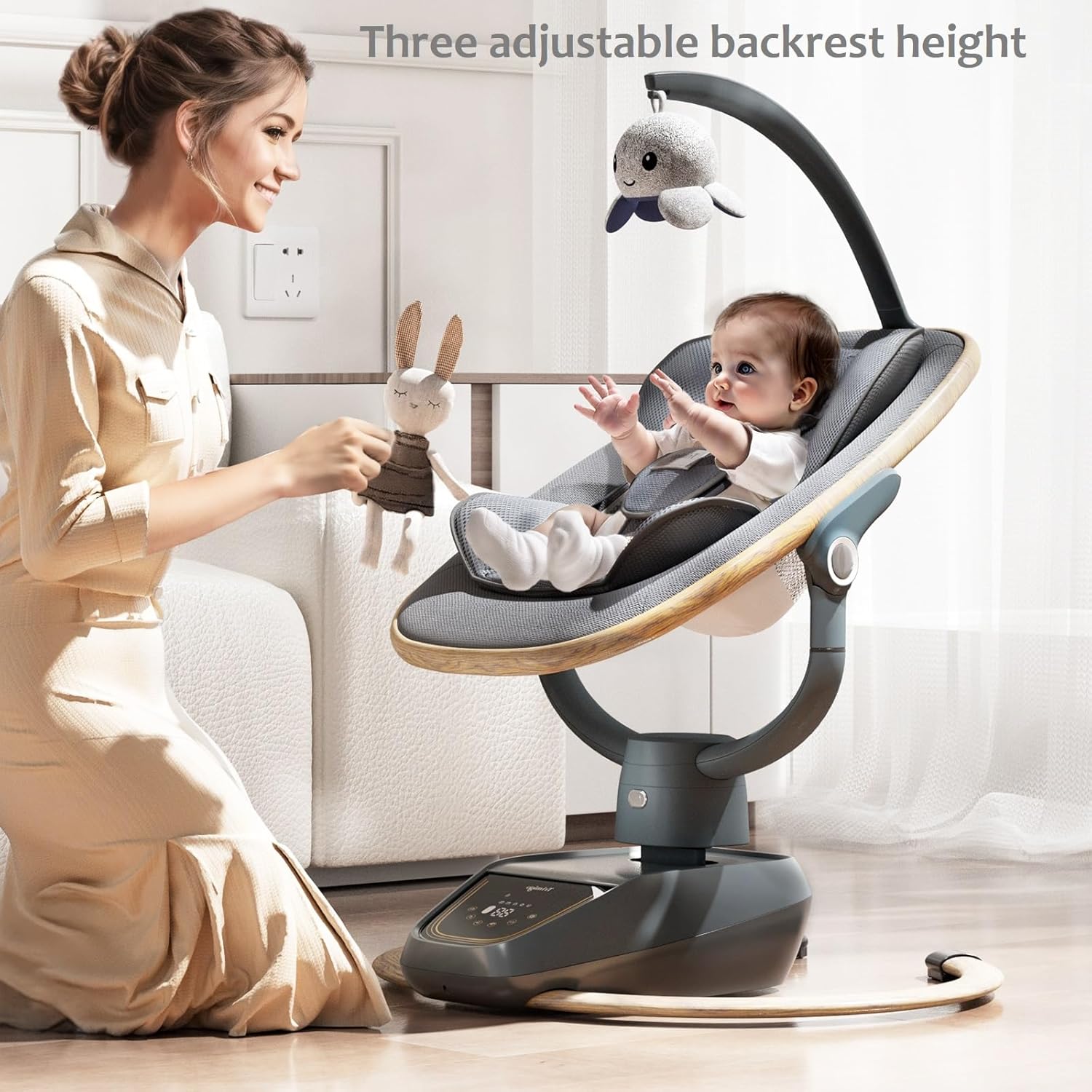

Image: The baby swing with the seat in an upright position, demonstrating adjustable height.

3.4 Seat Rotation

The seat can rotate 180° (90° left or right from the center) to allow you to easily position your baby towards you or another direction without moving the entire unit. Gently rotate the seat until it clicks into the desired orientation.

Image: Visual representation of the swing seat rotating 90 degrees to the left and right.

3.5 Overview Video

Video: A comprehensive overview of the Trimigo baby swing, demonstrating its features and assembly.

4. Operating Instructions

4.1 Control Panel and Remote Control

The Trimigo Baby Swing can be operated using the integrated touchscreen control panel on the base or the included remote control. The remote allows for convenient adjustments from a distance.

Image: The swing's control panel and remote control for easy operation.

4.2 Motion Modes and Speed

The swing offers 5 natural motion modes and 4 adjustable speeds to comfort your baby. These modes include U-shape, N-shape, M-shape, figure-8, and O-shape patterns. Use the 'Mode' button on the control panel or remote to cycle through the motion types, and the speed buttons (+/-) to adjust intensity.

Image: Visual guide to the 5 distinct motion patterns available.

4.3 Music and Sound

Select from 8 gentle melodies or various white noise options to soothe your baby. Use the music note button on the control panel or remote to change tracks and the volume buttons to adjust the sound level.

4.4 Timer Settings

Set the swing to operate for a specific duration using the timer function. Options typically range from 5 to 45 minutes. Press the timer button on the control panel or remote to select the desired duration.

5. Maintenance

5.1 Cleaning Instructions

• Fabric: The breathable fabric seat pad is machine-washable. Remove the fabric cover from the seat assembly. Wash on a gentle cycle with mild detergent. Air dry or tumble dry on low heat. Do not bleach.
• Frame and Base: Wipe down the frame and base with a damp cloth and mild soap. Do not immerse any electronic components in water.
• Plush Toy: The plush toy can be spot cleaned with a damp cloth and mild soap.

5.2 General Care

• Do not load the swing with heavy items.
• Avoid placing the swing in humid environments to prevent damage to electronic components.
• Ensure the swing is always placed on a stable, level surface.

6. Troubleshooting

• Swing Not Operating: Ensure the power adapter is securely plugged into both the swing and the electrical outlet. Check if the power button on the control panel or remote is pressed.
• Irregular Motion: Verify that the swing is on a flat, level surface and that no objects are obstructing its movement.
• Remote Control Not Responding: Check the remote control's battery. Ensure there are no obstructions between the remote and the swing's sensor.
• Unusual Noises: Discontinue use and inspect the swing for any loose parts or damage. Contact customer support if the issue persists.

7. Specifications

8. Warranty and Support

The Trimigo Baby Swing is backed by a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use. Please retain your proof of purchase for warranty claims.

For technical support, troubleshooting assistance, or warranty inquiries, please contact Trunellgea customer service. Refer to the product packaging or the official Trunellgea website for the most current contact information.
