CWTD Lifan 125cc 4-Stroke Semi-Automatic Motor Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your CWTD Lifan 125cc 4-Stroke Semi-Automatic Motor. This high-performance engine is designed for dirt and pit bikes, offering a reliable and powerful upgrade or replacement solution.

The Lifan 1P54FMI 125cc motor features a semi-automatic transmission with an N-1-2-3-4 gear configuration and an automatic clutch. It is built with a CDI ignition system and a PZ20 carburetor for optimal performance and durability.

2. Safety Information

WARNING: Failure to follow these safety instructions may result in serious injury or death.

• Always wear appropriate personal protective equipment (PPE) including gloves, eye protection, and sturdy footwear when handling or working with the engine.
• Ensure the work area is well-ventilated and free from flammable materials.
• Disconnect the spark plug wire before performing any maintenance or installation to prevent accidental starting.
• Allow the engine to cool completely before touching hot components.
• Handle fuel with extreme care. Store fuel in approved containers and away from ignition sources.
• If you are unsure about any installation or maintenance procedure, consult a qualified mechanic.

3. Package Contents

Verify that all items listed below are present in your package:

• 1x Lifan 125cc Semi-Auto Motor (1P54FMI)
• 1x Kick Starter Lever
• 1x Gear Shift Lever
• 1x Intake Manifold
• 1x Manifold Hardware Kit (bolts, gaskets, O-ring)

Figure 3.1: Lifan 125cc Semi-Automatic Motor with all included components: engine, kick starter, gear shift lever, intake manifold, and manifold hardware.

Figure 3.2: Detailed view of the included accessories: intake manifold, gaskets, bolts, kick starter, and gear shift lever.

4. Setup and Installation

This motor is designed for compatibility with a wide range of dirt bikes, including models such as CRF50, CRF70, XR50, XR70, Z50, Z50R, CT70 Mini Trail, Minitrail Monkey, XL70, ST70, QA50, QR50, CL70, SL70, 70 Passport, CS90, SL90, and ZB50. Ensure your bike has standard mounting points for proper fitment.

4.1 Engine Dimensions

Before installation, verify the engine dimensions to ensure proper clearance and fit within your bike's frame.

Figure 4.1: Overall engine dimensions: approximately 430mm (16.93in) length, 290mm (11.42in) height, and 290mm (10.62in) width.

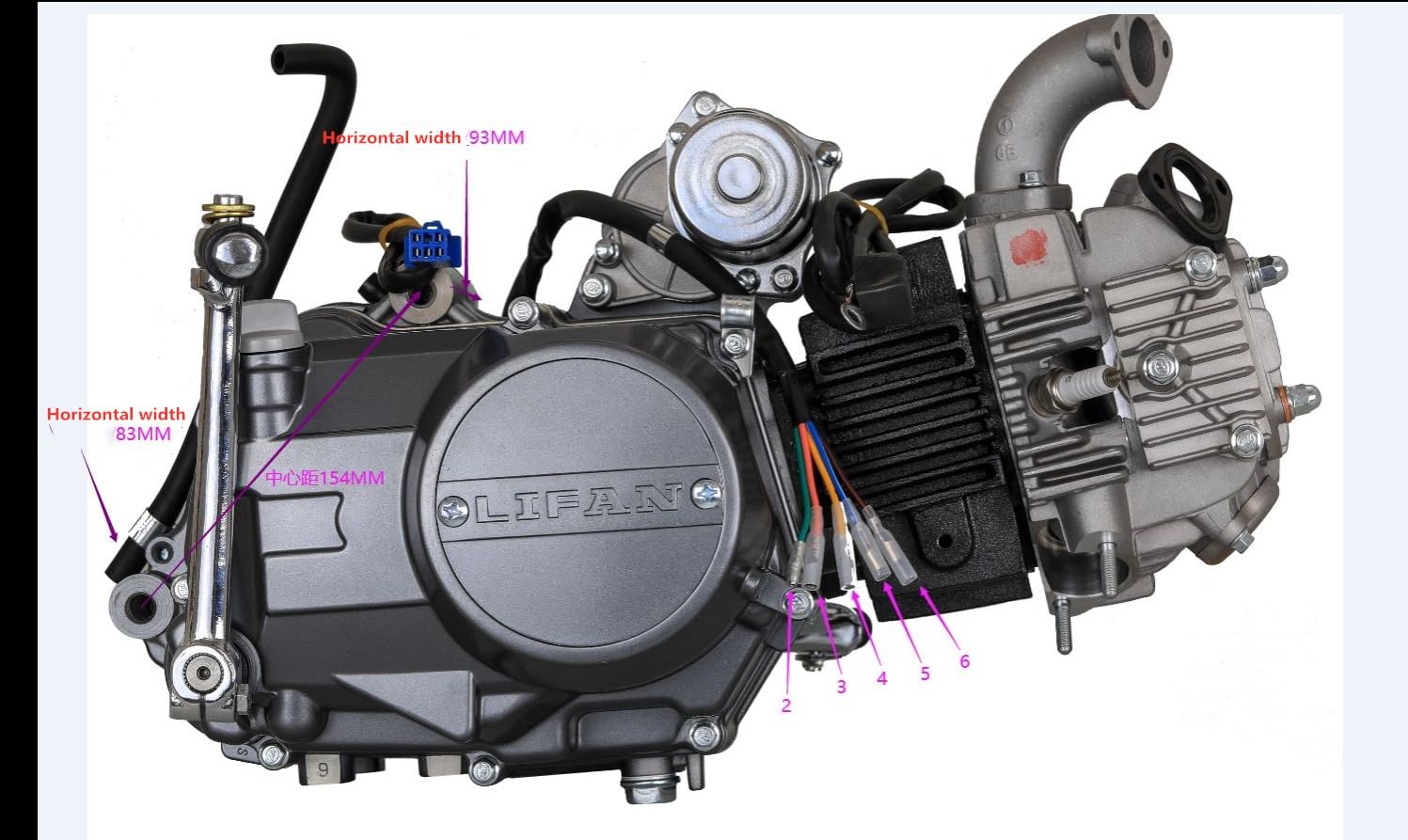

Figure 4.2: Engine dimensions showing horizontal width of 93mm and 83mm, with a center distance of 154mm.

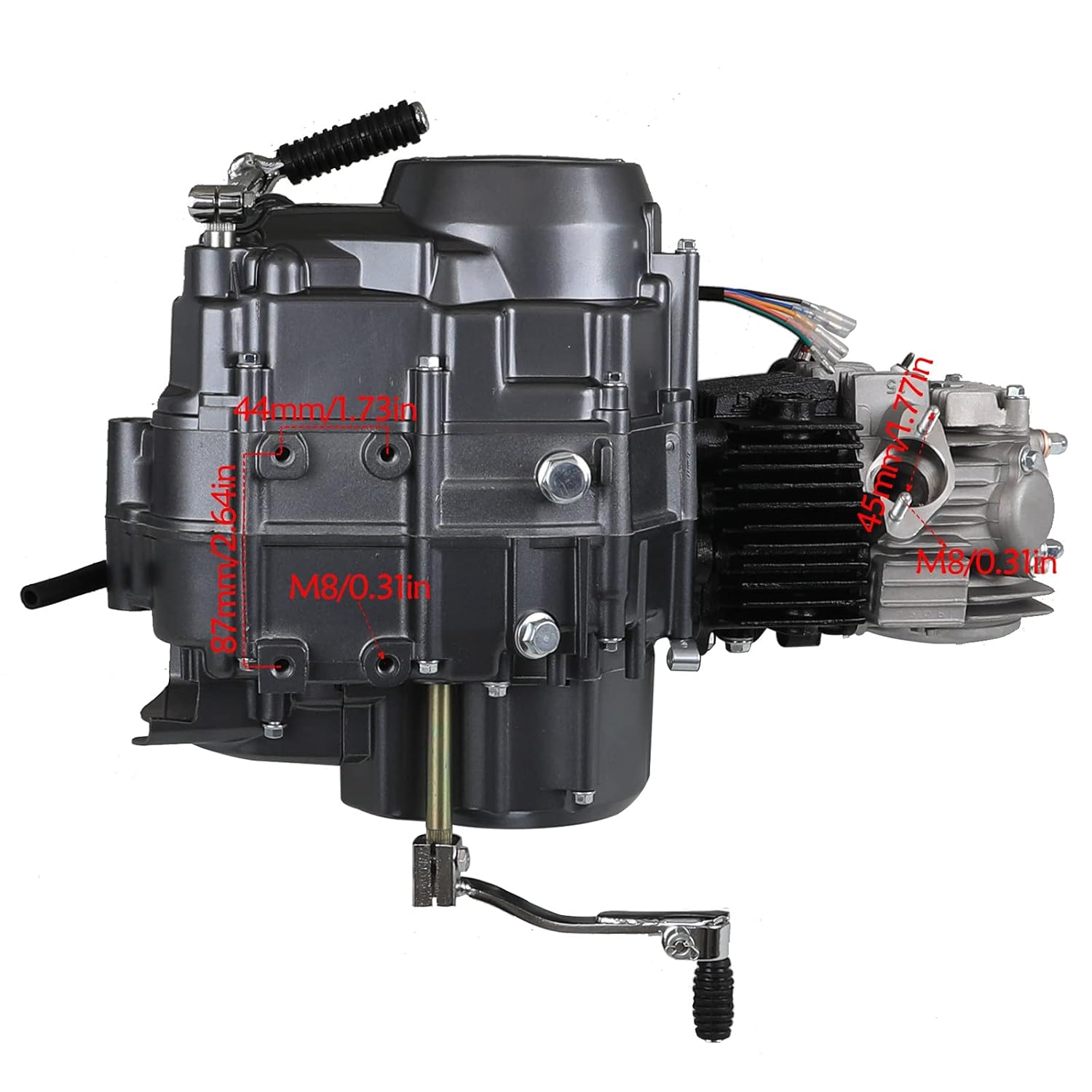

Figure 4.3: Side view of the engine indicating mounting bolt dimensions, including 44mm (1.73in) and 154mm (6.06in) distances, and M8 (0.31in) bolt size.

Figure 4.4: Opposite side view of the engine showing the intake manifold port dimensions: 48mm (1.89in) and 8mm (0.31in).

4.2 Wiring Connections

Refer to the wiring diagram for correct electrical connections. Ensure all connections are secure and properly insulated.

Figure 4.5: Engine wiring diagram. Labels indicate: 1. Gear indicator, 2. Ground, 3/4. Charging, 5. Starter coil trigger, 6. Ignition coil trigger.

4.3 Component Installation

• Intake Manifold: Attach the intake manifold to the engine using the provided hardware and gaskets. Ensure a tight seal to prevent air leaks.
• Kick Starter Lever: Install the kick starter lever onto its shaft.
• Gear Shift Lever: Install the gear shift lever onto its shaft.
• Sprocket: The engine comes with a 15T front sprocket for a 428 chain, with a 20mm shaft. Ensure your chain is compatible.

5. Operating Instructions

5.1 Pre-Operation Checks

• Check engine oil level.
• Ensure fuel tank is adequately filled with appropriate fuel.
• Verify all electrical connections are secure.
• Inspect the chain tension and lubrication.

5.2 Starting the Engine

• Turn the fuel valve to the ON position.
• If the engine is cold, engage the choke.
• With the ignition ON, firmly press down on the kick starter lever. Repeat if necessary until the engine starts.
• Once started, gradually disengage the choke as the engine warms up.

5.3 Gear Shifting (Semi-Automatic)

This engine features a semi-automatic transmission with an automatic clutch. This means there is no manual clutch lever to operate. The gear configuration is N-1-2-3-4 (4-up shifting).

• To shift gears, simply use the gear shift lever.
• From Neutral (N), press down once to engage 1st gear.
• To shift to higher gears (2nd, 3rd, 4th), lift the lever up.
• To downshift, press the lever down.
• The automatic clutch will engage and disengage as you shift gears and apply throttle.

6. Maintenance

Regular maintenance is crucial for the longevity and optimal performance of your engine.

6.1 Engine Oil

• Oil Type: Recommended 15W/40-SE oil.
• Oil Capacity: Approximately 900mL.
• Lubrication System: Pressure and splash system.
• Oil Change Interval: Refer to your bike's specific service manual for recommended oil change intervals. Generally, change oil after the first 20 hours of operation, then every 50-100 hours or seasonally.

6.2 Spark Plug

• Spark Plug Type: A7TC.
• Inspect and clean the spark plug regularly. Replace if electrodes are worn or fouled.

6.3 Air Filter

• Clean or replace the air filter element regularly, especially when operating in dusty conditions. A dirty air filter can reduce engine performance and lifespan.

6.4 General Inspection

• Periodically check all bolts and fasteners for tightness.
• Inspect fuel lines and connections for leaks or damage.
• Ensure the carburetor is clean and properly adjusted.

7. Specifications
