MEJE #001U Electric Bidet Seat

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your MEJE #001U Electric Bidet Seat. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.

Image: The MEJE #001U Electric Bidet Seat with its accompanying remote control.

Product Features

The MEJE #001U Electric Bidet Seat offers a range of advanced features designed for comfort and hygiene:

• Automatic Open/Close Lid: Equipped with a motion sensor, the lid automatically opens and closes for hands-free operation.
• Smart Bidet Functions: Includes a heated seat, integrated personal wash, nightlight, instant warm water, and a warm air dryer.
• Ultra-Thin Design: Features a sleek, streamlined aesthetic that combines compact size with powerful functionality.
• 316 Stainless Steel Self-Cleaning Nozzle: Ensures hygiene and durability with a self-cleaning function.
• One-Touch Integrated Control: Intuitive control for various lighting modes and functions.
• LED Display Remote Control: Provides real-time synchronization of settings and status.
• Instant Hot Water: Delivers hot water on demand with consistent temperature for comfort.

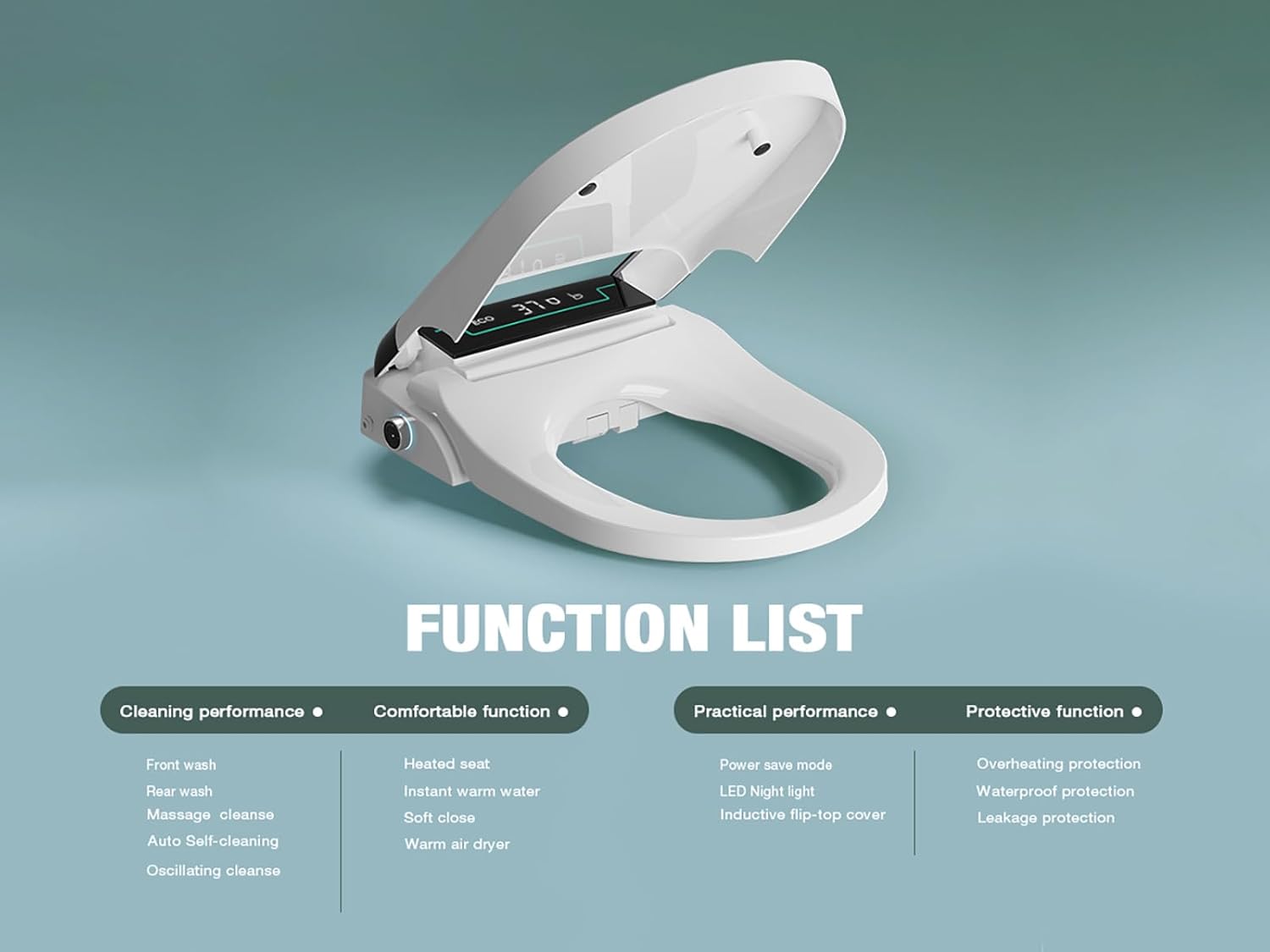

Image: Overview of cleaning, comfort, practical, and protective functions.

Image: Illustrates the ultra-thin styling, intelligent digital display, and streamlined lines of the bidet seat.

Image: Depicts the radar sensor functionality for automatic lid opening and closing when approaching or leaving the toilet.

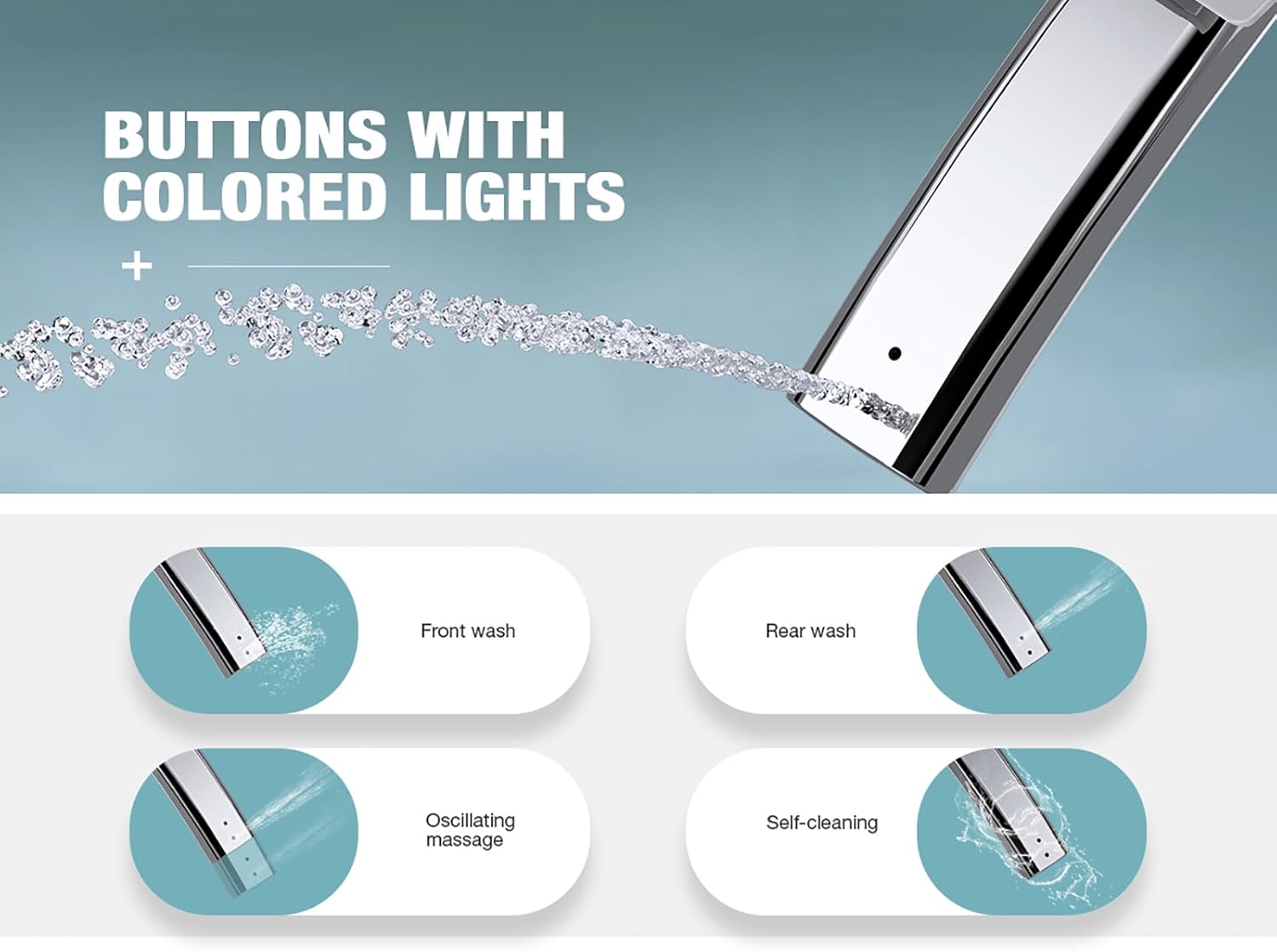

Image: Close-up of the bidet nozzle, illustrating its capabilities for front wash, rear wash, oscillating massage, and self-cleaning.

Image: Shows the control knob with colored lights indicating different functions such as standby, warm air dryer, front wash, rear wash, and induction lamp.

Installation Guide

Follow these steps to properly install your MEJE #001U Electric Bidet Seat. It is recommended to have basic plumbing knowledge or consult a professional.

Tools Required:

• Wrench
• Screwdriver

Accessories Included:

Image: Displays the included accessories: bidet seat, remote controller, water filter, 1/4" water filter tubing, bracket, and user manual.

The package includes: Bidet Seat (1pc), Remote Controller (1pc), Water Filter (1pc), 1/4" water filter tubing (1pc), Bracket (1 set), User Manual (1pc).

Step-by-Step Installation:

1. Remove Original Toilet Cover: Carefully remove the existing toilet seat and cover. Clean the surface of the toilet bowl to ensure a proper fit for the new bidet seat.
2. Install the Base: Insert the two expansion tubes into the toilet's mounting holes. Align the base of the intelligent cover plate with these mounting holes. Attach the fixed accessories and insert two screws. Tighten the screws securely with a screwdriver.
3. Attach the Smart Cover Plate: Position the smart cover plate over the installed base. Press the side button on the cover plate to lock it in place. Double-check its secure installation.
4. Connect the Water Supply: Attach and tighten the water filter to the three-way angle valve. Then, connect and tighten the PC inlet pipe. Securely connect the outlet of the three-way angle valve to the toilet inlet hose using a wrench, ensuring there are no leaks. Attach the other end of the PC hose to the inlet port of the intelligent cover plate.
5. Final Step: Remove the protective film from the cover plate. Install the remote control into its bracket. Installation is now complete.

Operating Instructions

Your MEJE #001U Bidet Seat is operated via the included LED display remote control. Familiarize yourself with the remote's functions for optimal use.

Image: The easy-to-use remote control featuring a large LED display, with controls for water pressure (4 levels), nozzle position (4 levels), and temperature adjustment (3 speeds).

• Power On/Off: Use the designated button on the remote to turn the unit on or off.
• Automatic Lid: The motion sensor will detect your approach and automatically open the lid. It will close after a period of inactivity.
• Heated Seat: Adjust the seat temperature using the remote control to your preferred comfort level.
• Wash Functions: Select between front wash, rear wash, and oscillating massage. Adjust water pressure and nozzle position as needed.
• Warm Air Dryer: Activate the warm air dryer function after washing for a complete cleaning experience.
• Nightlight: The integrated nightlight provides soft illumination for nighttime use.
• LED Display: The remote's LED display shows current settings for water temperature, air temperature, and seat temperature.

Maintenance

Regular maintenance ensures the longevity and hygienic performance of your bidet seat.

• Self-Cleaning Nozzle: The 316 stainless steel nozzle has an automatic self-cleaning function. Ensure this function operates regularly.
• Water Filter: The product includes a water filter. Normally, the filter needs to be replaced every 6 months, depending on local water quality. Refer to the accessories image for filter type.
• General Cleaning: Use a soft, damp cloth and mild, non-abrasive cleaner to wipe down the exterior surfaces. Do not use harsh chemicals or abrasive pads.

Specifications

Technical details for the MEJE #001U Electric Bidet Seat:

Image: Detailed diagram showing product dimensions and key technical specifications.

Troubleshooting

If you encounter any issues with your bidet seat, please refer to the following general troubleshooting tips:

• No Power: Check if the power cord is securely plugged into a working outlet. Ensure the circuit breaker has not tripped.
• No Water Flow: Verify that the water supply valve is fully open. Check if the water filter is clogged and needs replacement.
• Lid Not Opening/Closing Automatically: Ensure the motion sensor is clean and unobstructed.
• Water Temperature Issues: Confirm that the water heater is functioning and the temperature setting on the remote is correct.
• Remote Control Not Responding: Check the remote control's batteries. Ensure there are no obstructions between the remote and the bidet seat.

For persistent issues, please contact customer support.

Warranty and Support

Your MEJE #001U Electric Bidet Seat comes with a manufacturer's warranty. Please refer to the warranty card included in your packaging for specific terms and conditions.

For technical assistance, replacement parts, or warranty claims, please contact MEJE customer support through the retailer where the product was purchased or visit the official MEJE website for contact information.
