Kslysuty Gaming Chair User Manual

1. Introduction

Thank you for choosing the Kslysuty Gaming Chair. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure you get the most out of your new chair. Please read this manual thoroughly before use and retain it for future reference.

Image 1.1: The Kslysuty Gaming Chair, featuring a brown leather finish, ergonomic design, and integrated footrest.

2. Safety Information

WARNING: Always assemble the chair according to the provided instructions. Be aware of the chair's weight (approximately 45 pounds) and ensure it is stable and secure before use. Do not stand on the chair or use it for purposes other than sitting.

• Ensure all bolts and screws are tightened securely before first use and periodically check for looseness.
• Keep small parts away from children during assembly.
• Do not exceed the maximum weight recommendation of 300 pounds.
• Avoid placing the chair near heat sources or in direct sunlight for prolonged periods to prevent material degradation.

3. Product Features

The Kslysuty Gaming Chair is designed for comfort and versatility, incorporating several advanced features:

• Independent Pocket Springs: The seat cushion features individual pocket springs, similar to those found in sofas, providing adaptive support and a comfortable seating experience.
• Vintage Breathable Leather: The chair's surface is crafted from retro leather, offering enhanced breathability, softness, and durability compared to traditional PU leather, making it suitable for extended use.
• Wider Backrest Design: Unlike many gaming chairs, this model eliminates side wings and features a wider backrest (120-degree angle design) to provide more space and freedom of movement, preventing a cramped feeling.
• Upgraded Footrest: The newly designed footrest offers increased height and stability for improved comfort. Its soft cover is detachable for personalized preference.
• Adjustable Backrest: The backrest can be adjusted from 90 to 145 degrees, allowing you to fix it at any angle within this range to suit various activities such as gaming, watching, or resting.

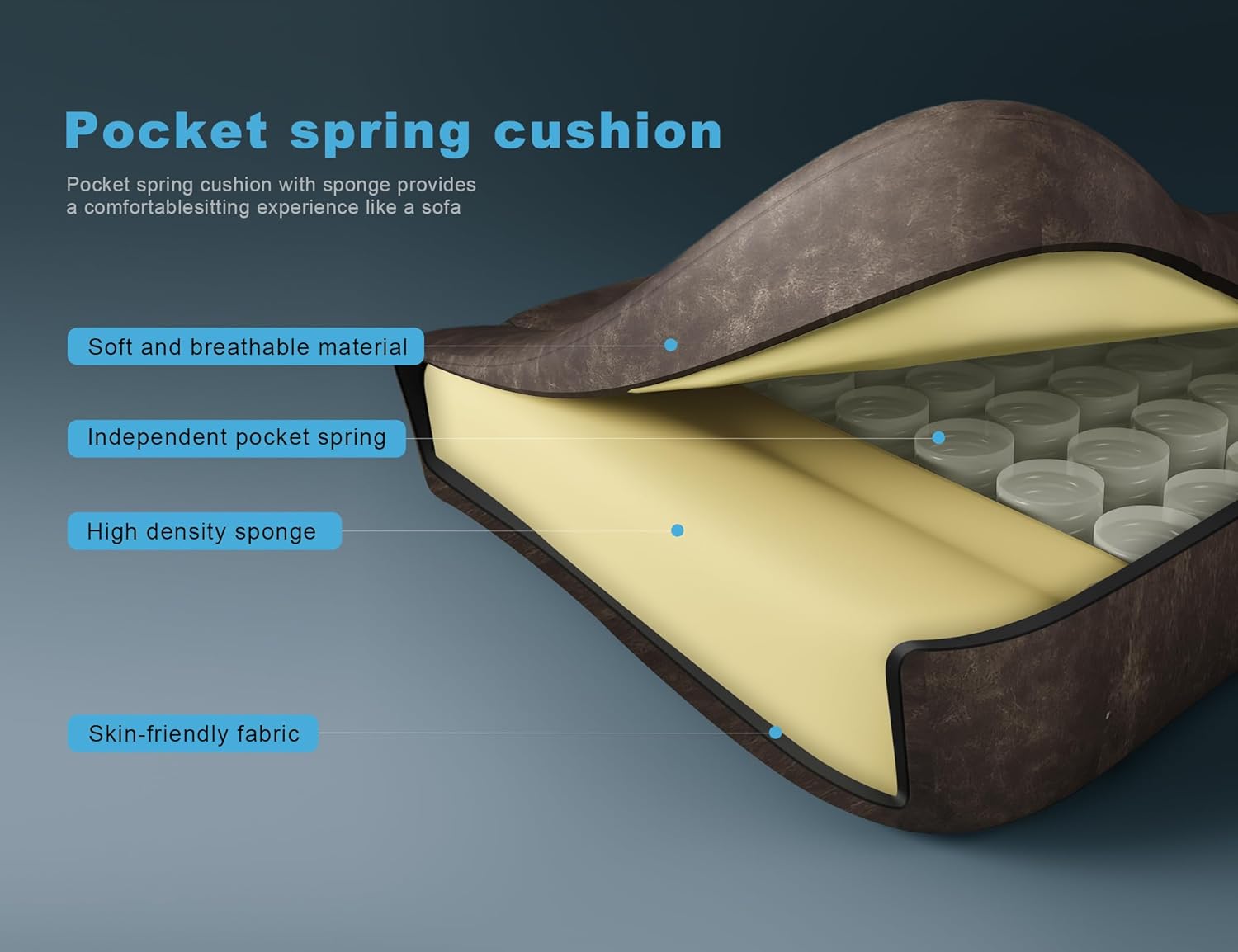

Image 3.1: Cross-section diagram illustrating the independent pocket spring cushion, high-density sponge, and skin-friendly fabric layers for enhanced comfort.

Image 3.2: Visual representation of the chair's adjustable recline settings: 90 degrees for gaming, 120 degrees for watching, and 145 degrees for resting.

4. Package Contents

Before assembly, please ensure all components are present and undamaged. The package should include:

• Chair Backrest
• Seat Cushion with Arm Pads
• Footrest (Ottoman)
• Casters (Wheels)
• Heavy-duty Iron Base
• Grade 4 Gas Cylinder
• Aluminum Thickened Tilt Mechanism
• Headrest Pillow
• Lumbar Support Pillow
• Assembly Hardware (screws, bolts, Allen wrench)

Image 4.1: Key components of the chair's base and adjustment mechanism, including the aluminum thickened tilt mechanism, Grade 4 gas cylinder, heavy-duty iron base, and quiet swiveling casters.

5. Setup and Assembly

Assembly of the Kslysuty Gaming Chair is generally straightforward. While detailed step-by-step diagrams are not provided in this manual, follow these general guidelines. If you encounter difficulties, online video tutorials for similar gaming chairs can be a helpful resource.

1. Attach Casters to Base: Insert the casters into the holes at the end of each leg of the heavy-duty iron base until they click securely into place.
2. Install Gas Cylinder: Place the gas cylinder into the center hole of the assembled base.
3. Attach Tilt Mechanism to Seat: Secure the aluminum thickened tilt mechanism to the underside of the seat cushion using the provided screws. Ensure the front of the mechanism aligns with the front of the seat.
4. Connect Seat to Base: Carefully place the assembled seat (with tilt mechanism) onto the gas cylinder. The tapered end of the gas cylinder should fit into the mechanism's opening.
5. Attach Backrest to Seat: Align the backrest with the mounting brackets on the seat cushion and secure it with the appropriate bolts. Ensure anti-dislodgement bolts are used if specified.
6. Install Footrest: Attach the footrest assembly to the designated points on the underside of the seat, ensuring it can extend and retract smoothly.
7. Attach Pillows: Secure the headrest and lumbar support pillows to the backrest using their straps.
8. Final Check: Once assembled, test all functions and ensure all connections are tight and secure before sitting on the chair.

Image 5.1: Detail of the armrest mechanism, highlighting the anti-dislodgement bolts designed to prevent loosening and detachment over time.

6. Operating Instructions

Your Kslysuty Gaming Chair offers several adjustable features for personalized comfort:

6.1. Adjusting Chair Height

To adjust the chair's height, locate the lever on the right side, beneath the seat. While seated, pull the lever up to lower the chair. To raise the chair, stand up slightly to remove weight from the seat, then pull the lever up. Release the lever at your desired height.

6.2. Reclining the Backrest

The backrest can be reclined between 90 and 145 degrees. Locate the recline lever on the right side of the chair, near the seat. Pull the lever up and lean back to your desired angle. Release the lever to lock the backrest in position. To return to an upright position, pull the lever and lean forward.

6.3. Using the Footrest

To deploy the footrest, pull it out from beneath the seat. Extend it to your desired length. To retract, push it back under the seat until it is fully stored. The soft cover on the footrest is detachable for cleaning or preference.

Image 6.1: A user demonstrating the fully reclined position with the footrest extended, ideal for relaxation or watching content.

7. Care and Maintenance

Proper care will extend the life and appearance of your Kslysuty Gaming Chair:

• Cleaning: Wipe clean with a damp cloth. For tougher spots, use a mild soap solution and wipe dry immediately. Avoid harsh chemicals or abrasive cleaners.
• Regular Checks: Periodically check all bolts and screws to ensure they remain tight. Re-tighten as necessary to maintain stability and prevent squeaking.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause the leather to fade or crack.
• Footrest Cover: The detachable soft cover on the footrest can be removed for cleaning as needed.

8. Troubleshooting

Here are some common issues and their potential solutions:

9. Product Specifications

Image 9.1: Detailed product dimension diagram, including height, width, depth, and seat measurements.

10. Warranty and Customer Support

Kslysuty is committed to providing high-quality products. For any questions, concerns, or issues regarding your gaming chair, please contact the seller or manufacturer directly through the platform where you purchased the product. Please have your model number (c3f5c332-3a0d-4f1c-a73c-67473592fe83) and purchase details ready when contacting support.

Information regarding specific warranty periods or terms should be available from your point of purchase or the manufacturer's official website.
